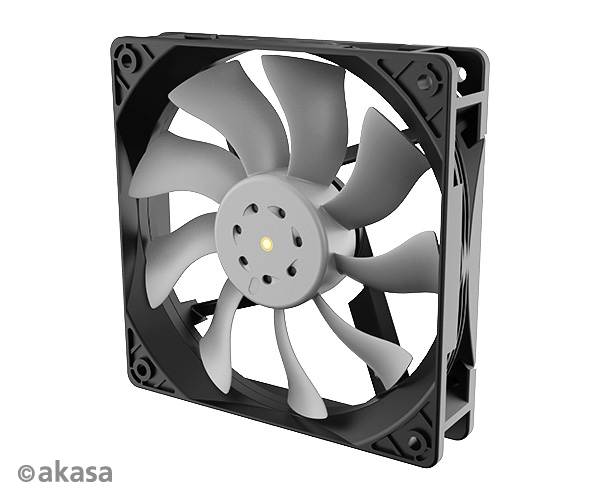

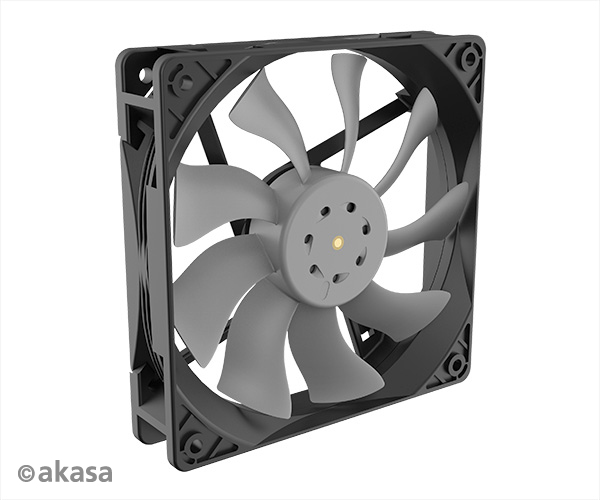

Akasa OTTO SF12 Elite Airflow Optimised Cooling Fan
• Advanced auto industry structure design
• IP68 rated rotor technology
• Advanced blade technology
• Intelligent PWM speed control
• Easy to clean
• Rubber mounting pins
Advanced S-flow design provides a stronger and more centralised airflow making it perfect for either pushing cool air into a case or pulling hot air out of the case. Ideal also for heavy duty applications.
Superstrong materials and water resistance make Otto fan incredibly durable. IP68 rated rotor able to withstand dirt, dust, sand and water.
Intelligent PWM speed control ranging from 0-2000 RPM, ensures efficient and silent cooling delivery during higher and lower loads. Connected via a 4-pin connector.
Three phase motor provides smoother shifts between the slots, this lowers unnecessary vibrations combined with unmatched energy efficiency.
Detachable frame provides convenient cleaning access without the need to remove whole frame.
Rubber case fan mounts; eliminate vibration and resonance given off by fans by isolating them from the case.
Specifications
| Application |
Case, Industrial application |
| Dimension |
120 X 120 X 25mm |
| Fan Speed |
0-2000 RPM |
| Max Airflow |
97.02 CFM |
| Max Static Air Pressure |
3.59 mm H2O |
| Noise Level |
7.1-31.7 dB(A) |
| Voltage Rating |
12V DC |
| Rated Current |
0.16A |
| Bearing |
Two Ball Bearing |
| Connector |
4pin PWM |
| Colour |
Grey |
| Contents |
OTTO SF12 Fan, 4 x Rubber Pin |
| Fan Life Expectancy |
80,000 hours |
| Warranty |
2 years |
| Product Code |
AK-FN110 |
Contents
 |
 |
|
| OTTO SF12 Fan |
Tool-free Fan Mounting Pins |
|
