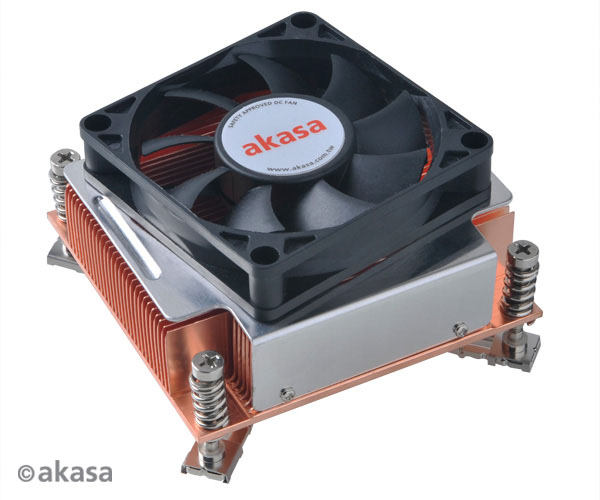

Akasa 2U CPU Cooler for Intel LGA1155, LGA1156 and LGA1366

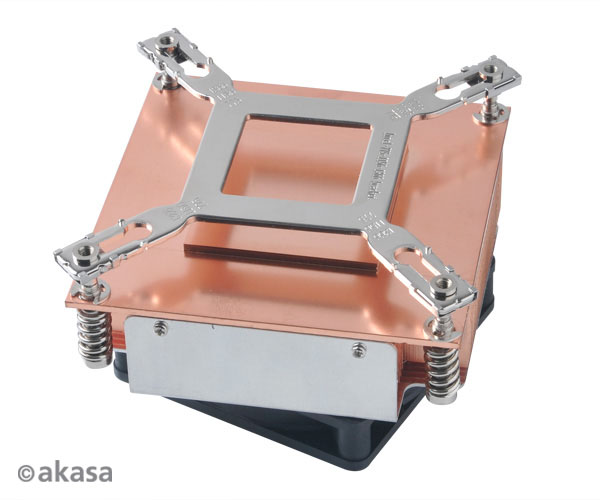

2U chassis server cooling solution for Intel LGA1155, 1156 and 1366 motherboards. Copper heatsink designed for rackmount or workstation chassis. Auto thermal long life fan provides accurate cooling. Pre-applied spring-loaded screws and motherboard backplate guarantee safe retention.
• Active LGA1155, 1156 and 1366 cooling solution for 2U chassis
• Auto thermal fan with automatic speed control
• Solid copper heatsink
• Reliable and long life twin ball bearing
Specifications
| Socket type |
Intel LGA1155, 1156 and 1366 |
| Cooler dimension |
90 x 89 x 42.5 mm |
| Heatsink material |
Pure copper |
| Weight |
605g |
| Installation |
Screws and backplate |
| Fan dimension |
70 x 70 x 15 mm |
| Fan speed |
3000 - 6000 RPM |
| Max airflow |
46.98 CFM (76.24 m³/h) |
| Max air pressure |
8.94 mm H2O |
| Noise level |
29.1 - 46.5 dB(A) |
| Current rating |
0.40A |
| Voltage rating |
12V DC |
| Bearing type |
Twin Ball Bearing |
| Fan life expectancy |
50,000 hours |
| Fan connector |
3pin |
| Product code |
AK-CC7302BT01 |
Contents
|
|
 |
 |
| Dual Mounting Backplate |
Thermal Compound |
Images
|
