Akasa KS12 Low Profile CPU Cooler Mini-ITX and HTPC cases
Supports up to 65W TDP.
The thin sickle-shape fan blades of the fan along with the radial aluminium heatsink deliver outstanding cooling performance. With a height of only 31.8mm this low profile cooler is optimised to fit in Mini-ITX, HTPC or other small form factor cases. The intelligent PWM fan delivers as much air as needed at any given time to cool the CPU. The spring-loaded screws with backplate mounting design ensure maximum stability and ideal mounting pressure. Thermal compound is pre-applied.
• High engineered radial aluminium heatsink for effective cooling performance
• 95 mm low noise intelligent PWM fan

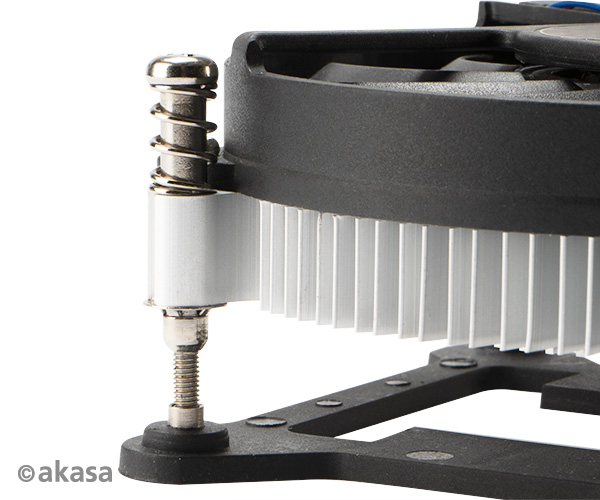

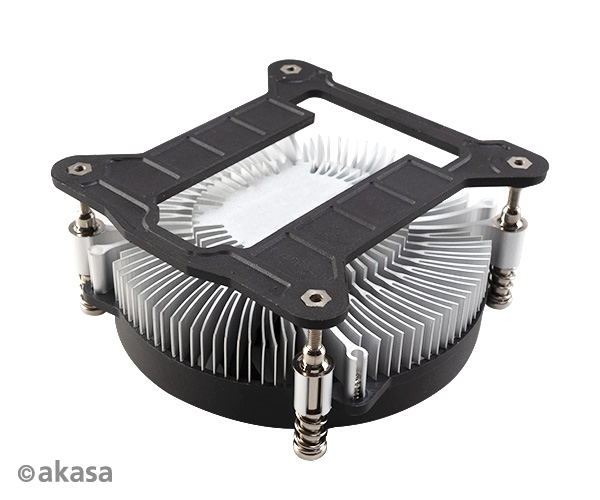

• Spring-loaded screws and backplate mounting design ensure maximum stability and ideal mounting pressure
• Hi-grade thermal interface pre-applied
Specifications
| Socket type |
LGA1150, LGA1151, LGA1155, LGA1156, LGA1200 |
| Cooler dimensions |
96 x 96 x 31.8 mm |
| Heatsink material |
Aluminium |
| Weight |
184g |
| Installation |
Screws and retention backplate |
| Fan dimensions |
96 x 96 x 16.8 mm |
| Fan speed |
800-2800 RPM |
| Fan airflow |
36.28 CFM |
| Fan air pressure |
1.7mm H20 |
| Noise level |
37.6 dB(A) |
| Current rating |
0.2A |
| Voltage rating |
12V DC |
| Bearing type |
EBR Bearing |
| Fan life expectancy |
40000 hours |
| Fan connector |
4pin PWM |
| Product code |
AK-CC6308EP01 |
Images
|
