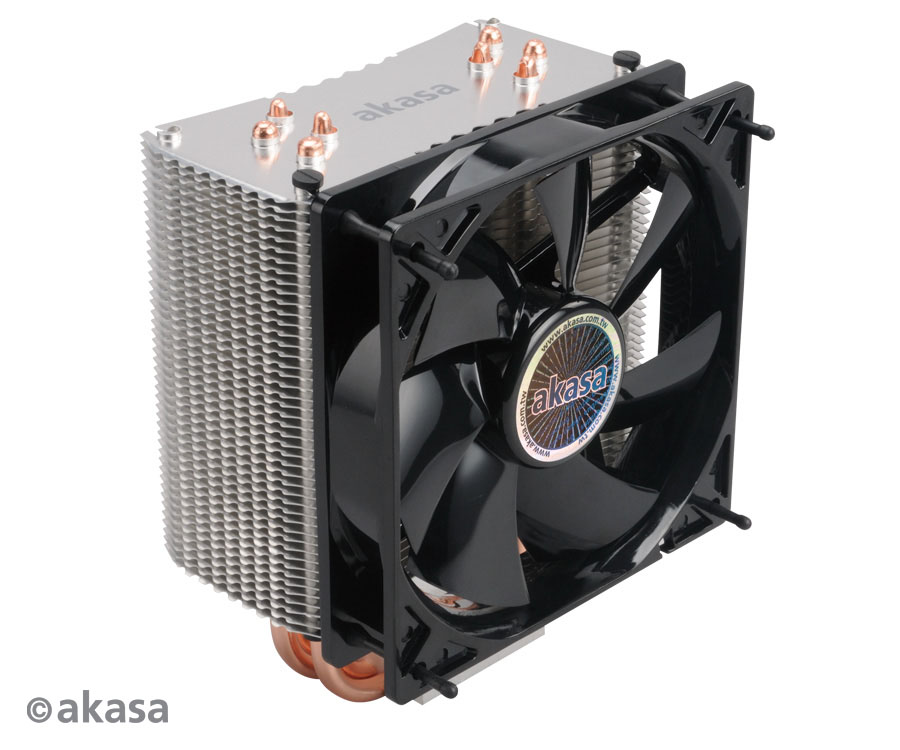

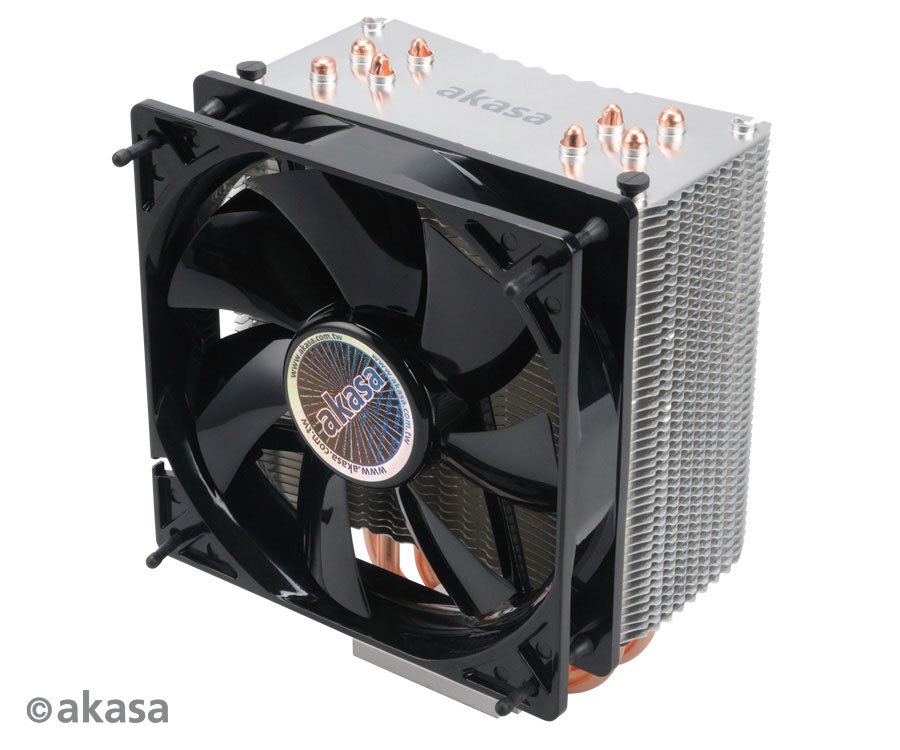

Akasa Nero 3 High Performance Heatpipe CPU Cooler
Akasa NERO classic design combines peak performance and near silent operation. A multi-platform cooler designed for the entire range of current Intel
and AMD processors. The four high capacity heatpipes utilize direct CPU contact technology for rapid heat transfer. Direct contact eliminates thermal

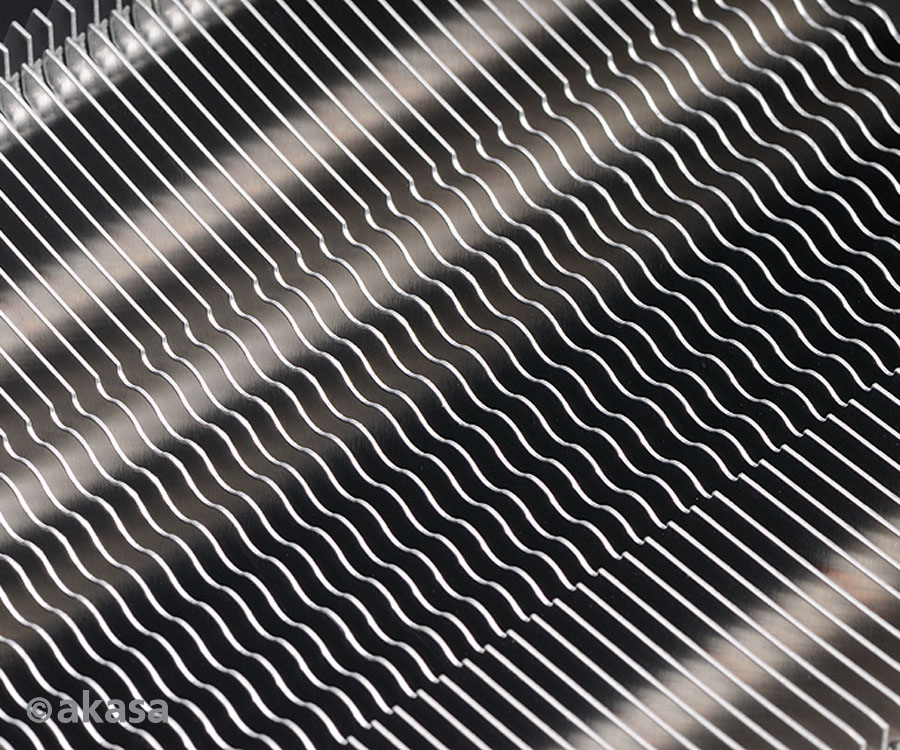

resistance thereby increasing efficiency. High grade aluminium profiled fins ensure optimum heat dissipation. A piano black 120mm PWM fan is mounted
using anti-vibration siliconized rubber pins giving whisper quiet cooling.
The product design has been refined to ensure ultra quiet and exceptional cooling for CPU’s up to 150W TDP (Thermal Design Power). It is compatible
with the new forthcoming Intel LGA 2011 processors. Intel multi-platform mounting kit is used for secure mounting on Intel LGA775, LGA1155, LGA1156
and LGA1366 platforms. AMD Sockets 939, AM2, AM2+ and AM3 are catered for with a cam-lever clip for safe and easy attachment. Performance thermal
compound is supplied.

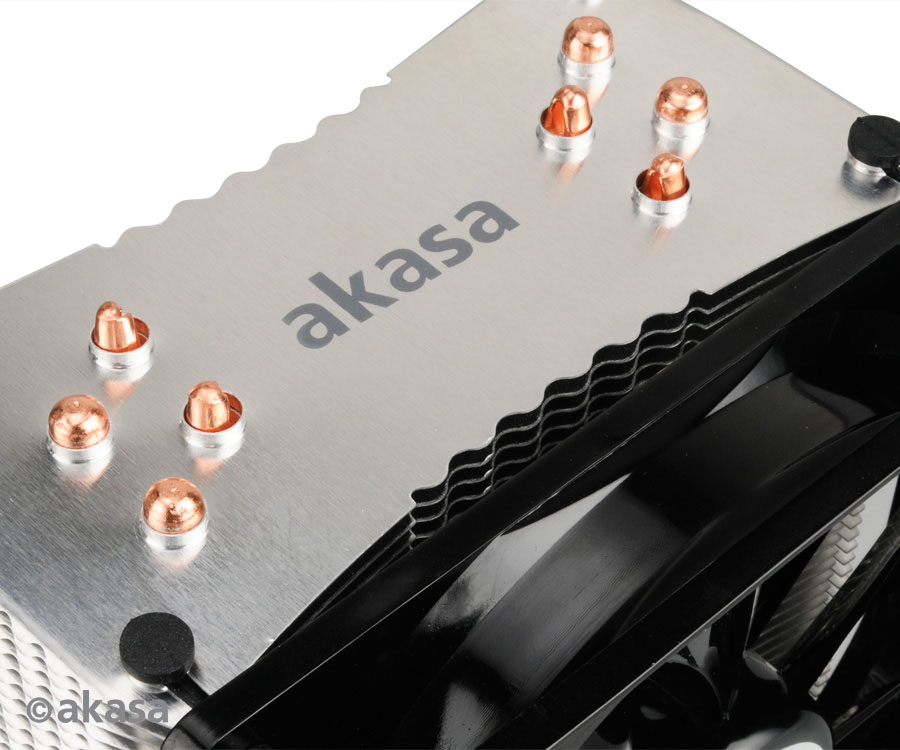

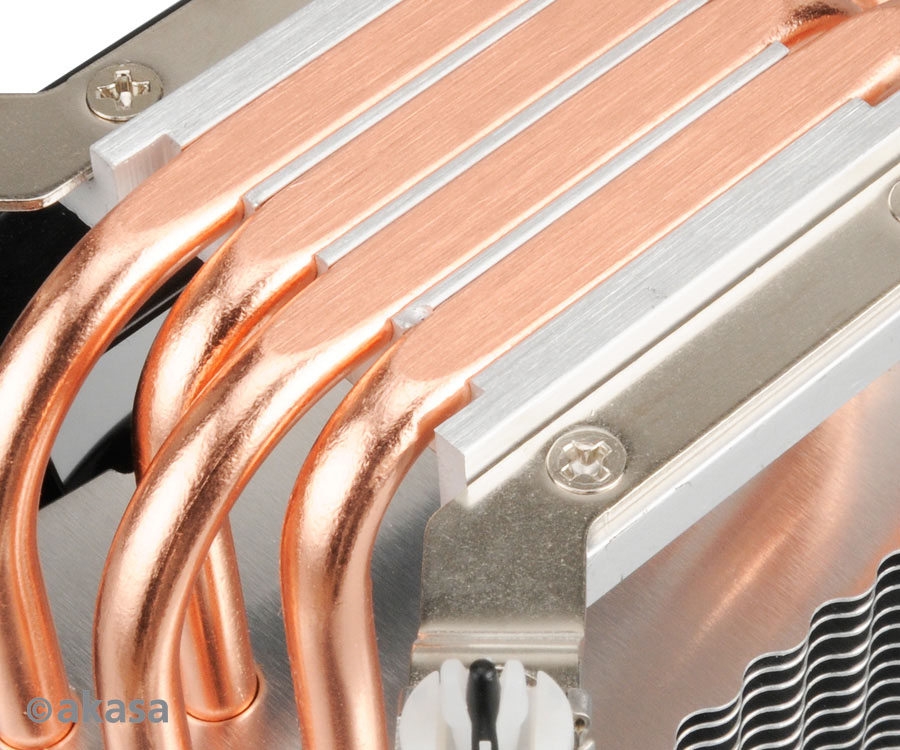

• Four high capacity 6mm heatpipes with direct CPU contact

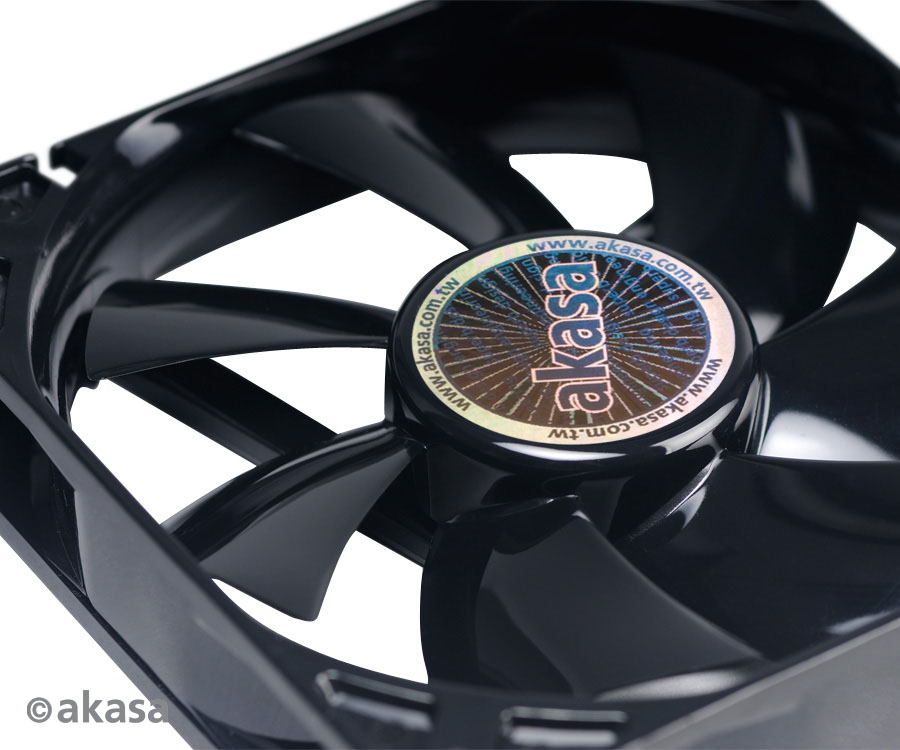

• Piano black 12cm fan with PWM

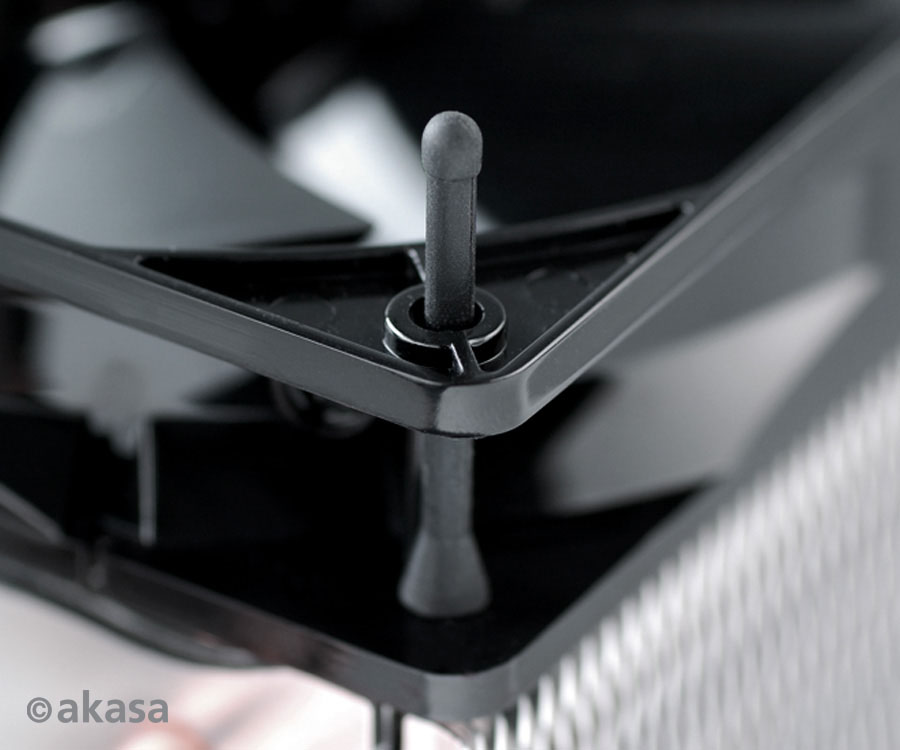

• Siliconized rubber fan mounts for enhance ultra quiet performance
Specifications
| Socket type |
Intel LGA775, LGA115X, LGA1366, LGA2011, LGA2066 AMD Socket AM2, AM2+, AM3, AM3+, AM4, FM1, FM2 & FM2+ |
| Cooler dimensions |
120 (W) x 86.7 (D) x 160 (H) mm |
| Heatsink material |
High grade aluminium fins, copper heatpipes |
| Heatpipe |
6mm x 4 |
| Weight |
609g |
| Installation |
Screws and backplate (Intel LGA775 / 1155 / 1156 / 1366)
Screws (Intel LGA2011)
Cam-lever clip (AMD) |
| Fan dimension |
120 x 120 x 25mm |
| Fan speed |
500-1500 RPM (PWM controlled) |
| Max airflow |
50.54 CFM |
| Max air pressure |
1.32 mm H2O |
| Noise level |
24.6 dB(A) |
| Voltage rating |
DC 12V |
| Bearing type |
EBR |
| Fan life expectancy |
40,000 hours |
| Fan connector |
4pin PWM |
| Product code |
AK-CC4013EP01 |
Contents
|
|
 |
 |
 |
 |
 |
| Heatsink with Intel mountings pre-installed |
PWM controlled 12cm fan |
Rubber fan mounting pins |
LGA2011 mounting brackets |
Spring-loaded screws for LGA2011 |
 |
 |
 |
 |
|
| Intel LGA775, LGA1155, LGA1156 & LGA1366 motherboard backplate |
Intel backplate protective film |
AMD mounting clip |
Thermal Compound |
|
