Actisense NGX-1-ISO NMEA 2000 Dual Gateway with 1.5m Drop Cable│10Hz│For Marine

New   |   1 Year Manufacturer Warranty*

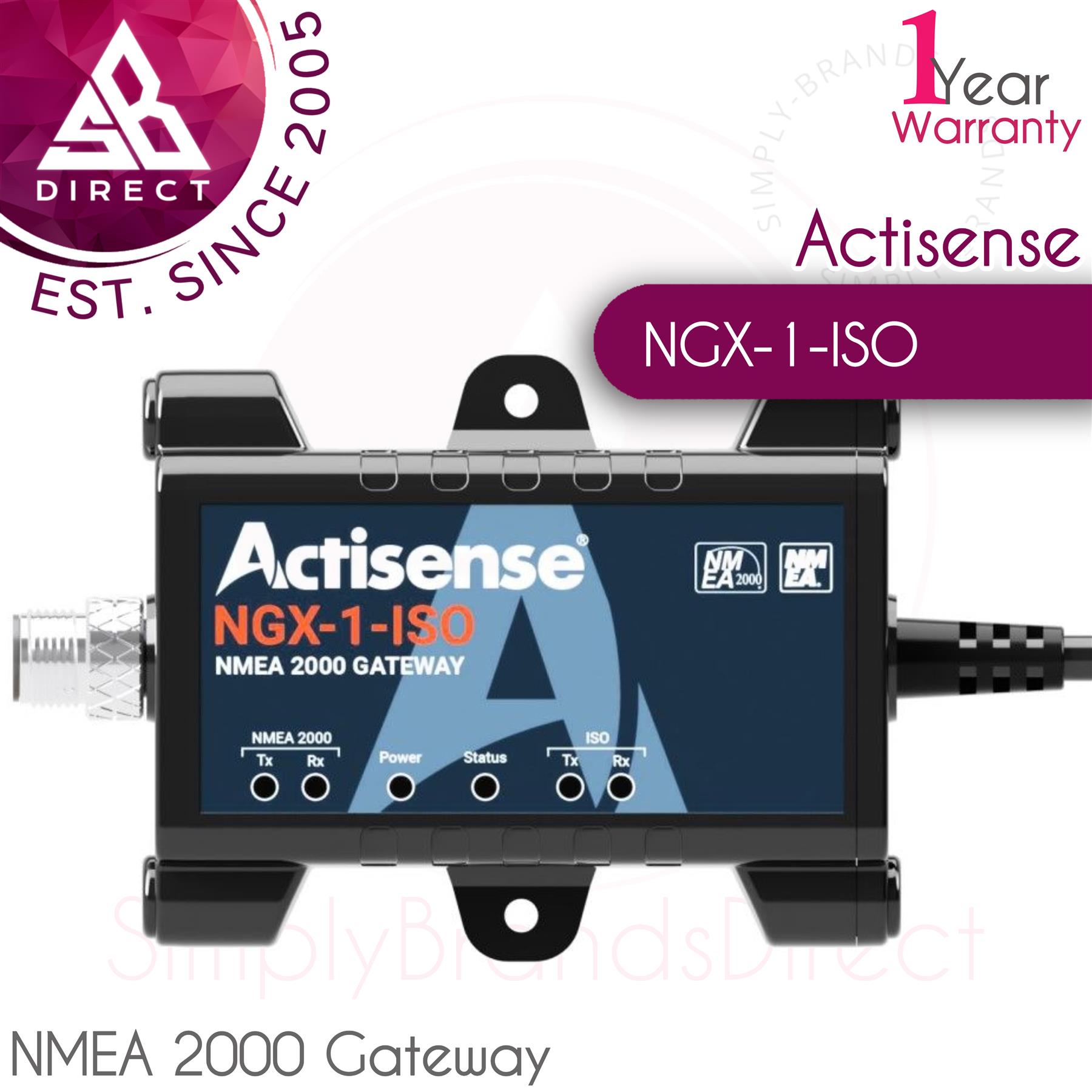

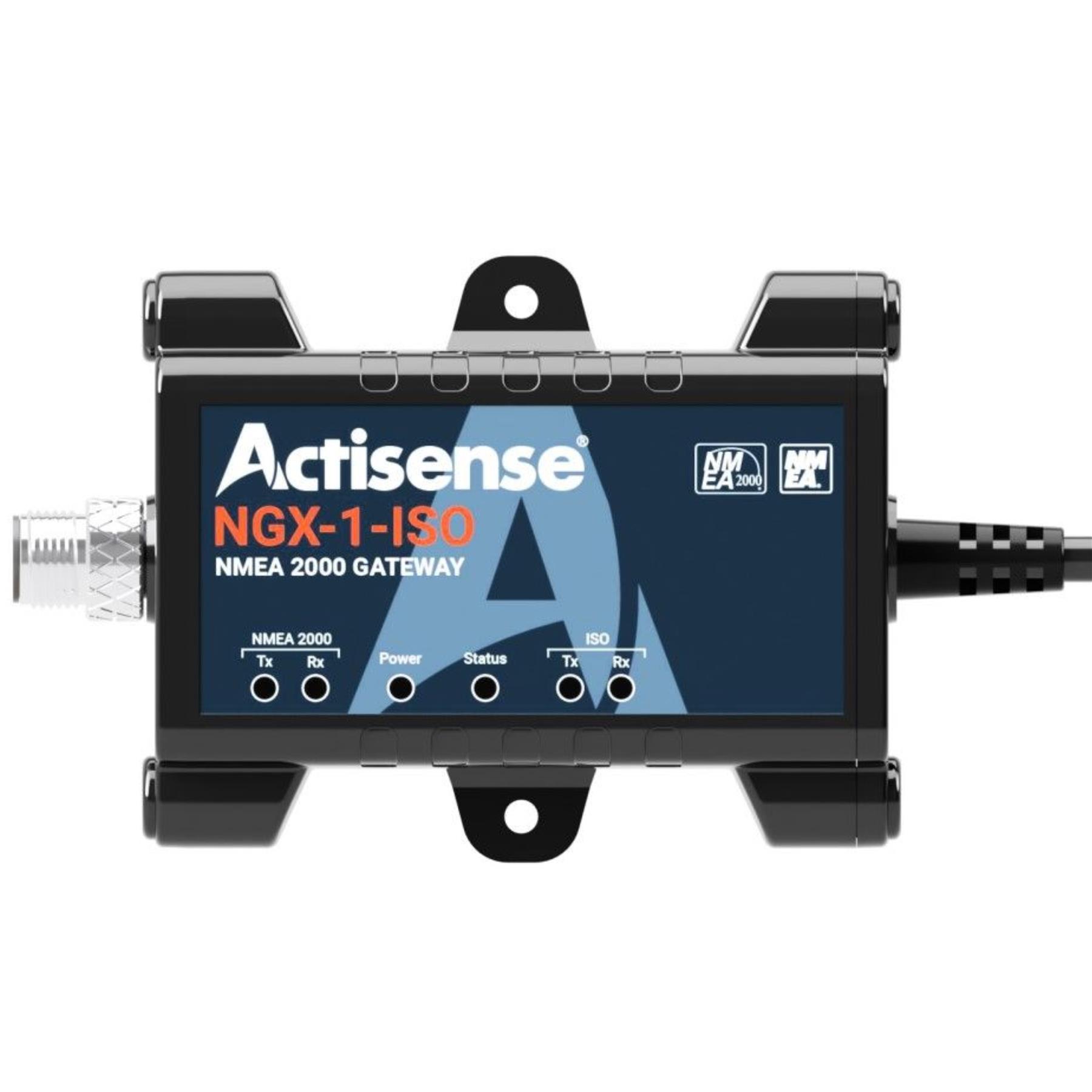

Actisense NGX-1-ISO NMEA 2000 Dual Gateway

PART NUMBER: 005-NGX-1-ISO

Description

Intelligent Gateway technology enables interfacing with NMEA 2000 and a PC, and converting between NMEA 0183 and NMEA 2000.


The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.


The NGX-1 provides an uncomplicated way to link between a boat’s data networks and converts NMEA 0183 data into NMEA 2000 data and vice-versa. Multiple NGX-1 units can be used to multiplex numerous NMEA 0183 devices onto the NMEA 2000 network, using the network as a means of combining and transferring all data from one place to another.


The NGX-1 is also an NMEA 2000 to PC interface, able to precisely transfer messages to and from the NMEA 2000 bus. It is compatible with a wide range of chart-plotters, display and configuration applications available for PCs.


Actisense Toolkit and NMEA Reader software packages enable viewing of NMEA 2000 PGNs, device set-up, configuration and diagnostics all to be performed via the NGX-1.


Fully NMEA 2000 Certified

The handy firewall feature enforces the NMEA 2000 bus rules, so software developers can create compliant software at a fraction of the direct certification costs. The supporting Actisense Software Development Kit (SDK) helps to reduce the required development time.


Actisense welcomes enquiries from software manufacturers who would like to incorporate NMEA 2000 and the NGX-1 into their software.


Bridge an NMEA 2000 network with your old 0183 electronics using the NGX-1.


The NGX-1 has the largest range of conversions available on the market.


The NGX-1 is available in two versions:

  • NGX-1-USB: equipped with a USB cable to allow Plug and Play connectivity with a PC.
  • NGX-1-ISO: equipped with a bare wire open ended cable, allowing for connectivity to an NMEA 0183 device, or Serial Port / DB-9.

Features

  • Vital NMEA 2000 diagnostic tool
  • USB version is fully isolated to prevent dangerous ground loops
  • ISO version has OPTO-isolated input and ISO-Drive™ output for safely interfacing with RS232 or RS422
  • Up to 230,400 baud data transfer rate
  • Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
  • Supports Fast Heading at 10Hz
  • Multiple diagnostic LEDs
  • Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
  • Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
  • Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
  • Configure and flash-update Actisense products on the bus
  • Upgrade NMEA 0183 equipment to NMEA 2000
  • Allow NMEA 0183 devices to receive vital NMEA 2000 data
  • Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
  • Reliable, renowned bi-directional conversion engine
  • Supports a wide range of conversions including AIS
  • Easily configurable using Actisense Toolkit

Specifications

Power Supply (NGX-1-ISO / NGX-1-USB)
Supply Voltage (NMEA 2000 Port) 9 to 30V DC
Supply Current (NMEA 2000 Port) 62mA @ 9V DC
Load Equivalent Number (LEN) 2
Power Supply (USB Variants)
Supply Voltage (NMEA 2000 Port) 9 to 30V DC
Supply Current (USB Host Port) 10mA @ 5V DC
Supply Current (NMEA 2000 Port) 62mA @ 9V DC
Load Equivalent Number (LEN) 2
NMEA 2000 Port (NGX-1-ISO / NGX-1-USB)
Speed / Baud Rate 250kbps
Connectivity M12 Male (A coded)
ISO Port (NGX-1-ISO)
Compatibility Full NMEA 0183, RS232 & RS422 compatibility. RS485 Listener compatible
Speed/Baud Rate 4800 to 230400 Baud
Output Voltage Drive >= 2.1V (differential) into 100Ω
Output Current Drive 20mA max.
Output Protection Short circuit and ESD
Input Voltage Tolerance -15V to +15V continuous -35V to +35V short term (< 1 second)
Input Protection Current limited and overdrive protection to 40VDC
Connectivity 5mm stripped and tinned wire
Cable Length 0.75m
USB Port (USB Variant)
Compatibility USB 1.1, 2.0 and 3.0
Speed / Baud Rate 4800 to 230400 Baud
Connectivity Male type A plug moulded onto cable
Cable Length 1.8m
Isolation
NMEA 2000 Port to ISO Port Uses IsoDriveTM, Hi-Pot tested to 1000V
NMEA 2000 Port to USB Port Galvanic Isolation, Hi-Pot tested to 1000V
Mechanical
Housing Material Body Flame retardant Polycarbonate
Housing Material End Caps Flame retardant PBT
Weight NGX-1-ISO 112g
Weight NGX-1-USB 113g
Approvals and Certifications
NMEA 2000 NMEA 2000 Certified
NMEA 0183 Meets IEC 61162-1 & 61162-2 Requirements
RoHS and REACH Compliant
Module Certification KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE
EMC EN 60945:2002 Edition 4 (section 9.3)
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
EN 300 328 V2.2.2 Radiated Spurious Emissions
FCC Part 15b
ICES-003 Iss 7
Environmental Protection IP68
Operating Temperature -25°C to +70°C
Storage Temperature -30°C to +70°C
Recommended Humidity 0 to 93% RH @ 40°C
Guarantee 3 years, extended to 5 years upon registration

What's in the Package?

  • Actisense NGX-1-ISO NMEA 2000 Dual Gateway
  • Comes in Retail Packaging so makes a Great Gift.
  • Buy with Confidence & All Purchases come with a VAT Receipt by email.
)
