Product Details

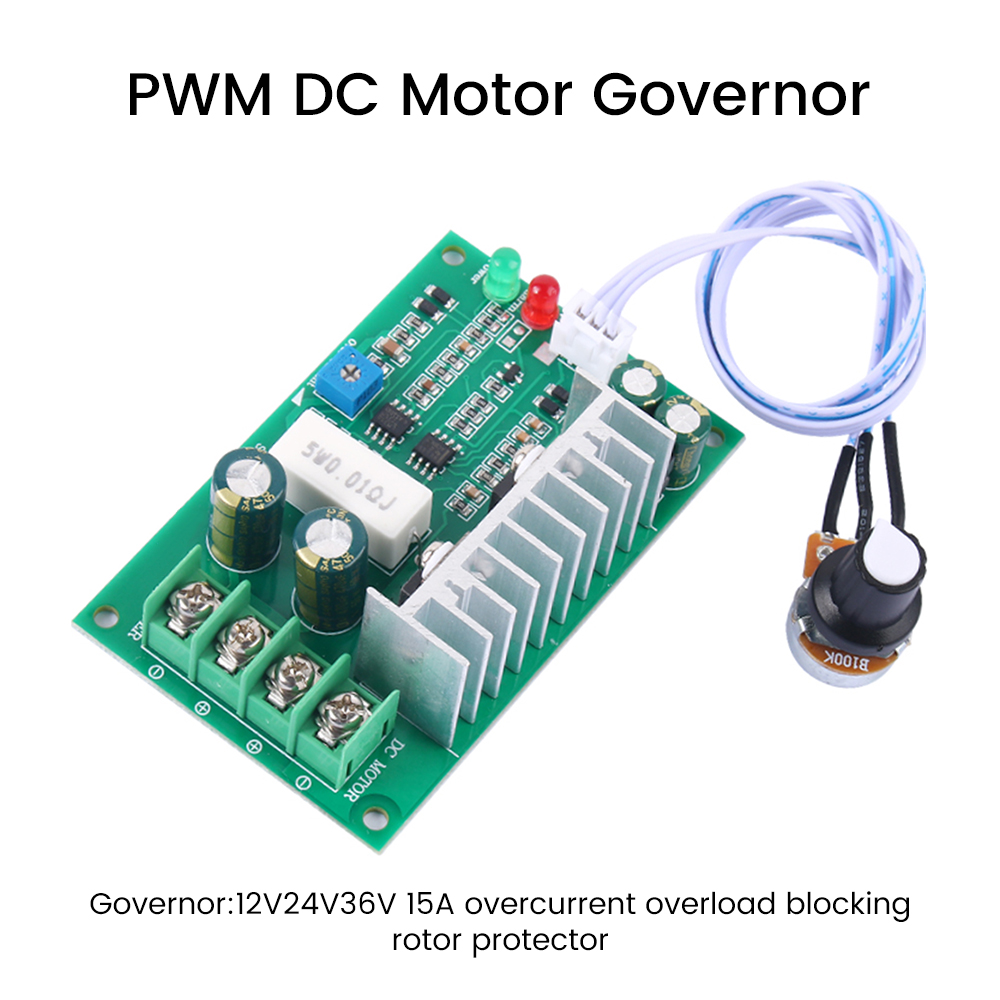

Product Feature:
1. Use high-quality materials with guaranteed product quality

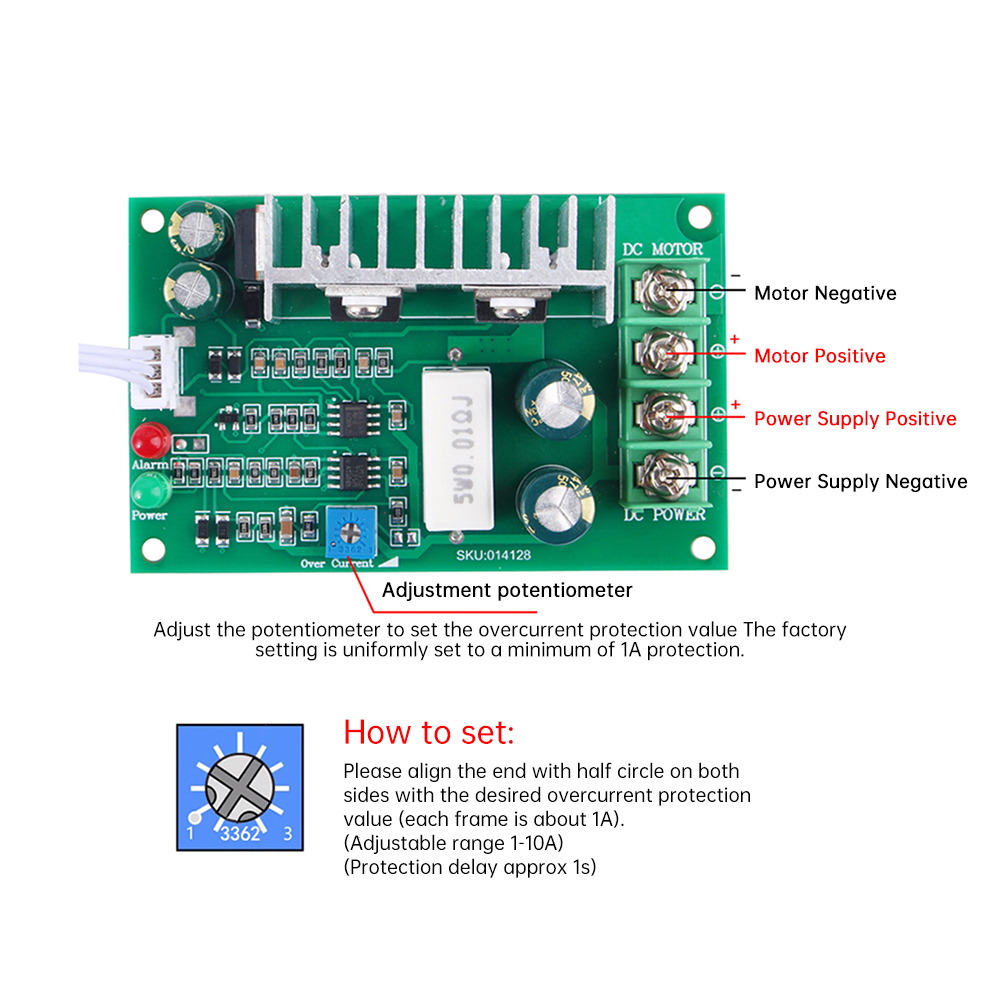

2. The potentiometer can be adjusted to set the overcurrent protection value, and the factory settings are uniformly set to a minimum of 1A protection

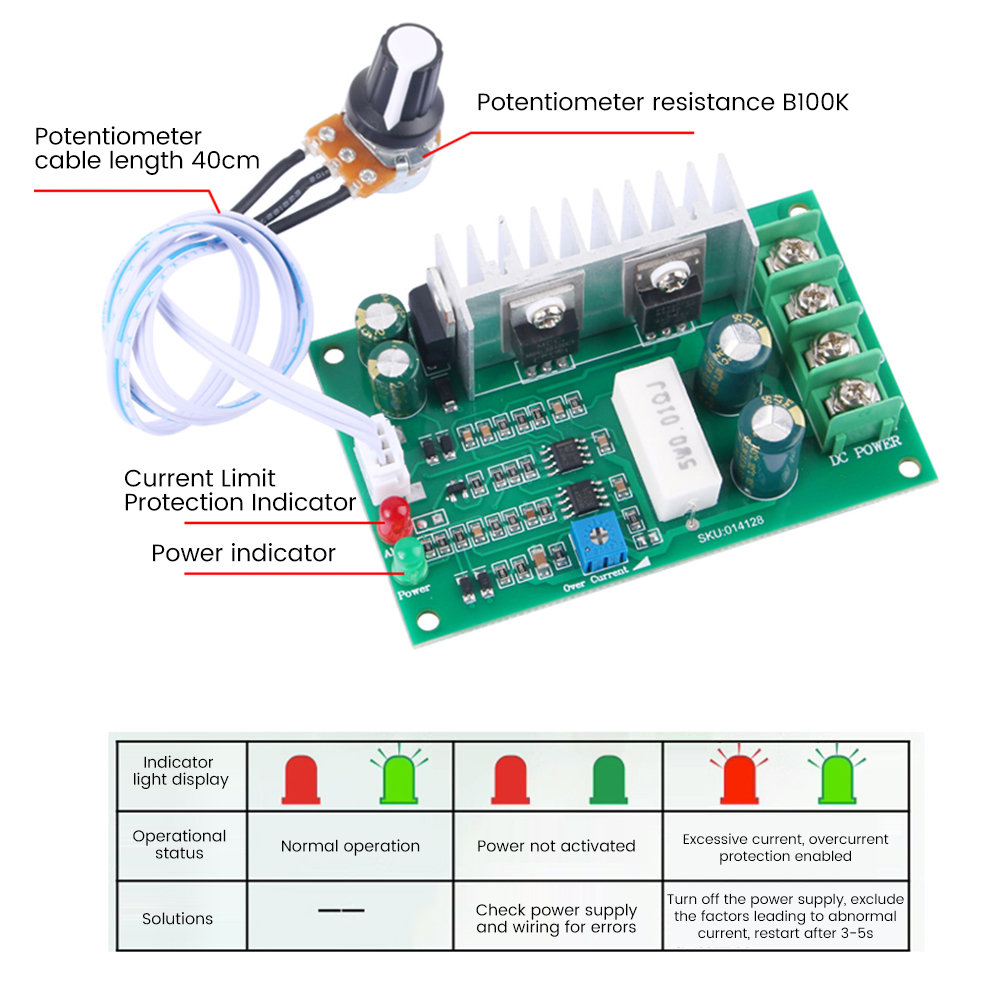

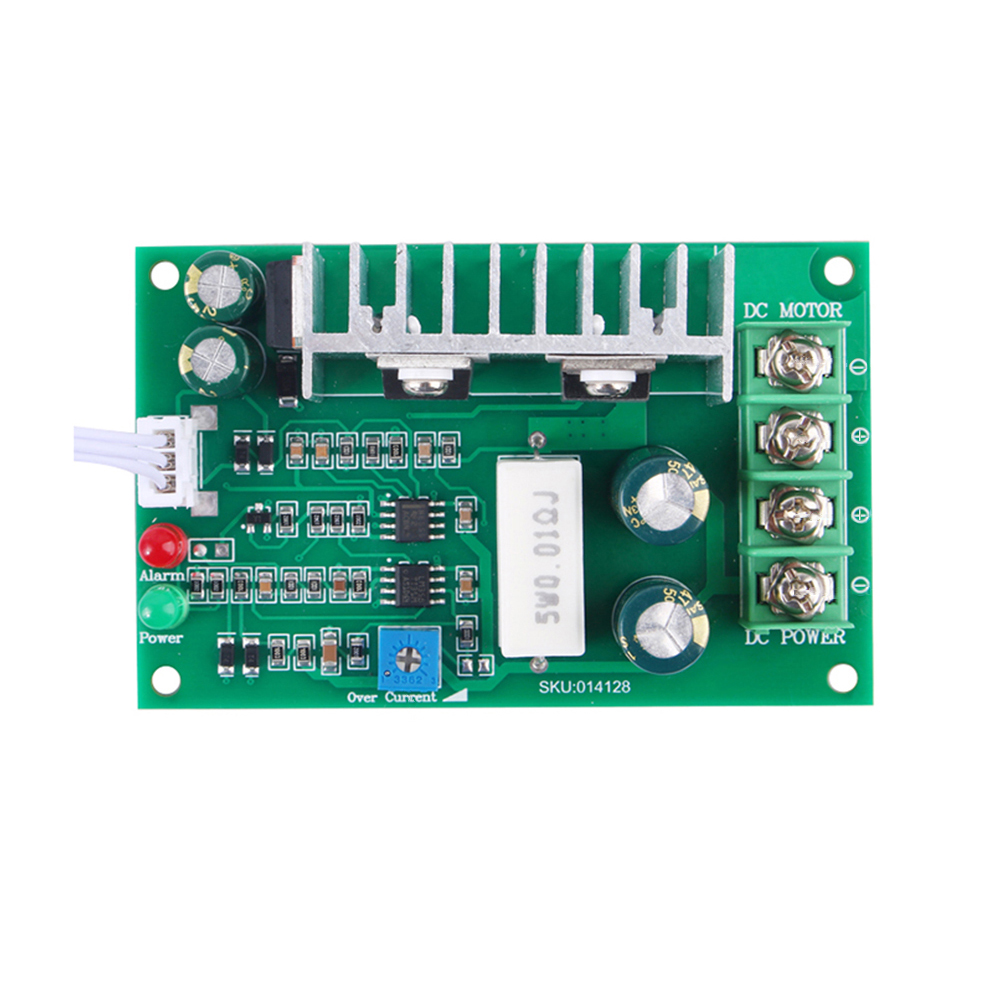

3. Stable performance, with power indicator light and current limiting protection indicator light
4. Exquisite appearance and long service life
5. The product has a wide range of applications and is suitable for various industrial occasions

Product parameters:

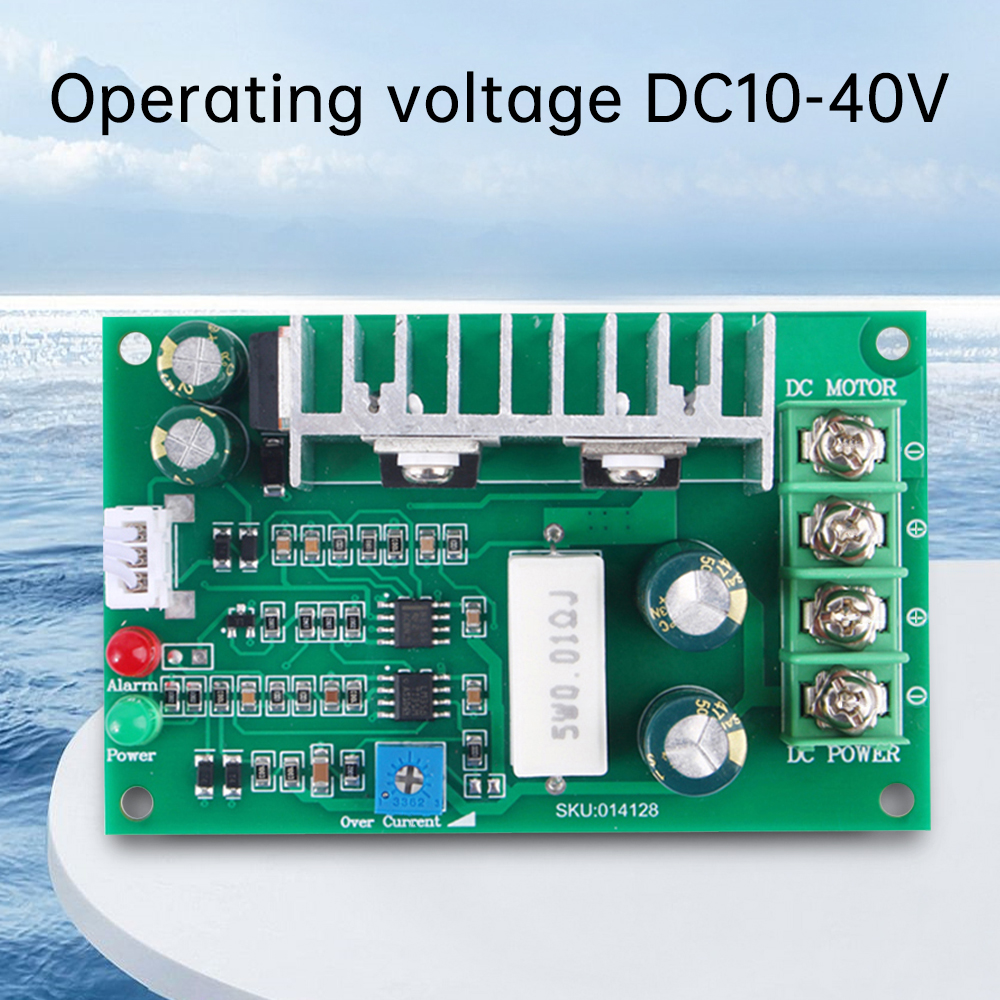

Working voltage: DC10V-40V (recommended for use between DC12V-36V)
The output voltage is approximately 0-100% of the input voltage
Potentiometer: Resistance value B100K; Line length 40cm; Opening 8mm
Control power: 12V * 10A=120W, 24V * 10A=240W, 36V * 10A=360W
Rated current: 10A (current limiting protection range 1A-10A)

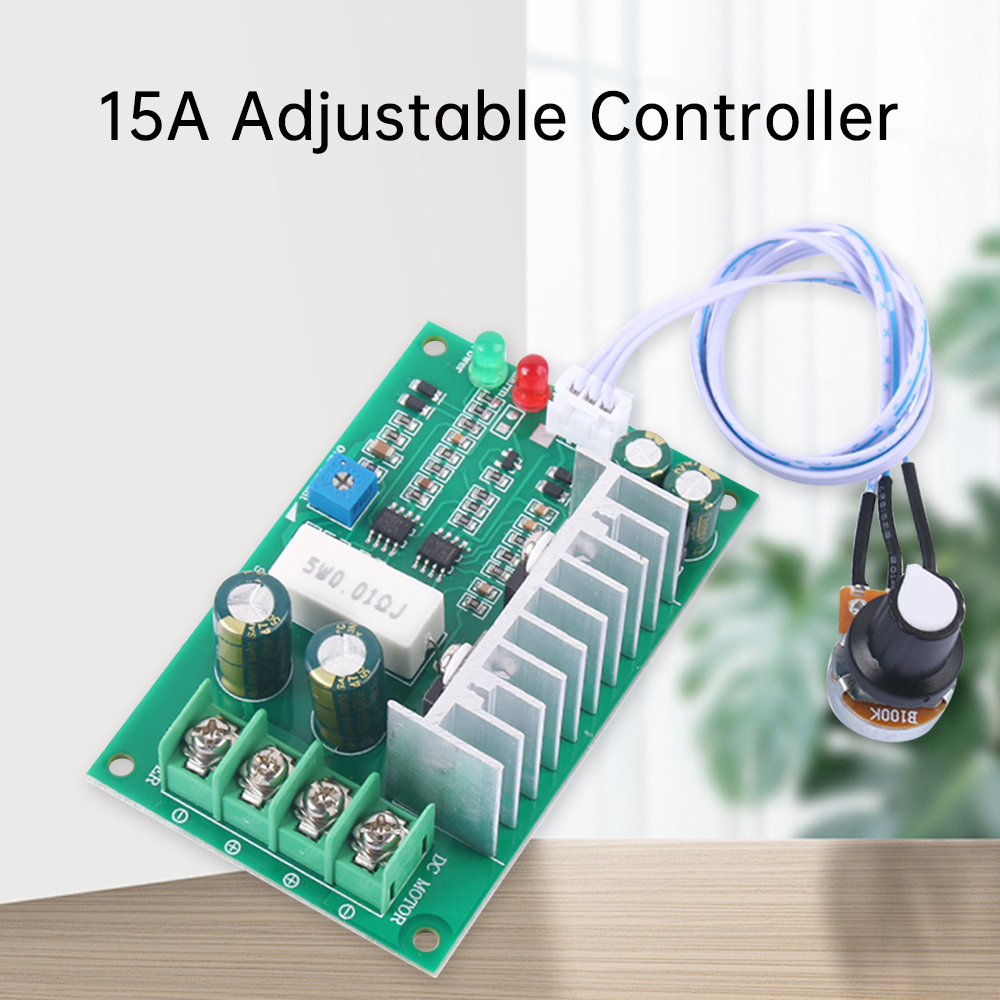

Maximum current: 15A
Speed regulation range: 0% -100%

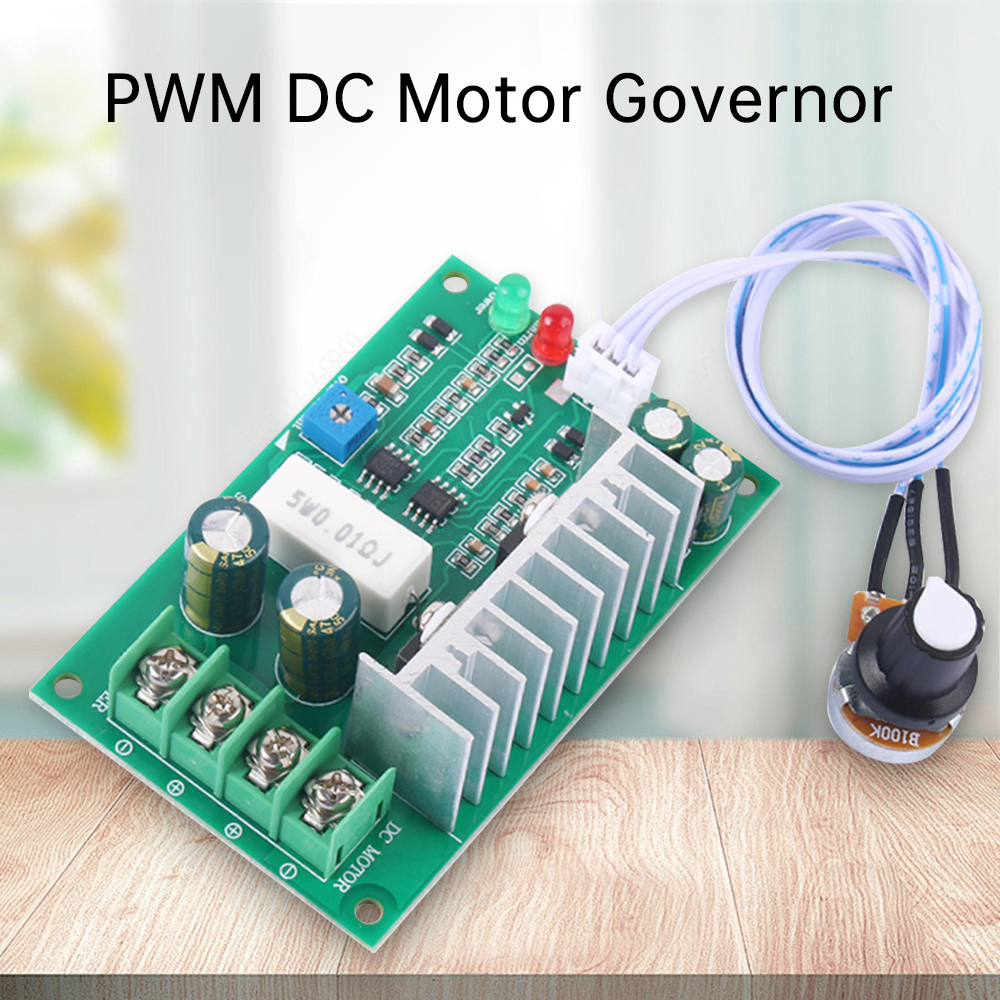

PWM frequency: 21KHz

Attention: Suitable for motors with 12V less than 120W and 24V less than 200W

Packaging list:

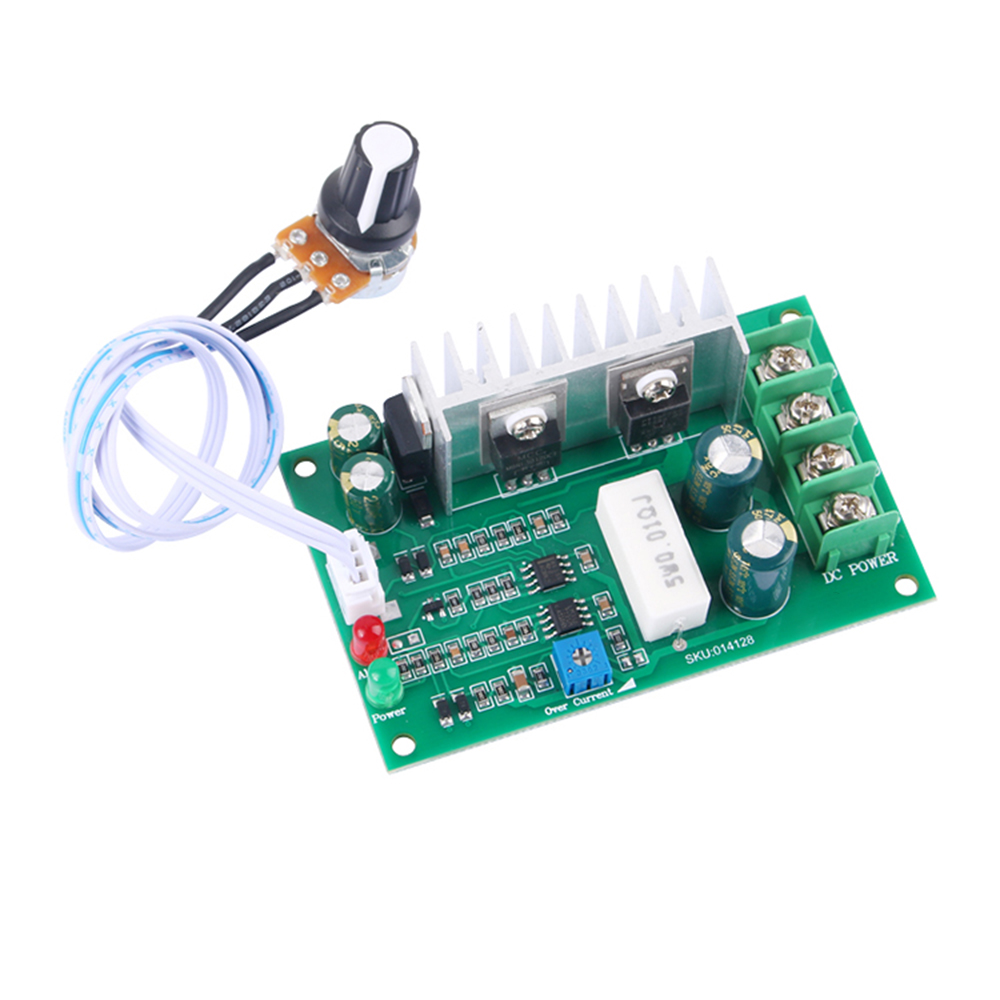

Speed control module * 1
Extended potentiometer * 1
