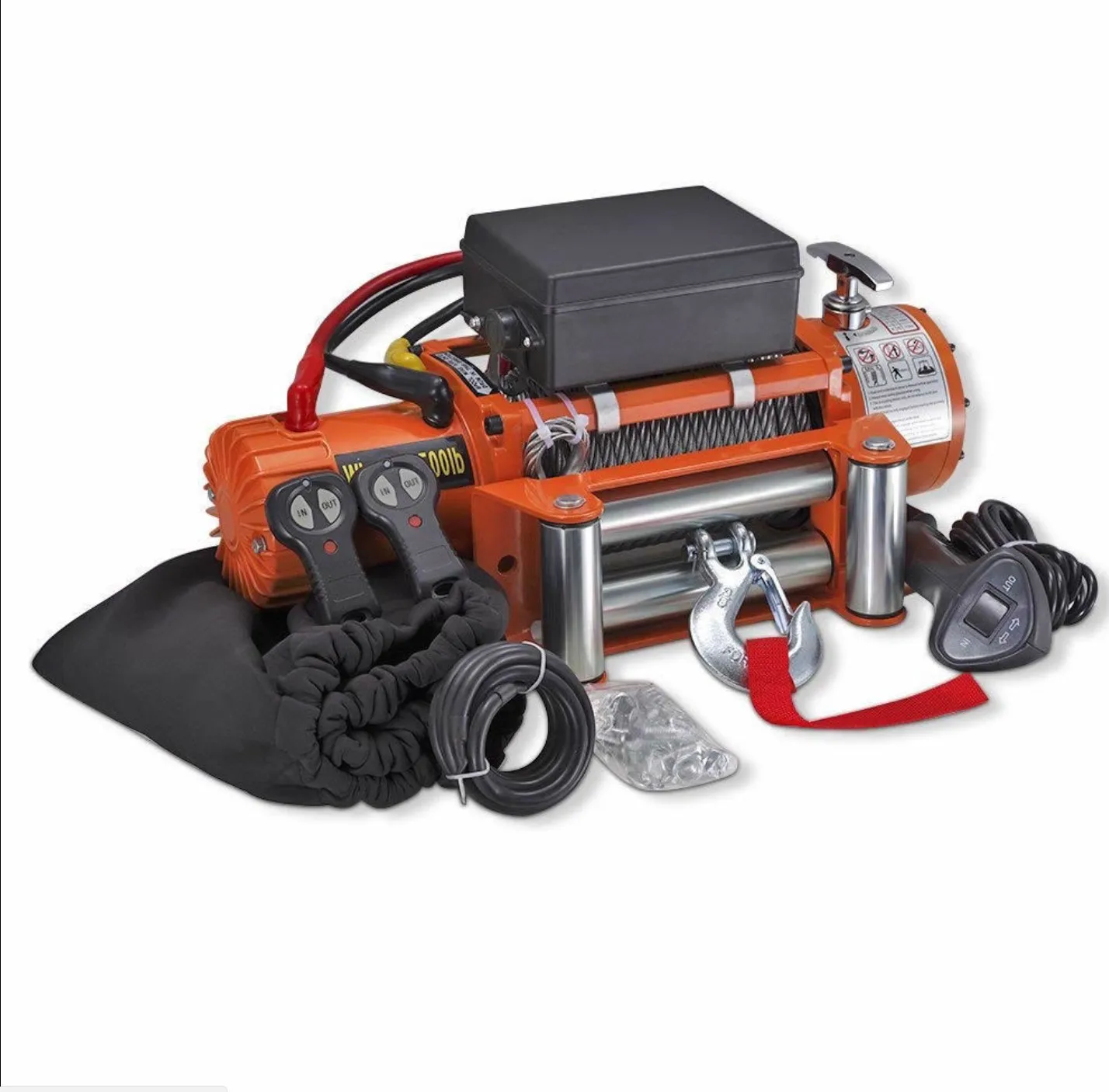

Rated pulling force of single wire 13500lb (6123kg)

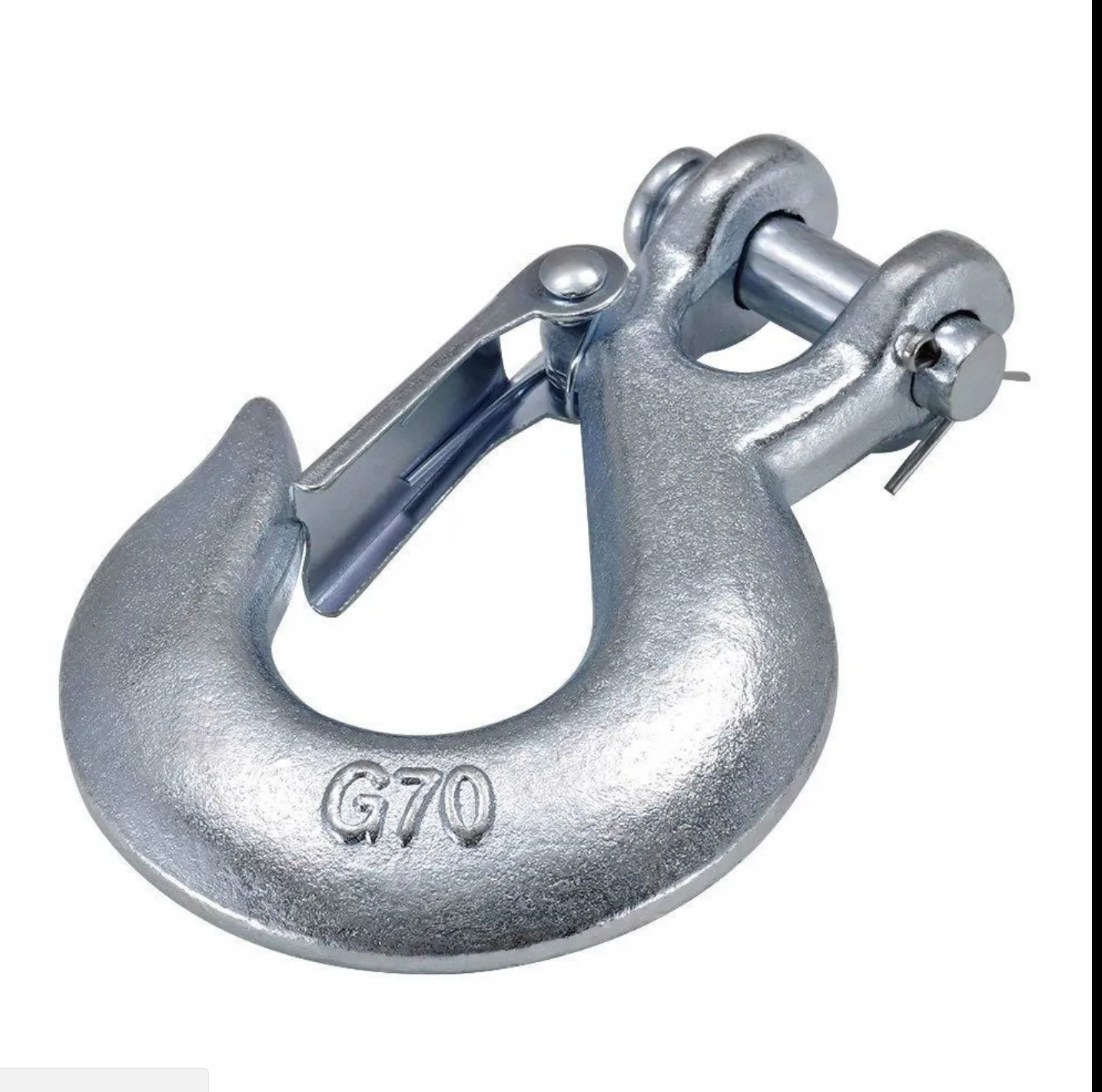

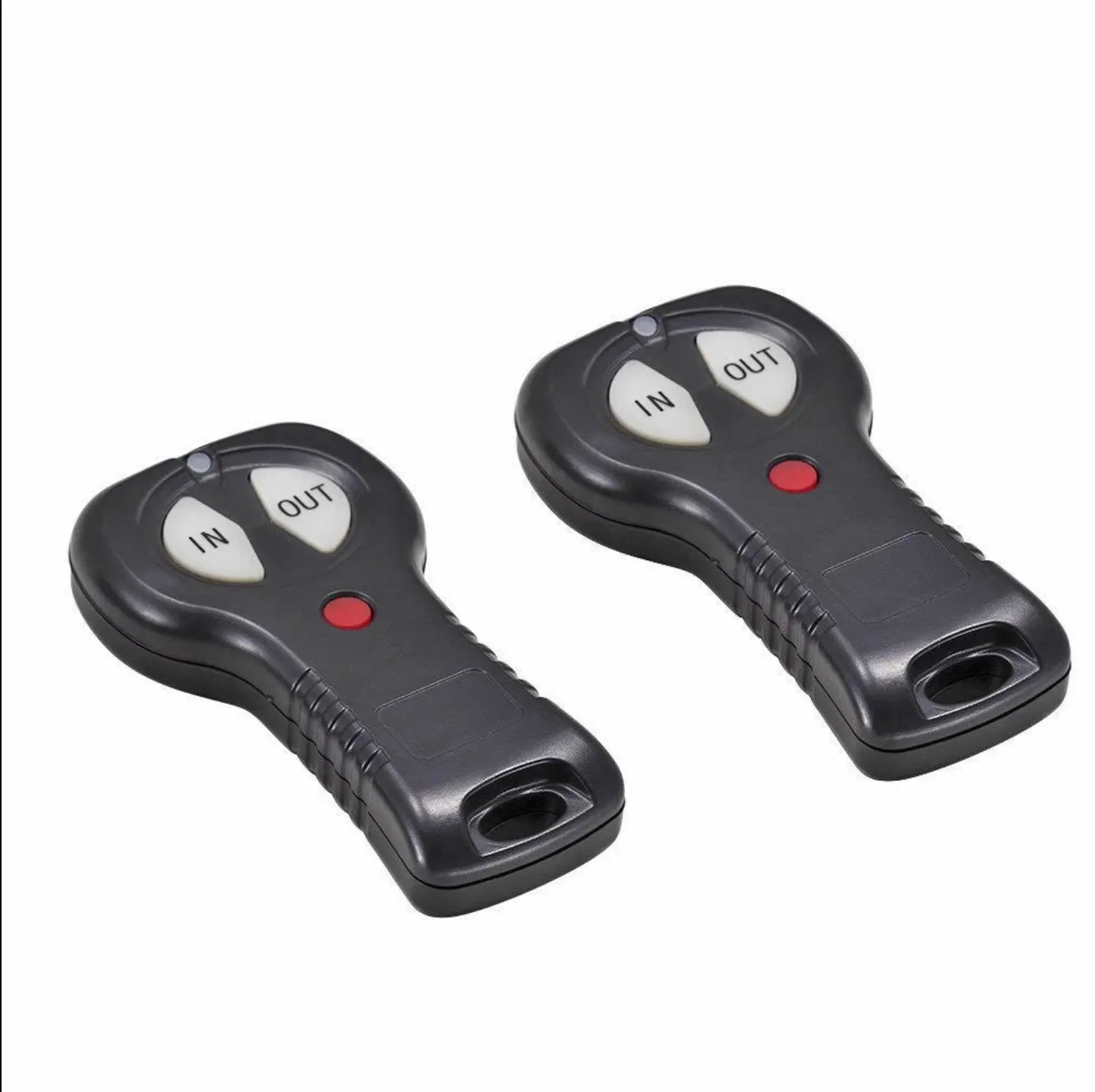

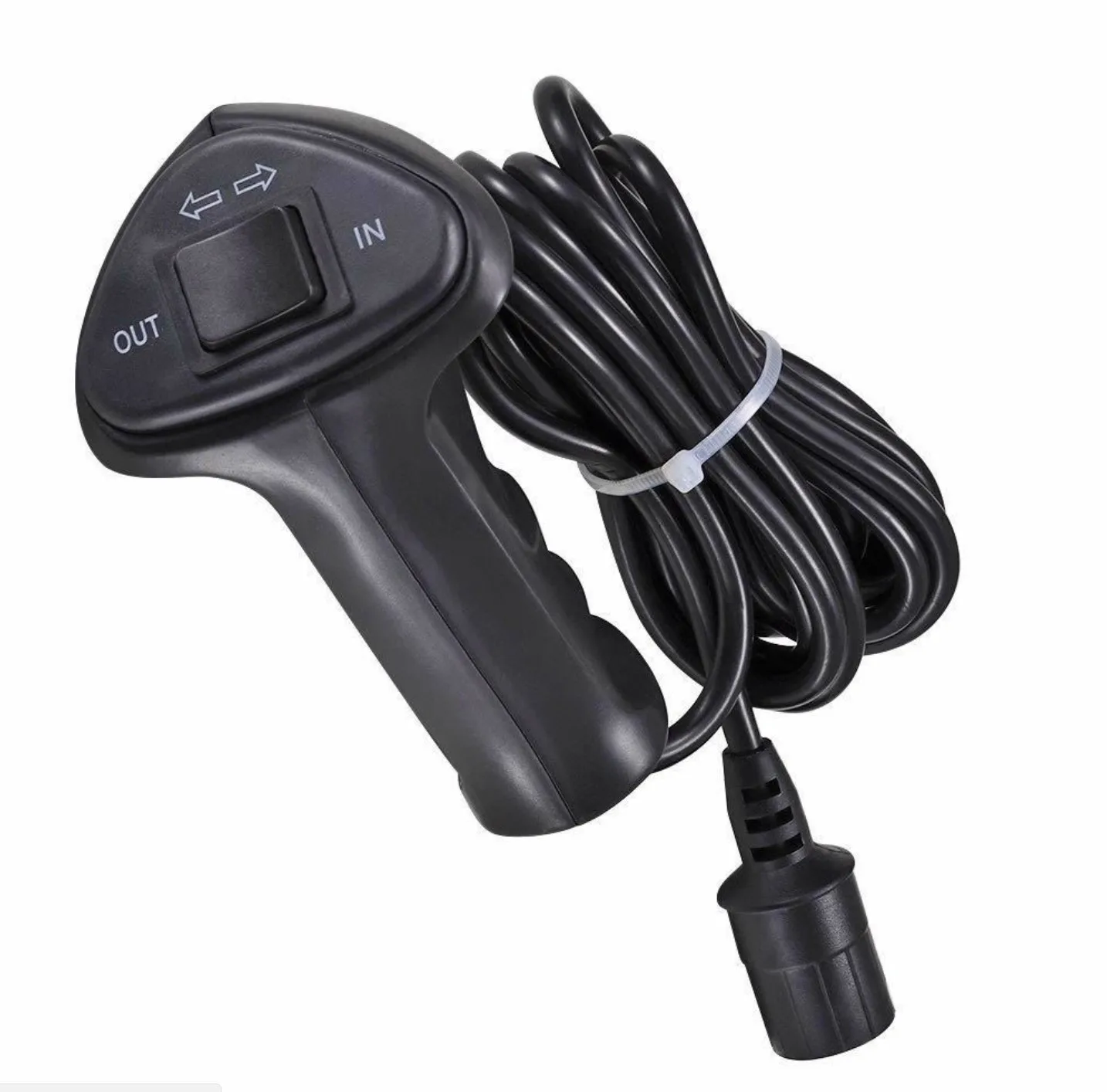

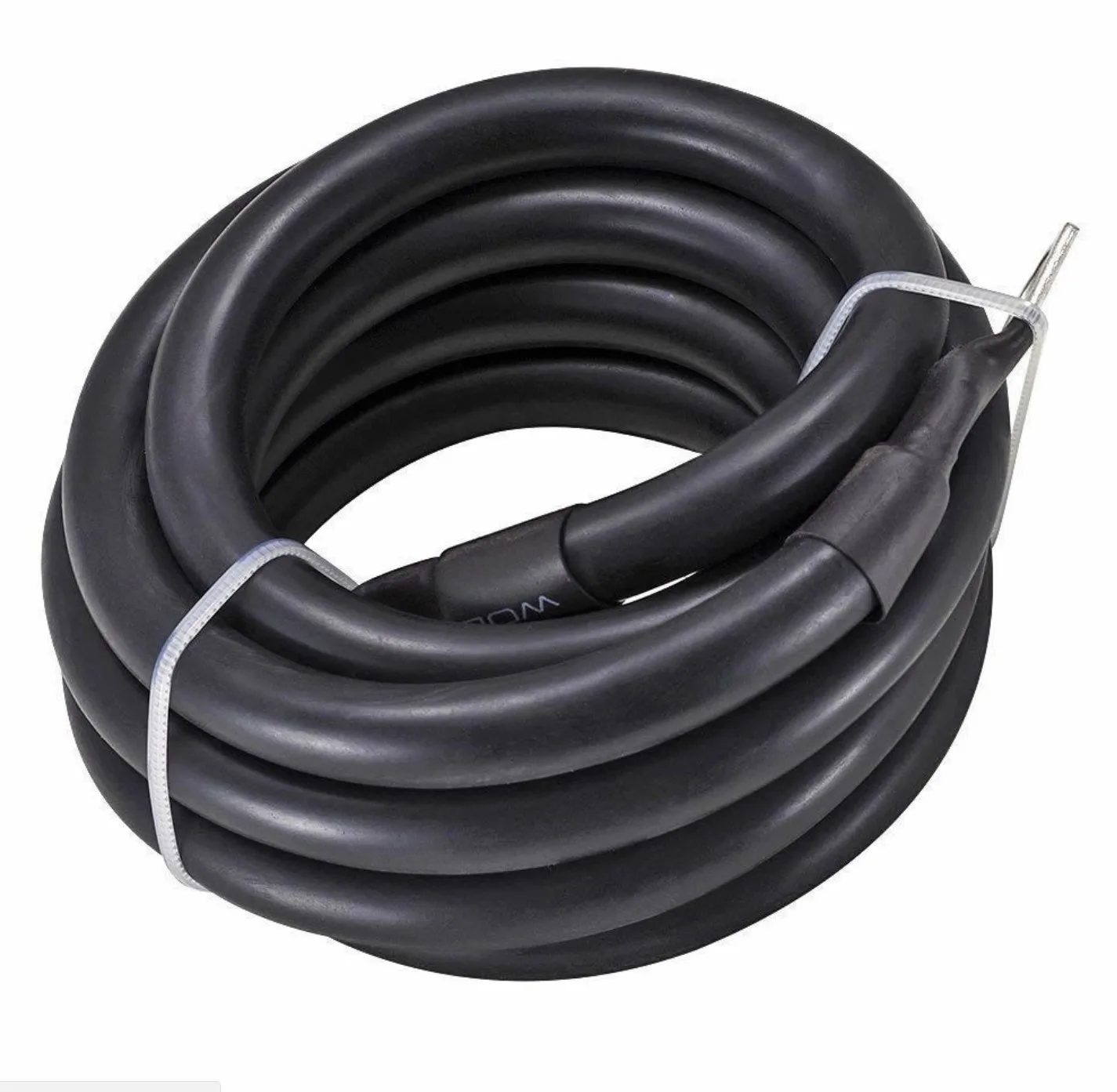

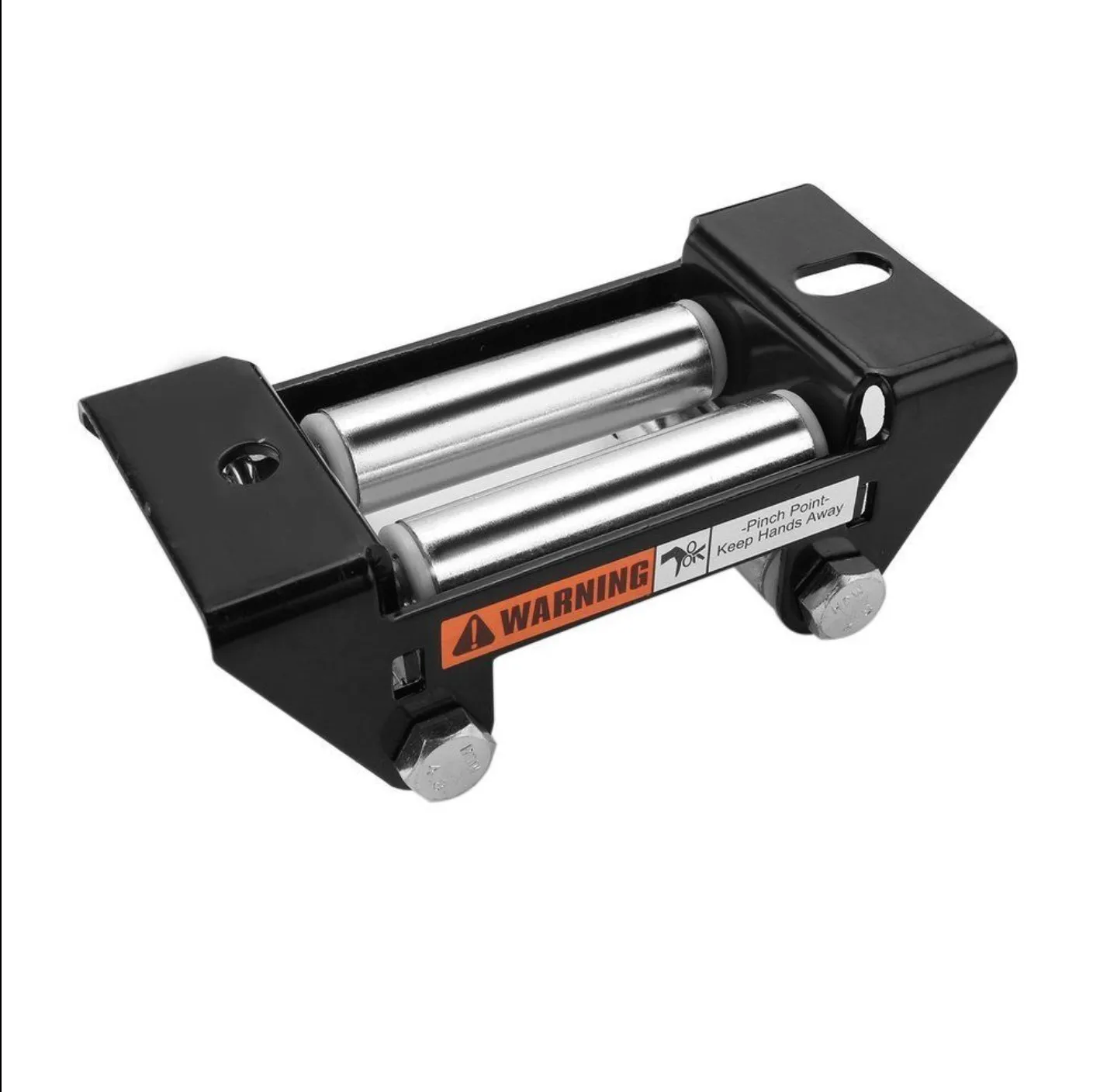

Motor 12V 6.6HP series winding Including remote control, wireless remote control Remote control switch with large handle, 12' (3.7m) lead Gear train 3-stage planetary gear Reduction ratio 265:1 Clutch slip ring gear Brake drum automatic braking Roller size diameter 63.5 mm (2.5 inches), length 224 mm (8.82 inches) Cable 28m/92ft, 9mm steel wire rope Integral billet aluminum cable fairlead It is recommended that at least 650cca be used for the winch Battery lead No. 2, 1.83m (72'') 25mm, Q-5.6mm diameter Finish texture orange Weight: gw 30 kg (66 lbs) Dimensions (length x width x height) 536 x 160 x 218mm (21.3''x 6.3''x 8.6'') Mounting bolt style 10.00''±0.015''x4.50''±0.010'' (254x114.3mm) Motor current 65-570A No-load linear speed 7.5 m/min (24.6 ft/min) Waterproof grade IP68 The package includes: The winch device is equipped with a 28 m steel wire rope, which is pre-installed on the drum. Integral billet aluminum anchor chain fairlead. Large handle plug-in control (power input/power output) Solenoid valve control unit, including all cables needed to connect to the vehicle battery. Heavy-duty cable hook with safety lock and marking tab. Install bolt kit. Comprehensive user manual including safety information Remote (over 100 feet) wireless remote control
|
