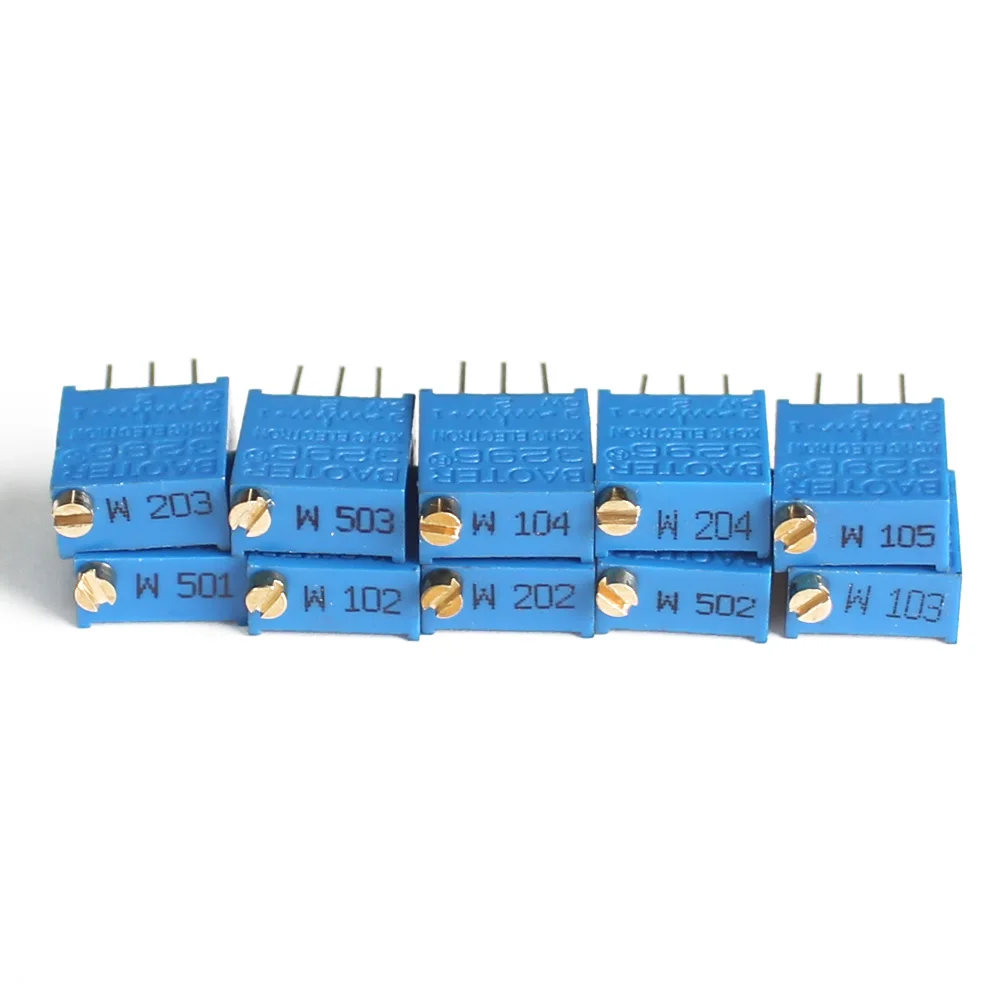

3296W series multi turn potentiometers, please select value and quantity required, thankyou for your purchase and please see below for specification.

Specification

Name: 3296W

Resistance series: 1EC63 E3 series

Permissible deviation of resistance: ±10% TCR≤±250x10-6/°C

Resistor limit voltage: 315V (DC or AC RMS)

Moving contact limit current: 100mA

Withstand voltage (AC peak voltage with frequency of 40~60Hz)

Normal atmospheric pressure: 640V

Low voltage 8.5KPa (85mbar): 450V

Climate category: 55/125/104

Total mechanical travel: 28±2 laps

Stability Level: 10%

Starting torque: ≤35mN.m

Load wear cycles: 200 weeks

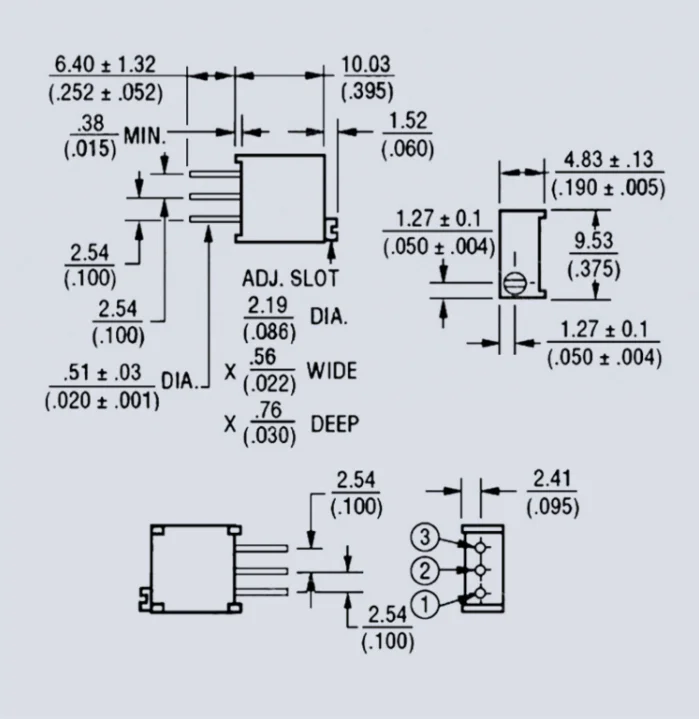

Package: 3296W

Type: Multiturn adjustable precision resistor

Nominal resistance range: 10Ω~2mΩ

Permissible deviation of resistance: ±10%

Termination resistance: ≤1%R or 10Ω

Contact resistance variation: CRV≤±3%R or 5Ω

Insulation resistance: R≥1GΩ(100Vdc)

Withstand voltage: 640Vac

Product application:
1. Used as a voltage divider
A potentiometer is a continuously adjustable resistor whose moving contacts slide across the resistor body when adjusting the rotary or sliding handle of the potentiometer. At this time, an output voltage that is related to the applied voltage of the potentiometer and the angle or stroke of the movable arm can be obtained at the output end of the potentiometer.

2. Used as a rheostat
When the potentiometer is used as a varistor, it should be connected to both ends so that a smooth and continuous change of resistance value can be obtained within the travel range of the potentiometer.

3. Used as current controller
When a potentiometer is used as a current controller, one of the selected current outputs must be a sliding contact leadout.

4. Widely used in electrical appliances, audio equipment, communications, medical facilities, security products, UPS power supply, video recorder, MP3, VCD machine, telephone and other equipment.
