Product Details
Input voltage: DC12V/24V/36V/48V/60V/72V/96V
Output voltage: AC220V
Output power: 1500W/3000W/4000W/5000W/6000W/7500W/9000W
13V to 220V transformer for 24V power supply
26V to 220V transformer for 48V power supply
19V to 220V transformer for 36V power supply
32V to 220V transformer for 60V power supply
Transformer from 39V to 220V for 72V power supply
Transformer from 52V to 220V for 96V power supply
Full power Pure sine wave High efficiency and stable circuit Small no-load current Battery undervoltage/overload/overheat protection Simple installation All kinds of power frequency transformers

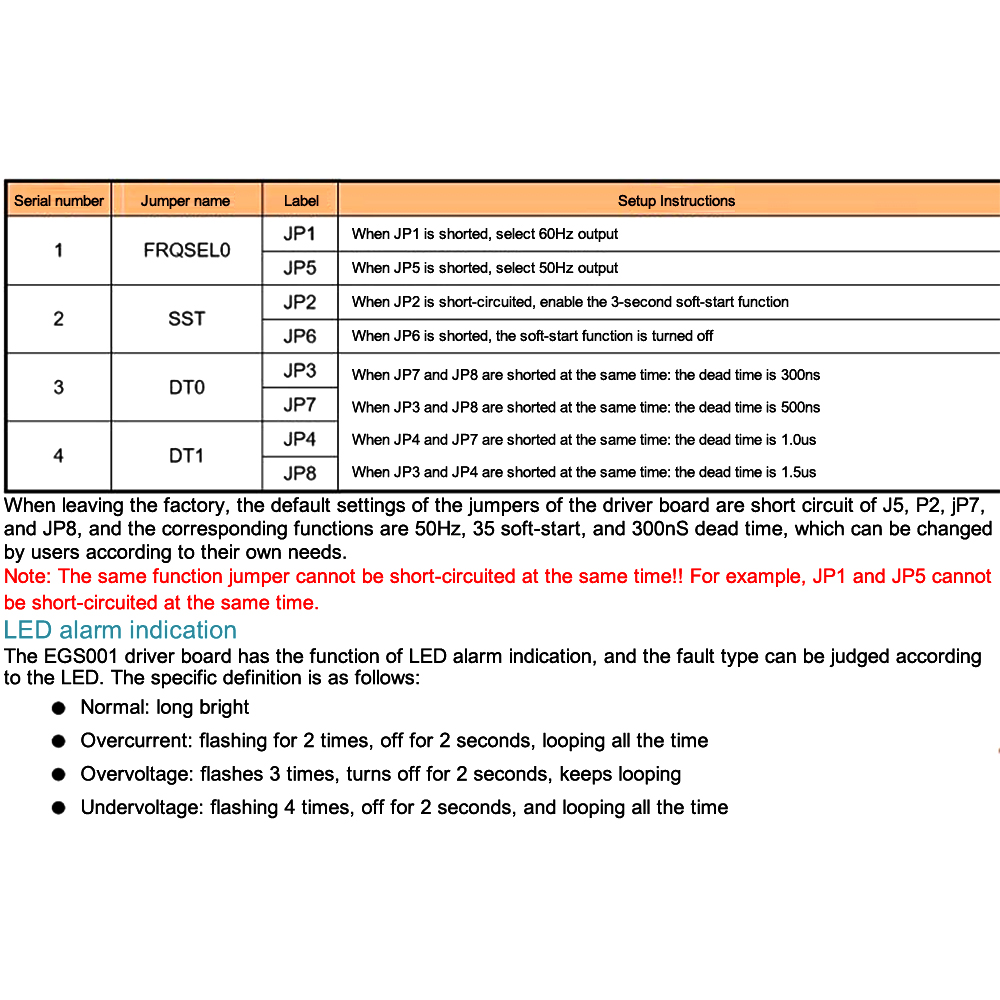

Note: The same function jumper cannot be short-circuited at the same time!! For example, JP1 and JP5 cannot be short-circuited at the same time.
LED alarm indication

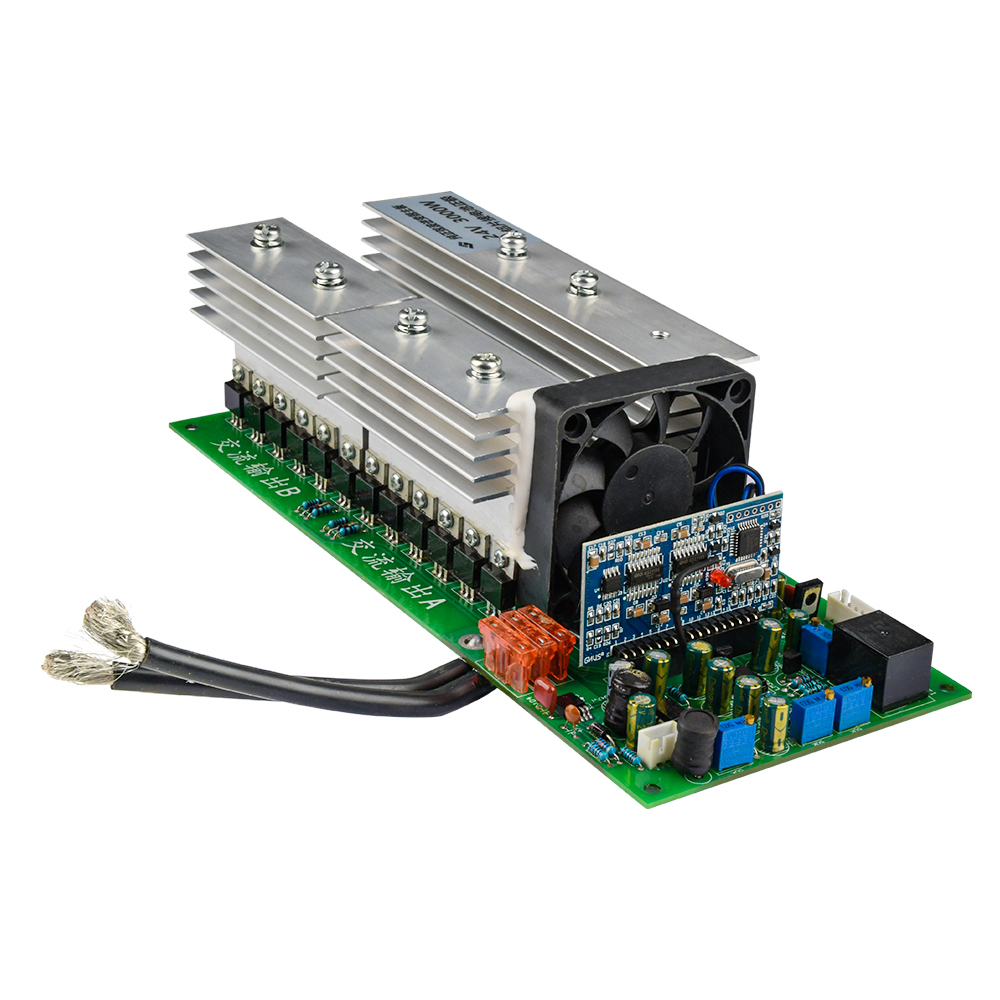

The EGS001 driver board has the function of LED alarm indication, and the fault type can be judged according to the LED. The specific definitions are as follows:;
Normal: long bright
Overcurrent: flashing for 2 times, off for 2 seconds, looping all the time
Overvoltage: flashes 3 times, turns off for 2 seconds, keeps circulating
Undervoltage: flashing for 4 times, off for 2 seconds, looping all the time

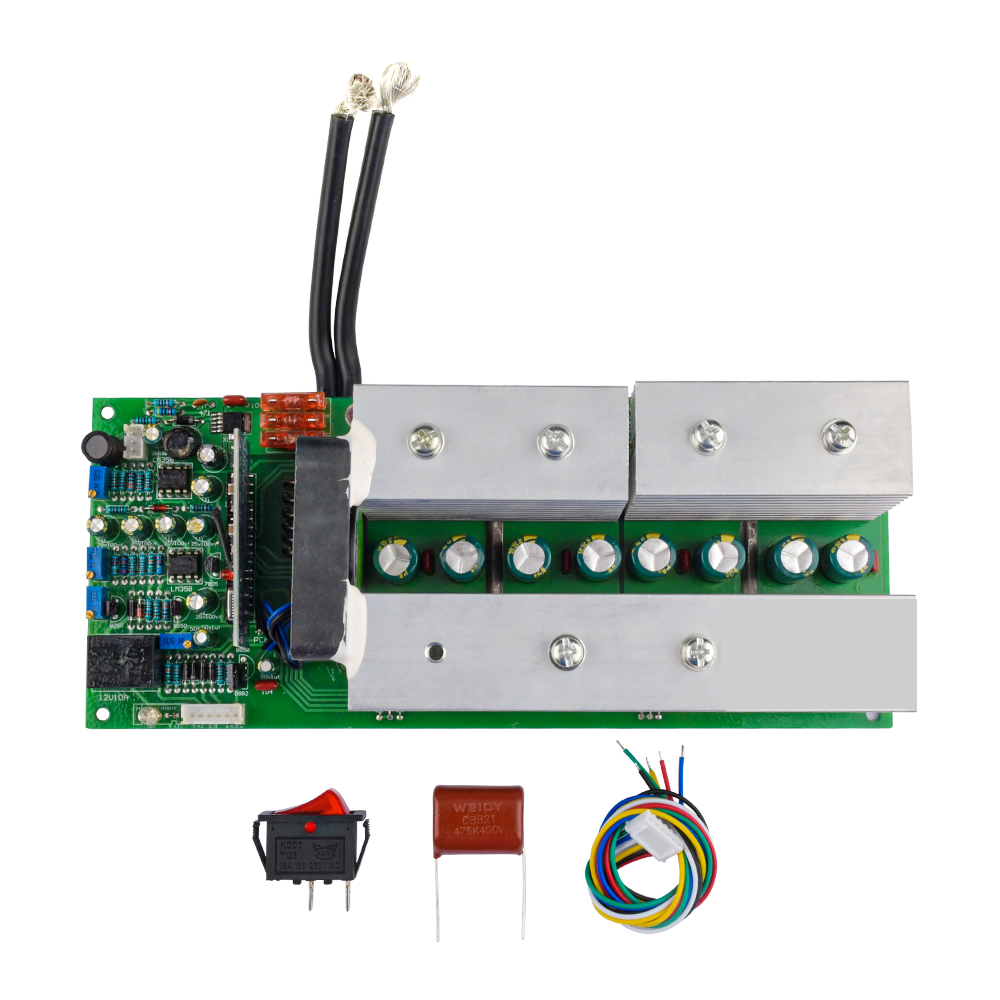

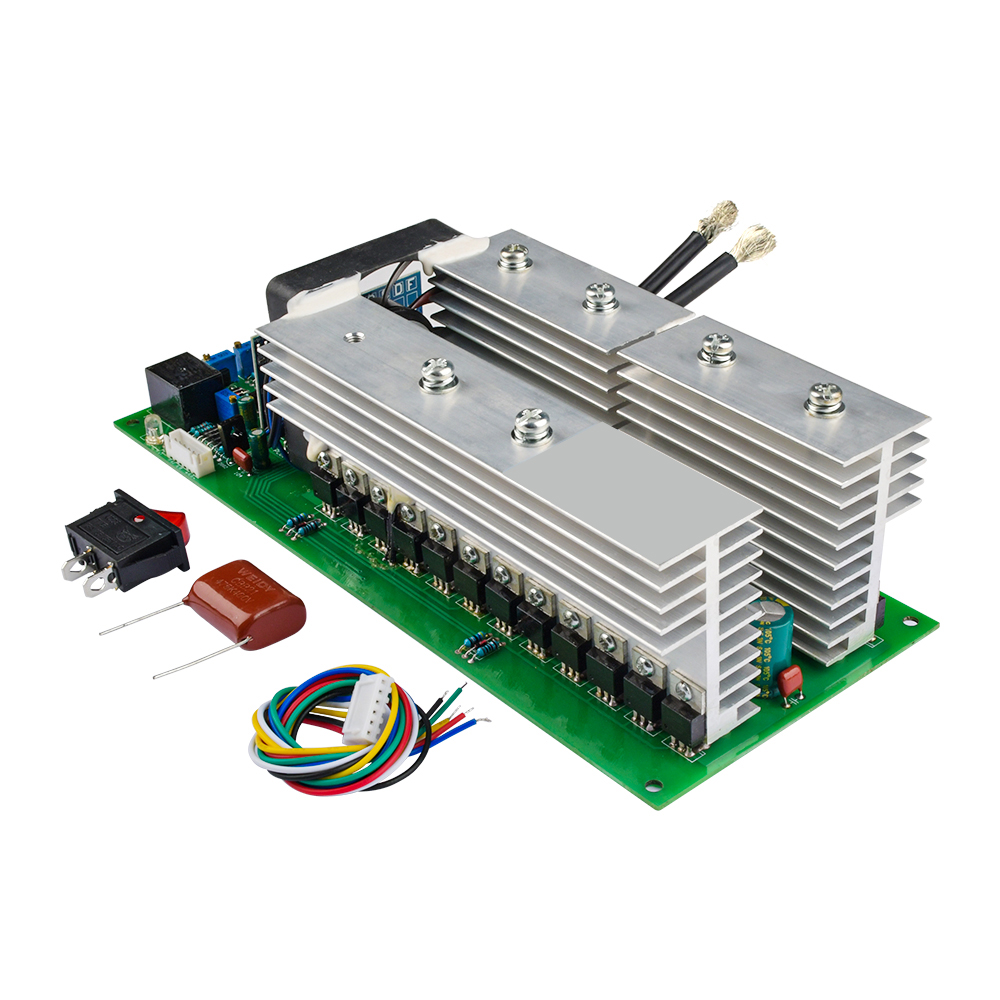

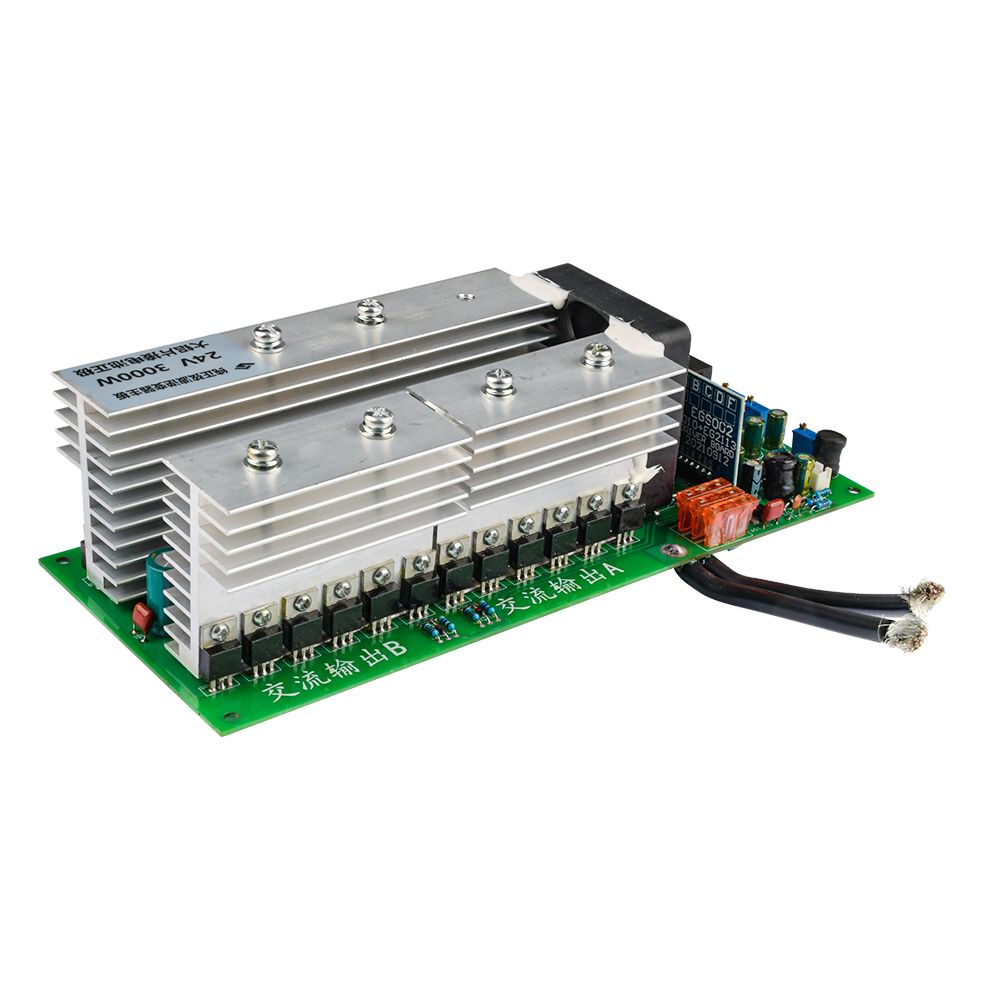

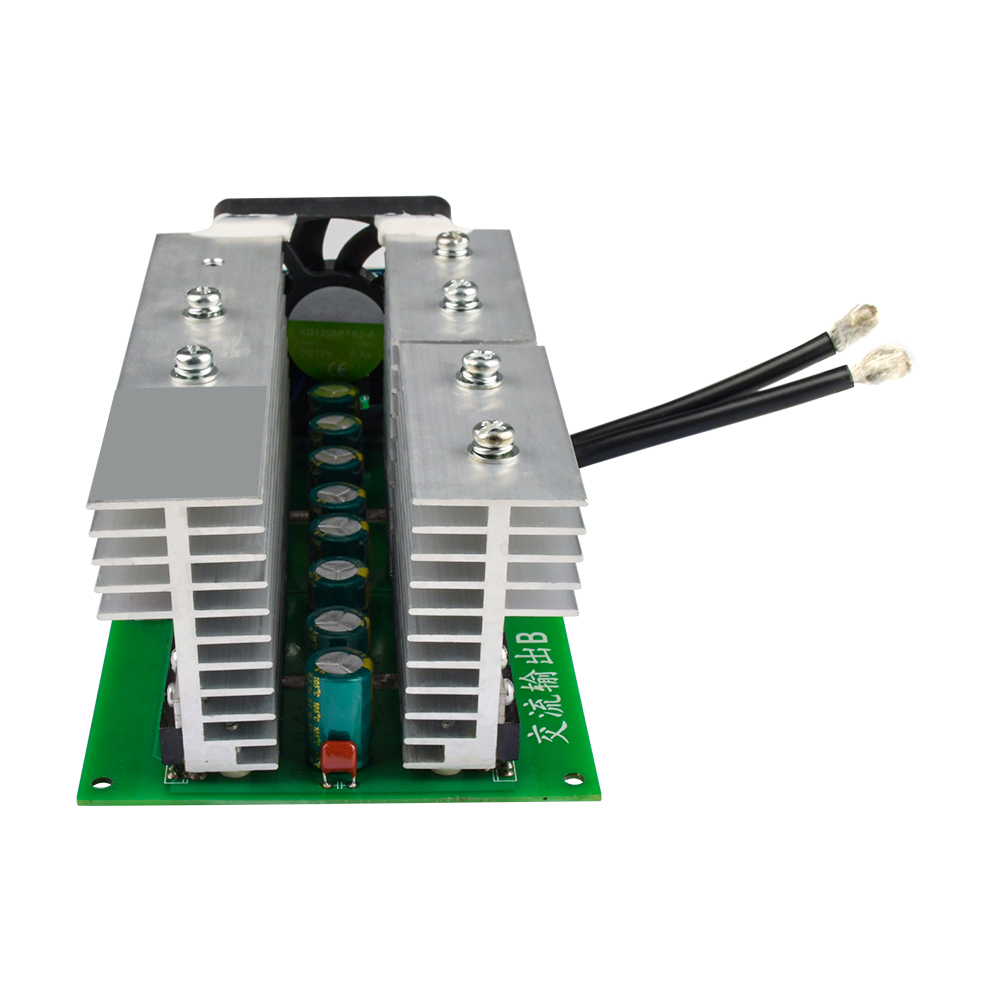

1* Pure sine wave power frequency inverter kit
