Product Details
1. small size, simple wiring, only need to connect 2 wires to use, easy to install.

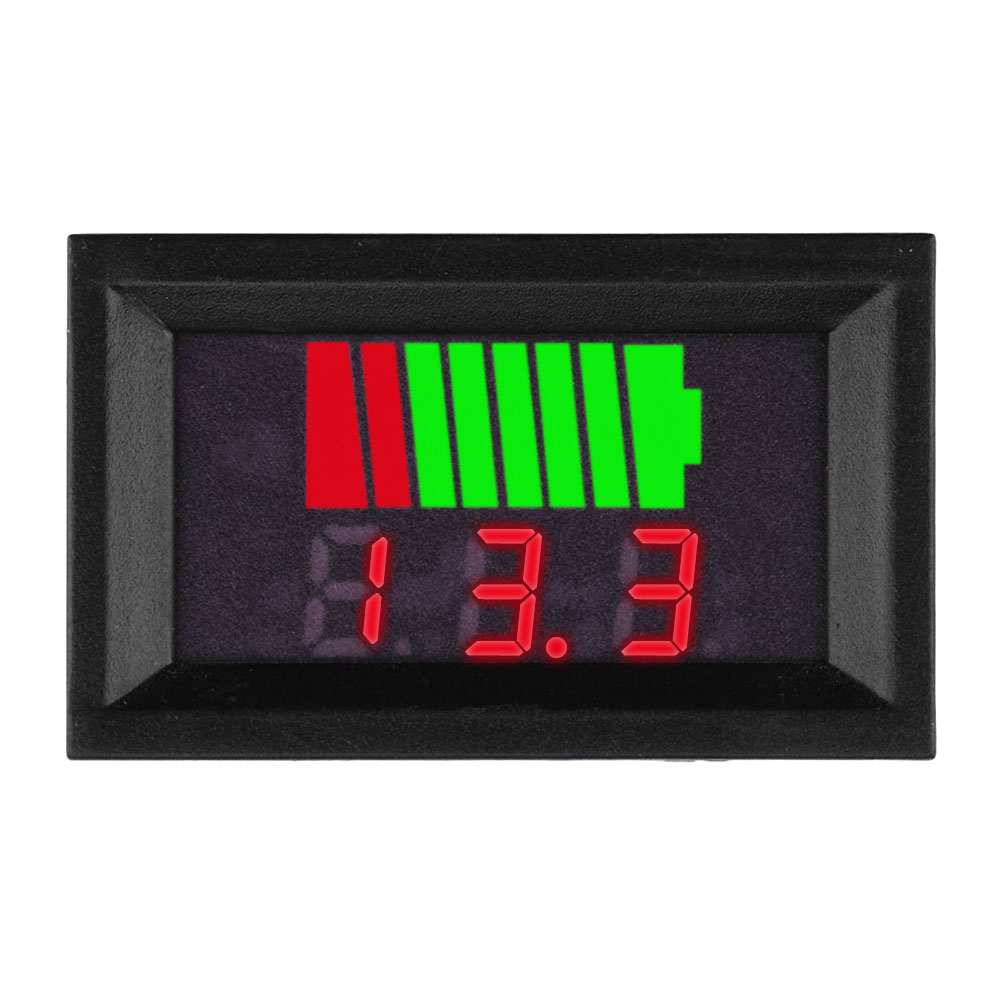

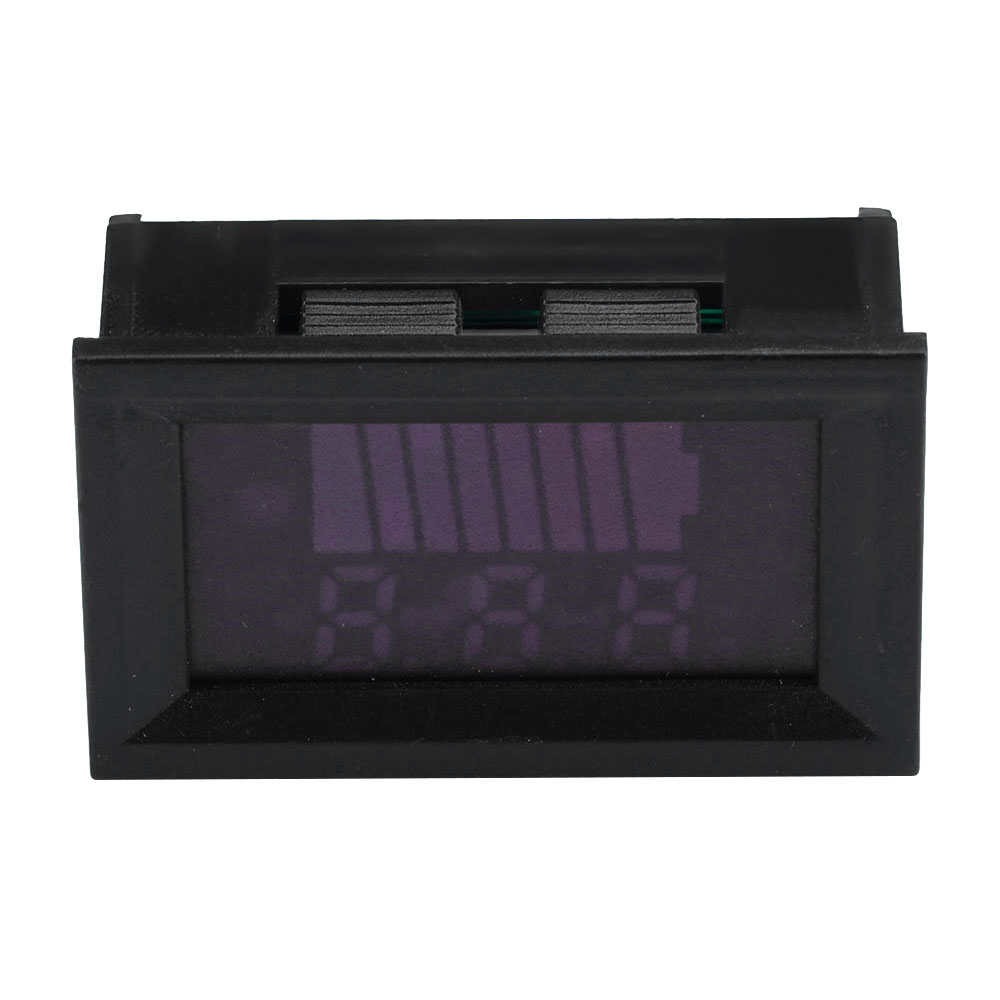

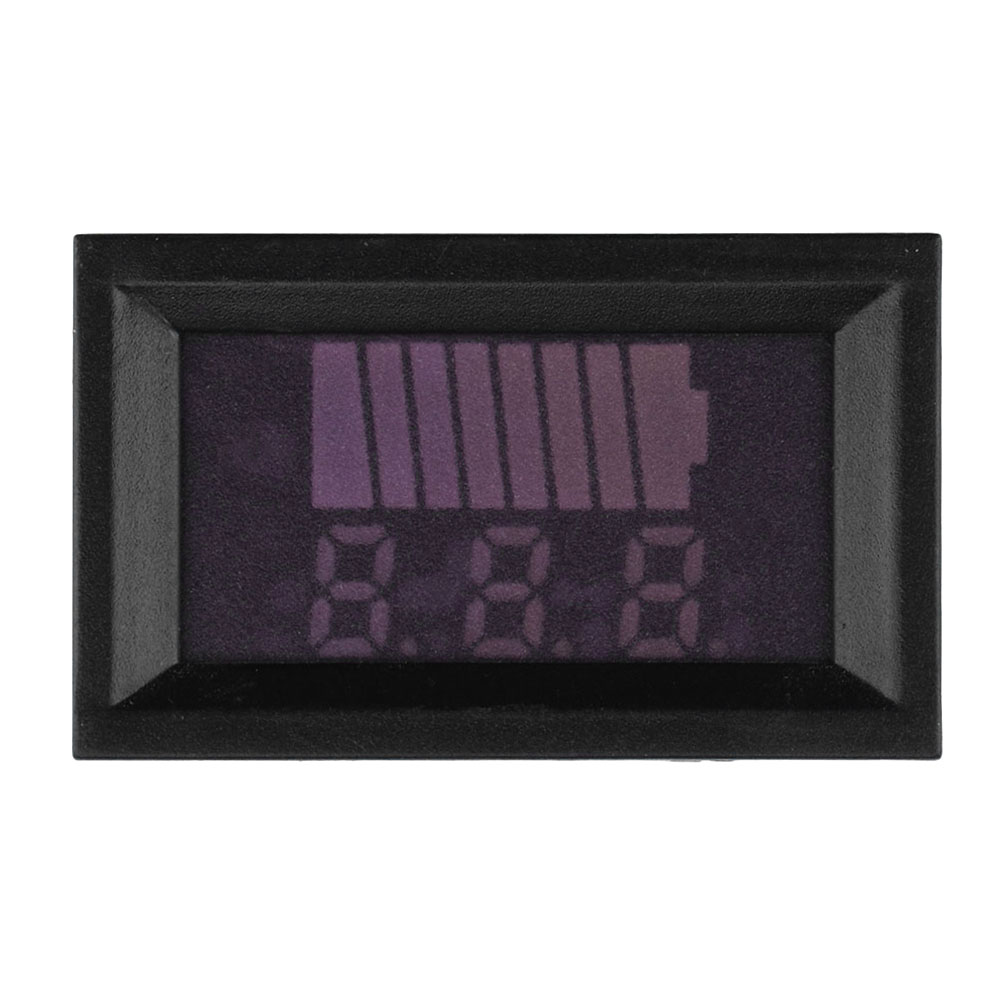

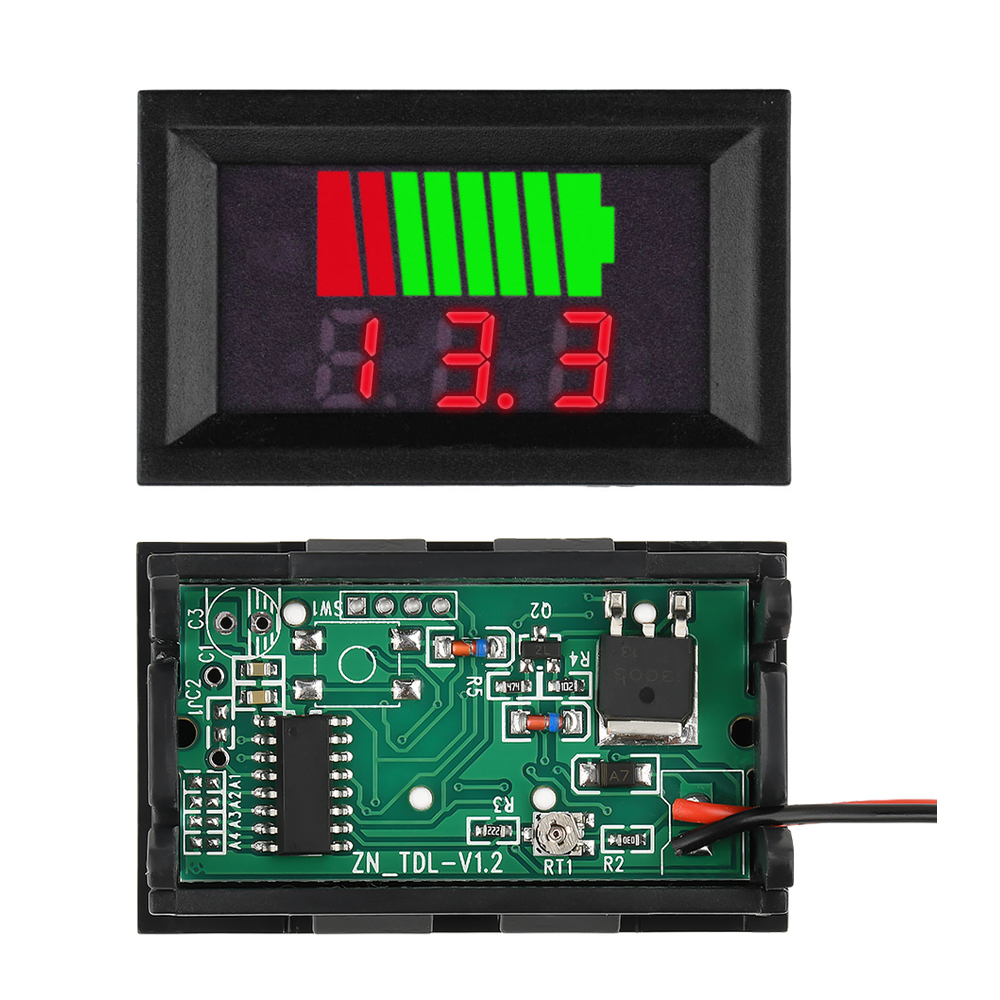

2. Double display power + voltage, intuitive display of power, the upper row of 8 grid color bar display battery power. The lower line shows the battery voltage.
3. The meter head automatically recognizes the voltage and power, the voltmeter decimal point is automatically shifted with high precision, the display is more intuitive and clearer.
4. With reverse connection protection, even if the wire is connected in reverse, it will not be damaged.
5. Wide range of applications: suitable for mobile power, electric cars, car batteries, electric car batteries and other acid batteries.
Power supply range: DC 5-100V
Voltage measurement range: DC 6-72V
Note: 5V is startable, the corresponding battery is 6V.
Power level: 8 levels (10%-25%-40%-50%-60%-75%-85%-100%)
Voltage error: 1.0
Display specification: color screen + 0.28inch LED high brightness digital tube
Refresh speed: about 0.35S/time
Operating current: <15mA
Display color: color screen + red, color screen + blue
Operating Temperature: -10~+65°C
Working humidity: 10~80% (no frost)

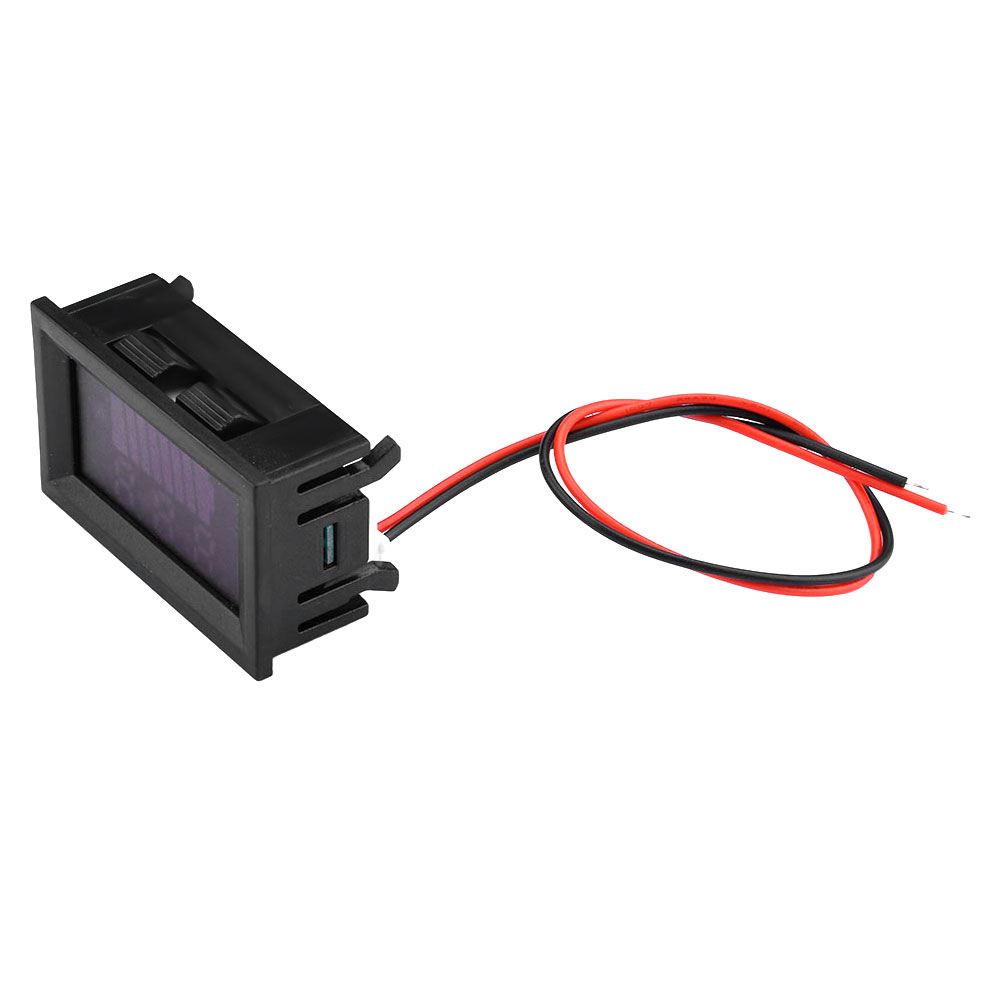

Lead wire length: about 20cm
Wiring mode: pluggable 2.54 terminal wire

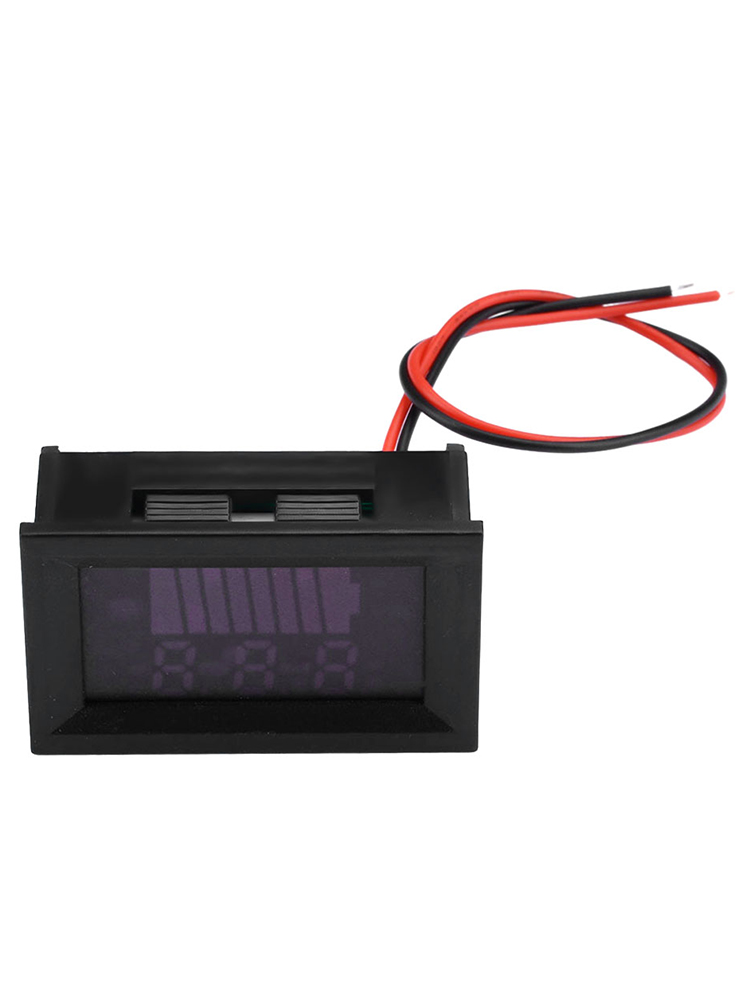

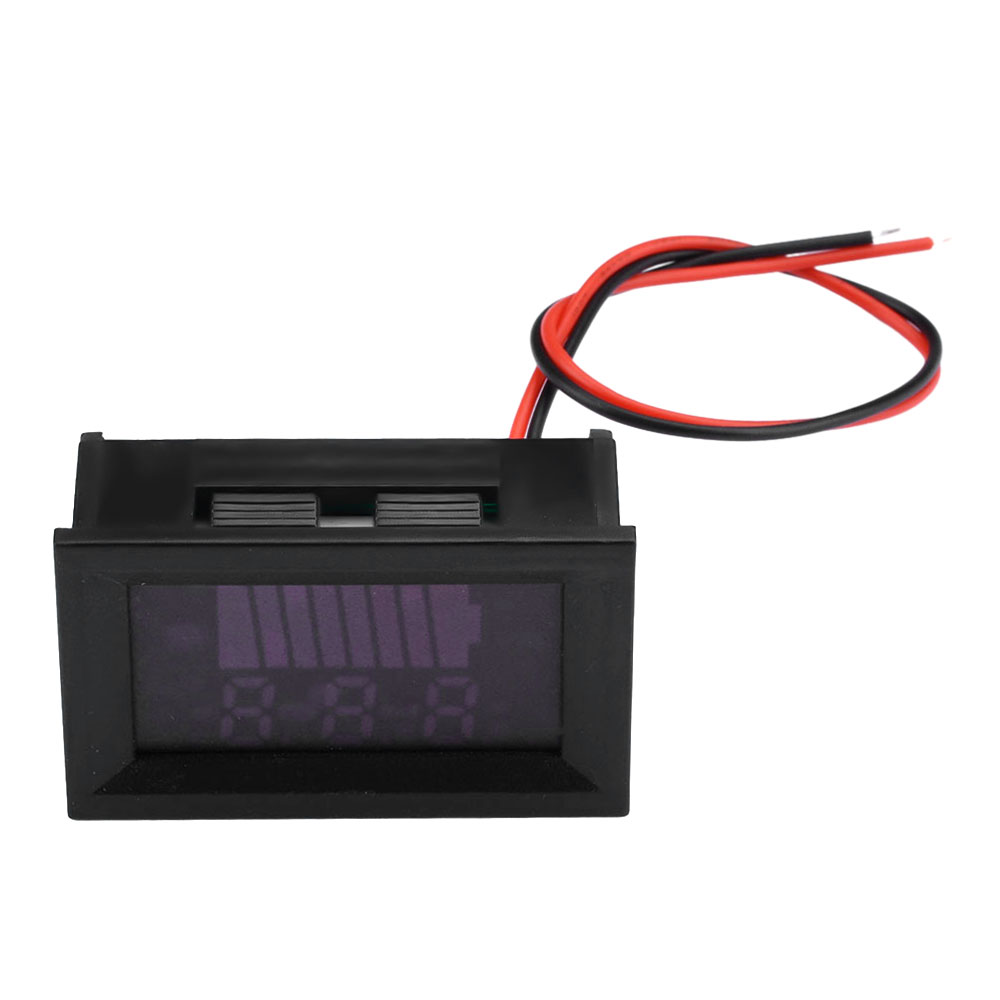

Instructions for use: the meter head two-wire system, you can directly test the battery, red to connect the battery positive pole, black to connect the battery negative pole.

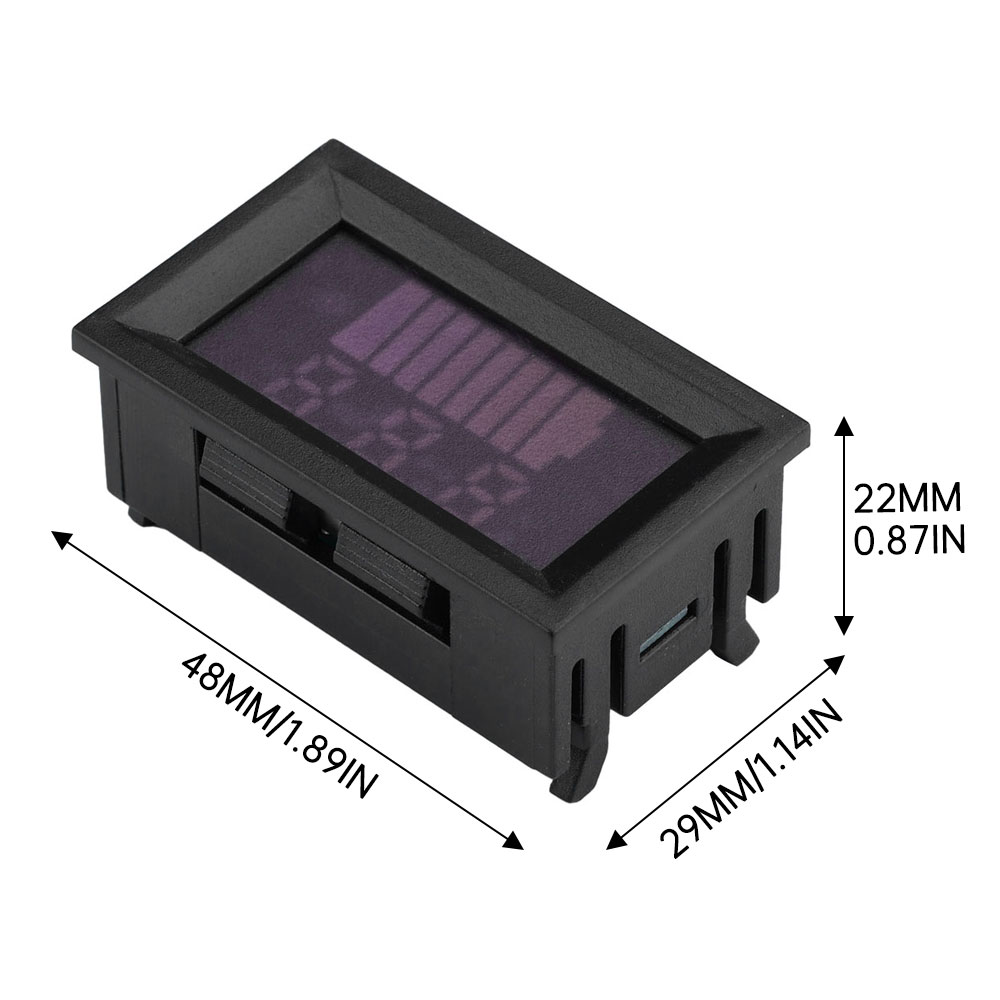

Product size: 48*29*22mm Installation size: 46*26mm
Power indicator*1
Wiring *1
