1-5PCS RC-33 NC/NO Recessed Wired Door Contact Sensor Alarm Magnetic Reed Switch

Product Features
1. Easy to use and easy to install
2. Stable performance and long service life
3. It is not easily broken and has characteristics such as compression resistance, impact resistance, and corrosion resistance
4. A switch mainly composed of two parts: a switch and a magnet. The door magnetic switch has a small size and is suitable for various door types
5. Wide range of use: suitable for installation and use of doors and windows in various fields such as urban security, banking, telecommunications, electricity, justice, residential areas, factories, companies, schools, homes, villas, warehouses, etc

Product Principles
The door magnetic switch is mainly composed of two parts: a switch and a magnet. The switch part is connected by a magnetic spring switch through a lead wire and packaged in a fixed shape; The magnet part is encapsulated in a plastic or alloy shell by a magnet with corresponding magnetic field strength. When the two are separated or close to a certain distance, it causes the switch to open and senses changes in the position of the magnetic switch of the object door

Product parameters
Model: RC-33 Embedded Door Magnetic Switch Wired Door Magnetic Alarm
High quality imported ABS, imported dry reed tube 1007 #/24 # 300mm UL wire
Action distance: 12MM plus or minus 5MM
Switching withstand voltage: DC100V
Load current: 80mA

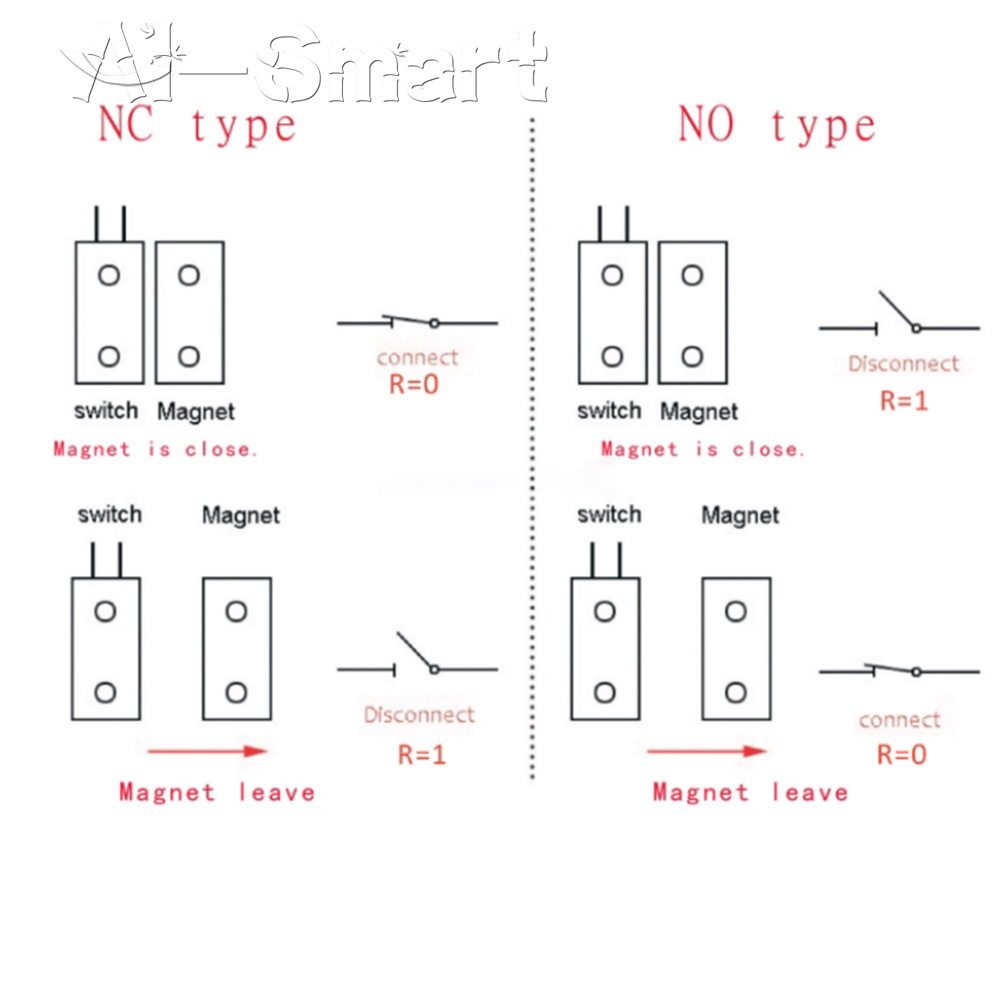

Normally closed: When the magnet approaches, it is conductive, and when the magnet leaves, it is a circuit breaker. Normally open: When the magnet approaches, it is closed (circuit breaker), and when the magnet leaves, it is a circuit breaker

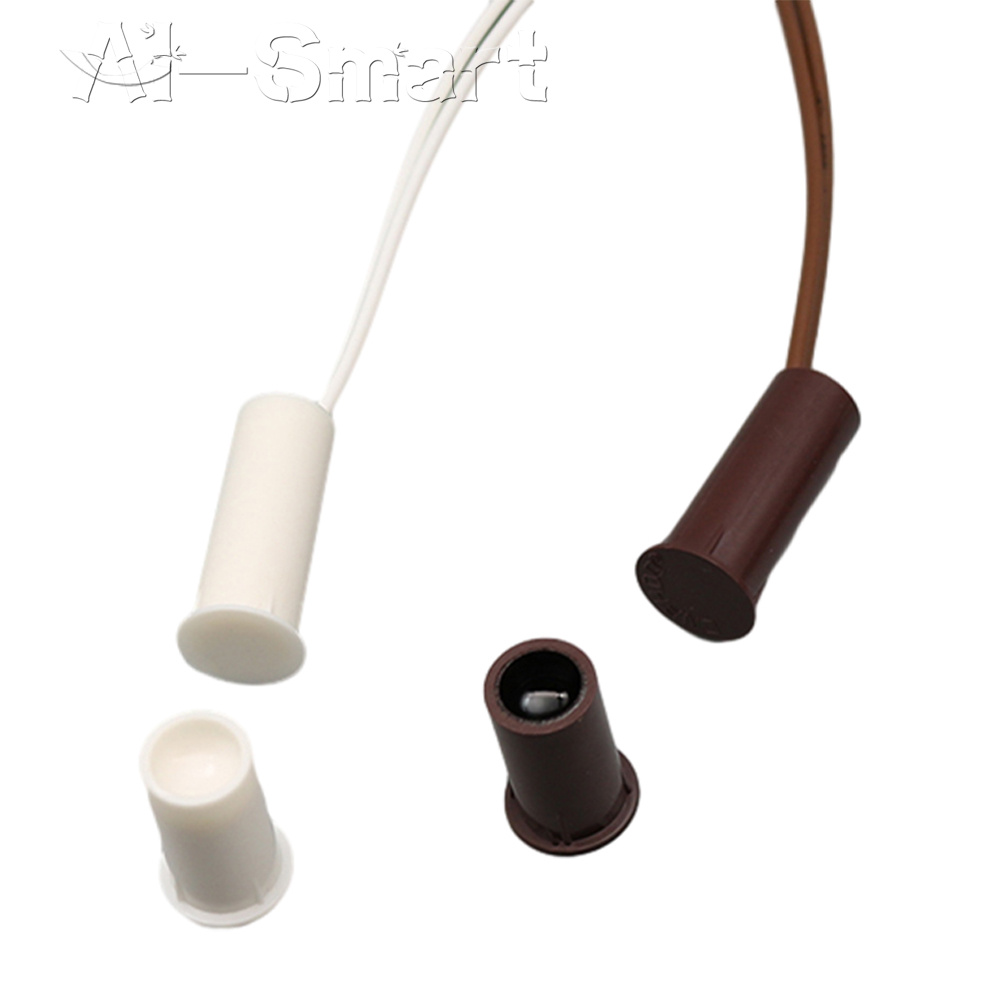

Appearance size: The diameter of the magnet part is about 10X14mm, and the diameter of the switch part is about 10x18mm
Installation method: Concealed installation on wooden doors and windows or aluminum alloy doors and windows
Attention: If the door magnet needs to be powered on, the voltage should be controlled between DC0-24V, and the power supply current should not exceed 1A. The load current should not exceed 150mA

Shipping List

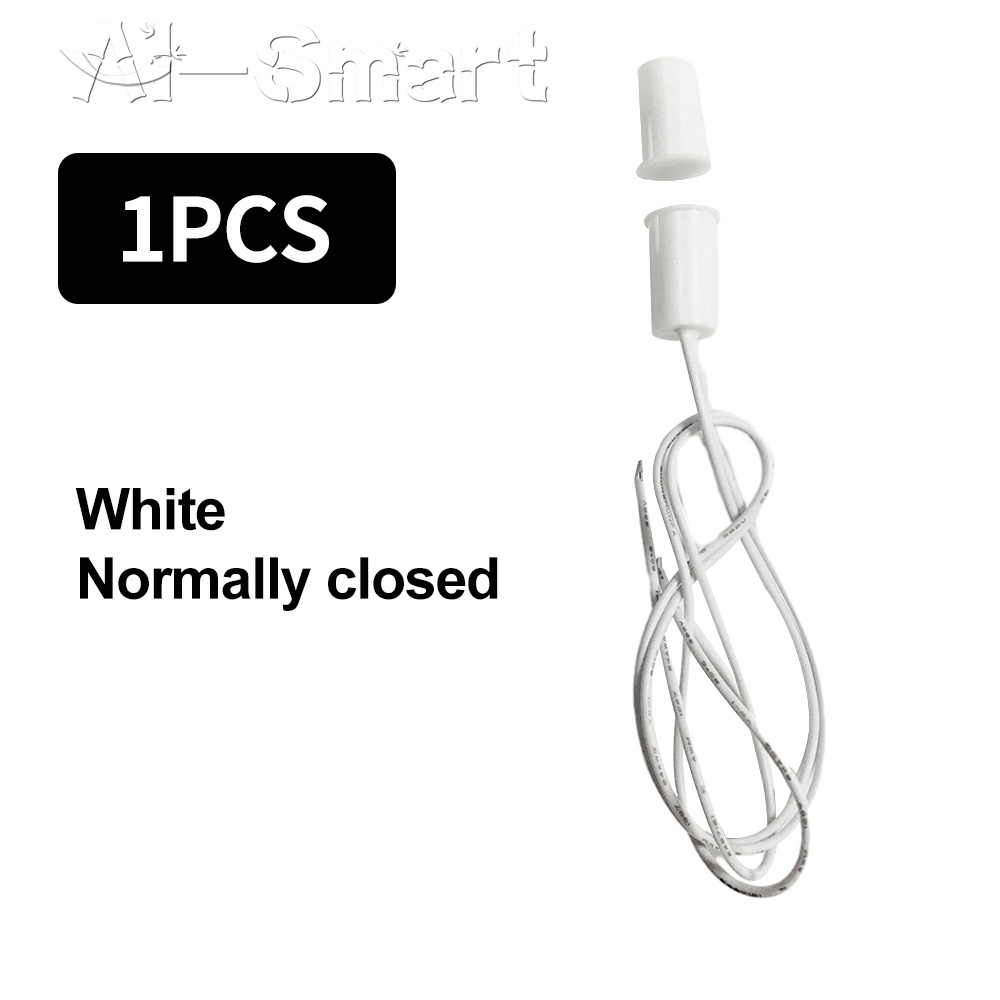

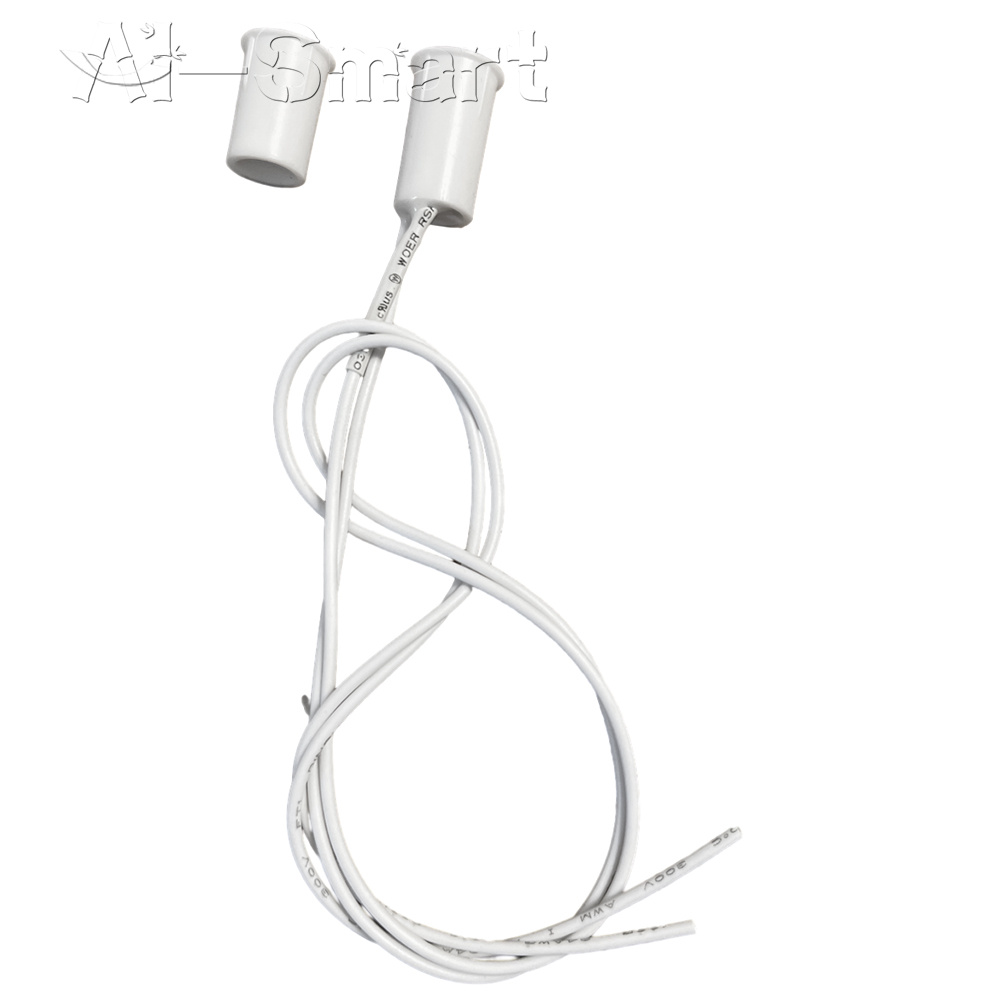

Package 1: Door magnetic switch * 1

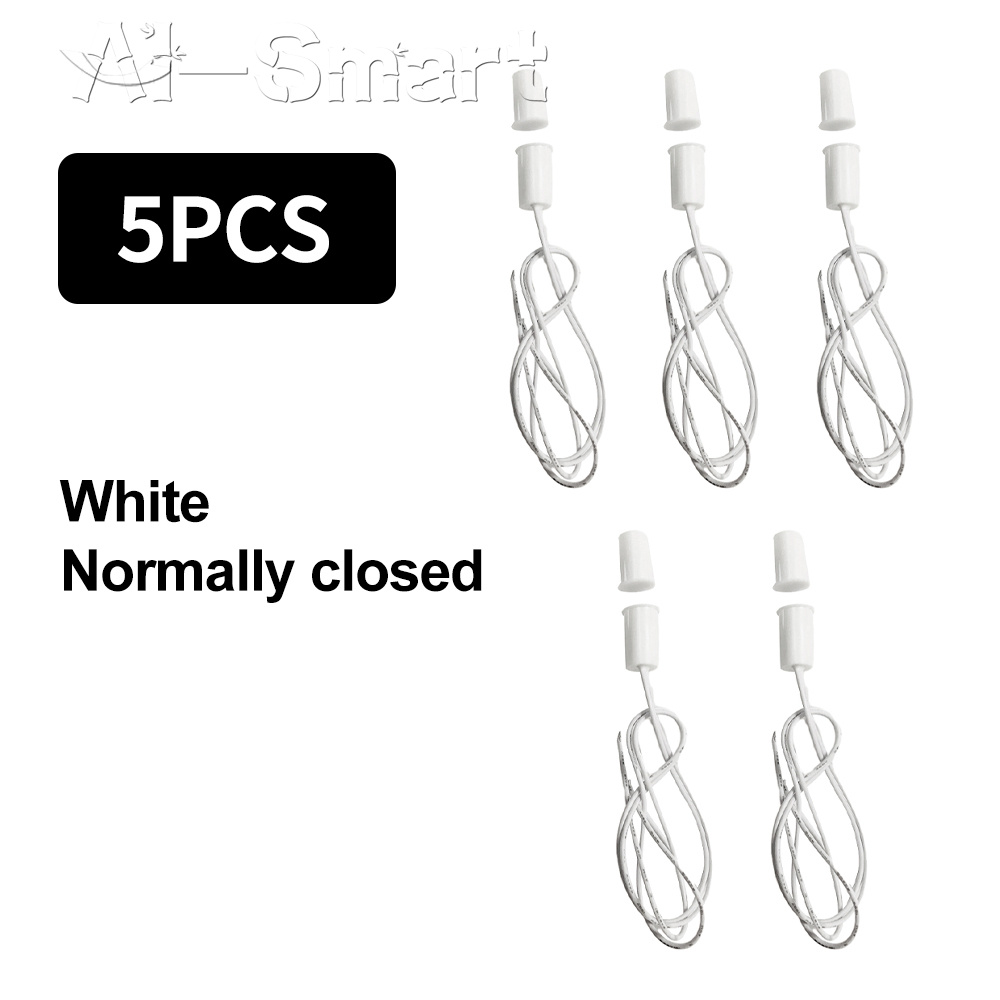

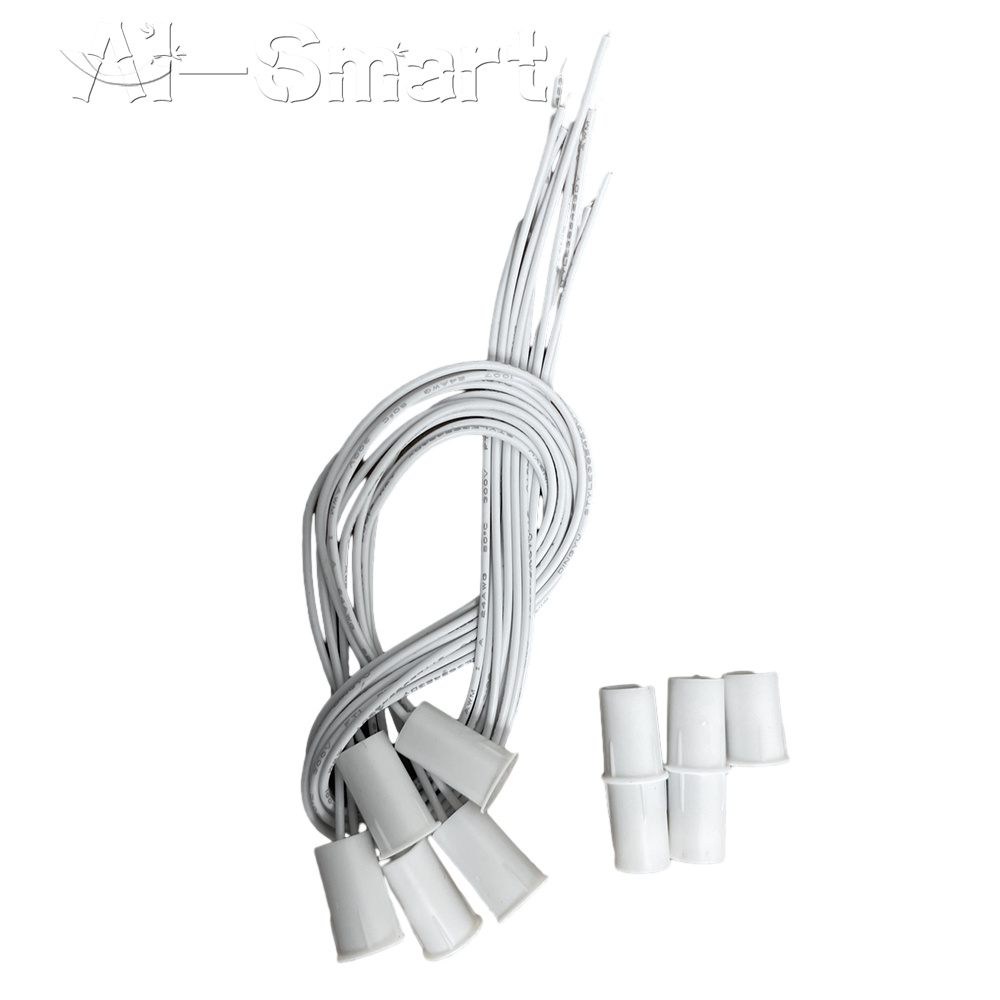

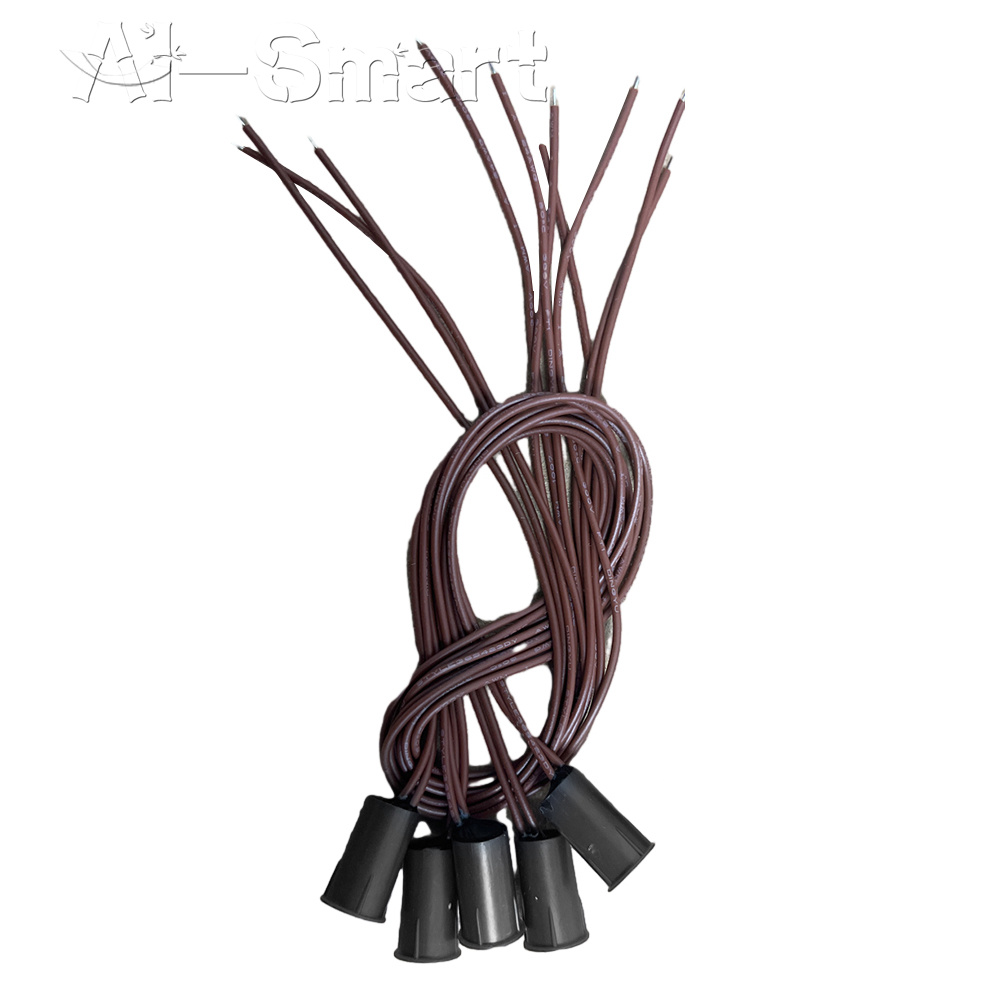

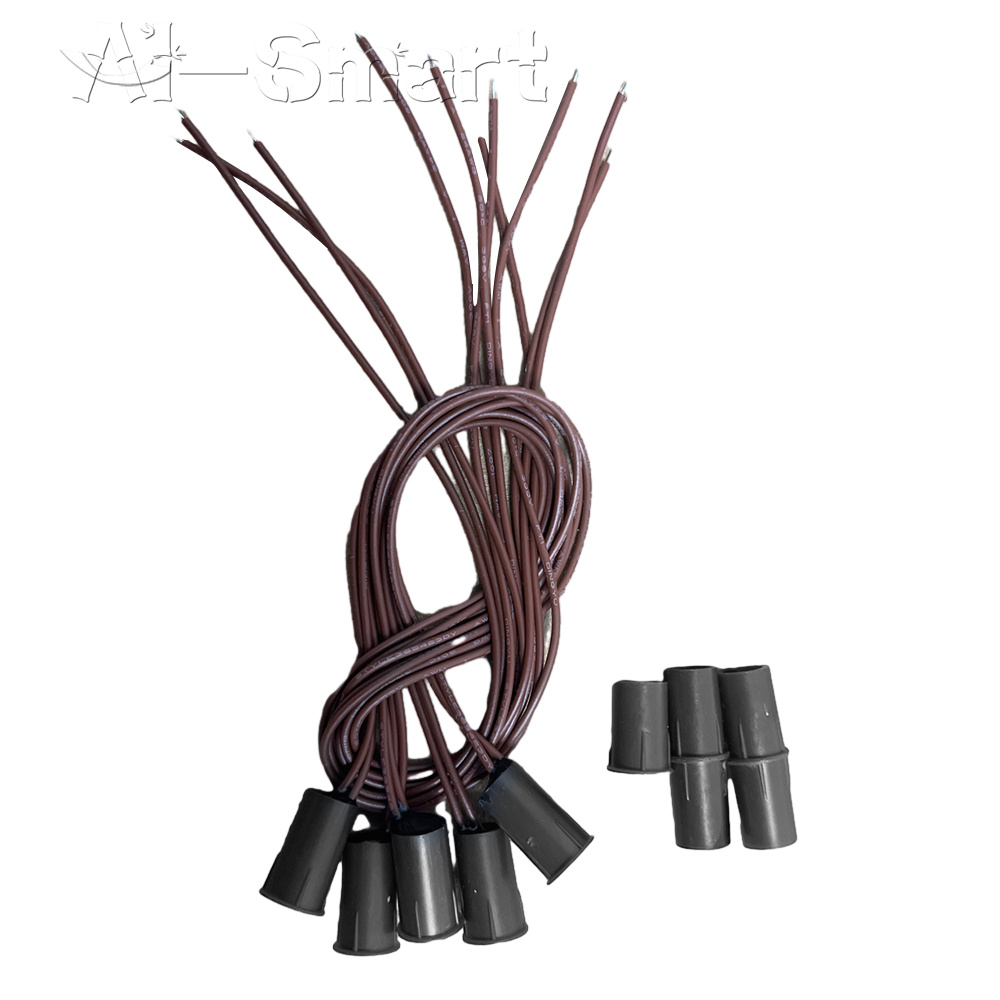

Package 2: Door Magnetic Switch * 5
