Product Details
Features:
Voltage Measuring Range: DC0.000~100.0V Error ±1.00V 0.1V start.
Current Measurement Range: 0.000A~10.00A Error ±0.1A 0.03A jumping
Power measurement range: 0.000~1000W
Bright screen off screen function: support, only control the digital tube, does not affect the circuit on and off
Voltage and current display fine-tuning, over-voltage and over-current with an audible alarm
Parameter:

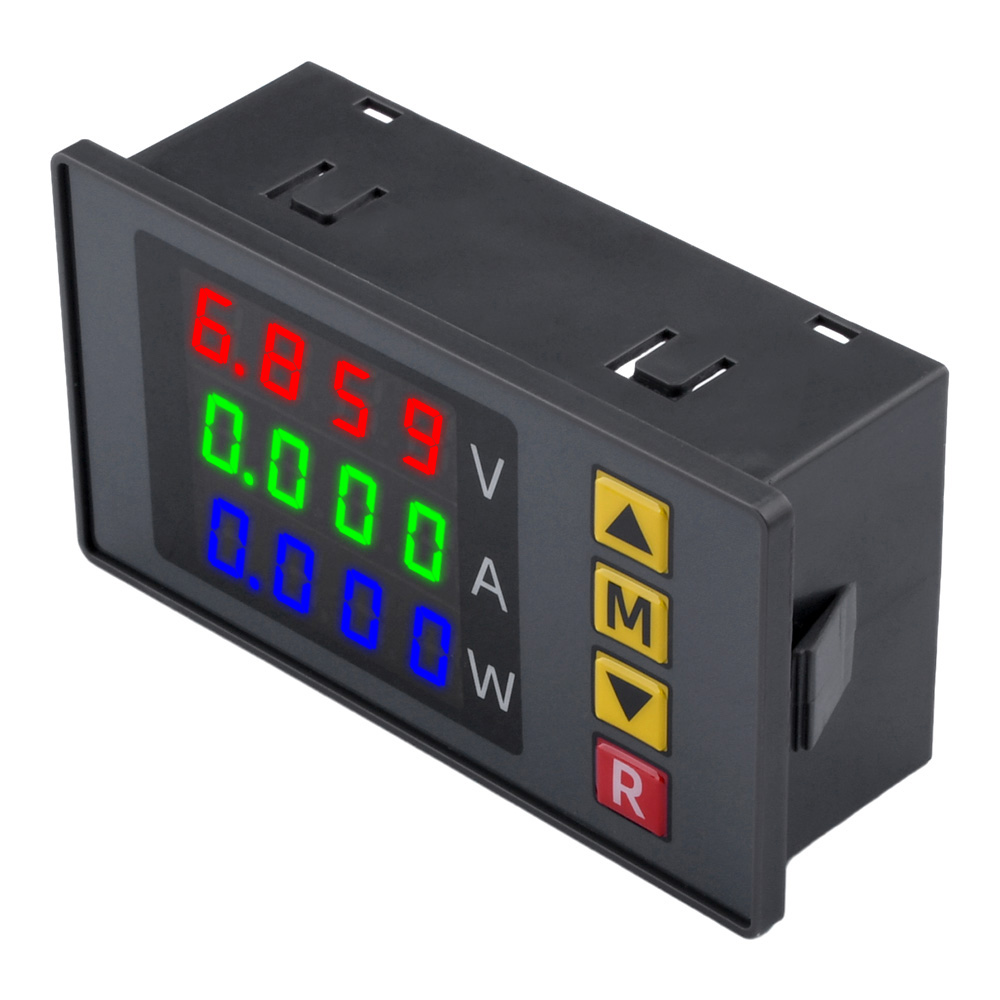

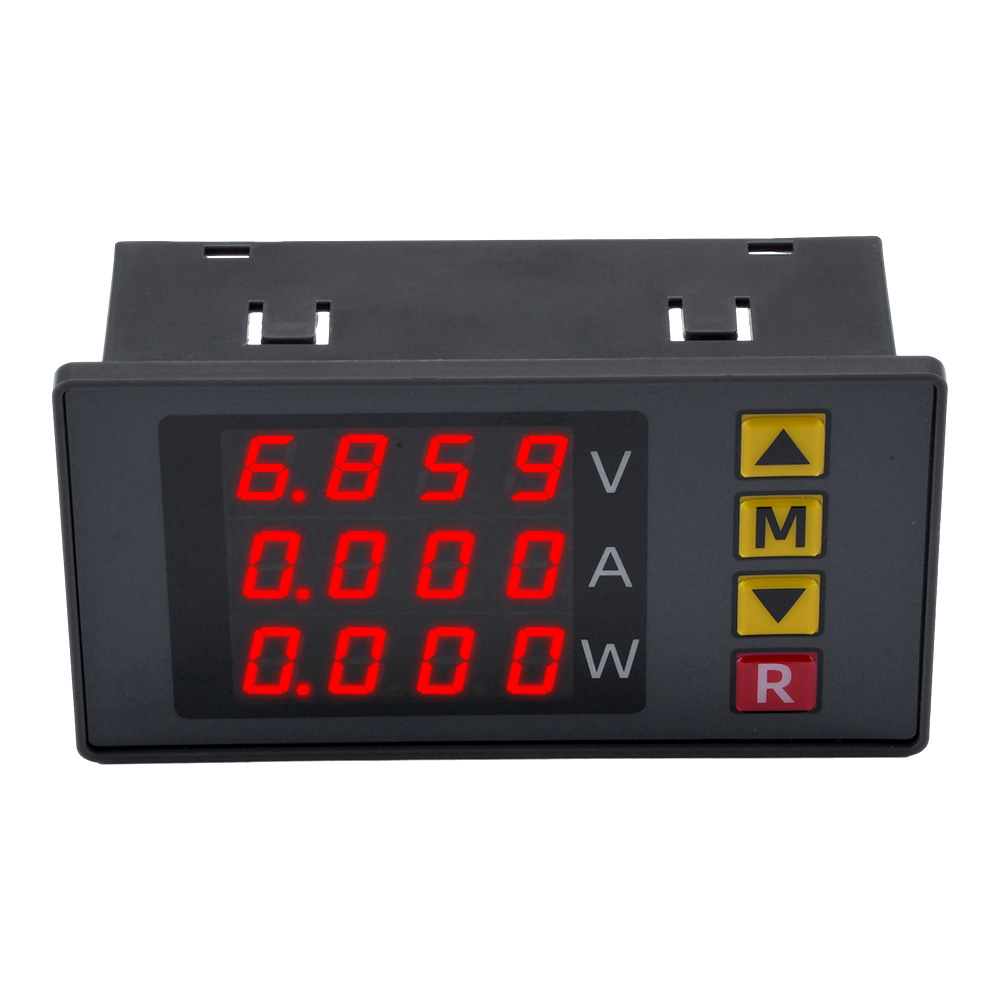

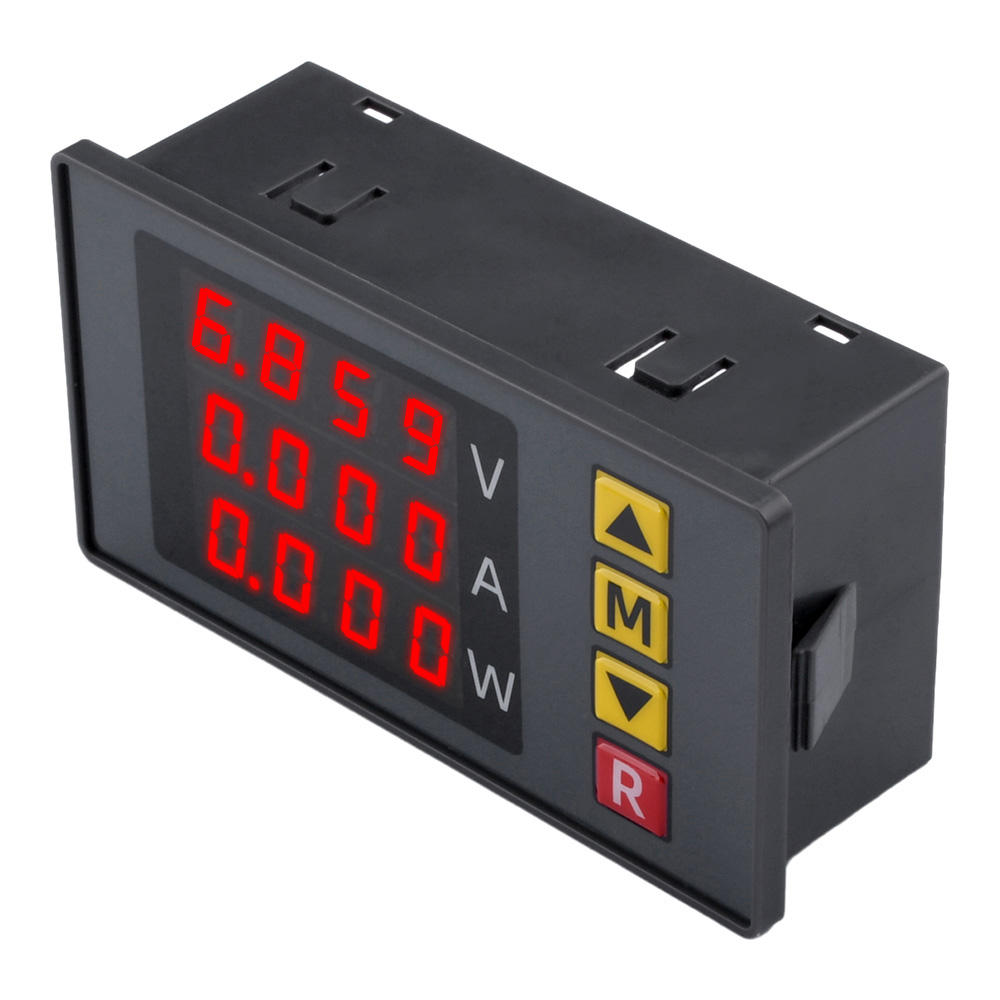

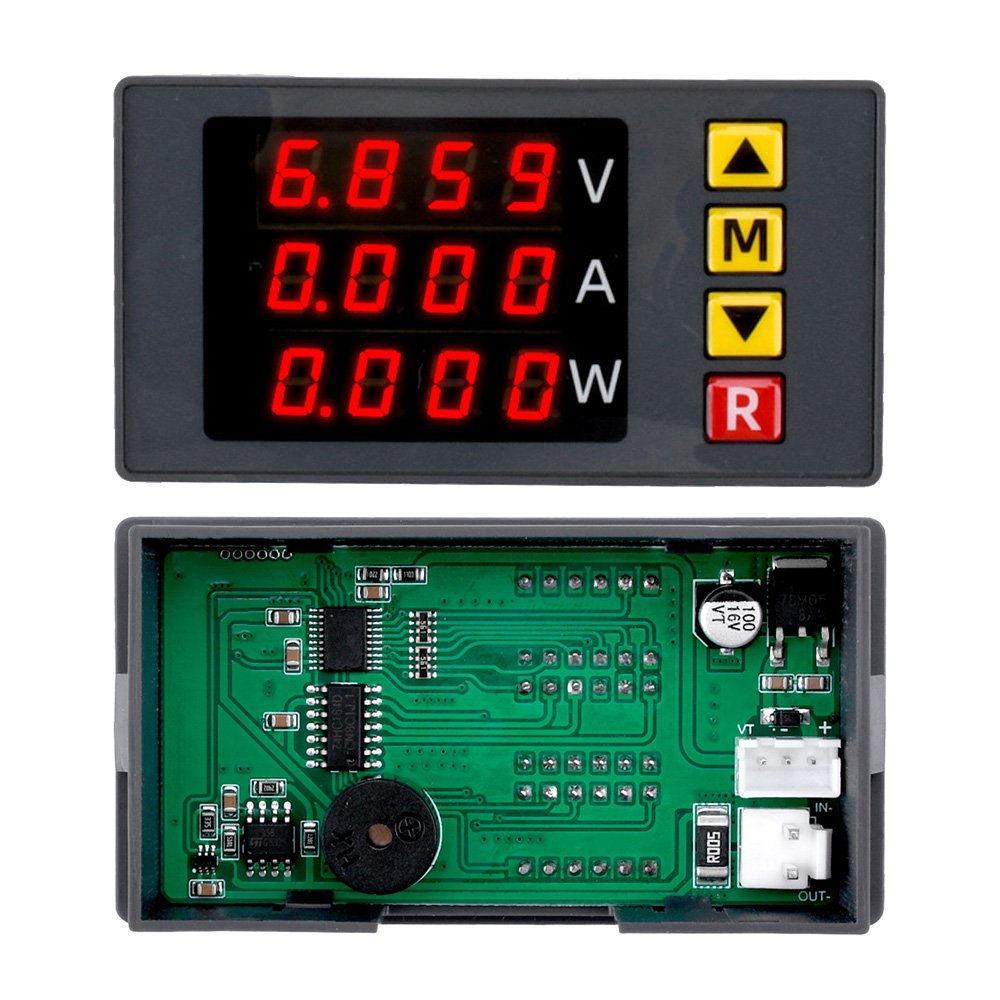

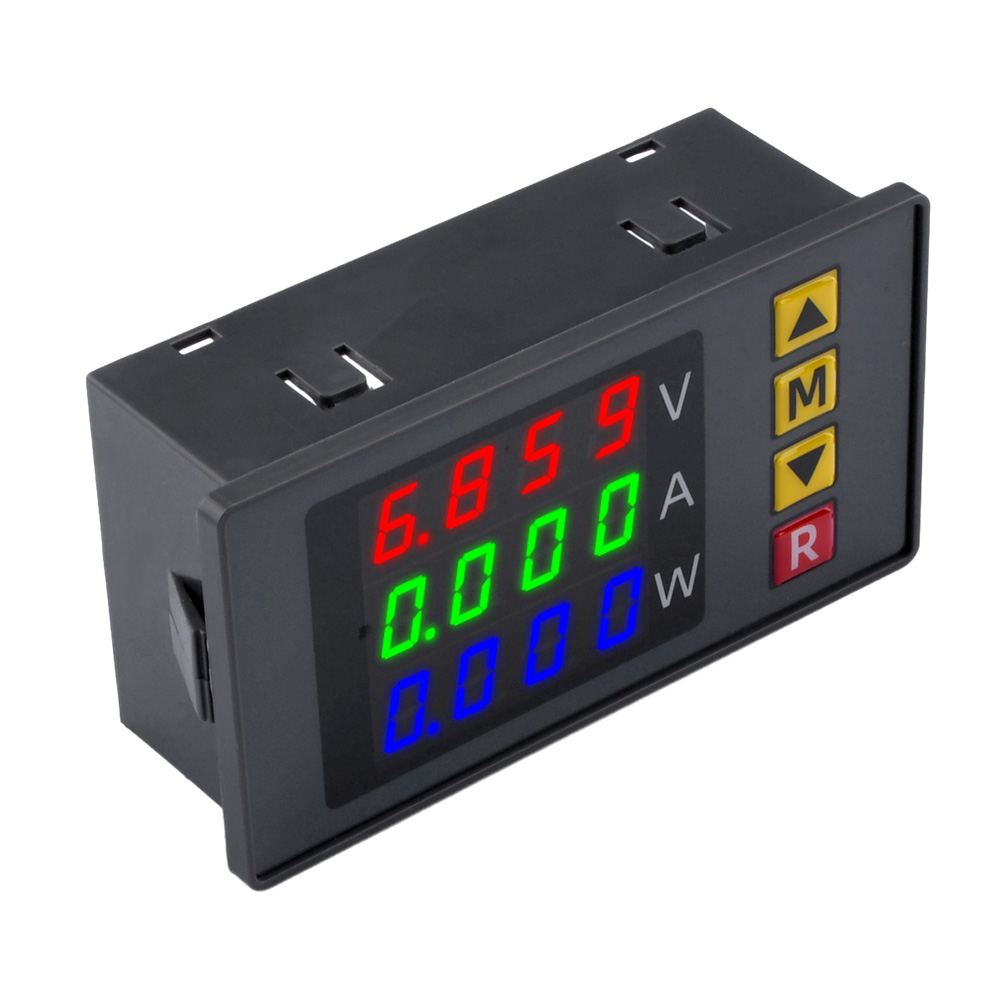

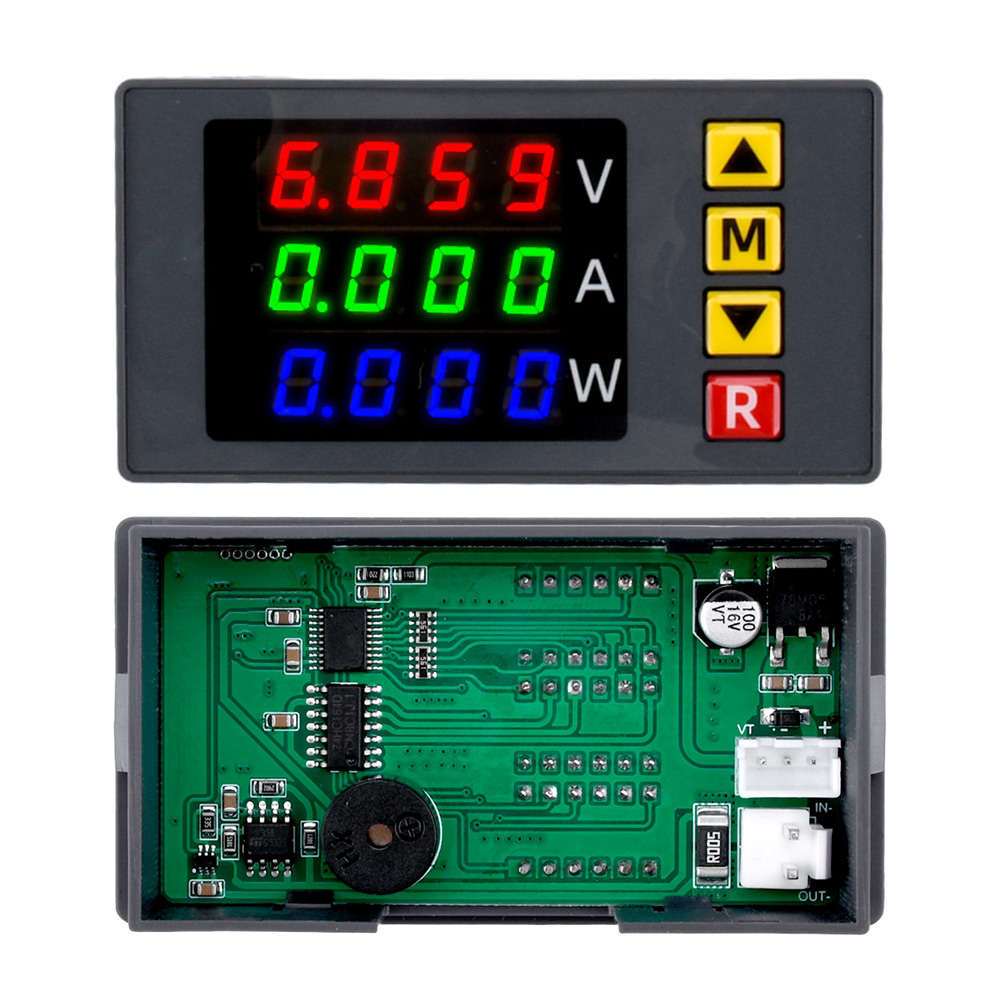

Product name: BM730-10A Voltage Voltage Current Power Meter with Sound Alarm
Instrument working voltage: DC7~30V (Do not over-voltage power supply)
Voltage Measuring Range: DC0.000~100.0V Error ±1.00V 0.1V Jumping
Current Measurement Range: 0.000A~10.00A Error ±0.1A 0.03A jumping
Power measurement range: 0.000~1000W
Working energy consumption: about 20mA
Voltage display fine-tuning: support, 0.1V steps
Current display fine-tuning: support, 0.1A steps
Low voltage audible alarm: support, 0.1V~99.9V
High voltage audible alarm: Support, 0.1V~100.0V
Over-current audible alarm: support, 0.1A~10.00A
Screen on and screen off function: support, only control the digital tube, does not affect the circuit on and off.
Product size: 79.3×42.1×26.2mm
Installation opening: 71.7×39.1mm

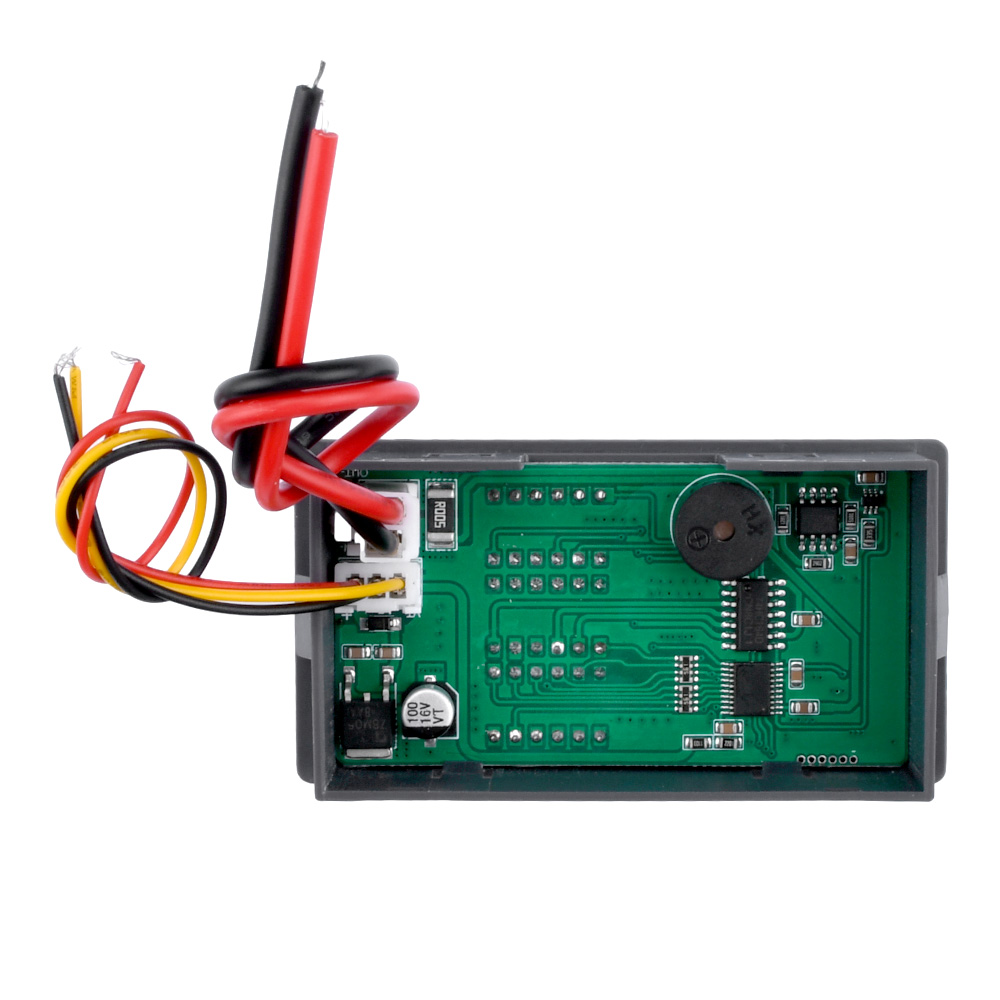

Wire Definition Introduction:
XH-2.54-3P red, black and yellow wire (thin wire Total length: 155mm)
Thin red wire: positive pole of the working power supply, can not be connected to the power supply above 30V.
Thin black wire: negative pole of the working power supply, and thick black wire site, do not need to be connected when sharing power supply.
Thin yellow wire: voltage test line, connected to the positive pole of the test circuit power supply.
VH-3.96-2P thick red and black wires (thick wire total length: 165mm) current test line
Thick wire parallel shunt resistance, can not be directly connected to the power supply poles, will be short-circuited!
Thick red wire: current test positive pole, string in the negative end of the load, connect the broken line after the first break!
Thick black wire: current test negative pole, connected to the negative pole of the power supply, connected to the broken line after the first break!
Package include:
1*Digital voltage current power meter
1*XH-2.54-3P Red, black and yellow wire
1*VH-3.96-2P Coarse red and black wire
