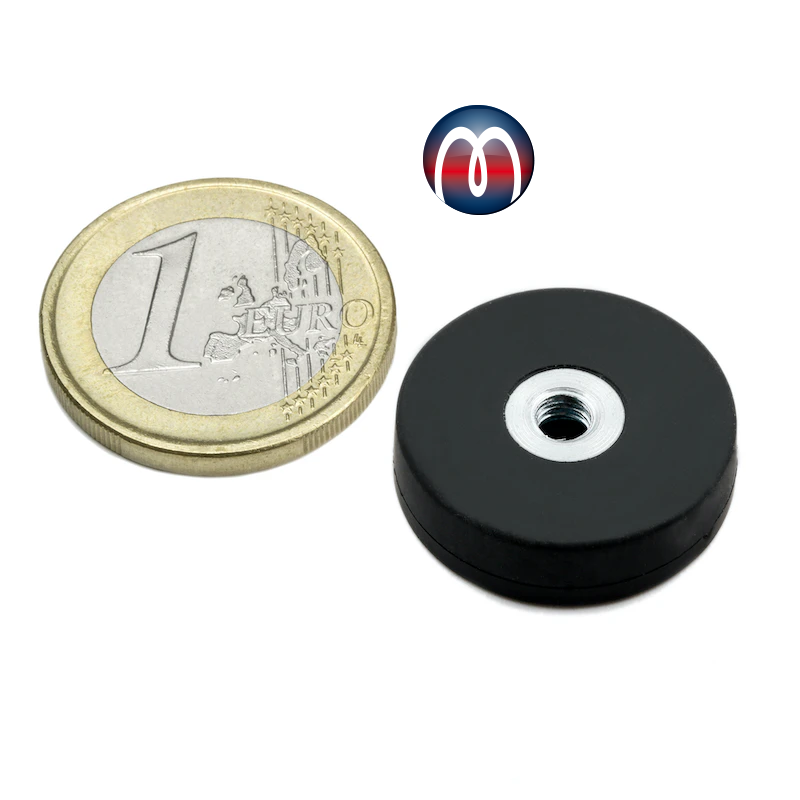

Neodymium magnet system Ø 22 mm - Ø 88 mm black rubber-coated with internal thread - holds 3,8 kg - 55 kg
Strong adhesion with surface protection against scratching or marking, even outdoors
High resistance to sliding whilst holding, gripping or clamping
"Over 300,000 satisfied customers"
These rubber coated Neodymium (NdFeB) pot magnets are especially suitable for magnetically fixing objects such as advertising displays or attachments to cars body work (the metal work must have a mild steel content). They are also suitable for retail applications such as mounting signs or POS banners. They are also used for saftey applications such as holding temporary lighting. The rubber coating also ensures a good level of corrosion protection in humid conditions.
Because of their high performance, slide resisting properties and paint work protection ability, these rubber coated Neodymium (NdFeB) pot magnets are widely used in the retail and display industries. They can also be referred to as Boutique Magnets because of their protective qualities.
The rubber coating also provide a good level of corrosion protection in humid conditions. Because of their high performance, slide resisting properties and paint work protection ability, these rubber coated Neodymium (NdFeB) pot magnets are sometimes also known as Boutique Magnets.
Product features
- NNeodymium magnet system Ø 22 mm - Ø 88 mm black rubber-coated with internal thread - holds 3,8 kg - 55 kg
- Neodymium rubberized magnet system Ø 22 mm with M4 internal thread - holds 3,8 kg

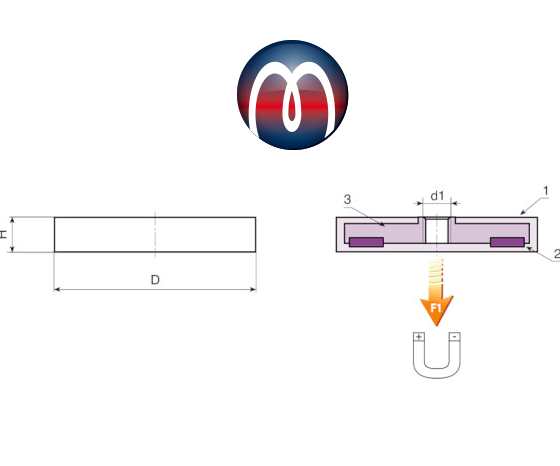

- Total diameter D 22.0 mm
- Temperature max. 60 °C
- Magnetization quality N35
- Thread m M4
- Material neodymium
- Adhesive force 3,000 kg
- Weight 0.009 kg
- Total height H 6.0 mm
- Neodymium rubberized magnet system Ø 31 mm with M4 internal thread - holds 8.9 kg
- Total diameter D 31.0 mm
- Temperature max. 60 °C
- Magnetization quality N35
- Thread m M5
- Material neodymium
- Adhesive force 8,900 kg
- Weight 0.021 kg
- Total height H 6.0 mm
- Neodymium rubberized magnet system Ø 43 mm with M4 internal thread - holds 10 kg
- Total diameter D 43.0 mm
- Temperature max. 60 °C
- Magnetization quality N35
- Thread m M4
- Material neodymium
- Adhesive force 10.00 kg
- Weight 0.029 kg
- Total height H 6.0 mm
- Neodymium rubberized magnet system Ø 66 mm with M6 internal thread - holds 25 kg
- Total diameter D 66.0 mm
- Temperature max. 60 °C
- Magnetization quality N35
- Thread m M6
- Material neodymium
- Adhesive force 25,000 kg
- Weight 0.1 kg
- Total height H 8.5 mm
- Magnet system neodymium rubberized Ø 88 mm with internal thread M6 - holds 55 kg
- Total diameter D 88.0 mm
- Temperature max. 60 °C
- Magnetization quality N35
- Thread m M6
- Material neodymium
- Adhesive force 55,000 kg
- Weight 0.186 kg
- Total height H 8.5 mm
Application:
Holding magnet for workshops, laboratories, hobbies, fixture construction or tool making. Especially suitable for sensitive surfaces. Anti-slip rubber coating
Details
- Made with compact-sized rare earth Neodymium magnets for powerful holding force
- Santoprene Rubber coating for scratch-free clamping
- Neodymium Magnets (NdFeB) inside for maximum holding forces
- Extremely good sheer forces - high resistance to sliding
- Protects surfaces such as lacquered mild steel car body work
- Excellent as Sign Magnets and Lighting Magnets
- Maximum recommended operating temperature is 60°C
Details
- Rubber coated pot magnets also called as rubber coated holding magnets.Rubber coated pot magnets are used on the surface where it is easy to be scratched
- Rubber coated holding magnets are an ideal holding magnets for the surface where it is easy to get wet or work in humid conditions
- Each rubber coated pot magnets composed of 6pcs disc neodymium magnets, which make the rubber coated holding magnets multi-pole structure
- The disc rubber coated magnets on this page are with an internal thread, which can wring hook or eyebolt
- After screwed with hook or eyebolt, the whole rubber coated pot magnets can be used as hook magnets to hang objects on the metal body where the surface is painted
Note on adhesive force
The adhesive forces determined by us were determined at room temperature on a polished plate made of steel S235JR (ST37) with a thickness of 10 mm with the magnet pulled off vertically (1kg~10N). A deviation of up to -10% compared to the specified value is possible in exceptional cases.
Classy look and high-quality material
Thanks to the elegant look of our Rubber Coated Neodymium Magnet Ø 22 mm - Ø 88 mm internal thread, rubber jacket, they can be placed where they are clearly visible.
REACH RoHS Directive
This article complies with the European RoHS directive (2002/95/EG - RoHS - Restriction of Hazardous Substances) for the restriction of the use of certain hazardous substances in electrical and electronic equipment. Corresponds to the European RoHS directive, is PVC and plasticizer-free and REACH-compliant - classified according to the German flame retardant standard DIN 4102 / B1
