MCH K3010DN Current display accuracy 0.001A/0.01V, Output voltage 30V,Output current 10A

MCH K305DN Current display accuracy 0.001A/0.01V, Output voltage 30V,Output current 5A

MCH K605DN Current display accuracy 0.001A/0.01V, Output voltage 60V,Output current 5A

MCH K305D Current display accuracy 0.01A/0.1V, Output voltage 30V,Output current 5A

MCH K3205D Current display accuracy 0.01A/0.1V, Output voltage 32V,Output current 5A

Special point

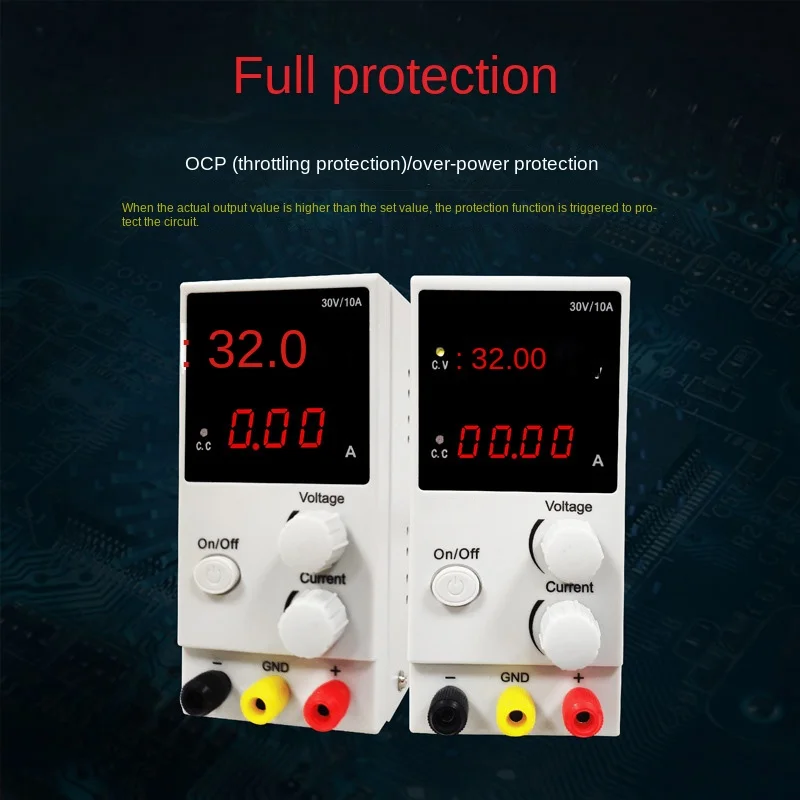

1, have complete operating protection function

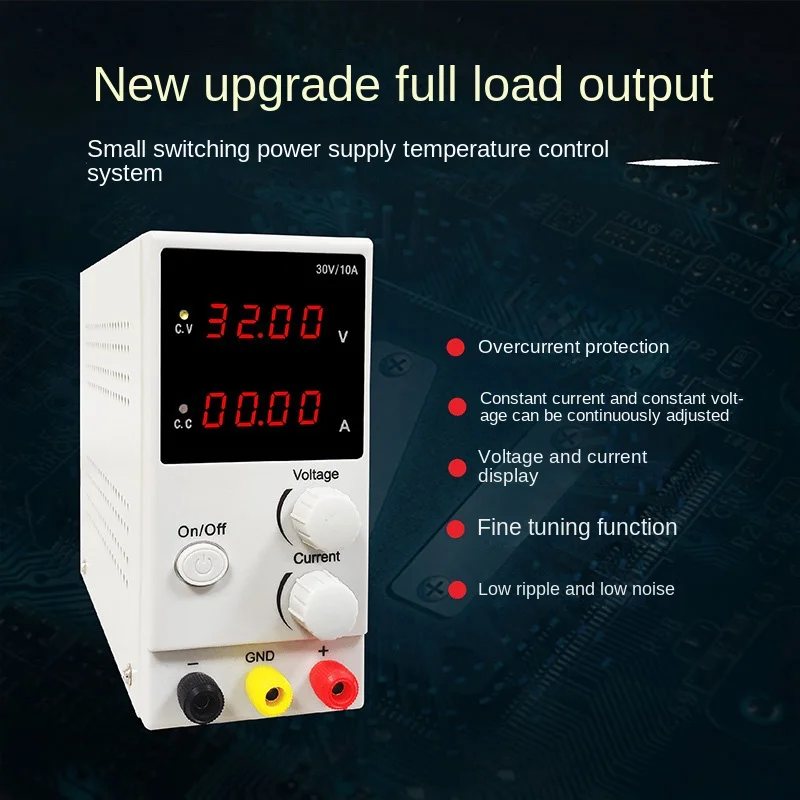

2, highly efficient, low ripple, small volume, light weight

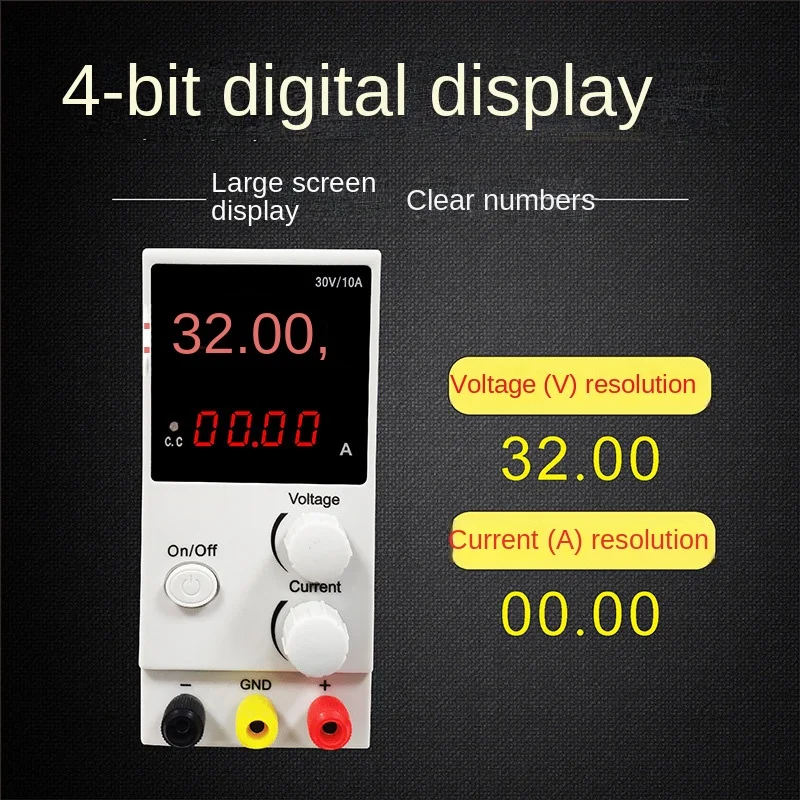

3, double display voltage, current, and high precision
4, voltage stabilization, current limiting, simple operation
5, dual voltage input and convenient choice

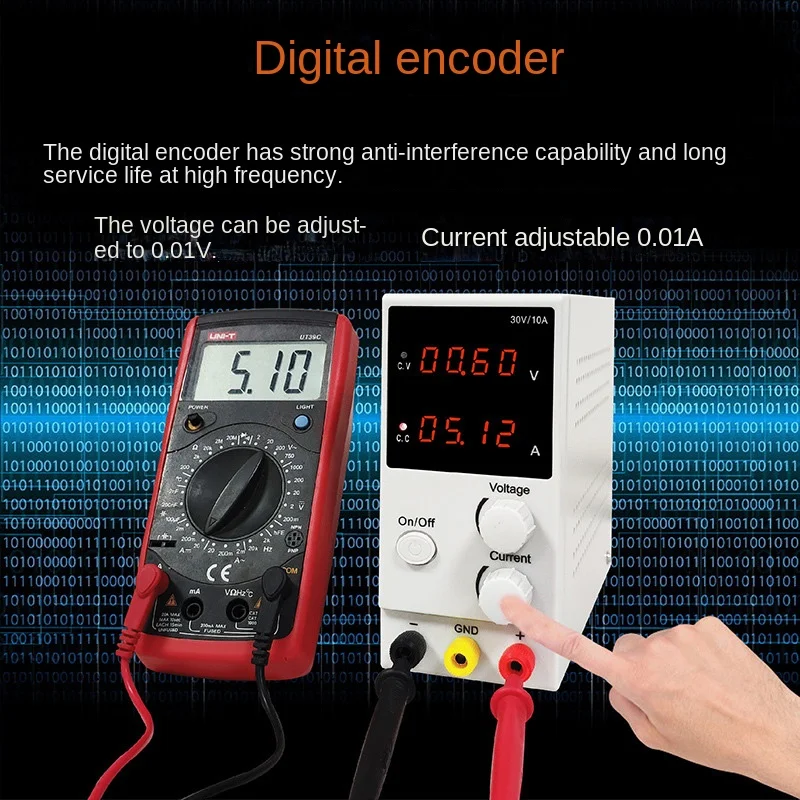

6, Double potentiometer more precise adjustment

Specification:

Input voltage:AC 110V/220V 50/60Hz
Output voltage:0 ~ 30V
Output current:0 ~ 10A
Voltage resolution:100mV
Current resolution:10mA
Power effect:CV1%+2mV
Effect of load:CV1%+5mV
Ripple and noise:Vp-p1%
Voltage display precision:±1%+1digits
Current display precision:±1%+2digits
Volume (mm):81W×165H×220L
Operating environment:(-10~45)  Rh<90%
