• MPN: 2217894
  • GTIN: 4062679192017
  • Weight: 0.300000
  • Pump Control: Automatic
  • Pipework Size: 1 Inch (25mm)
  • Connection Inlet: 1 1/2" Threaded
  • Connection Outlet: 1 1/2" Threaded
  • Pump Heads: Single Head
  • Connection Type: Threaded
  • Casing Material: Iron
  • Voltage: 230-240V 1~
  • kit includes: Pump, seals

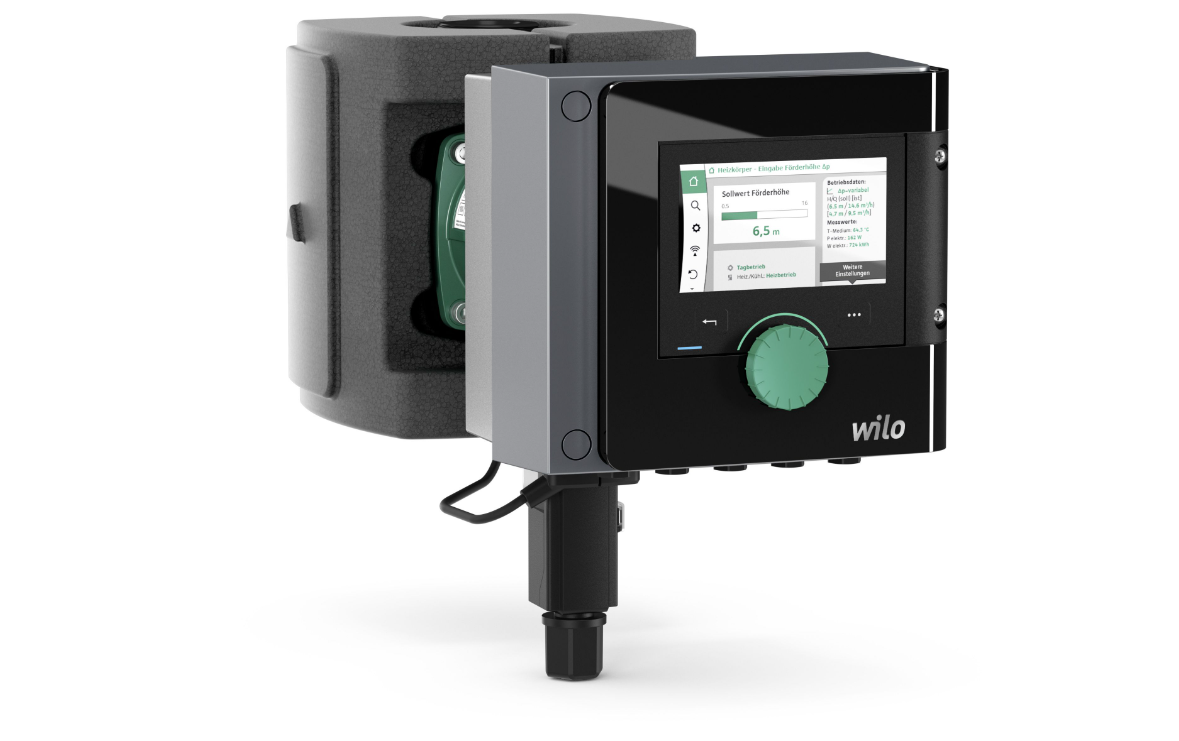

Wilo-Stratos MAXO 25/0.5-8-R7 PN10 intelligent glandless circulating pump with threaded connection, EC motor, Dynamic Adapt Plus function, electronic capacity adjustment and control function with BMS.

Technical data

Pump casing material Cast iron
Pump casing material grade Cast iron GG 20
Impeller material Polypropylene
Impeller material grade PP-GF
Nominal flow (BEP) [m³/h]. 5,994
Head at nominal flow (BEP) [kPa]. 53,15
Max. flow capacity (max. flow) [m³/h] 9,8
Max. head [m] 8,455
Max. operating pressure [bar] 10
Rated voltage range [V] 230
Number of phases 1
Frequency 50/60 Hz
Rated current [A] 1,05
Motor power consumption (P1) [W]. 0,16
Power consumption of pump (solpump) [W]. 160
Power consumption of pump in standby mode (solstandbypump) [W]. 7
Energy efficiency index (EEI) 0,19
IEC insulation class F
Motor speed control Built-in
Bluetooth wireless communication standard Yes
Interface signal 0-10 V / 2-10 V Yes
Interface signal 0-20 mA / 4-20 mA Yes
Interface signal PT100 / PT1000 / PTC Yes
Potential-free switching contact Yes
RS-485 protocol support Yes
Connection on inlet side External cylindrical gas thread
Nominal diameter of inlet connection 1 1/2 in.
Inlet connection flange pressure class PN 10
Type of inlet connection ISO 228-1
Connection on outlet side External gas thread cylindrical
Nominal diameter Connection on outlet side 1 1/2 in.
Outlet-side connection external diameter [mm] 40
Pressure class of outlet connection flange PN 10
Outlet connection type ISO 228-1
Shape of spigot Other
Degree of protection (IP) IPX4D



Brand new, unused, originally packaged





5-year manufacturer's warranty
