LAUNCH CRP123E /X Elite 2024 NEWEST Scan Tool ENG/ABS/SRS/AT Diagnostic OBD2 Scanner,Throttle Relearn/Oil Reset/SAS Calibration,Battery Test,AutoVIN,WiFi Lifetime Free Update All Cars (Upgrade of CRP123 & Creader VII+)
[UPGRADED VER. OF CRP123/FX2000/NT604 Elite]
√4 Systems Diagnoses: LAUNCH scan tool CRP123 can read/erase codes, view live data stream and turn off the warning
lights in the Engine system, Transmission system, ABS and SRS.
√Newly Added 3 Reset Functions:Throttle Adaptation, Oil Reset, SAS Reset.
√Full OBDII Functions: The obd2 scanner features all 10 OBDII test modes, such as I/M Readiness, Live Data Stream (in
graphic format), O2 Sensor Test, On-board Monitor Test, etc.
√4 in 1 live data graph + Real Time Battery Voltage Graphing +Data Stream Record & Playback
√Auto VIN +One-Click Lifetime Free Update via WiFi + Diagnostic Report + Diagnostic Feedback+Online Feedback+ 5 Years Service
√Wide Compatibilities:The obd2 scanner is compliant with all the OBDII protocols: J1859-41.6, J1850-10.4, ISO9141,
KWP2000 (ISO14230), and CAN (Control Area Network ISO 11898).
√Support More Vehicle Models ( Update car software to 2018/2019/2020 ): 10000+ Vehicle Coverage; 57+ Car Brands Support including cars, SUVs, minvans, 12v light-duty trucks, gasoline cars and diesel cars etc.
√More Longer Battery Life(6100mAh Rechargeable Battery). Avoid frequent charging, lasting nearly 12+ hours continuous use on a single charge .
√Runs Faster, Smoother and More Stable ,5-inch 720P HD TouchScreen; Android 7.0 OS; 6100mAh Battery; Large 16GB Internal Storage ( large internal storage and expandable memory for more vehicle software loaded, diagnostic records etc .)
√Faster update frequency. The LAUNCH CRP123E offers faster update frequency. You can be certain that this scanner is from a reliable brand and if you’re faced with a challenge within this period, you will get the much-needed support. !!! NO IP limited
√10 Languages:English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese, Chinese
√Full-touch operating methods: HD Full-Touch screen,easier to operate ; One-touch Wi-Fi Update Service that is Free to access for a Lifetime
√How to update ?Is it Lifetime Free Update? Yes ! Always free. Connect launch CRP123E to the Wifi and one key update, needn't computer, needn't windows systems to update
【LAUNCH CRP123E supports Engine/Transmission/ABS/SRS Diagnostics】
√For ABS (Anti-lock Braking System)
By accessing to ABS system to view its Live Data Stream, and retrieving the fault codes, this LAUNCH Creader scanner can troubleshoot the ABS issue with a visual inspection of all brake components that caused the warning light, and turn the light off.
√For SRS (Airbag)
By detecting every electronic parameters in SRS system to check their health status, this diagnostic tool can address the SRS potential issues timely to ensure your driving safety, and turn off the warning light of Airbag.
√For Engine System
By Reading, Clearing DTCs and viewing Live Data Stream, the scan tool can help you easily pinpoint the cause of the Engine System problem and turn off the warning light related, thus ensuring the engine works properly, and enhancing its performance.
√For Auto Transmission System
By checking the Transmission system, this tool can figure the problem out via reading codes, or check the health status via Live Data viewing, and turn off the warning light, making sure that the right amount of power goes to the wheels to drive at a given speed.
Note :
- Launch CRP123E is an upgraded Version of CRP123 and Creader VII+, which supports more cars/more langugae/more functions.
- Fast VIN autodetect, Support Wifi conntact, One key update
- Automatically generate and upload diagnostic reports
【LAUNCH CRP123E supports FULL OBD2 Functions Of ENGINE SYSTEM】
1.Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
2.Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and
are ready for inspection and maintenance testing.
5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time
the emission-related fault occurs.
7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from
the vehicle’s on-board computer.
8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
9.Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and
CVN (Calibration verification number), etc.
10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
【Live Data Stream Analyse in Graph】
√ The scan tool CRP123E shows you live sensors data and provides data graphing for intuitive diagnostics and monitoring your vehicle performance, help customers to better analyze the abnormal parameter.
√ Data recording functionality is amazing, customer can record the live data stream for up to 10, simultaneous, PID's. Once these have been recorded they can be played back in text format and/or graph format. Playback supports two graphs (independent) or 4 PID's graphed (combined). Playback timeline can be scrolled, paused, viewed, etc. There's quite a bit of power in the graphing.
【Diagnostic Reprot Share and Print】
√ Launch CRP123E obd2 scanner support auto generate and store vehicle diagnostic report which can let your mechanic know how to do vehicle inspection and maintenance. And the diagnostic report can be shared to email then print.
√ The diagnostic report can help you save time to analyse the problem, it is very great for repair shop , mechanics can print out the vehicle report for customer.
【Wide Vehicle Coverage across the Global ( Support 57+ Makers and 10000+ Car Model )】
for Chevrolet, for Jeep, for JAGUAR, for Vauxhall, for Infiniti, for USAFORD, for HYUNDAI, for TOYOTA, for HONDA, for Tlisuzu, for Gmsa, for SUZUKI, for GM, for FIAT, for SPRINTER, for Euroford, for SMART(SMART), for EOBD2(EOBD2), for SKODA, for Dodge, for SEAT, for DEMO, for SAMSUNG, for DAEWOO, for SAAB, for DACIA, for RENAULT, for CITROEN, for PORSCHE, for PEUGEOT, for OPEL, for Cadillac, for for Nissan, for Buick, for BUGATTI, for MITSUBISHI, for BMW, for Mini, for BENZ, for MAZDA, for AUTOSEARCH, for Lincoln, for AUSTFORD, for Lexus, for LANDROVER, for Alfa Romeo, for Lancia, for ACURA, for KIA, for Abarth, for JPISUZU, for etc.
【One to One Online Feedback- In-Time Problem Solving】
LAUNCH CRP123E provides you with a Feedback function to share any problems you encounter in the process of diagnosis. We will make every effort to perform a no-delay problem solving and makes improvements on product quality according to your problems and suggestions, thus offering you a higher quality user experience.
| Screen | 5 inch |
| Voltage input | 9-18V |
| Working Temperature | -10℃ ~ 55℃ |
| Storage Temperature | -20℃ ~ 70℃ |
| Dimension | 8.97”（L）×4.92”（W）×1.36”（H） |
| Unit Weight | ＜565g |
【FAQ of LAUNCH CRP123E】
Q:Is this original Launch CRP123E?
A: Yes, this is original Launch CRP123E with unique SN.
Q:What's the differences between CRP123E and CRP123?
A:CRP123E is upgraded version of CRP123,having bigger size screen than CRP123,and much faster.
Q: Can this tool use on USA/AU/EU/Asia car models?
A: Yes.
Q: Where can I update my device?
A: Via Launch’s official web.
Q: Is this lifetime free update？
A：Yes, lifetime free update.
Q: Is there any IP limitation of the item?
A: No, You can use and update it anywhere you want.

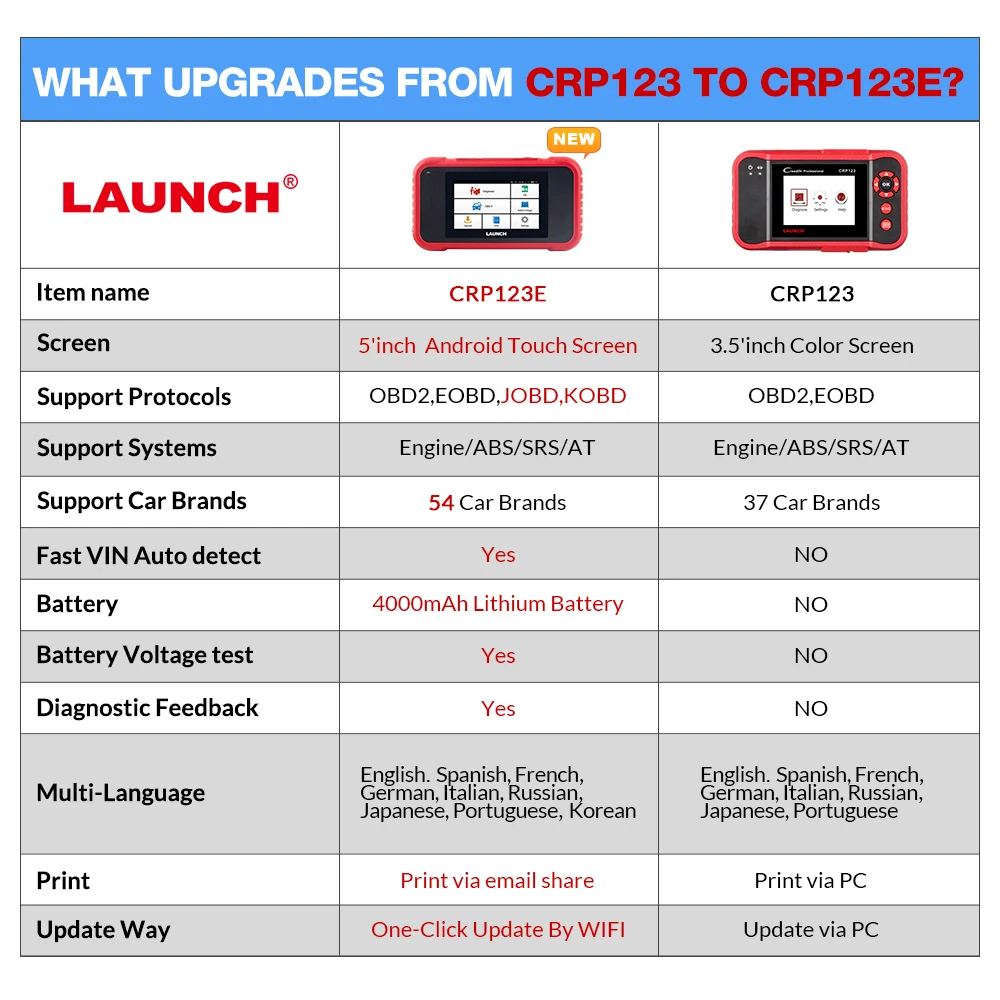

What Upgrades from CRP123 to CRP123E?

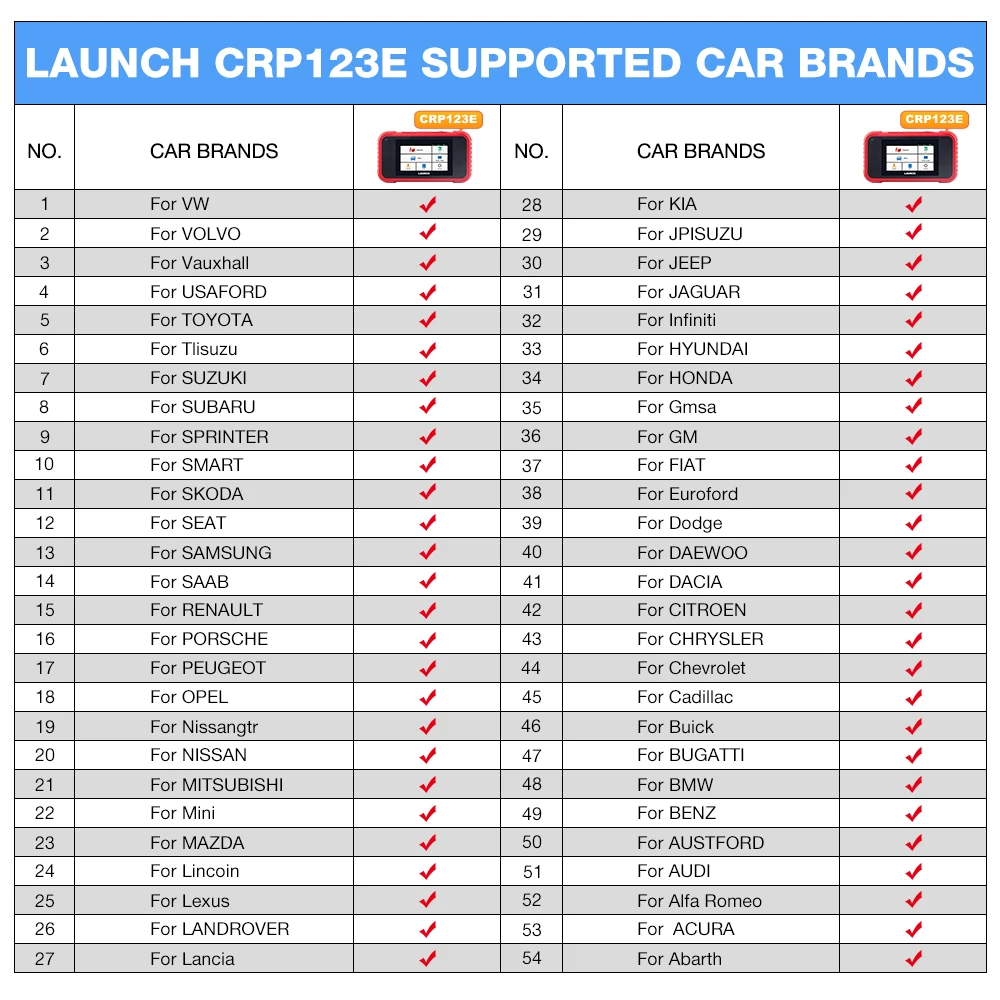

Launch CRP123E Car list:
Launch CRP123E One-click Update:
Let you update your diagnostic software and APK online.

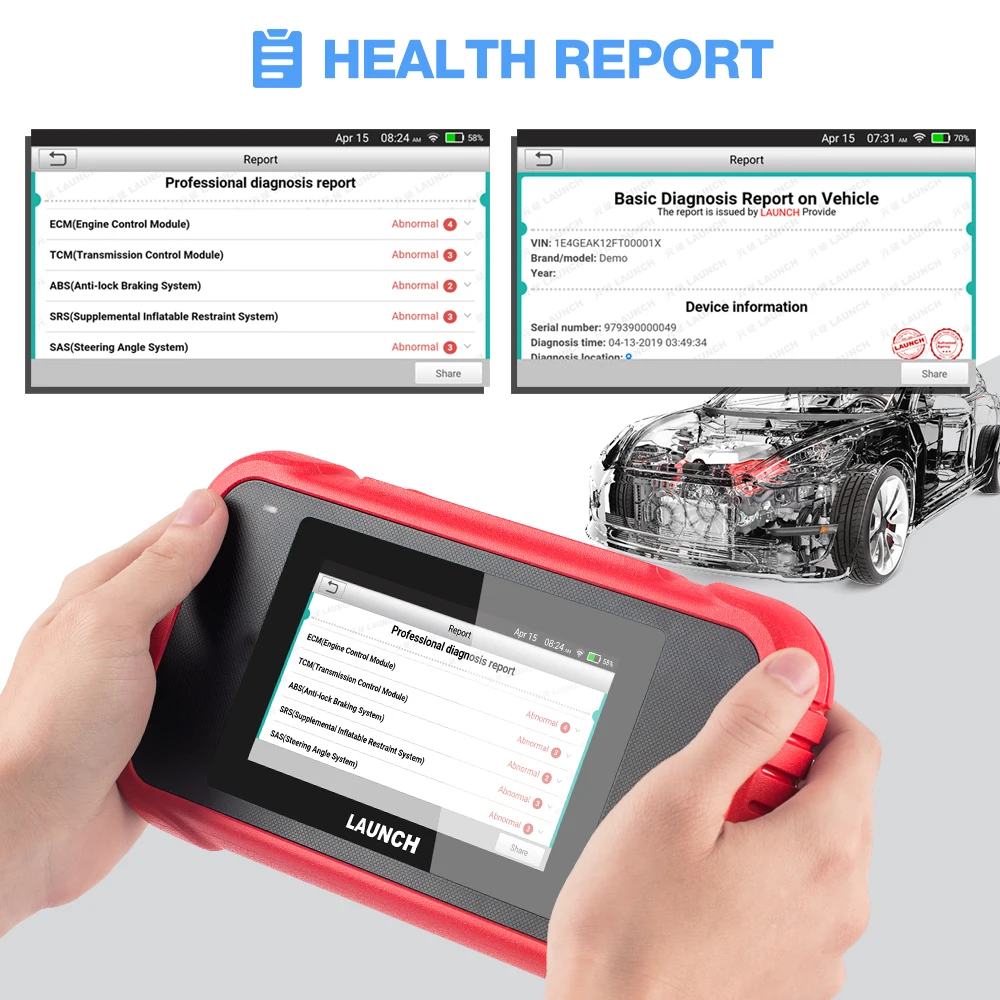

Health Report and Print Report:

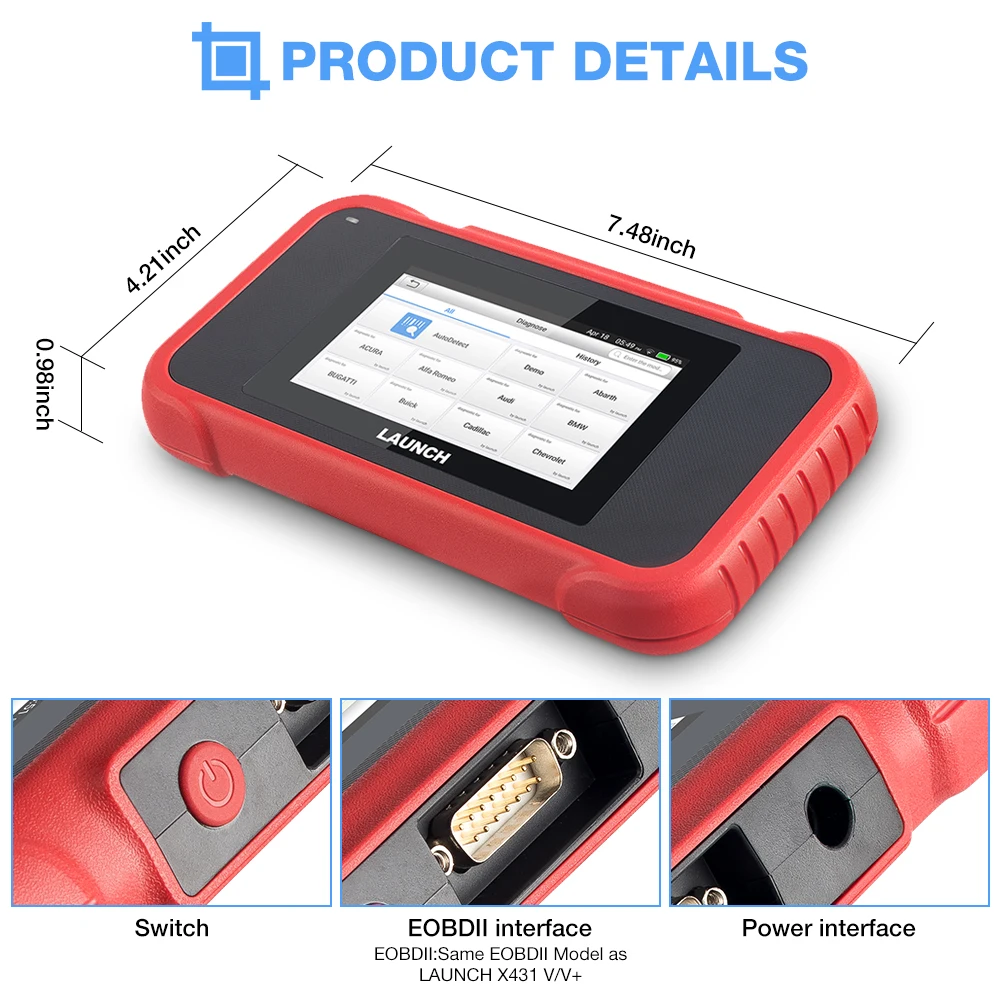

Specification:
- Screen: 5'inch Touch Screen
- Memory: 16Gbs ,ADD MORE 8 GBS than 2021(Older version is 8Gbs), you can get more vehicle and data .
- Battery: 4000mAh rechargeable Li-battery
- OBD II input voltage range: 9~18V
- Charging via:DC 5V charging cable or Diagnostic cable through connection to vehiclersquos DLC
- Dimension: 228mm x 125mm x 34.5mm
- Working temperature: -10 to 50degC (14 to 122 Fdeg)
- Storage temperature: -20 to 70degC (-4 to 158 Fdeg)

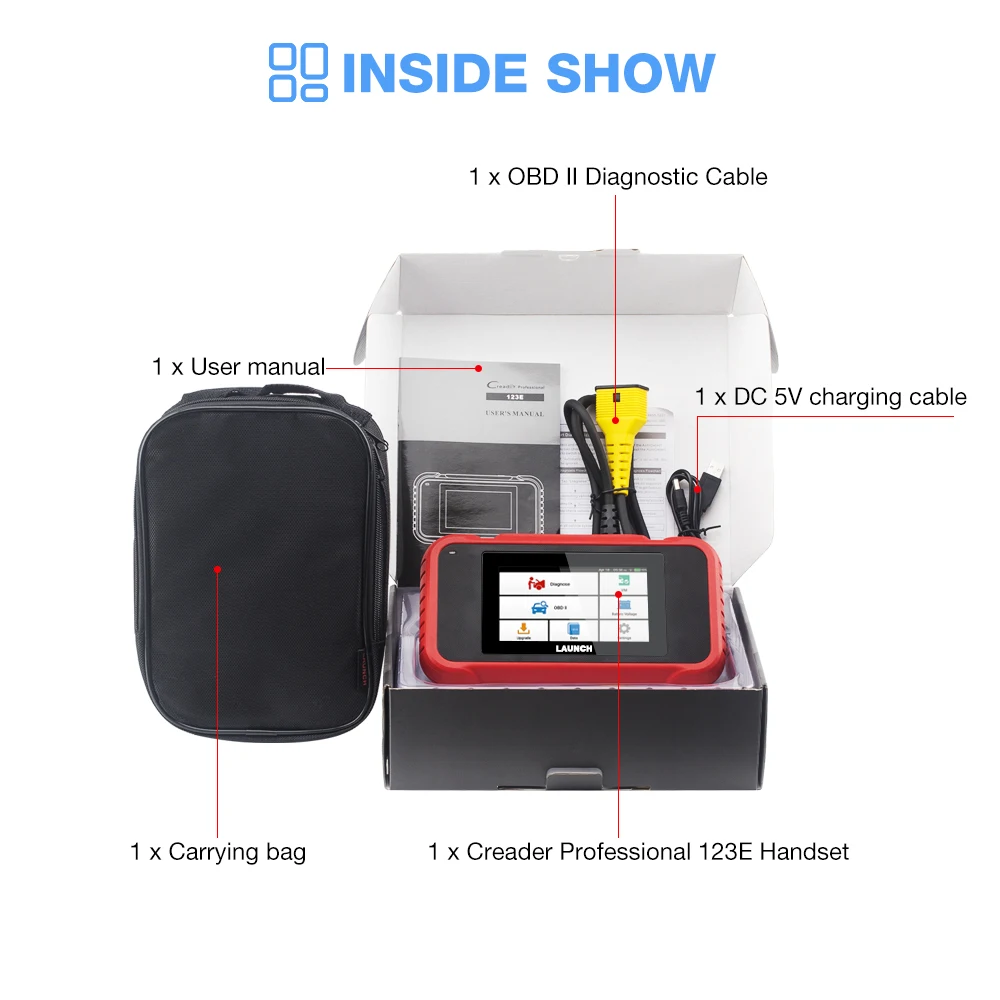

Launch CRP123E Packing List :
- Creader Professional 123E handset
- OBD II diagnostic cable
- DC 5V charging cable
- User manual
- Carrying bag
Launch CRP123E FAQ:
connect the connector, and switch it on again.
2 Screen of main unit flashes at engine ignition start.
Caused by electromagnetic disturbing, and this is normal phenomenon.
3 There is no response when communicating with on-board computer.
Please confirm the proper voltage of power supply and check if the throttle
has been closed, the transmission is in the neutral position, and the water is in
proper temperature.
4 What to do if the system fails to start auto VIN detection?
Please check the following possible reasons:
bull Whether the tool is properly connected to the vehiclersquos DLC.
bull Whether the ldquoAutomatic detection on Connectrdquo switch is OFF. If yes, slide it to
ON.
5 Why are there so many fault codes?
Usually, itrsquos caused by poor connection or fault circuit grounding.
6 How to upgrade the system software?
1).Switch the tool on and ensure a stable internet connection.
2).Tap ldquoSettingrdquo on the Job Menu, select ldquoAboutrdquo -> ldquoVersionrdquo, and tap ldquoDetect the
System Versionrdquo to enter the system upgrading page.
3). Follow the on-screen instructions step by step to finish the process. It may
take several minutes depending on the internet speed, please be patient. After upgrade is successfully finished, the tool will automatically restart and enters
