Product Details
DC4~30V
Features:
1.Supports cumulative data reset and forced zero reset with no load
2.Supports voltage display fine tuning and current display fine tuning
3.Columnar temperature waterproof probe, temperature measurement range -40~120 ℃
4.High definition IPS LCD color screen with a resolution of 135 * 240

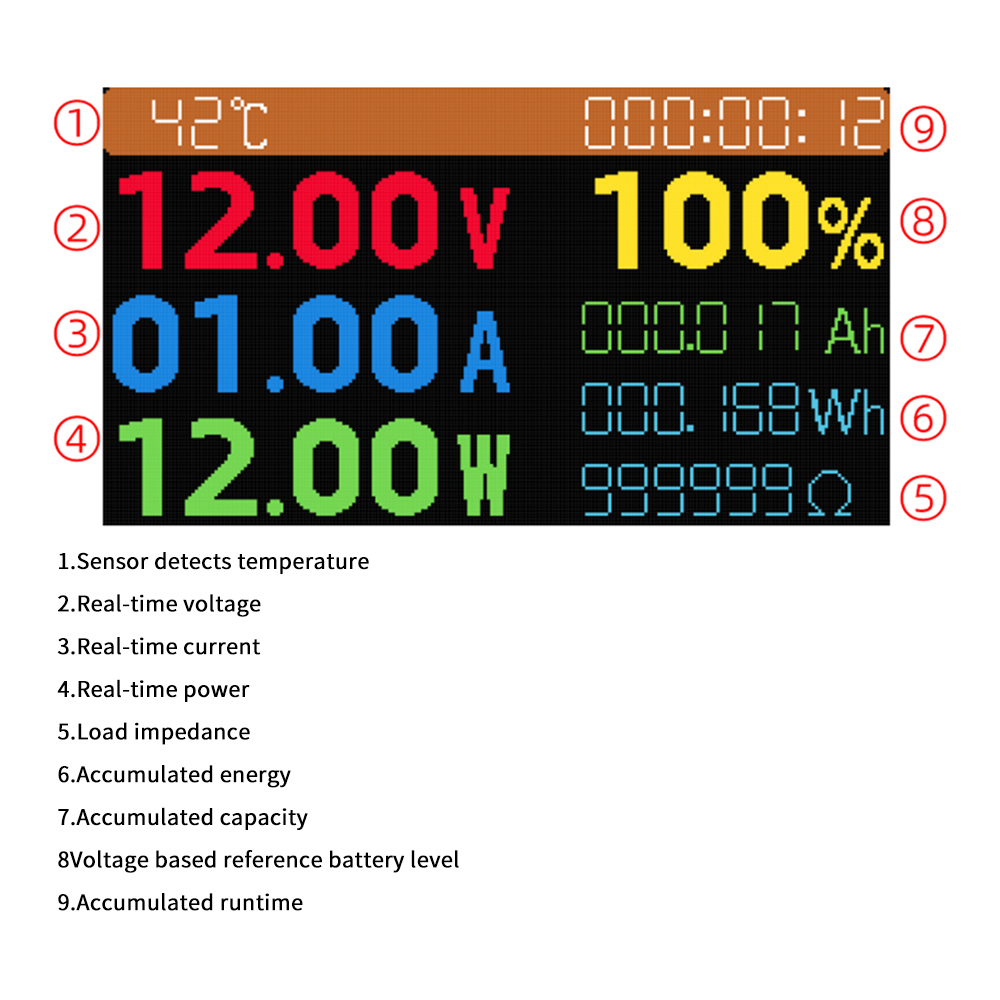

5.Simultaneous measurement of voltage, current, power, percent power, temperature, cumulative capacity, energy, runtime, load impedance
Parameters:

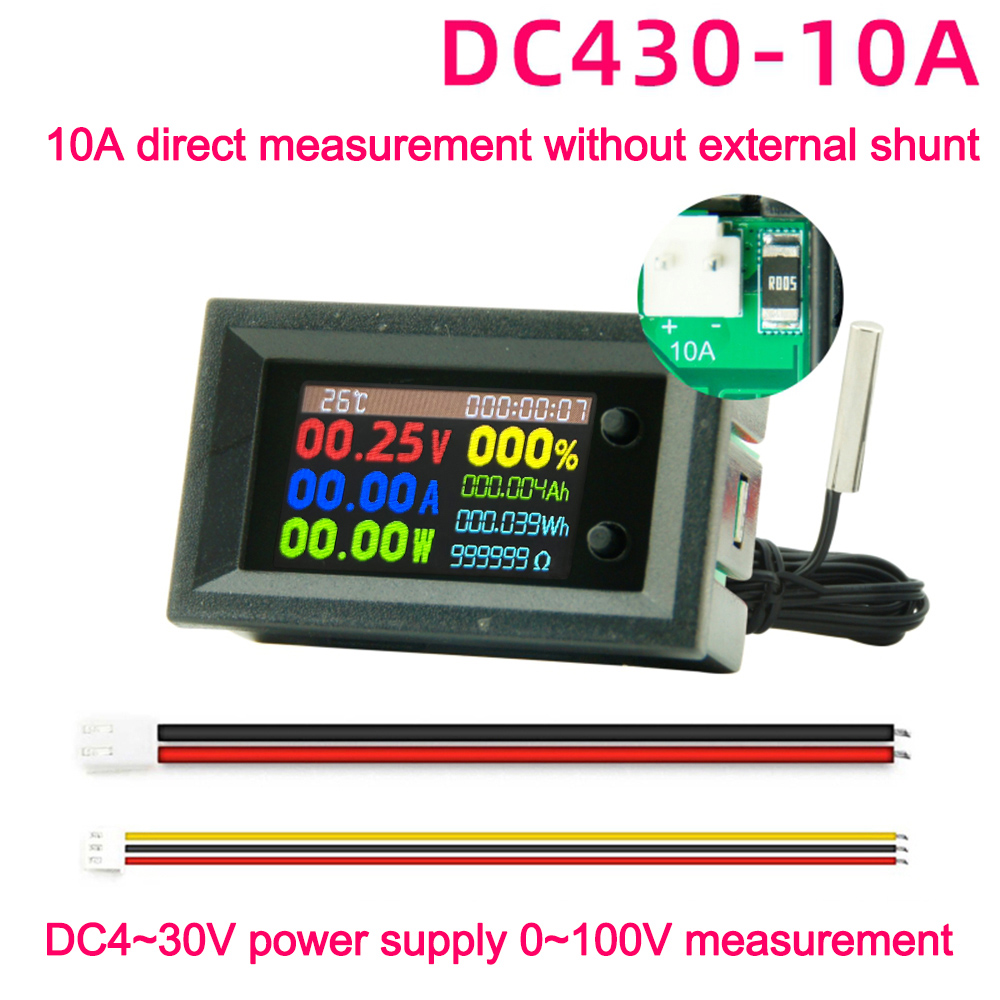

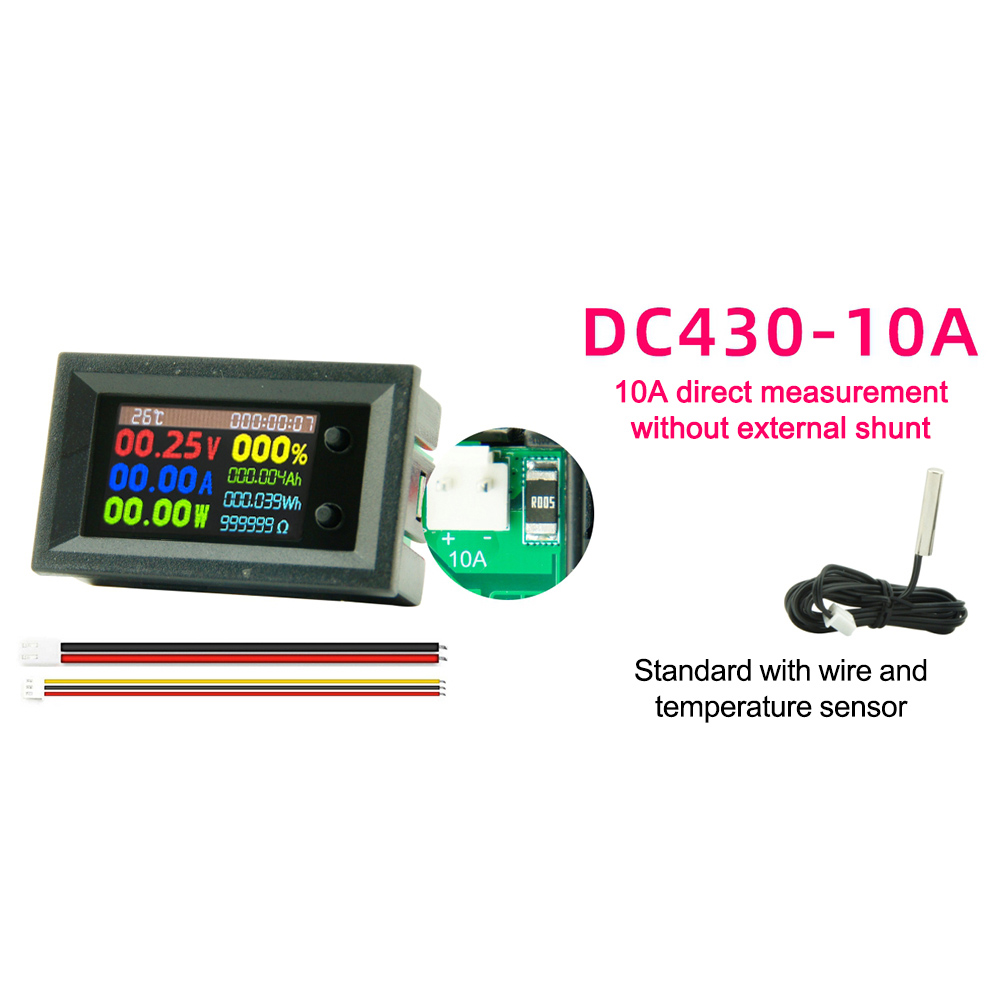

10A technical parameters:
Instrument working voltage: XH-3P red black wire DC4~30V (do not overvoltage power supply)

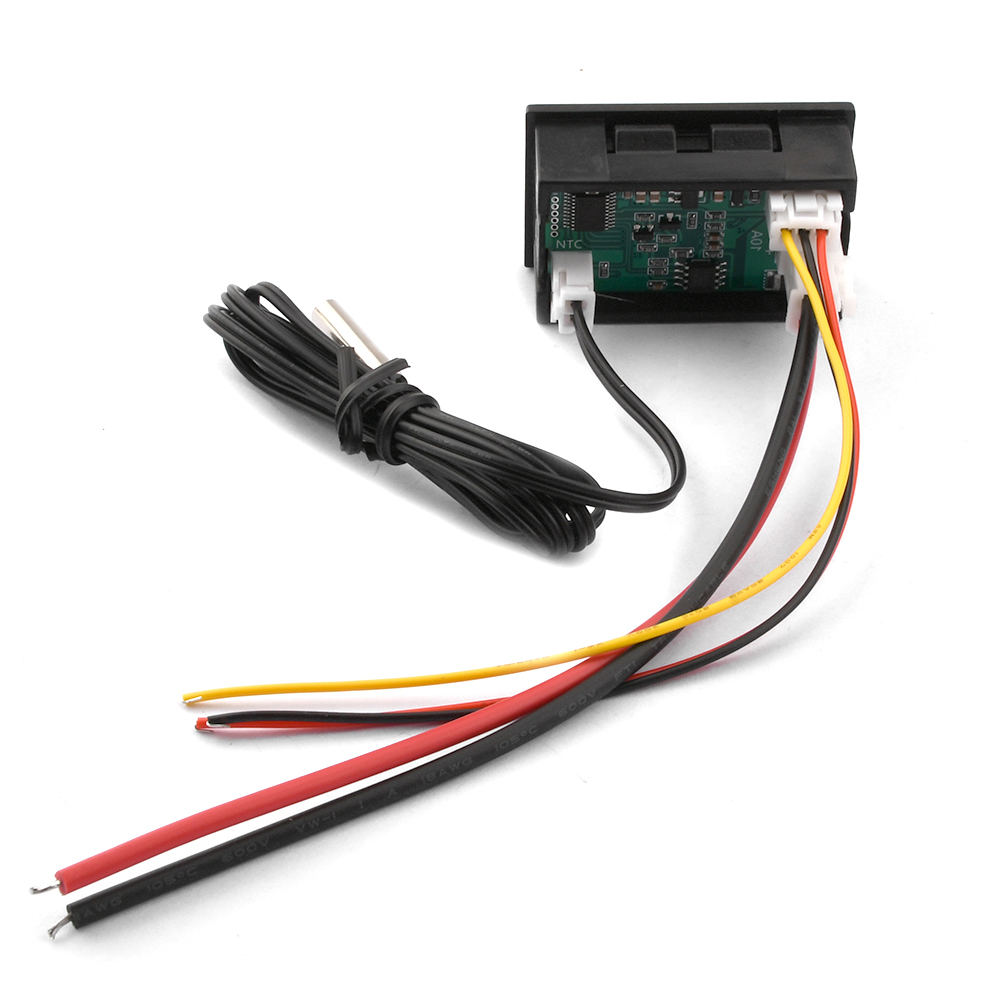

Introduction to Wire Definition:
XH-2.54-3P red black yellow wire (total length of thin wire: 155mm)
Thin red wire: the positive pole of the working power supply cannot be connected to a power supply above 30V
Thin black wire: The negative pole of the working power supply is grounded together with the thick black wire, and there is no need to connect it when sharing the power supply
Thin yellow wire: voltage test wire, connected to the positive pole of the test circuit power supply
VH-3.96-2P thick red black wire (total length of thick wire: 165mm) current test wire, parallel shunt resistor of thick wire, cannot be directly connected to the two poles of the power supply, and may cause short circuit
Thick red wire: current test positive pole, connected in series at the back end of the negative pole of the load, and connected first and then disconnected when connecting the wire
Thick black wire: current test negative pole, connect to the negative pole of the power supply, and connect the broken wire first and then disconnect it

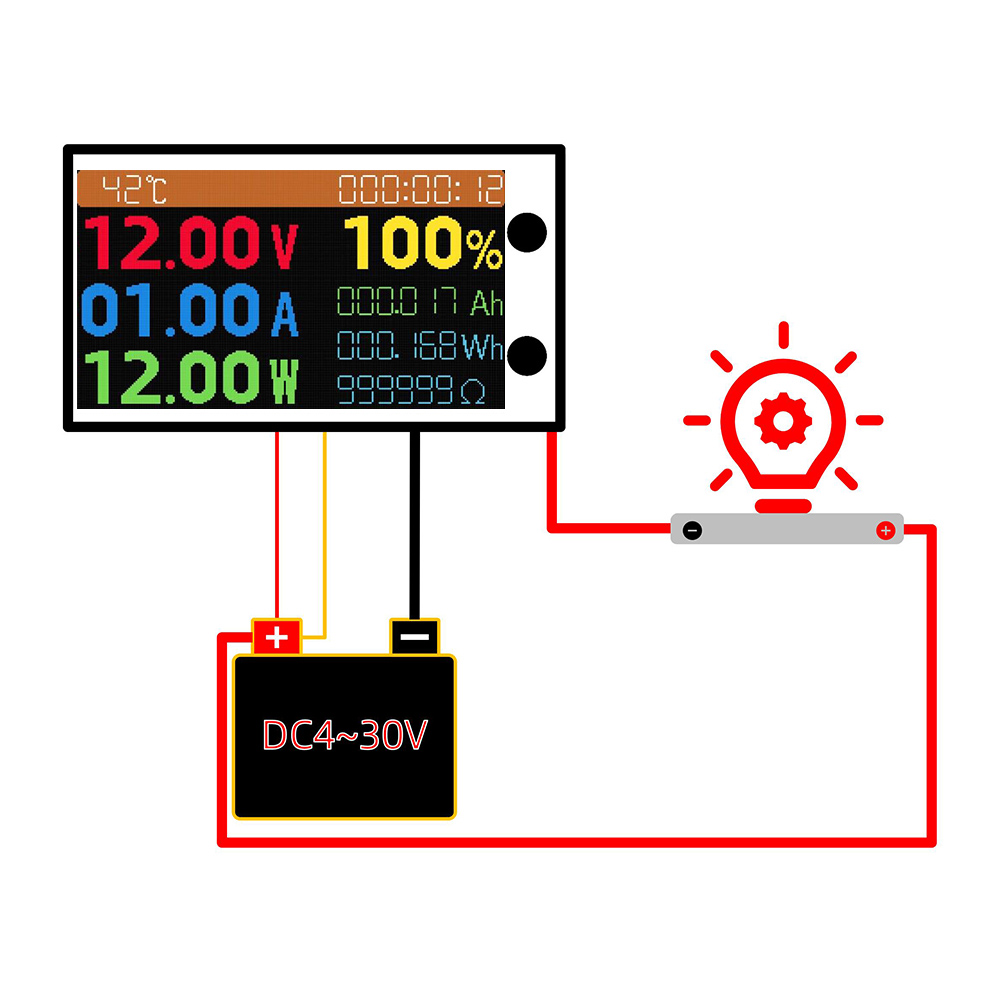

Connection diverter: On board low-temperature drift alloy resistance shunt, can be directly connected according to the wiring diagram
Voltage measurement range: DC0~100V Error ± 1.00V 0.1V Jump
Current measurement range: 0.00A~10.00A Error ± 0.1A 0.03A Jump
Power measurement range: 00.00~1000W
Capacity measurement range: 0~9999999mAh
Energy metering range: 0~9999999mWh
Temperature sensor: cylindrical waterproof probe NTC 10K 3950 1% sensor with a total length of approximately 1 meter
Temperature measurement range: -40~120 ℃ (external temperature measured by NTC sensor)
Time measurement range: 0~999:59:59 (hour: minute: second)
Working energy consumption: 20mA (measured at DC12V)
Support: Accumulated data reset, no load forced reset, voltage display, fine adjustment, current display, fine adjustment
Percentage battery display: Based on voltage reference, the percentage battery (full and low battery voltages need to be manually set)
Product size: 47.59 × twenty-eight point six seven × 25.33mm
Installation hole: 45 × 26mm

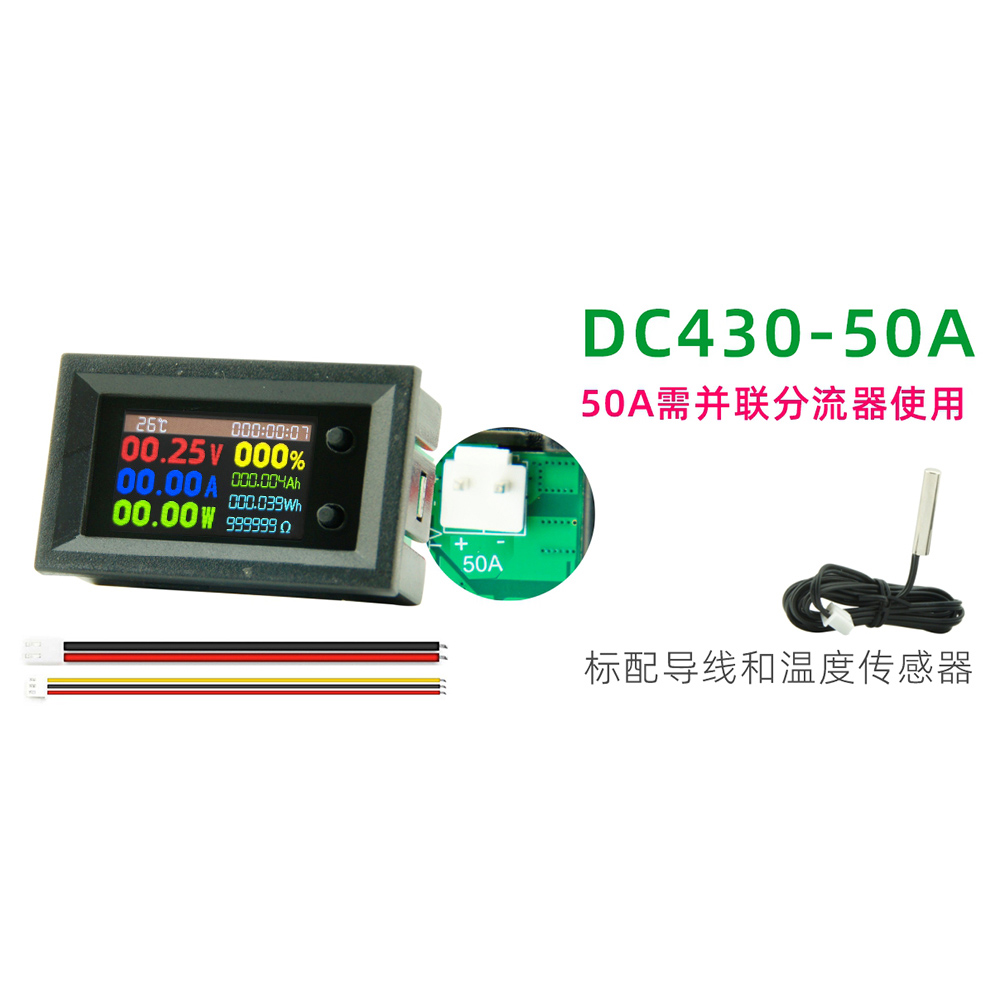

50A technical parameters:
Instrument working voltage: XH-3P red black wire DC4~30V (do not overvoltage power supply)
Introduction to Wire Definition:
XH-2.54-3P red black yellow wire (total length of thin wire: 155mm)
Thin red wire: the positive pole of the working power supply cannot be connected to a power supply above 30V
Thin black wire: The negative pole of the working power supply is grounded together with the thick black wire, and there is no need to connect it when sharing the power supply
Thin yellow wire: voltage test wire, connected to the positive pole of the test circuit power supply

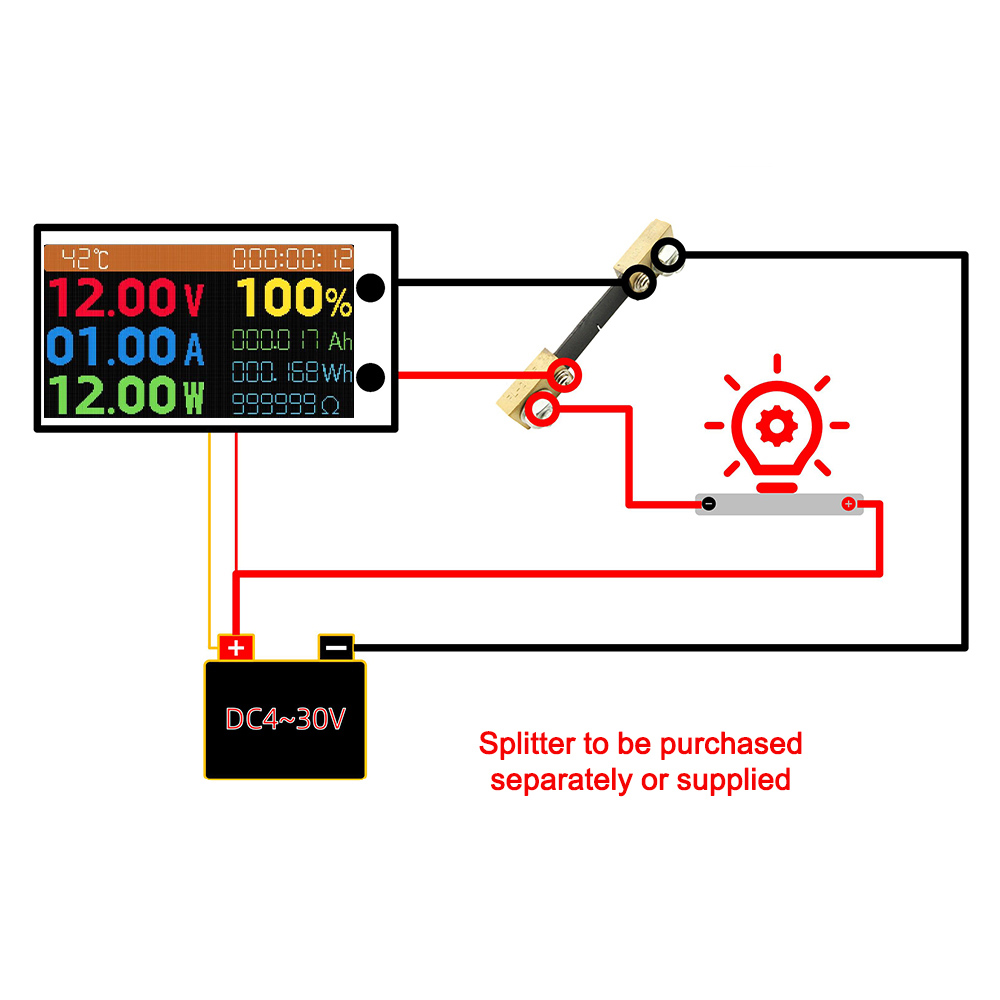

VH-3.96-2P thick red black wire (total length of thick wire: 165mm) current test wire, thick wire cannot be directly connected to the two poles of the power supply, which will cause a short circuit
Thick red line: current test positive pole, parallel shunt connected to the rear end of the negative pole of the load
Thick black wire: current test negative pole, parallel shunt connected to power negative pole
Connecting the splitter: A parallel 50A 75mV splitter is required to use (the splitter needs to be provided by oneself)
Voltage measurement range: DC0~100V Error ± 1.00V 0.1V Jump
Current measurement range: 0.00A~50.00A Error ± 0.5A 0.03A Jump
Power measurement range: 00.00~5000W
Capacity measurement range: 0~9999999mAh
Energy metering range: 0~9999999mWh
Temperature sensor: cylindrical waterproof probe NTC 10K 3950 1% sensor with a total length of approximately 1 meter
Temperature measurement range: -40~120 ℃ (external temperature measured by NTC sensor)
Time measurement range: 0~999:59:59 (hour: minute: second)
Working energy consumption: 20mA (measured at DC12V)
Support: Accumulated data reset, no load forced reset, voltage display, fine adjustment, current display, fine adjustment
Percentage battery display: Based on voltage reference, the percentage battery (full and low battery voltages need to be manually set)
Product size: 47.59 × twenty-eight point six seven × 25.33mm
Installation hole: 45 × 26mm

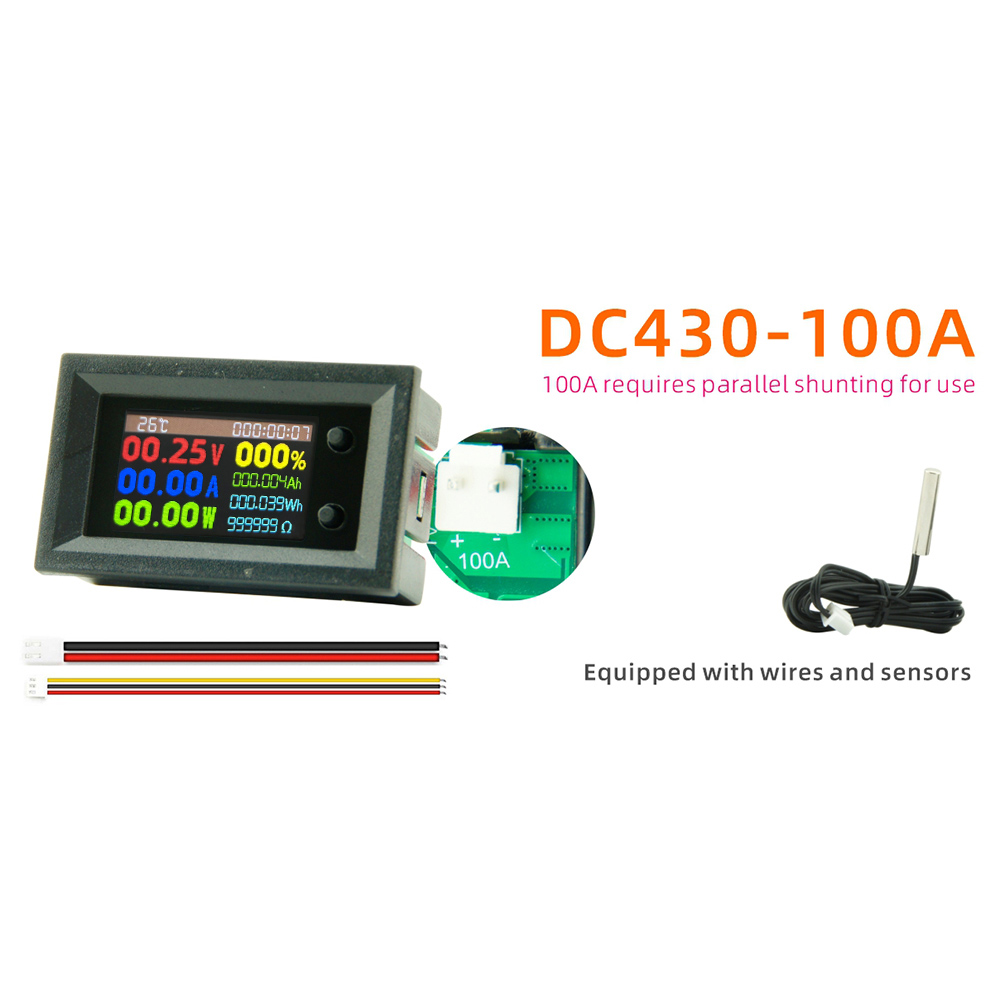

100A technical parameters:
Instrument working voltage: XH-3P red black wire DC4~30V (do not overvoltage power supply)
Introduction to Wire Definition:
XH-2.54-3P red black yellow wire (total length of thin wire: 155mm)
Thin red wire: the positive pole of the working power supply cannot be connected to a power supply above 30V
Thin black wire: The negative pole of the working power supply is grounded together with the thick black wire, and there is no need to connect it when sharing the power supply
Thin yellow wire: voltage test wire, connected to the positive pole of the test circuit power supply
VH-3.96-2P thick red black wire (total length of thick wire: 165mm) current test wire
The parallel shunt resistor with thick wires cannot be directly connected to the two poles of the power supply, which may cause a short circuit
Thick red line: current test positive pole, parallel shunt connected to the negative end of the load in series.
Thick black wire: current test negative pole, parallel shunt connected to power negative pole.
Connecting the splitter: A parallel 100A 75mV splitter is required to use (the splitter needs to be provided by oneself)
Voltage measurement range: DC0~100V Error ± 1.00V 0.1V Jump
Current measurement range: 0.00A~100.00A Error ± 1A 0.03A Jump
Power measurement range: 00.00~9999W
Capacity measurement range: 0~9999999mAh
Energy metering range: 0~9999999mWh
Temperature sensor: cylindrical waterproof probe NTC 10K 3950 1% sensor with a total length of approximately 1 meter
Temperature measurement range: -40~120 ℃ (external temperature measured by NTC sensor)
Time measurement range: 0~999:59:59 (hour: minute: second)
Working energy consumption: 20mA (measured at DC12V)
Support: Accumulated data reset, no load forced reset, voltage display, fine adjustment, current display, fine adjustment
Percentage battery display: Based on voltage reference, the percentage battery (full and low battery voltages need to be manually set)
Product size: 47.59 × twenty-eight point six seven × 25.33mm
Installation hole: 45 × 26mm
Electronic instruction manual:
10A: https://www.banber.com/gather/64c7518903dc0b3d70f25790
50A: https://www.banber.com/gather/64c751a803dc0b3d70f258f0
100A: https://www.banber.com/gather/64c7519c03dc0b3d70f25840

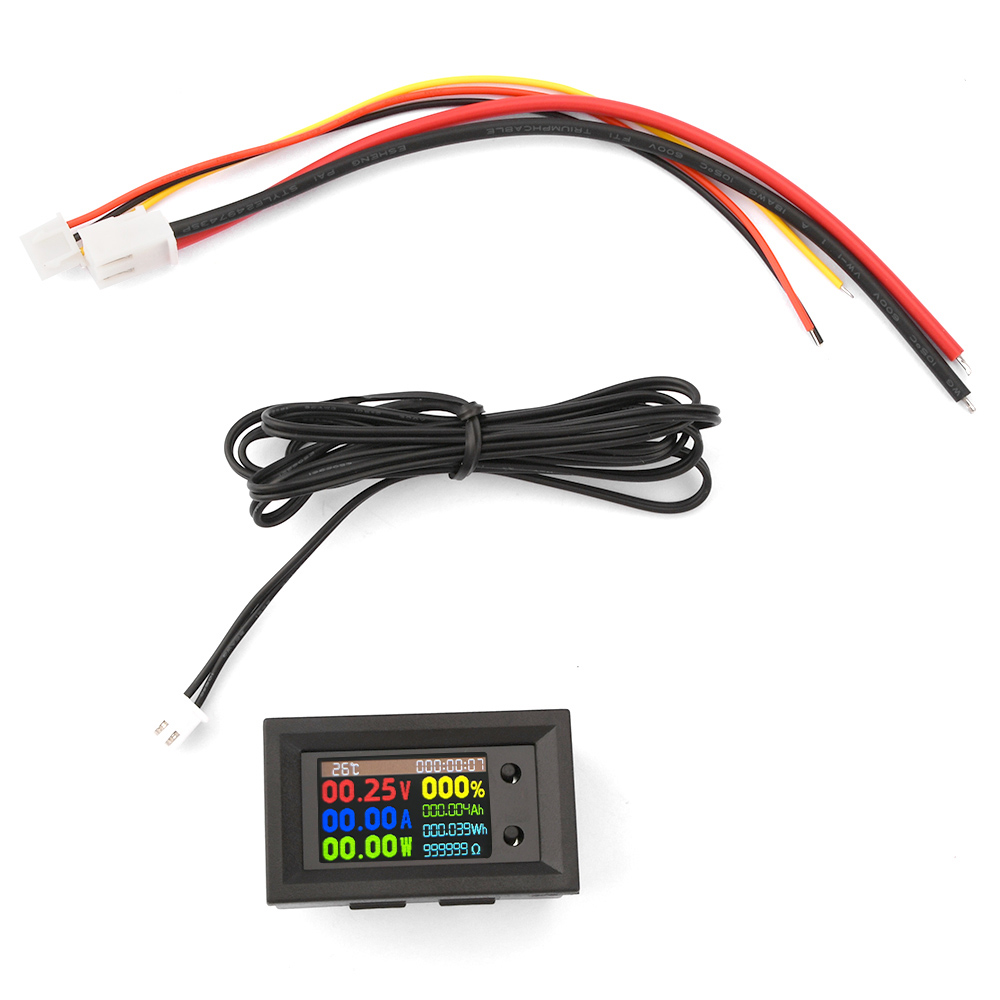

Package include:
Measuring instrument X1
Column waterproof probe sensing line X1
XH-2.54-3P red black yellow wire X1
VH-3.96-2P thick red black wire X1

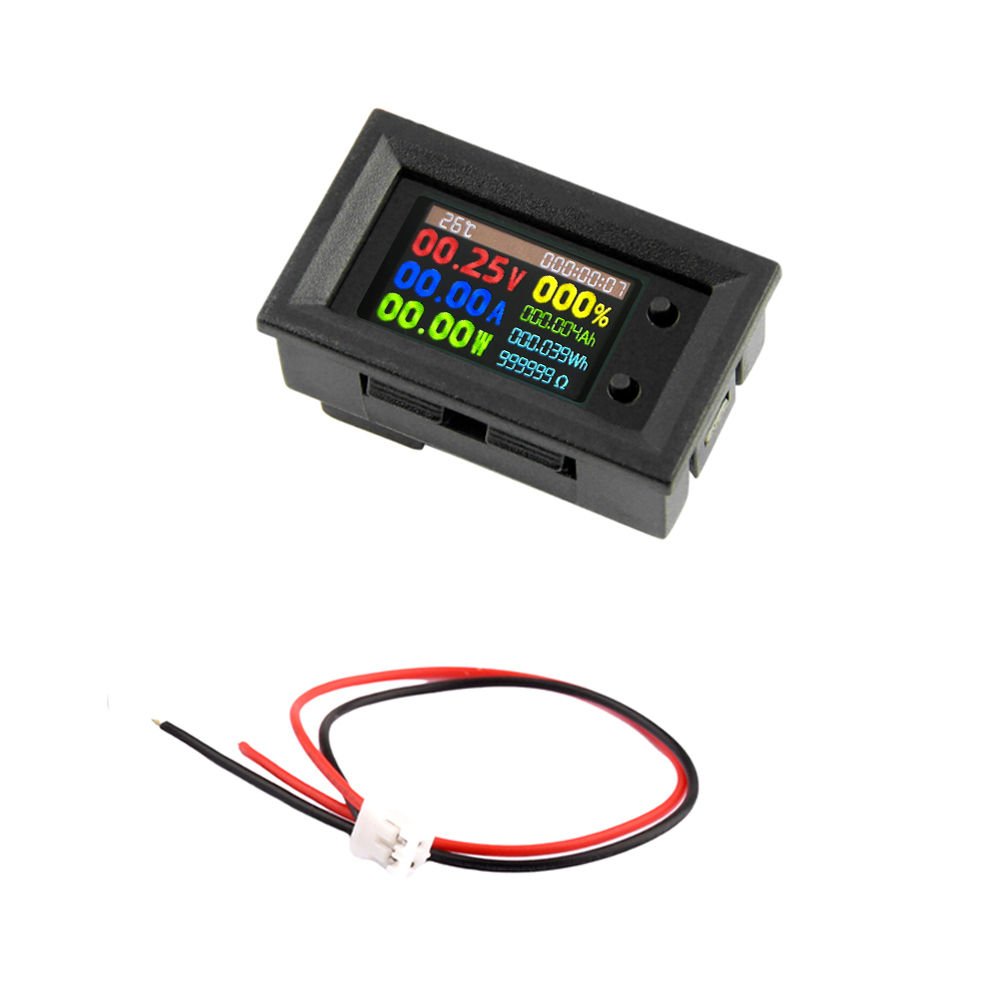

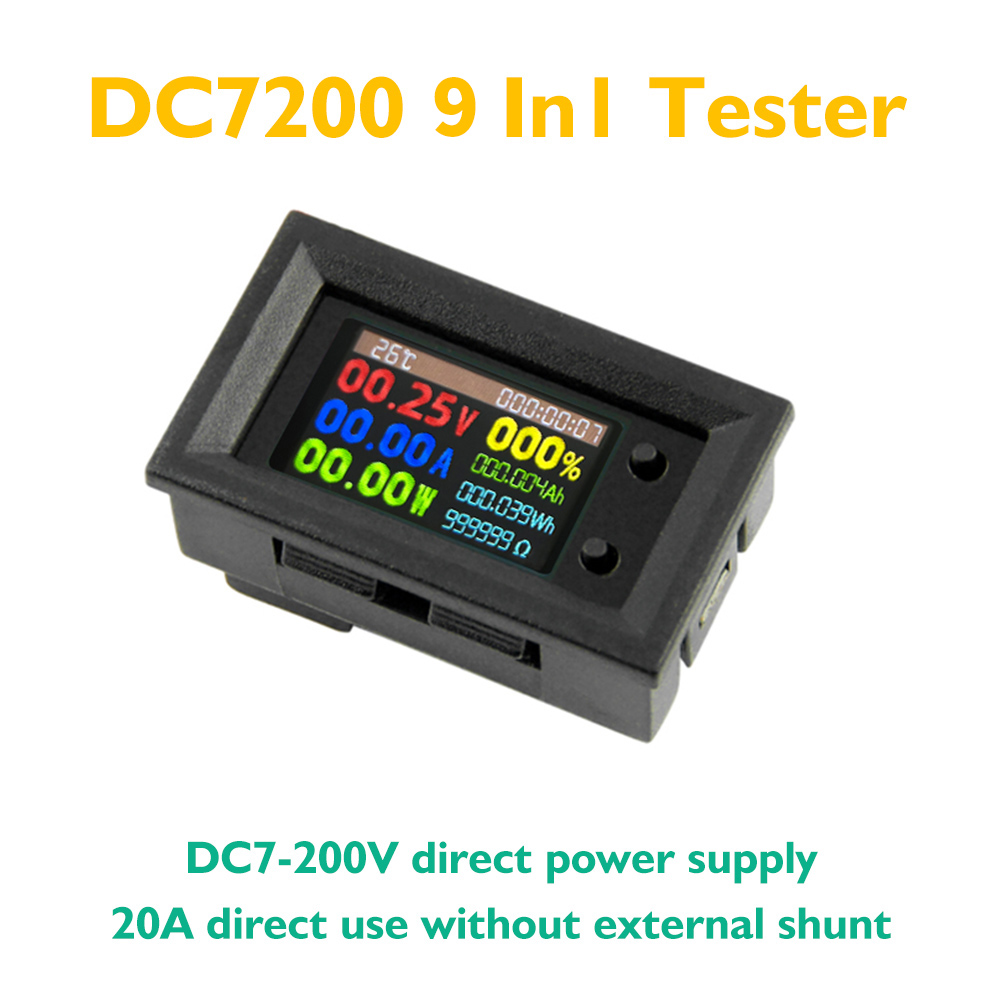

DC7~200V
Features:
1.Multifunctional measuring instruments for high voltage operation
2.1.14 inch high-definition IPS LCD color screen with a resolution of 135 * 240
3.Maximum current measurement 20A
4.Supports data reset, no-load reset, voltage fine tuning, and current fine tuning
5.Measuring and displaying real-time voltage, current, power, percent power and meter temperature, cumulative capacity, energy, runtime, load impedance

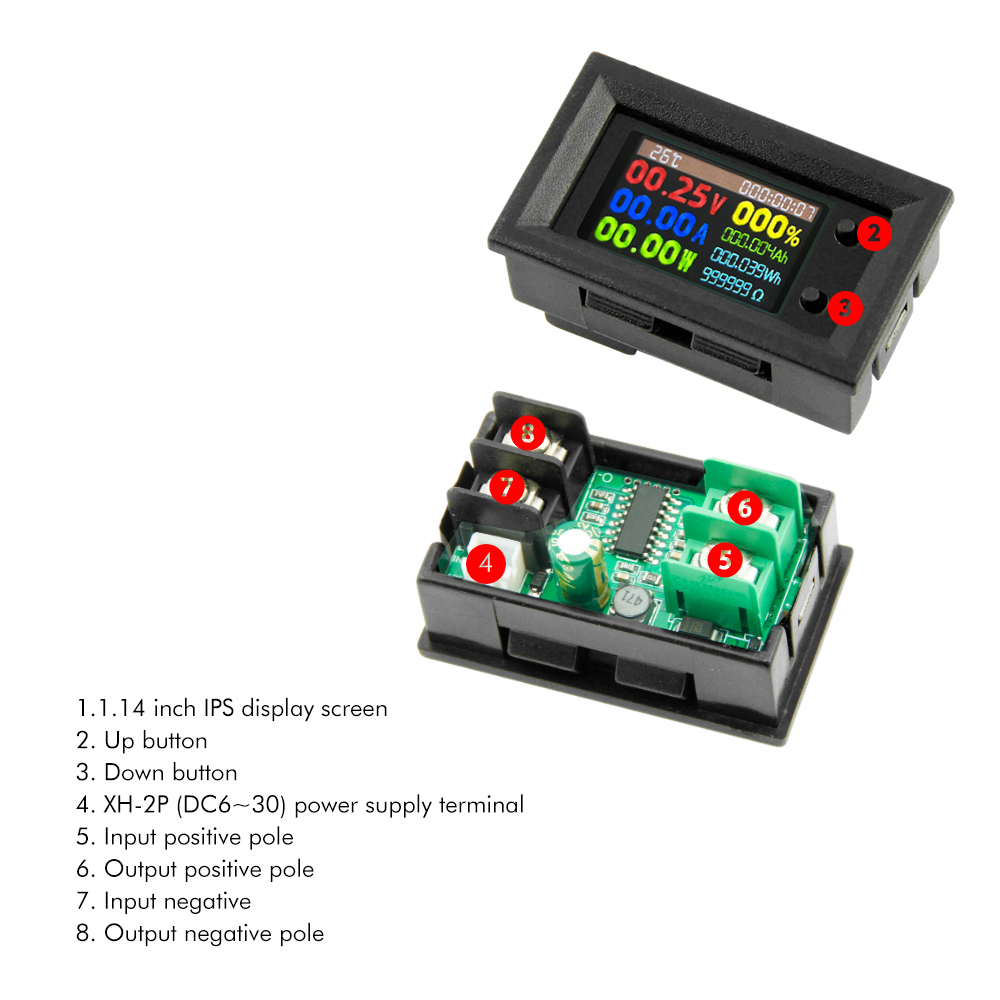

Parameters:
Input/output interface: 20A high current 2P wiring terminal
Instrument working voltage:
① XH-2P red black wire independent power supply DC6~30V
② Shared power supply DC7-200V
Voltage measurement range: DC0-200V (separate power supply is required for voltages below 7V)
Current measurement range: 0.00A~20.00A
Power measurement range: 00.00~4000W
Capacity measurement range: 0~9999.99Ah
Electricity metering range: 0~9999.99Wh
Temperature measurement range: 0-99 ℃ (measurement feedback instrument temperature, does not support measuring external temperature)
Time measurement range: 0~999:59:59 (hour: minute: second)
Data Zeroing: Supported
Zeroing without load: supported
Voltage trimming: supported
Current fine tuning: supported
Percentage battery display: Supports voltage based reference based percentage battery (requires manual setting of full and low battery voltages)
Product size: 47.59 × twenty-eight point six seven × 25.33mm
Installation hole: 45 × 26mm
Product manual: https://www.banber.com/banber/648d36e96f05bb00167d0b0b
Package include:
Measuring instrument X1
Wire X1
