Product Introduction



MS105 halogen moisture meter with color TFT touch screen can be widely used in a number of industries that need to quickly determine moisture, such as pharmaceuticals, plastics, chemicals, food (minced fish, dehydrated vegetables, meat and aquatic processing, noodles, flour, cookies, moon cakes, etc.), food, feed, seeds, rapeseed, tobacco, tea and textiles, agriculture and forestry, paper, rubber, textiles and other industries in the production and experimental process.



MS105 Product Features

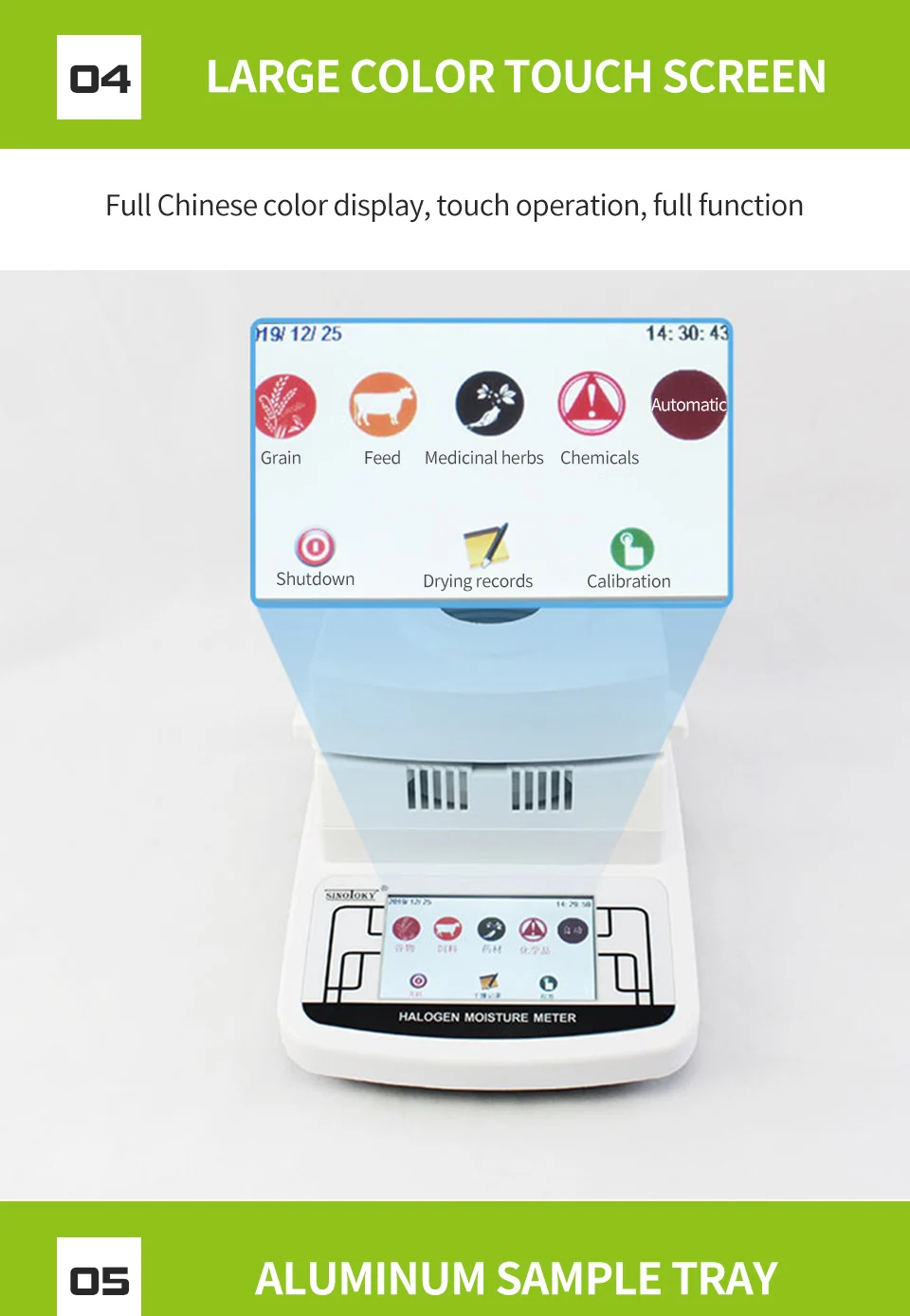

※Color TFT large screen touch screen, providing rich weighing and moisture display information, easy to read.

※Can be calibrated for weight, temperature and clock, with manual, timer and automatic measurement modes, and buzzer prompt for the end of heating.

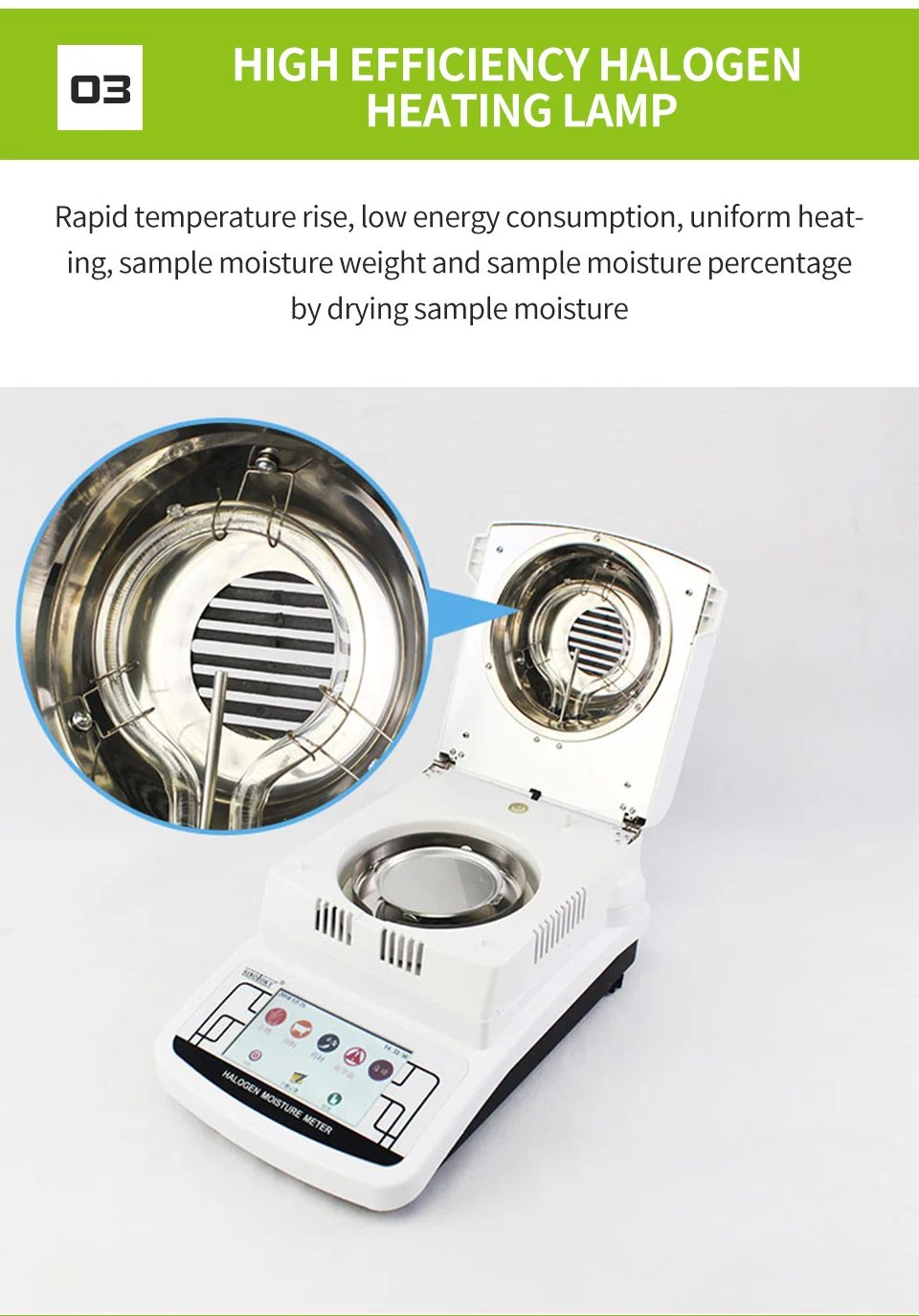

※Adopt high quality halogen lamp, rapid heating, uniform heating, fast sample testing, general samples only need a few minutes to complete the measurement.

※Adopt high precision heat insulation sensor, collect data and temperature reliably, can effectively ensure the sample data true and accurate.

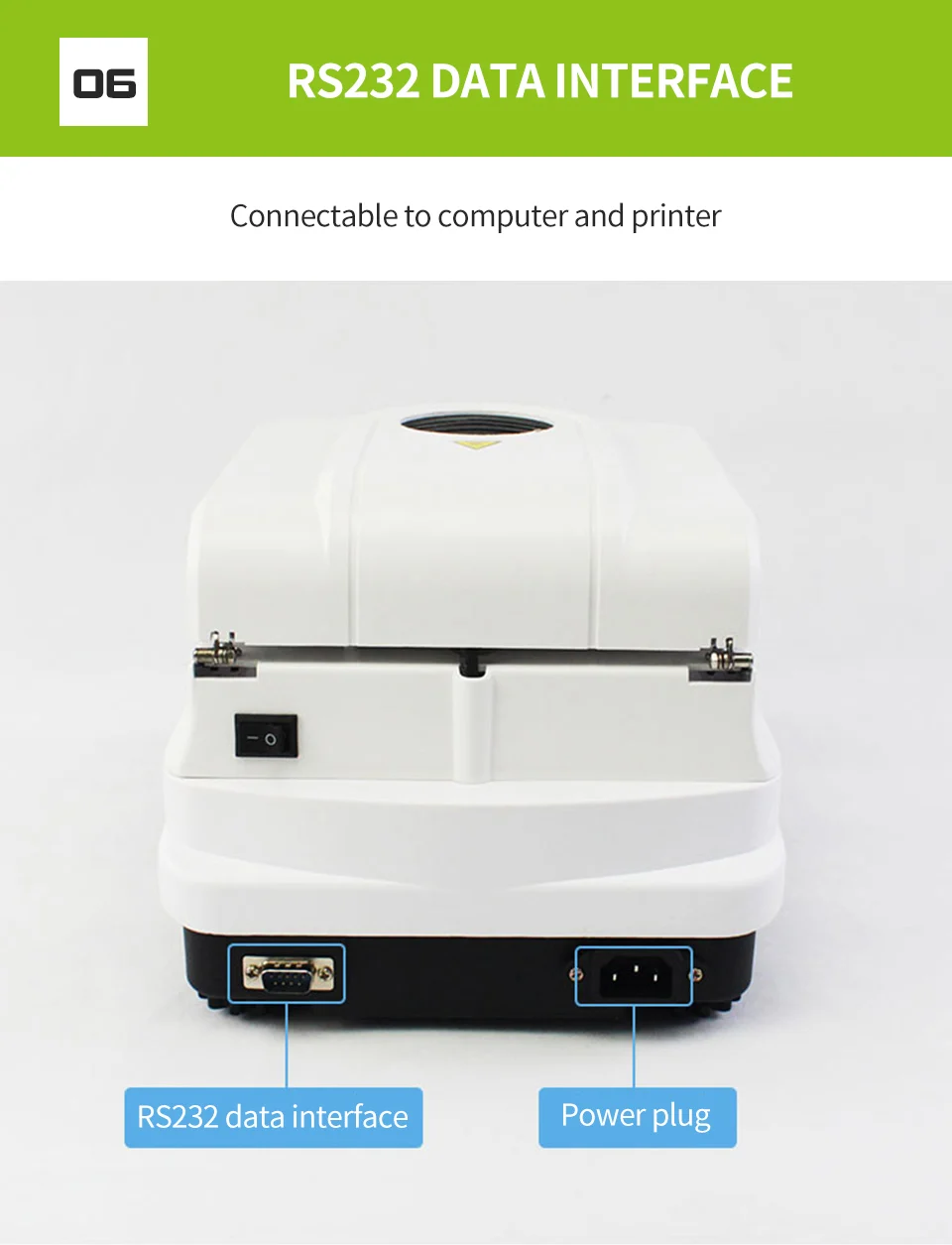

※Built-in R232 output interface, can be connected to computer, printer and other external devices.

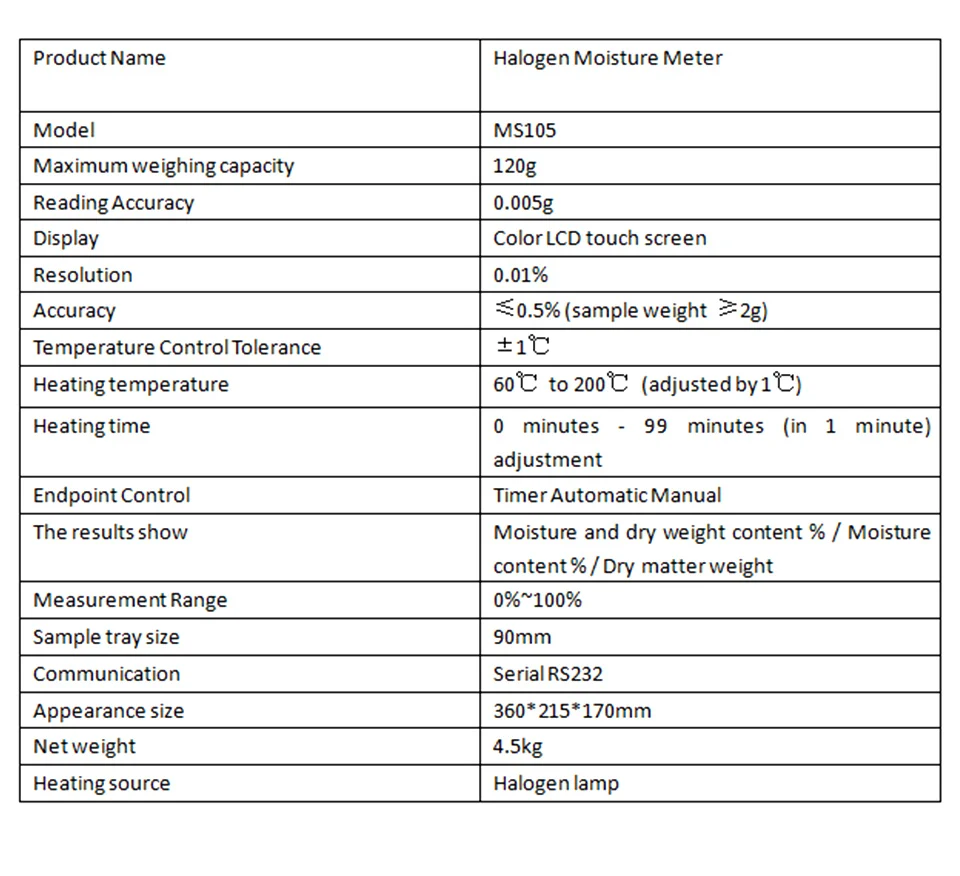

Product Technical Parameters

Model:   MS105

Maximum weighing capacity:   110g

Reading accuracy:   0.005g

Display:    color LCD touch screen

Resolution:   0.01%

Accuracy:   ≤0.5%(sample weight≥2g)

Temperature Control Tolerance:   ±1℃

Heating temperature:    60 ℃ to 200 ℃ (adjusted by 1 ℃)

Heating time:   0min-99min (to 1min) adjustment

End point control:   Timing Automatic Manual

Result display:   Moisture and dry weight content %, moisture content %, dry matter weight

Measuring range:   0%～100%

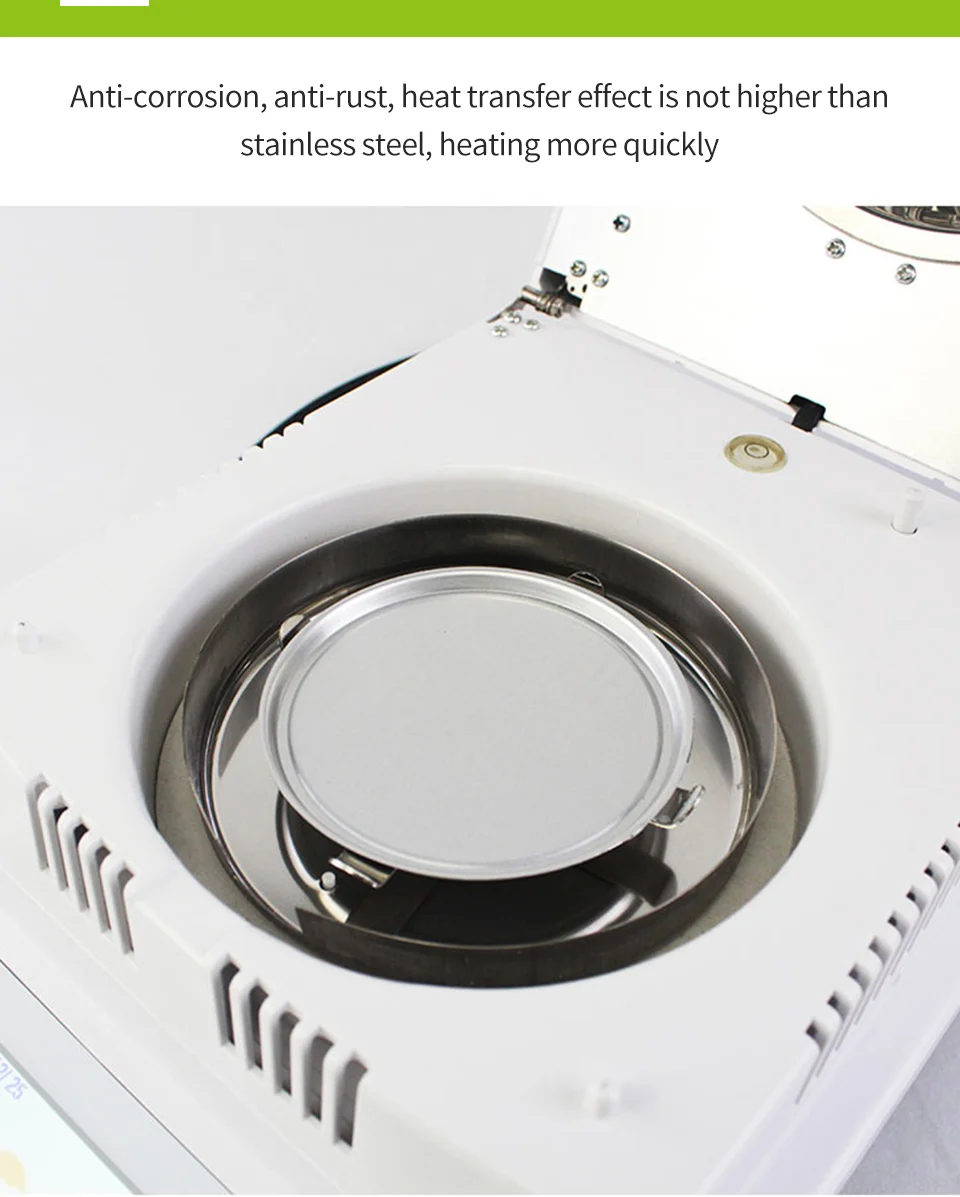

Sample tray size:    90mm

Communication:    RS232 serial port

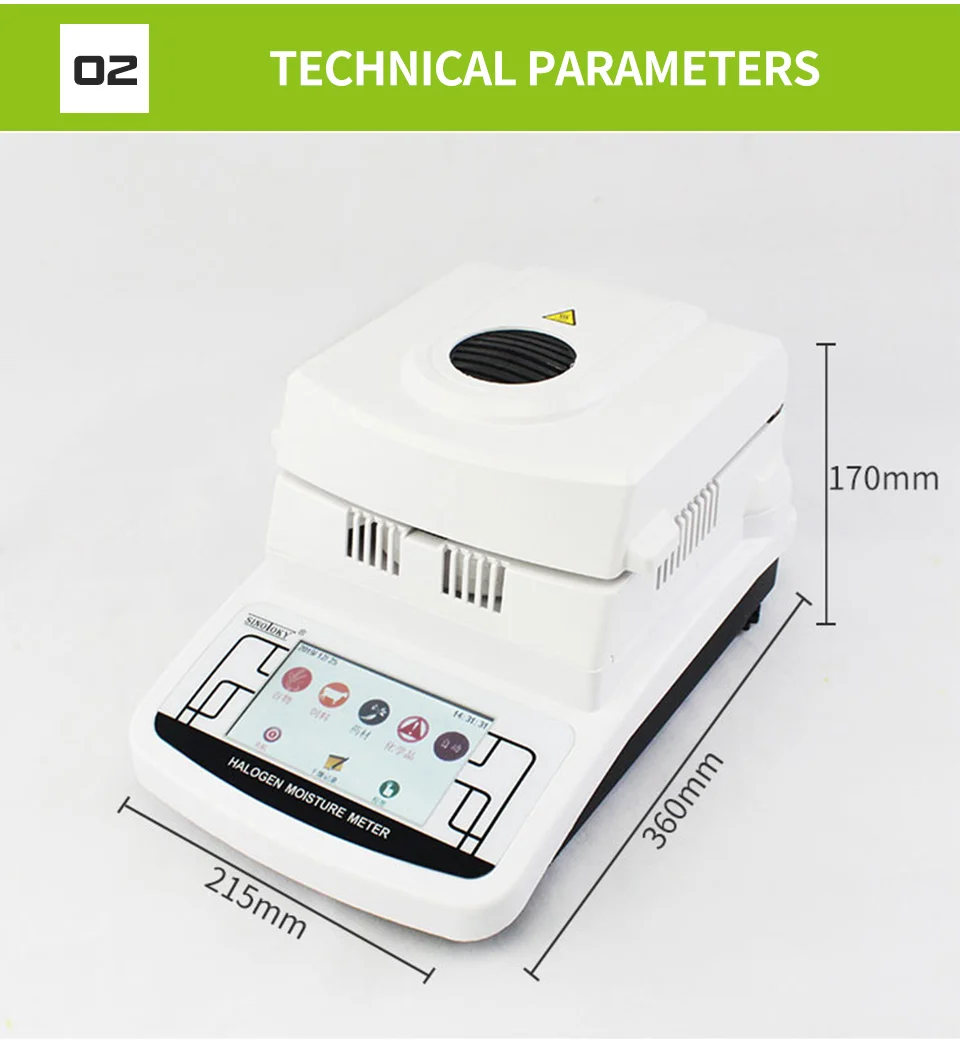

Dimension:   360x215x170mm

Net weight:   4.5kg

Heating source:    Halogen lamp
