Product Description

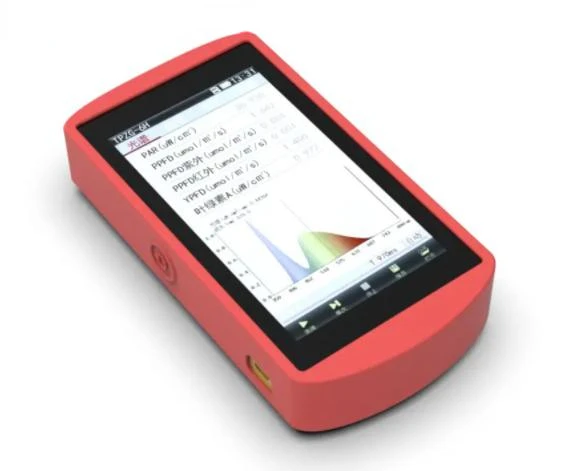

The plant spectrometer is a professional instrument for real-time detection of spectral components. The spectral measurement range (350-800nm) covers the visible light band. It can detect a series of optical parameters, such as photosynthetically active radiation, photosynthetic photon flux density PPFD, different light quality composition ratio and so on.
Features

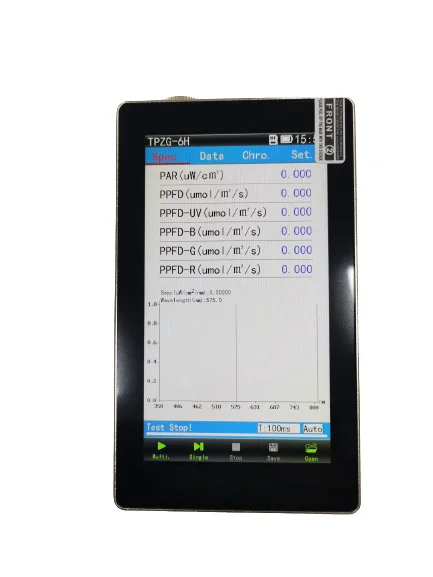

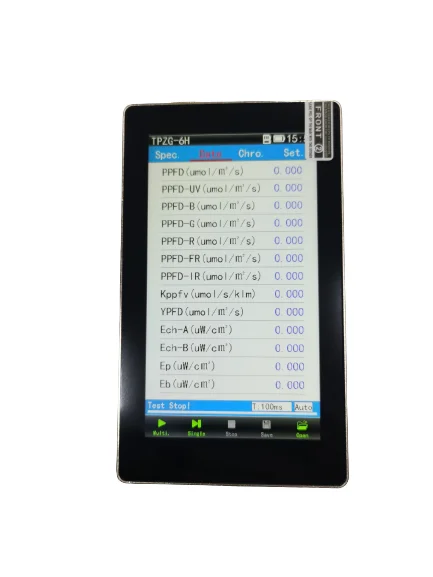

1. 5.0 inch high definition touch screen operation, one key measurement, fast detection of light source spectral distribution 2. The measured data include more than 40 Photonics and optical parameters, such as illuminance, par (400-700nm), PPFD, different light quality components (infrared, red, green, blue, ultraviolet, etc.), radiation intensity, ratio of red to blue light quality irradiance, chlorophyll weighted irradiance, color temperature, central wavelength, etc.
3. Support 180 ° screen rotation, screen brightness adjustment and key screen capture.

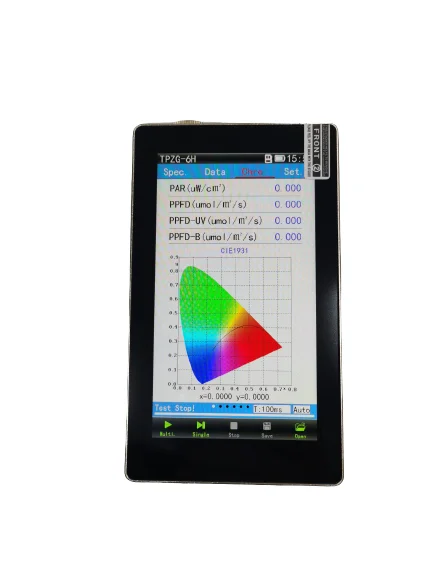

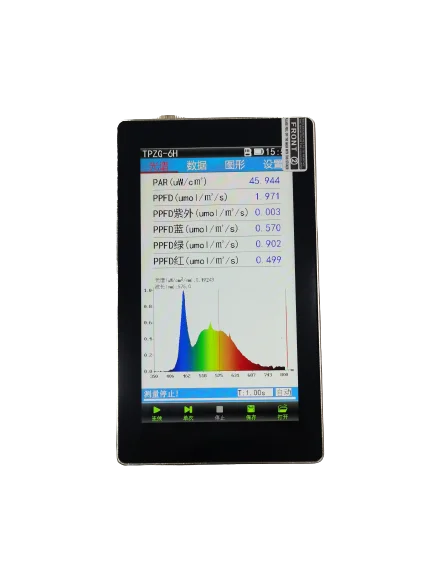

4. The analysis result diagram includes spectrum distribution diagram (350 ~ 800nm), CIE standard chromaticity diagram (1931, 1960, 1976), color tolerance diagram, color rendering index CRI diagram.
5. The analysis result diagram includes spectrum distribution diagram, CIE standard chromaticity diagram, color tolerance diagram and color rendering index CRI diagram.
Specification
|
wavelength range
|
350nm~800nm
|
|
Sensor
|
High precision CCD
|
|
Chromaticity standard accuracy
|
±0.0025
|
|
Storage capacity
|
actory standard 8g tfcard (micro SD)
|
|
Spectral bandwidth (FWHM)
|
2nm
|
|
Spectral resolution / repeatability
|
0.2nm, x, y repeatability ± 0.0005
|
|
Wavelength accuracy
|
±0.5nm
|
|
communication interface
|
Micro USB interface
|
|
Color temperature range
|
1,000K~100,000K
|
|
Stray light
|
≤0.3%
|
|
Continuous working hours
|
20 hours
|
|
llumination measurement range
|
5lx~200klx
|
|
Integral time
|
50µs~10000ms
|
|
Main engine size / weight
|
138.5mm (height) × 81mm (width) × 23mm (thickness) / about 430g
without accessories (including battery) |
