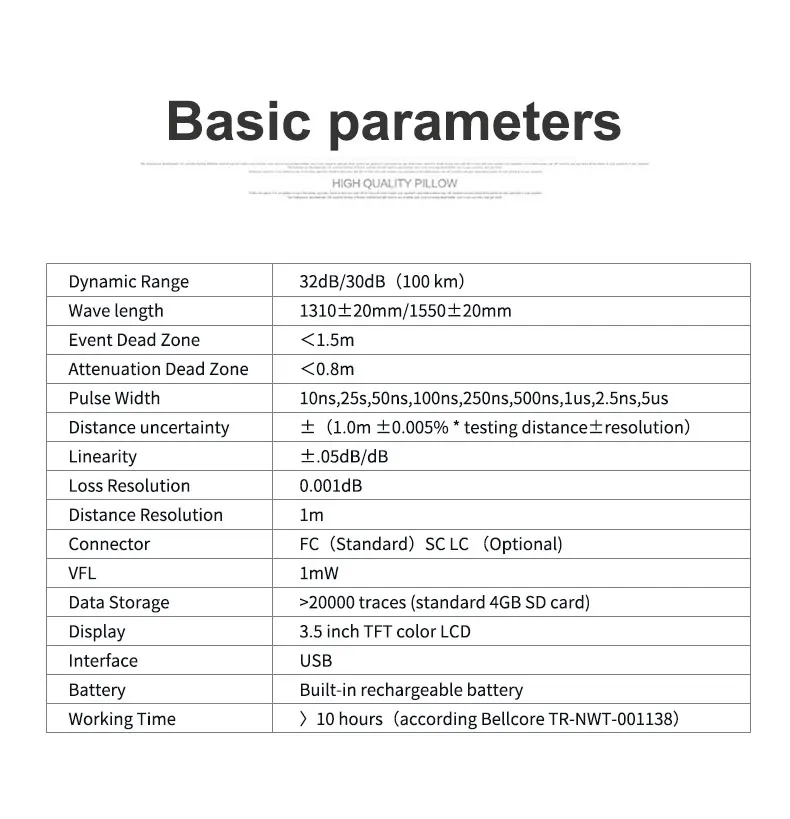

Dynamic Range

32dB/30dB(100 km)

Wave length

1310±20mm/1550±20mm

Event Dead Zone

<1.5m

Attenuation Dead Zone

<0.8m

Pulse Width

10ns,25s,50ns,100ns,250ns,500ns,1us,2.5ns,5us

Distance uncertainty

±(1.0m ±0.005% *testing distance±resolution)

Linearity

±.05dB/dB

Loss Resolution

0.001ldB

Distance Resolution

1m

Connector

FC(Standard)SC LC (Optional)

VFL

1mW

Data Storage

>20000 traces (standard 4GB SD card)

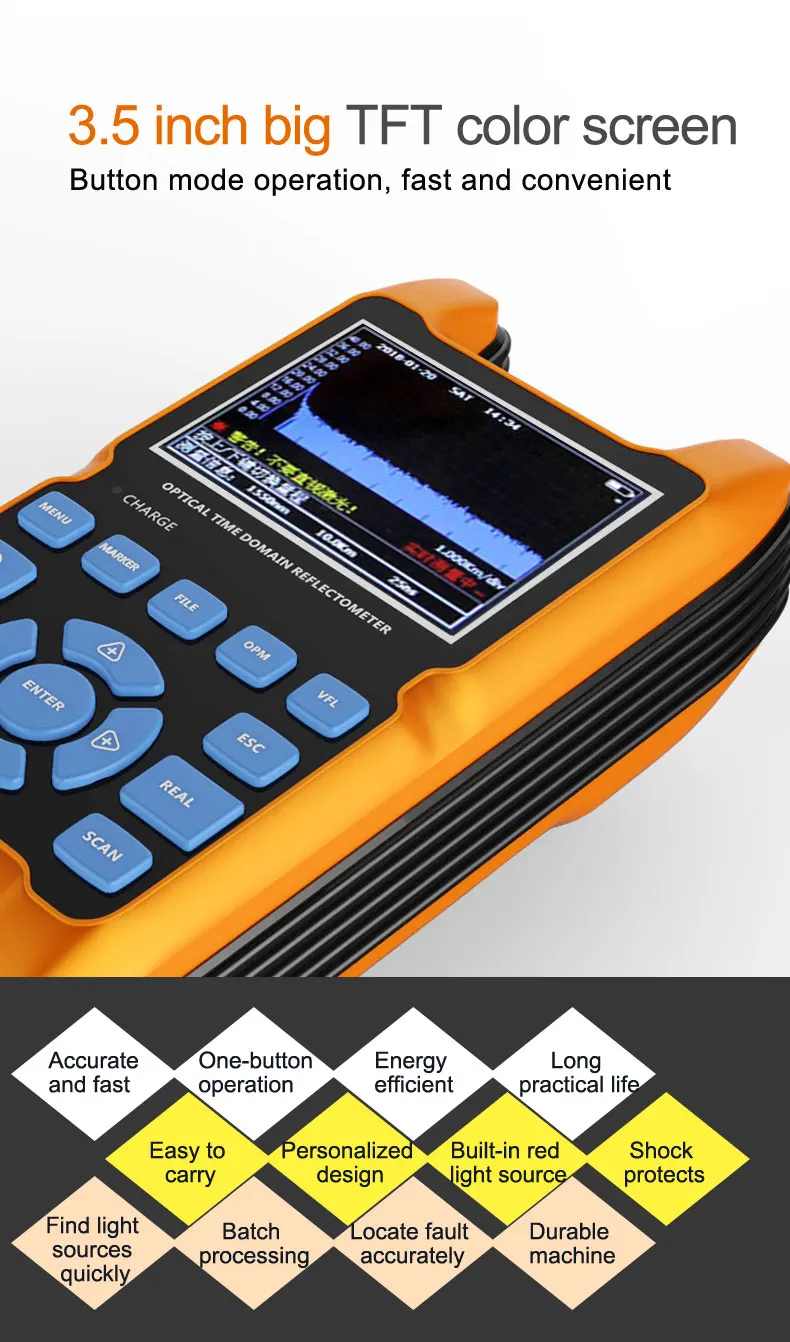

Display

3.5 inch TFT color LCD

interface

USB

Battery

Built-in rechargeable battery

Working Time

>10 hours(according Bellcore TR-NWT-001138)
