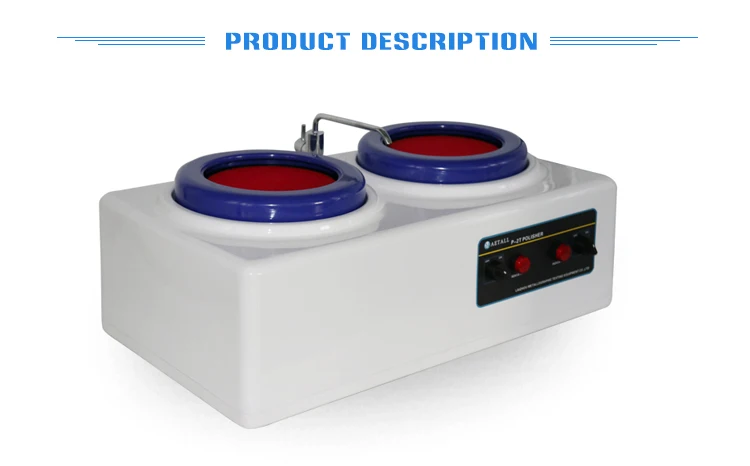

Product Features / Uses:

This P-2T Polishing machine  is suitable for the polishing of the specimen which has been grinded.  The specimen surface is very

smooth after processing and can be used to observe and measure the metallographic structure

of specimen under microscope. This machine has features of smooth running, low noise, easy

operation and maintenance. It can meet polishing requirements of multiple materials. It is widely

used in metallographic experiments of mining and industrial enterprises, colleges and universities,

scientific research institutions, etc.

product brand

Maetall

Product parameters

product name

Metallographic Polishing Machine

Grinding disc diameter

203mm

Product color

White color

Polishing disc diameter

203mm

Product number

P-2T

Quantity of disc

2

product material

ABS

Control mode

Double disk / double control

Feature

100% Eco-friendly/Soft/Lovely

Rotation speed

1400r/min (900r/min customized)

Quality Control

Advanced equipment and experienced QC team will check during processing and before packing

Motor voltage

  220V,50Hz

Delivery Term

10-20 working days after receiving T/T 30% deposit

power

180W*2

Weight

35KG

Machine size (L*W*H

705*485*335mm

1. The grinding and polishing disc of the machine is connected with the drive shaft. For the first time installation, it is better to use a rubber hammer to tap the double disc down to the axial direction to close fit. Otherwise, it will affect the performance of the machine.2. The unit must be well grounded and the grounding device is reliable.
3. The inlet and outlet pipes are required to be unobstructed, and the joints must not leak.
4. After each operation, the equipment should be cleaned and maintained.
5. When the machine is found to have an abnormal sound, stop it immediately for inspection.
