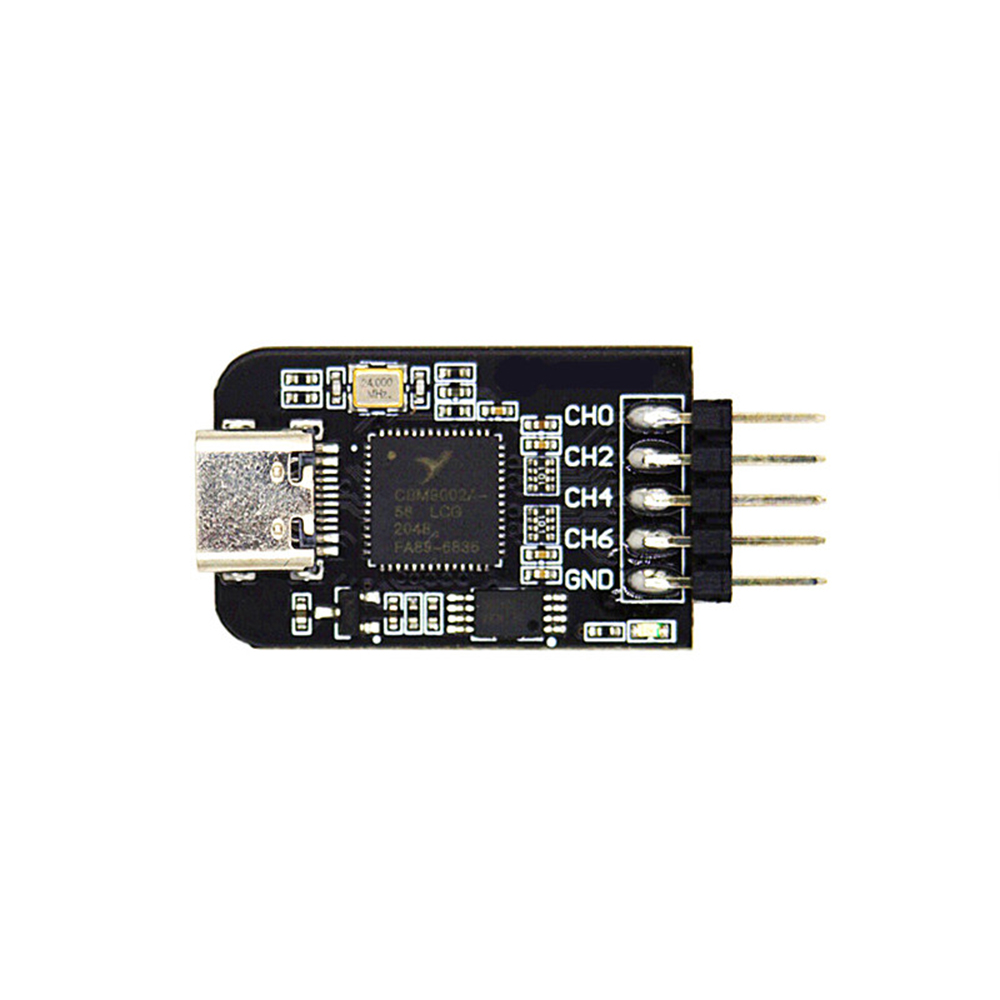

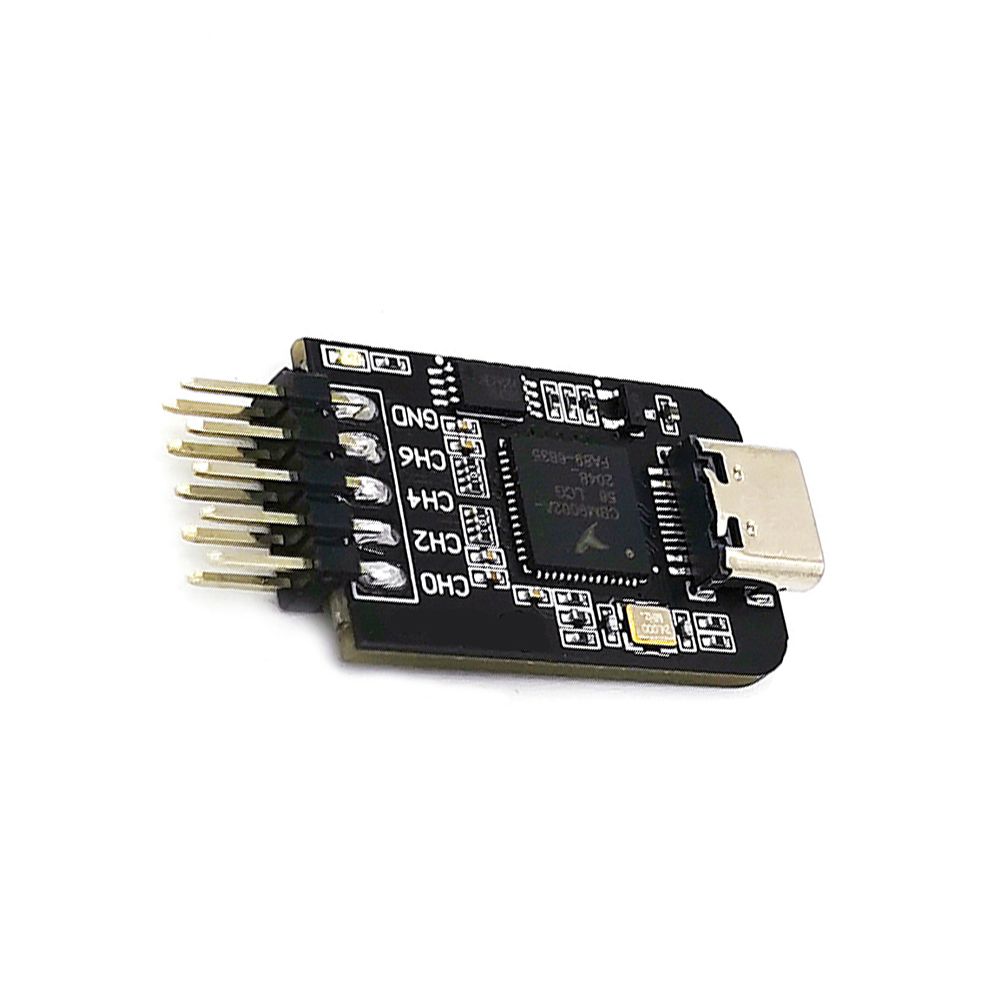

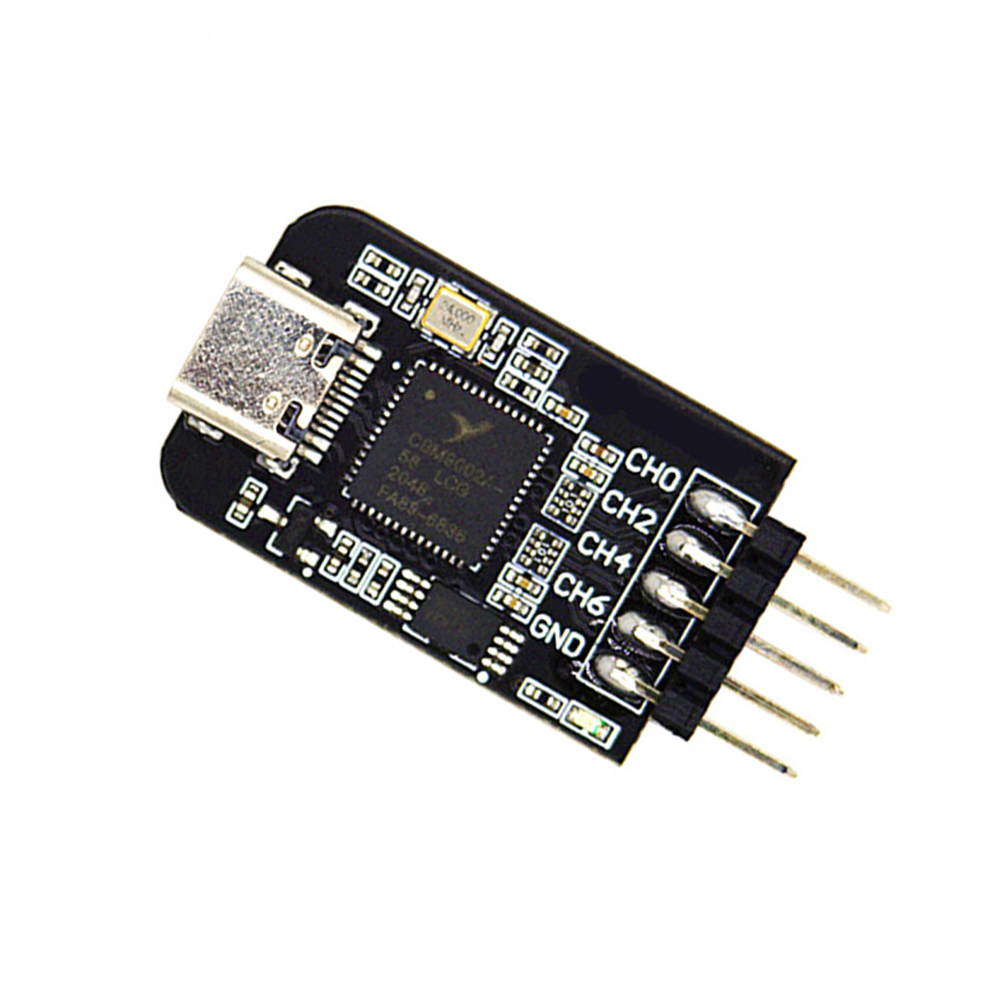

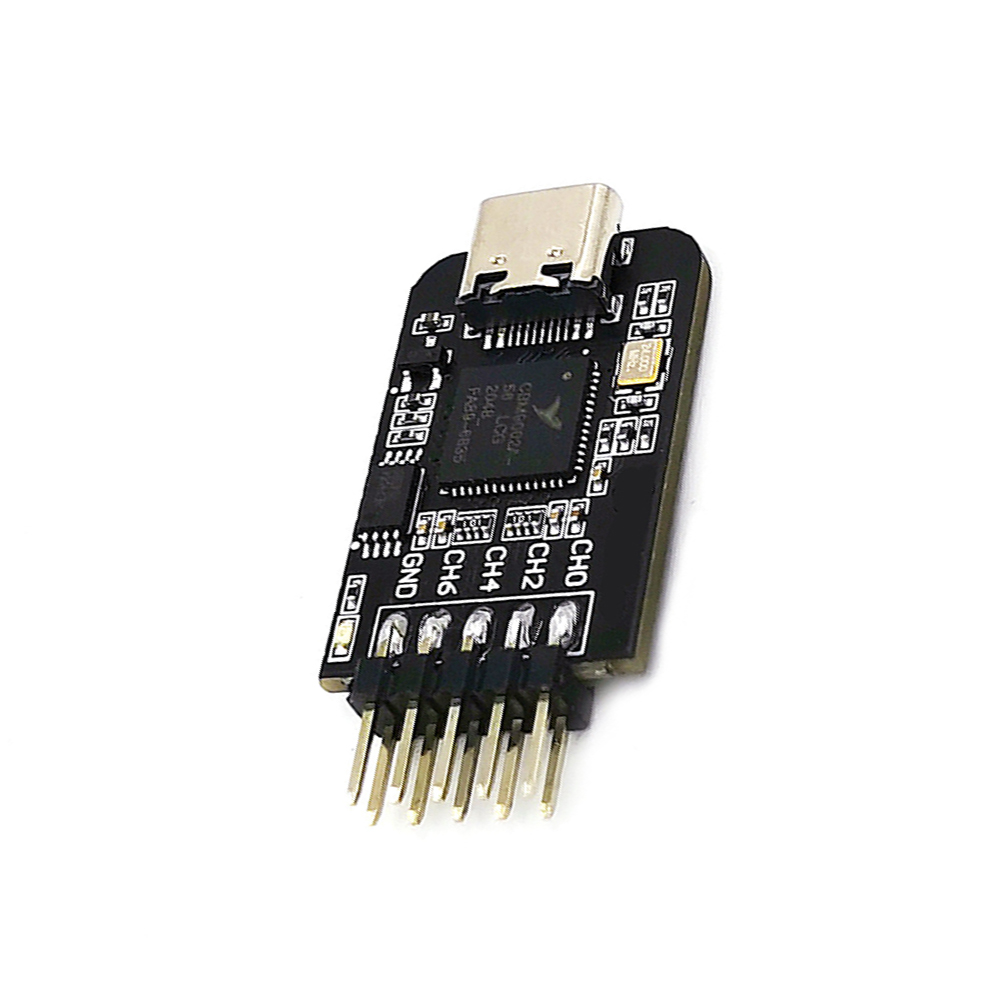

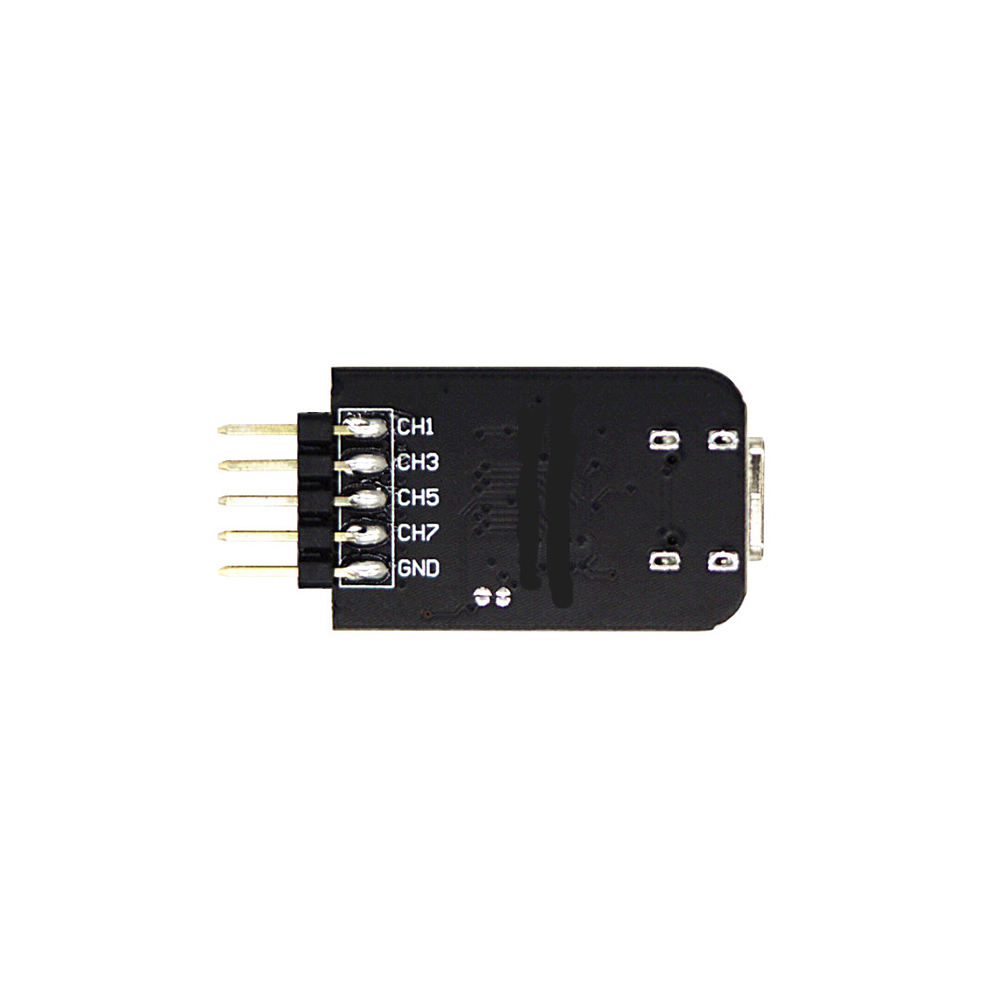

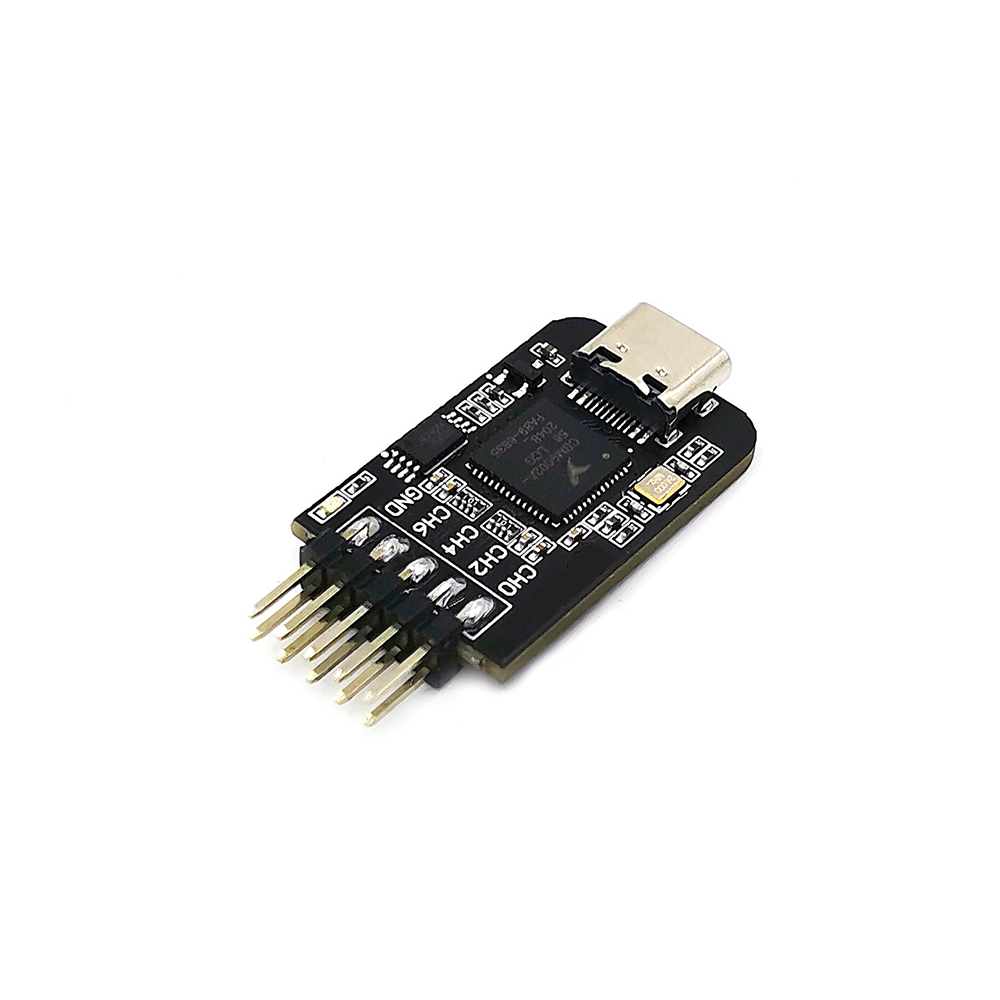

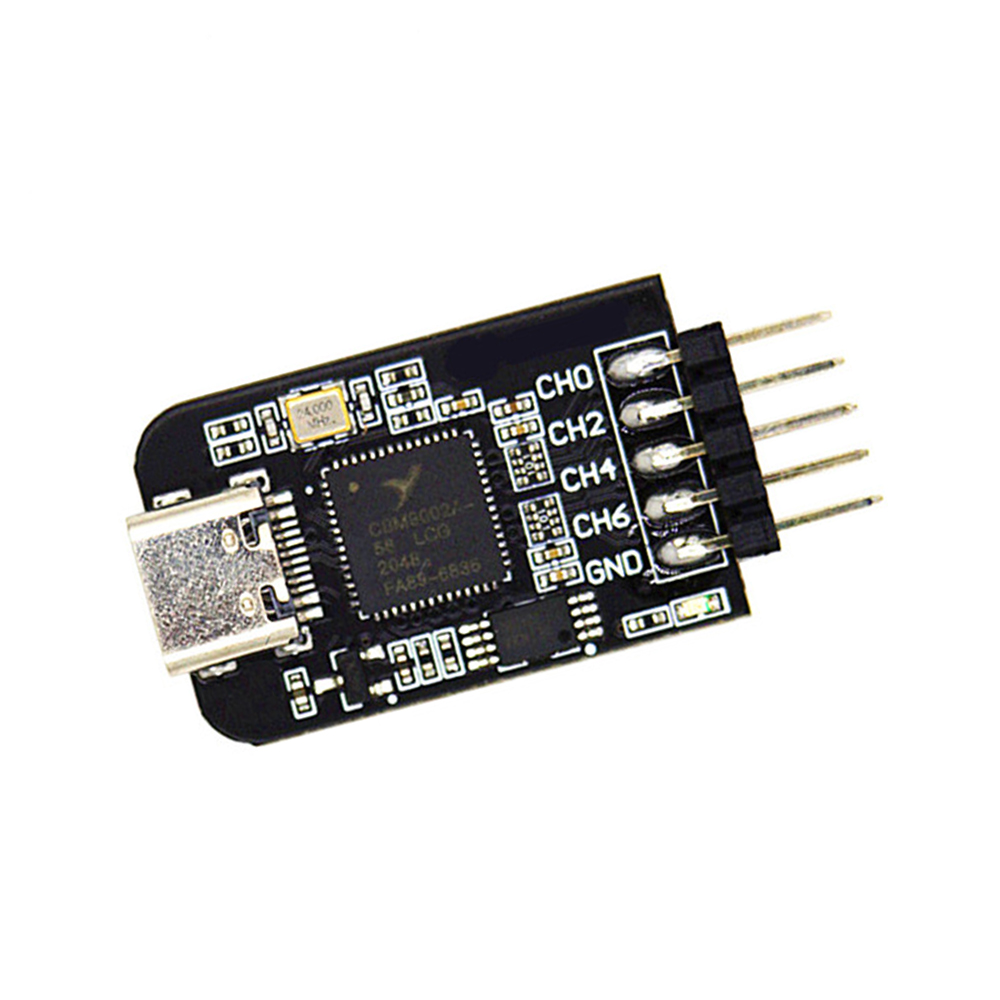

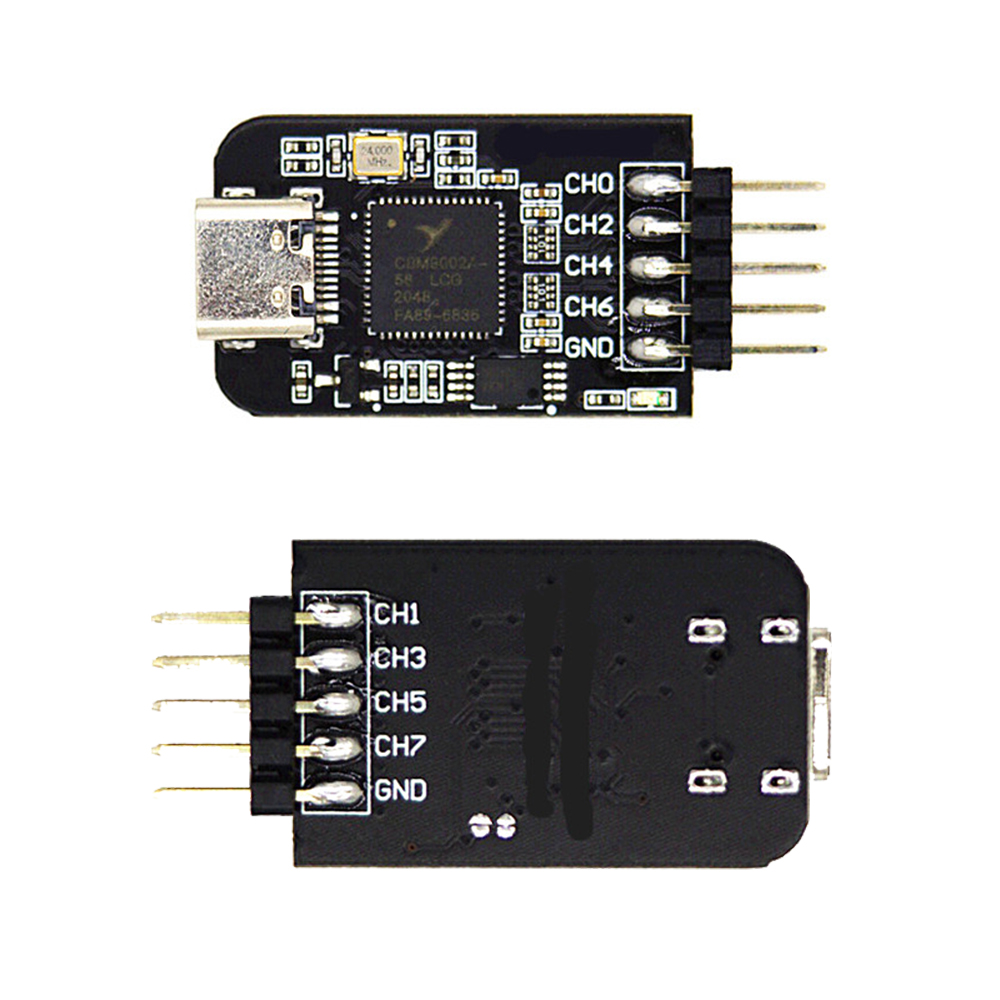

Product Details

1. Made of high quality material, durable and practical.
2. The appearance is exquisite and compact, and the function is rich
3. It can support up to 24Mhz sampling rate, and supports more than 100 kinds of protocol analysis
4. The development and debugging efficiency can be greatly improved in scenarios such as problem location, multi-component complex systems, timing analysis, and performance analysis.
5. Support Windows/Linux/Mac platform

Parameter:
Software environment: PuIseView
Sampling channel: 8 channels
Sampling frequency: up to 24Mhz
Logic level: low level is [-0.5v, 0.8v], high level is [2v, 5.25v]
The sampling rate of this logic analyzer supports up to 16-24MHz, and can sample signals up to about 3MHz (the sampling rate needs to be at least 5 times that of the original signal, and 10 times the sampling rate is generally recommended to better restore the original signal). The sampling rate is 24MHz, but not all PCs can achieve it. After actual measurement, Linux can sample at 24MHz, and most Windows (win7/win10) can sample at 16MHz. The highest sampling rate and operating system/USB controller/USB bus status/USB driver both are related

Package list:
1/2/5/10 Pieces Mini logic analyzer
