Fortpro MV-3 Dash Valve With 3/8" Push-To-Connect Ports, 1/4" Threaded Mounting Holes Replacement for Bendix 800259

Key Features

Very Important: Please Verify this product Description and Compatibility before Buying

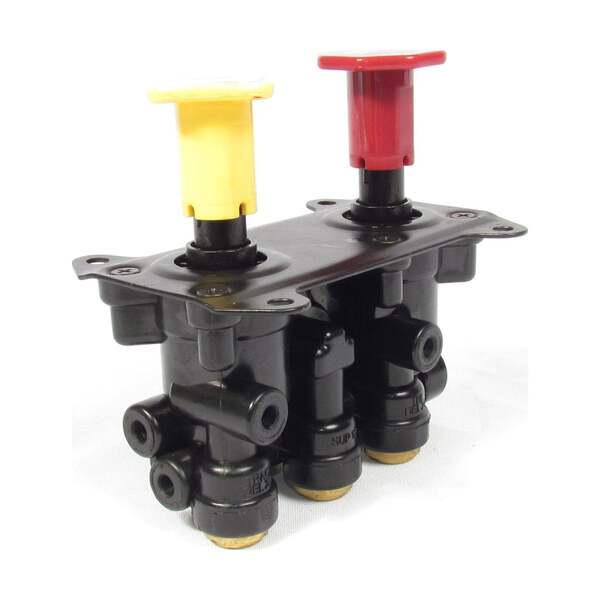

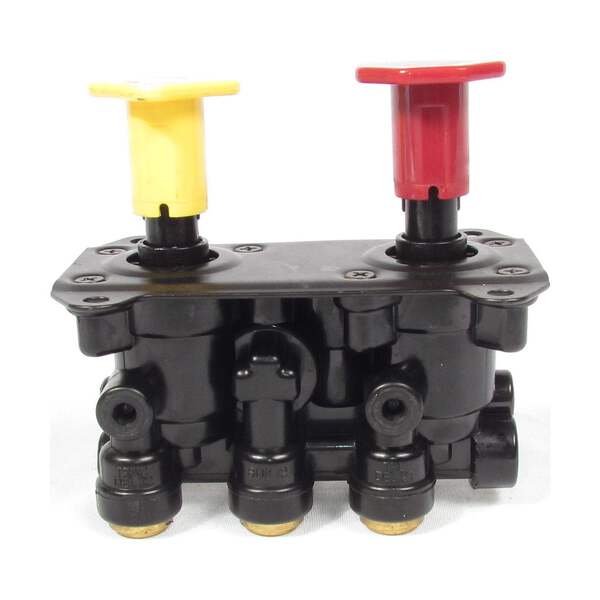

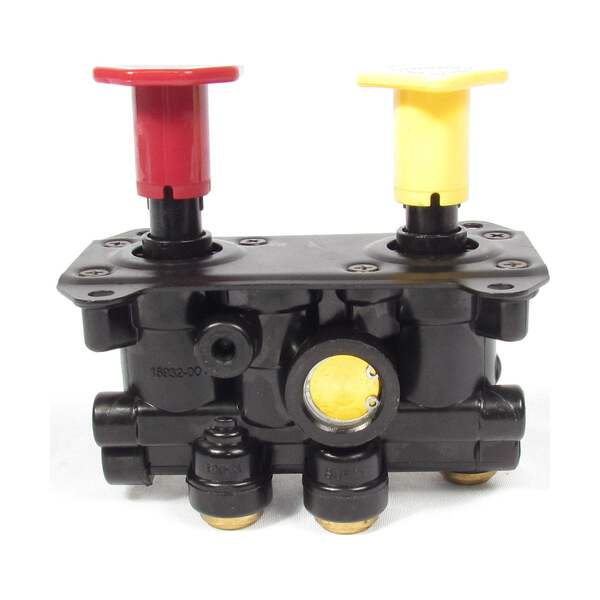

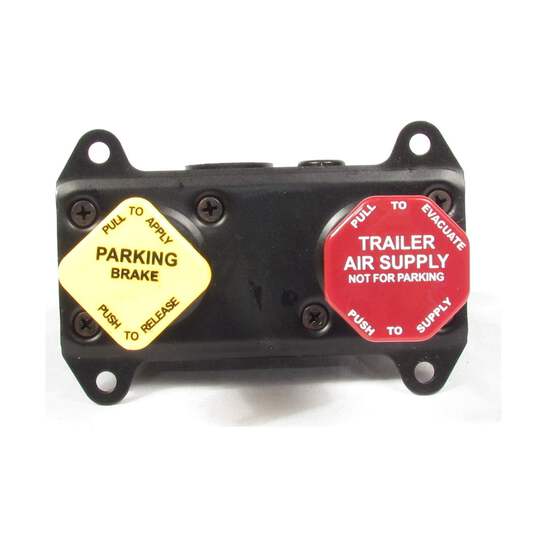

This Part Integrates Parking Brake Valve and Trailer Air Supply Valve (Knobs Included)
Made of High Strenght Polymer (EGC-Engineering Grade Composite) that Guarantees Durability and Corrosion Resistance

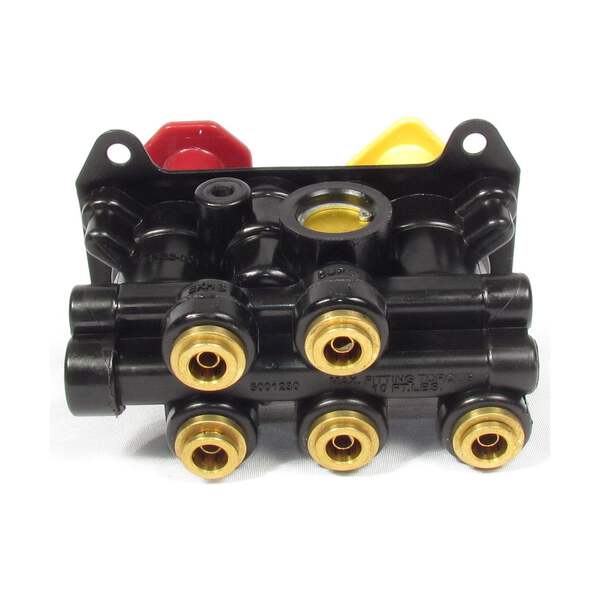

All Ports 3/8" Push-To-Connect Fittings. Threaded Mounting Holes 1/4"-20
Replacement for Bendix 800259 MV-3 Manifold Dash Valve

Specifications

Product Line: Brakes
Category Name: Air Brake Valves
Part Type: Dash Valve
Alternate Part Name: Dash Control Module / Manifold Dash Valve
Model: MV-3
OEM Part Number: 800259
Application Type: Heavy Duty Trucks, Semi-Trucks
Delivery Port 2.1 Size: 3/8 PTC
Delivery Port 2.2 Size: 3/8 PTC
Exhaust Port Size: 3/8 PTC
Mounting Hole Qty: 4
Mounting Hole Size: 1/4-20 UNC-2B
Supply Port 1.1 Size: 3/8 PTC
Supply Port 1.2 Size: 3/8 PTC
Material: Engineering Grade Composite (EGC)
Button(s) Included: Yes
Maximum Operating Temperature: 200 deg. F (93 deg. C)
Minimum Operating Temperature: -40 deg. F (-40 deg. C)
Tractor Trip Pressure: 30 ± 10 psi
Trailer Override Pressure: 25 ± 5 psi
Trailer Trip Pressure: 35 ± 10 psi
Net Weight: 1.70 lb.

Intended Application

Designed to efficiently manage the parking brake system on trucks and trailers with air brakes. Its main function is to control the air supply to the tractor and trailer parking brake system, allowing safer operation and reducing the number of pipes and valves required compared to traditional systems.
Main functions:
? Tractor protection
? Trailer service brake control
? Parking system
? Trailer parking only
? Trailer recharging with spring brakes activated on the tractor
? Isolation of primary and secondary air tanks

Cross-references

170.800259WF, 2039879C92, 745-800259, 745800259, 800259, 802619, 802619E, 9346490320, 9366490180, 9366490320, KN20622, RKN20622, S-16928, S16928, S9346490320, S9366490180, S9366490320
