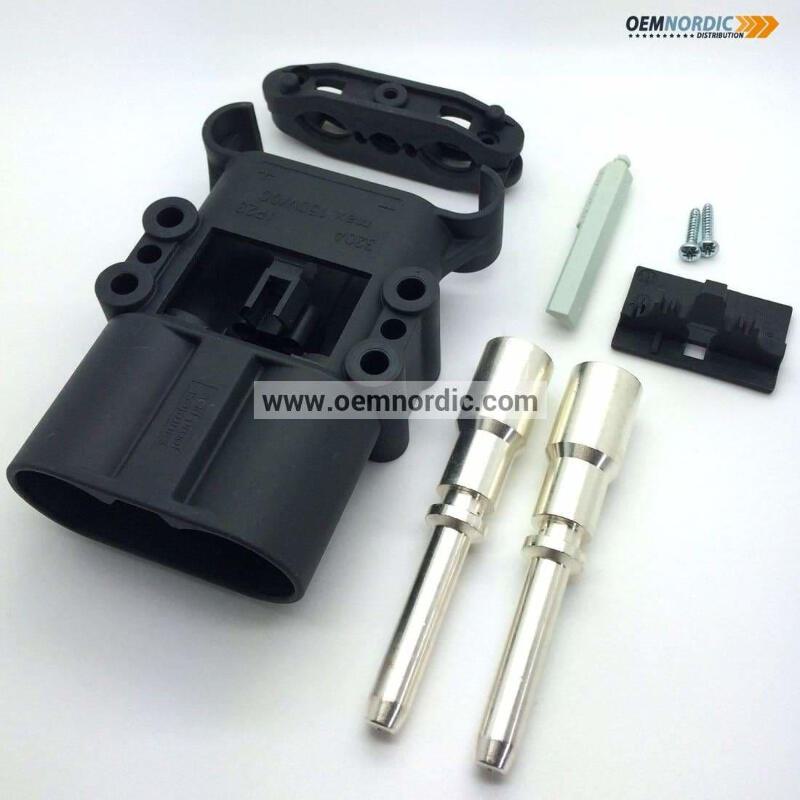

REMA BATTERY CONNECTOR DIN 320, PLUG with contacts, Standard Black Housing

Available for 50mm2, 70mm2 and 95mm2 cables Standard European version = Black Version, Polyamide Housing (PA) 50mm2 = 75500-01 DIN 320 A socket; grey coding70mm2 = 75505-01 DIN 320 A socket; grey coding95mm2 = 75510-01 DIN 320 A socket; grey coding Sold without a handle, a detachable handle types can be installed and replaced in case handle breaks. Please see available accessory for the product. Different types of detachable handles are available as accessory. PLUG = Male version, for the charger and car/vehicle/EV/motor side Product features and advantages Specifically designed for the quick and opportunity charging of large battery capacities. Suitable for lead gel accumulators and lithium-ion batteries. Corresponds to the DIN VDE 0632-589 and EN 1175-1 Spring supported contact system for optimal contact pressure high electrical conductivity High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life Durable because of acid resistant design Suitable for cable sizes from 50 mm² to 95 mm² ( smaller doable with 100% fit reducing bushings, look for product page for accessories ) Direct crimping without reducing bushing for all cable size Wide range of accessories different handle shapes available 1 pair of additional auxiliary and 1 pair of pilot contacts cooling system with air supply through Typical applications are forklift trucks battery charging systems sweeper and cleaning devices. REMA DIN 320A Plug with contacts, lock part, coding pin and cable stress relief = cable clamp. Including grey coding pin for DRY battery. Other coding pin options are: ( sold separately ) Green = Wet BatteryYellow = Wet&Dry Battery* No handle included, please add separate handle type if needed.* Plug without handle allows the handle to be changed upon damage very easily. Product features and advantages: Specifically designed for the quick and opportunity charging of large battery capacities Suitable for lead gel accumulators and lithium-ion batteries Corresponds to the DIN VDE 0632-589 and EN 1175-1 Spring supported contact system for optimal contact pressure high electrical conductivity High-grade contacts made out of pure high conductive Cu-ETP copper with silver plated surface and an anti-friction and tarnish coating ensure power transition with minimal losses long life Durable because of acid resistant design Suitable for cable sizes 50 mm2, 70mm2 and 95 mm2 Direct crimping without reducing bushing for all cable size Wide range of accessories different handle shapes are available connect a pair of additional auxiliary and/or a pair of pilot contacts cooling system with air supply through Typical applications forklift trucks battery charging systems sweeper and cleaning devices RCC devices
