STP RJ45 Cat6 LAN Connector,Two-Piece Design Modular Network Plug Connector 8P8C(8 Pins,8 Cores) for Unshielded and Shielded Twisted Pair Solid Wire & Standard Cables

• 【RJ45 CAT6/5e CONNECTORS】100% oxygen-free copper pins, 30 micron gold-plated, 8P8C (8 poles, 8 cores) ensure reliable contact and fast data flow.

• 【COMPATIBILITY】Ideal for 24awg~26awg twisted pair solid and stranded cable, which can be used for almost all types of RJ45 crimping tools to make custom-length Ethernet cables.

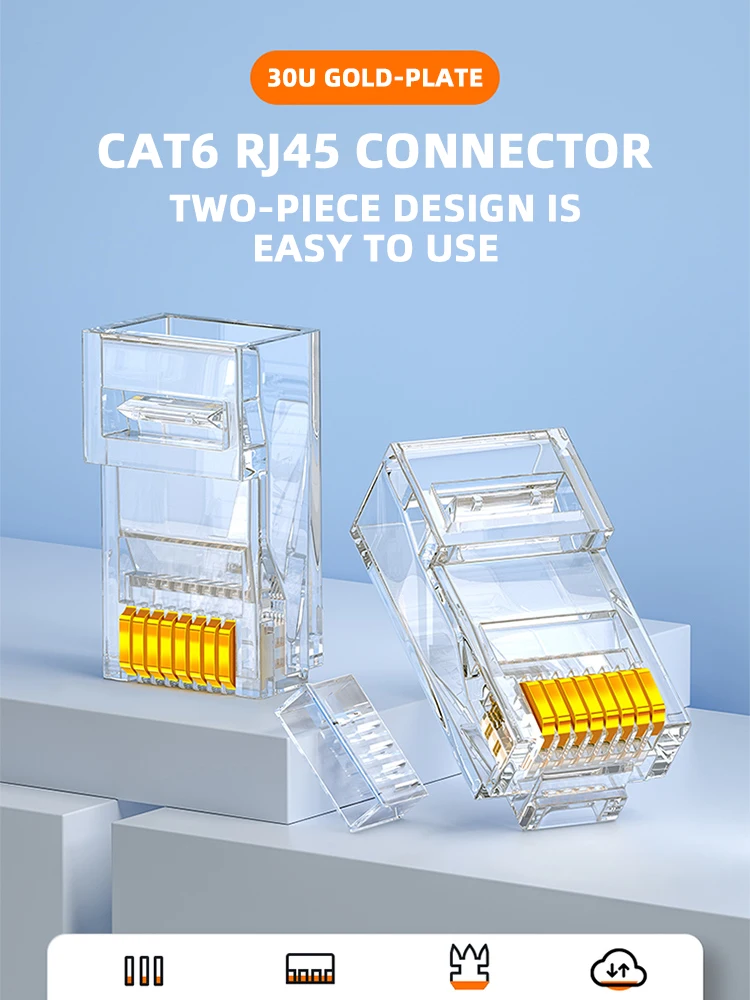

• 【Two-Piece Design】Each connector with a modular load bar is very convenient to install with RJ45 conductors.

• 【EASILY IDENTIFY WIRING ORDER】The transparent body makes verifying the wire sequence(T568A and T568B) easier to reduce scrap and waste crimping.Provide you with a fast and effective method of crimping CAT5/6 connectors.

• 【ENVIRONMENTALLY METERIALS】These rj45 cat6 cat5e connectors are made of environmentally friendly materials to ensure reliability and quality assurance,and shell fragment could support 180 degree bending.

Eevry Connector Comes a Load Bar

The load bar is easy to insert the cable, make the comping much more convenient

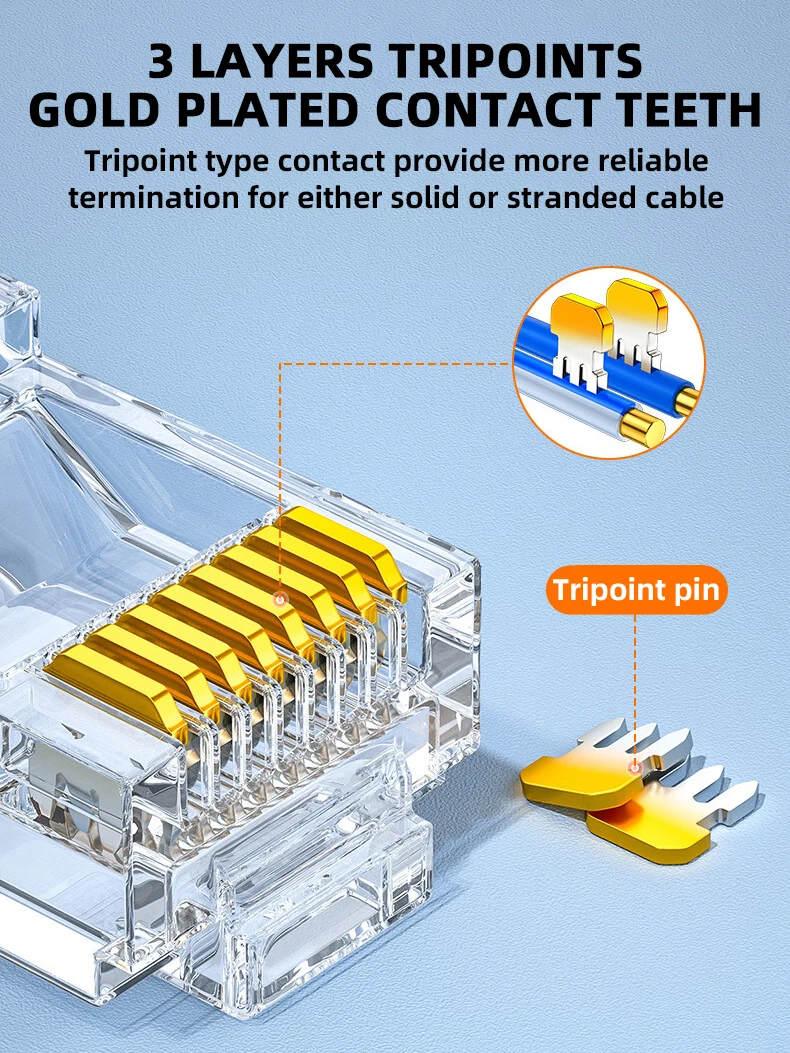

3 Layers Tripoints Gold Plated Contact Teeth

Tripoint typecontact provide more reliable termination for either solid or standard cable

The Importance of Micro-inches

Different amounts of gold plating can be placed onconnectors, and these amounts are measured inmicro-inches.The thinnest gold plating is called "flashplating.This low-micro-inches plating willactually wear out in a short amount of time. Thickerplating will last much longer.

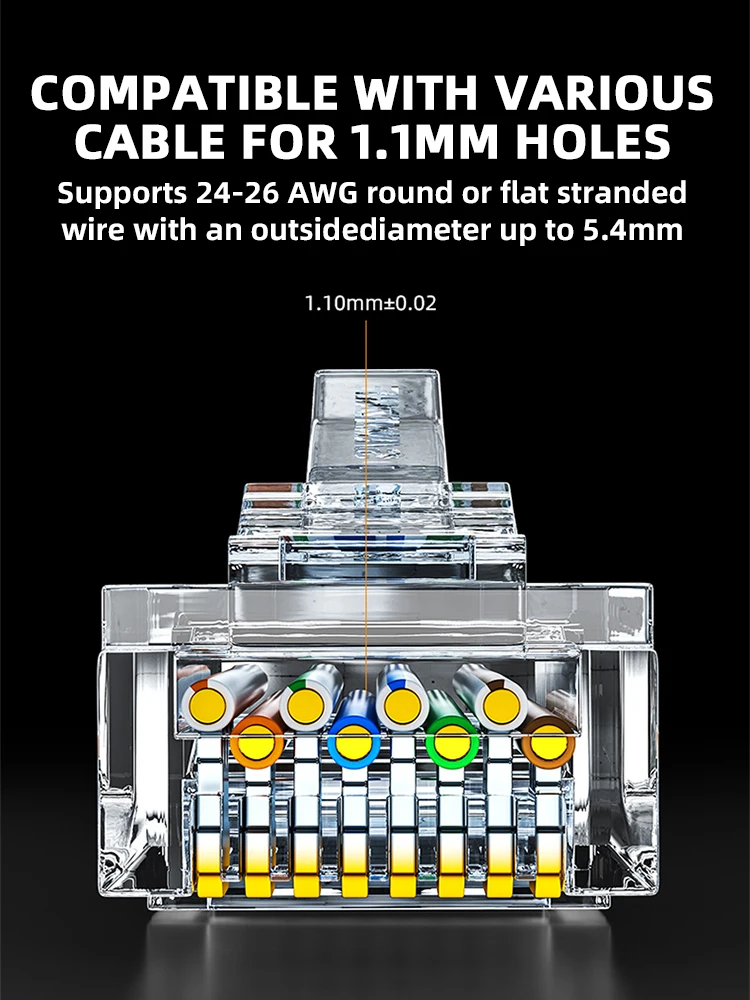

Compatible with Various Cable for 1.1mm Holes

Supports 24-26 AWG round or flat stranded wire with an outsidediameter up to 5.4mm.

High Performance Internet Cable

550Mhz rating supports higher bandwidth better heat dissipation for PoE application

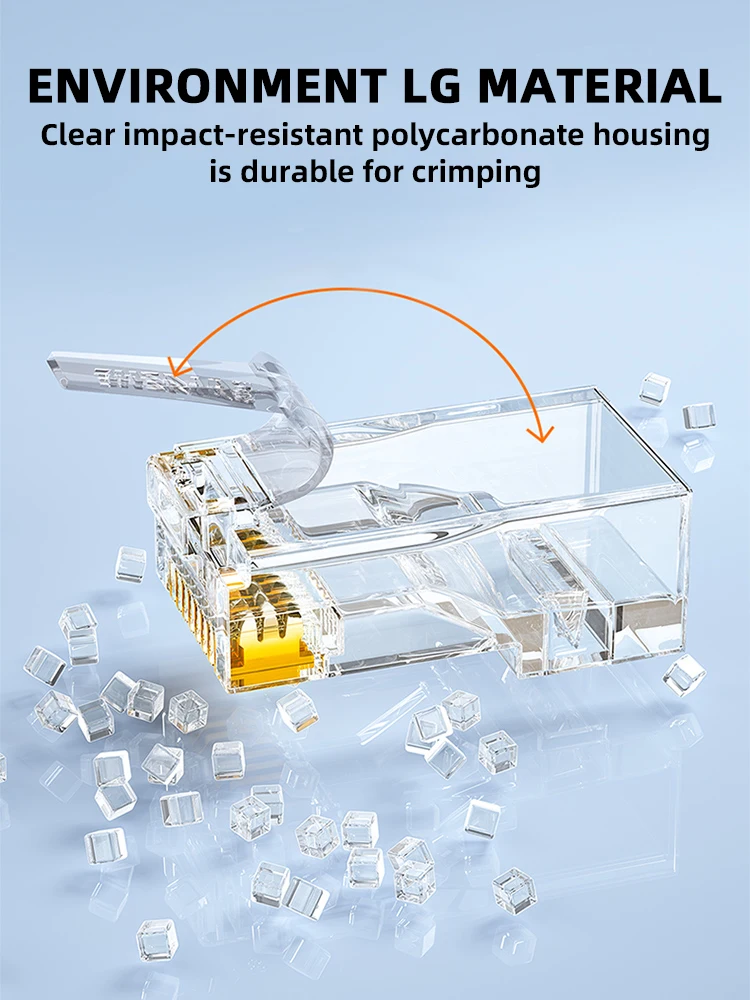

Environment LG Material

Clear impact-resistant polycarbonate housing is durable for crimping

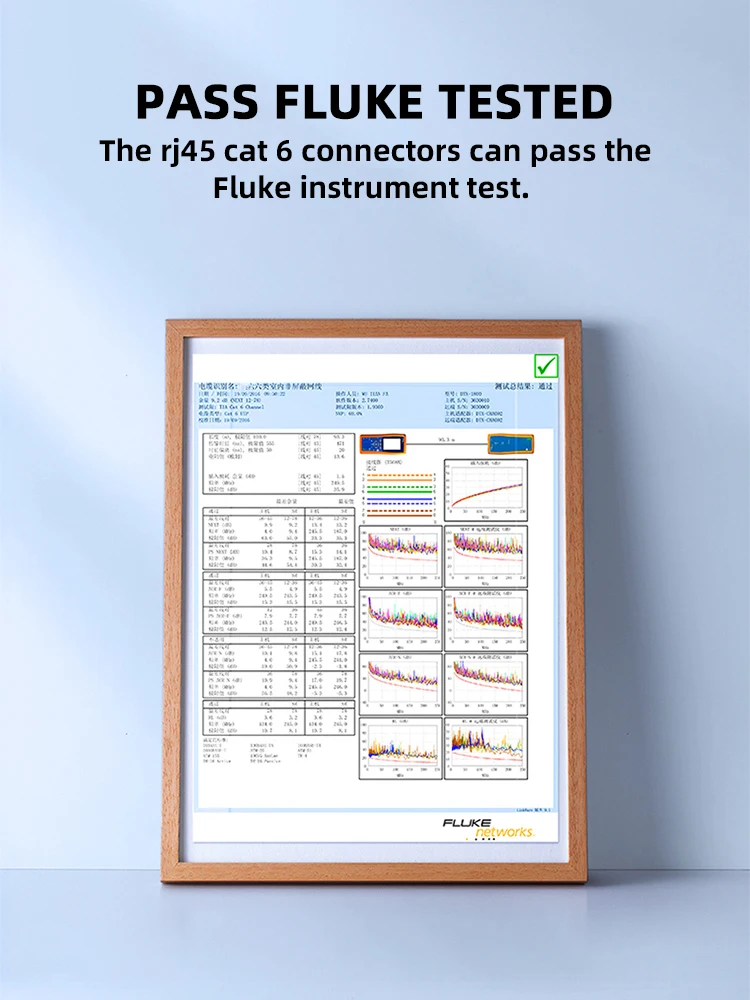

Pass Fluke Tested

The rj45 cat6 connectors can pass the fluke instrument test

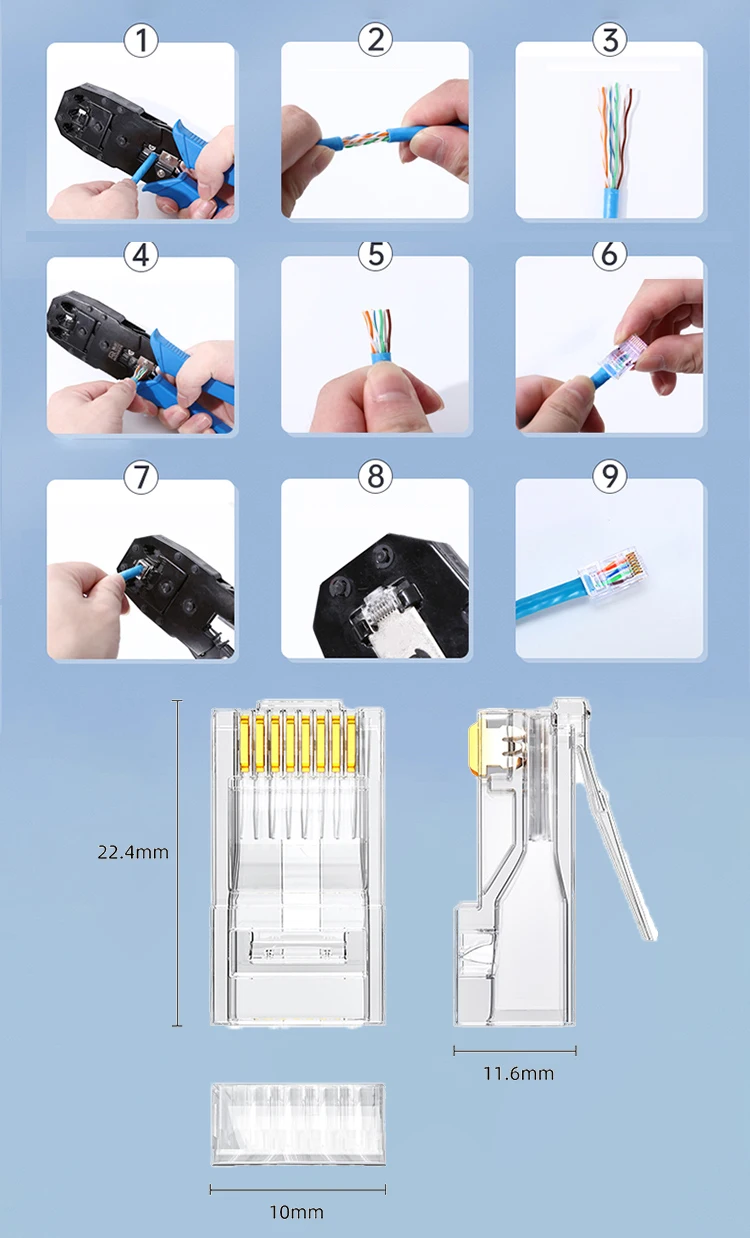

Operation Guide
