You are bidding on a Brand New Southwest Speed Rear Brake Rotor/Hat, Brake Caliper, and Pad Set with Bolt-On Caliper Brackets.

These kits are designed to put disc brakes on the rear of vehicles that have a 9" Ford rear end with either "Big Ford" or "Big Ford New Style" axle flanges, as shown below.  These brackets will bolt to these particular Axle Flanges only:

Complete Kit Includes:

  • D154 GM Metric Brake Caliper Kit (#203-6188):
    • Includes Semi-metallic, high-friction pads and caliper slide pin bolts with sleeves
    • Cast steel e-brake calipers
    • Directly replace the 1978 and later D154 type stock GM Metric calipers
    • Single stock 2 1/2" piston
    • Fluid inlets are 10mm x 1.5
    • Floating design
    • Include bleeder screws
  • Bolt-on Caliper Bracket Kit (#203-1497):
    • Designed as a bolt-on kit for Big Ford and Big Ford New Style Axle Flanges
    • Includes bearing retainers, spacers, bolts, nuts, and washers

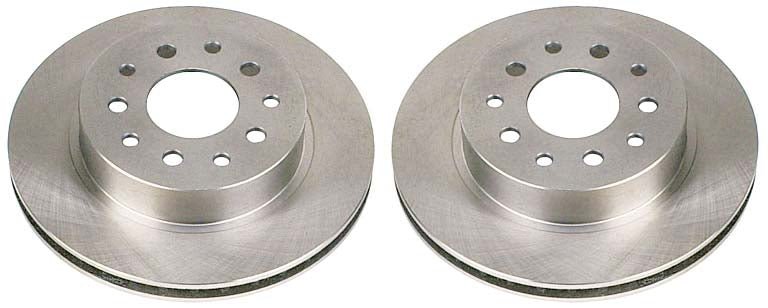

  • 1 Piece Brake Rotors (#203-8574 x 2):
    • Vented, steel, straight-vaned rotor
    • 11.25" Diameter
    • 1.00" Thick
    • Drilled for both 5 x 4 1/2" and 5 x 4 3/4" bolt patterns
    • Measurements from Diagram Below:
        • Rotor Diameter: 11.25"
        • Rotor Width: 1.00"
        • Offset: 1.314"
        • Center Hole Diameter: 2.780"
        • Clearance I.D.: 6.250"
        • Face Thickness: 0.236"
        • Stud Bolt Circle: 5 x 4.5" and 5 x 4.75"
    • Rotors weigh approximately 13 lbs each
