Features:
1: Widely used
2: Easy to use and understand,
3: The green board is more eye-catching
4: Voltage resolution 0.01V, output accuracy 1%; if the error is greater than 1%, it can be calibrated
5: In MODBUS command mode, up to 247 devices can be connected in parallel
1: Widely used
2: Easy to use and understand,
3: The green board is more eye-catching
4: Voltage resolution 0.01V, output accuracy 1%; if the error is greater than 1%, it can be calibrated
5: In MODBUS command mode, up to 247 devices can be connected in parallel
Description:

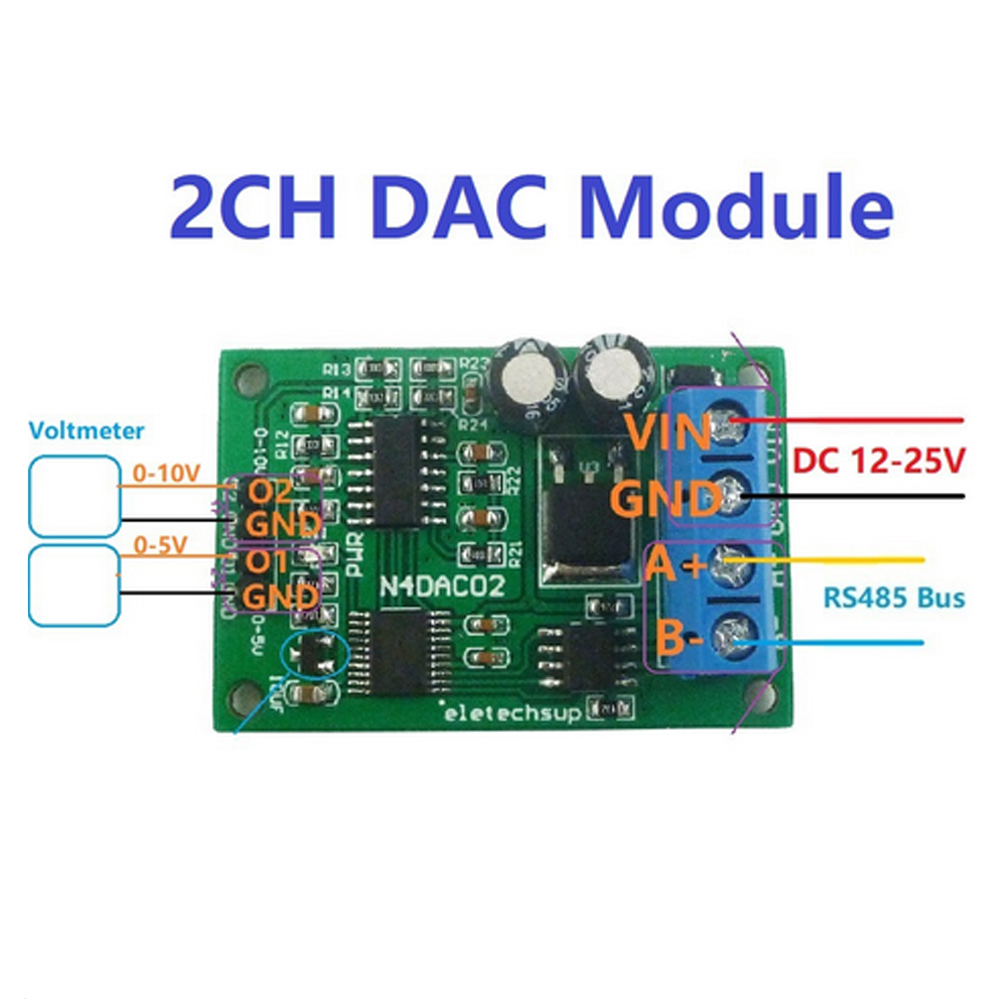

1: Working voltage: DC 12 (DC 12-25V), a small ripple power supply is recommended
2: Working current: 12-13mA
3: MODBUS RTU command support 03 06 function code

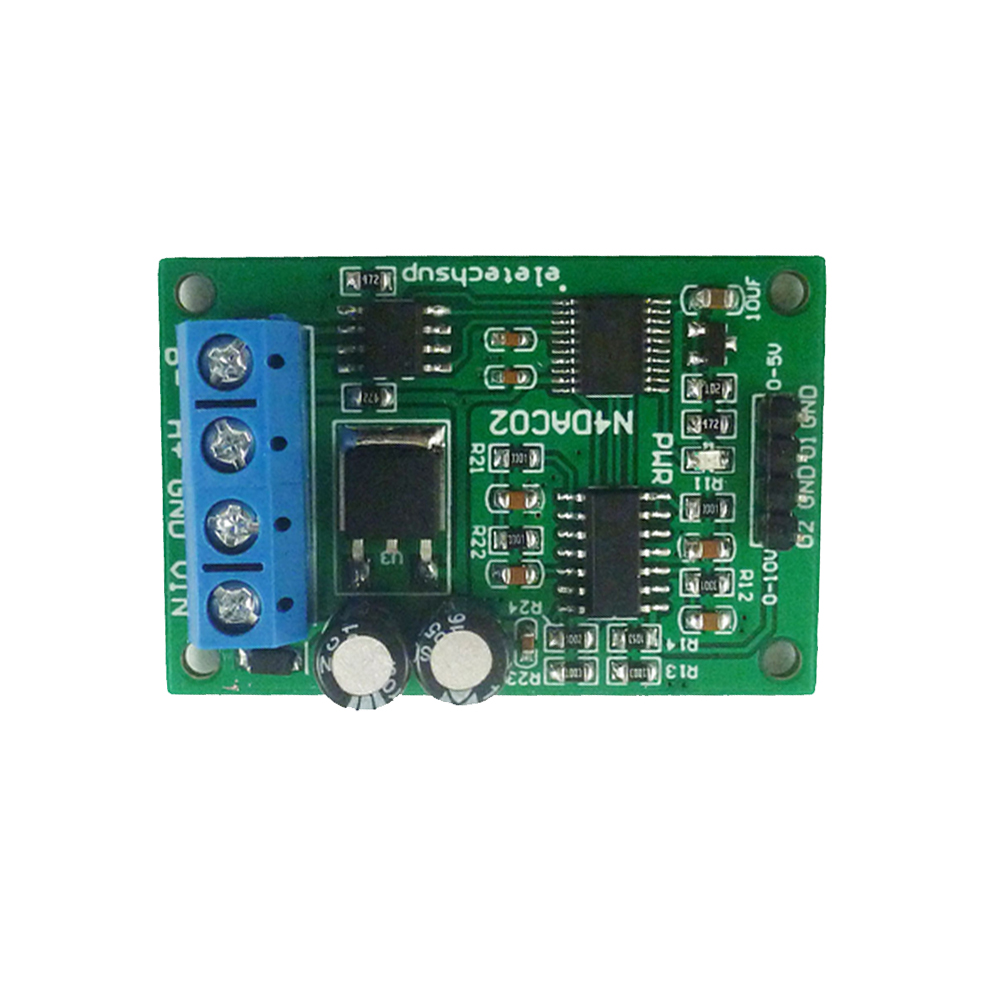

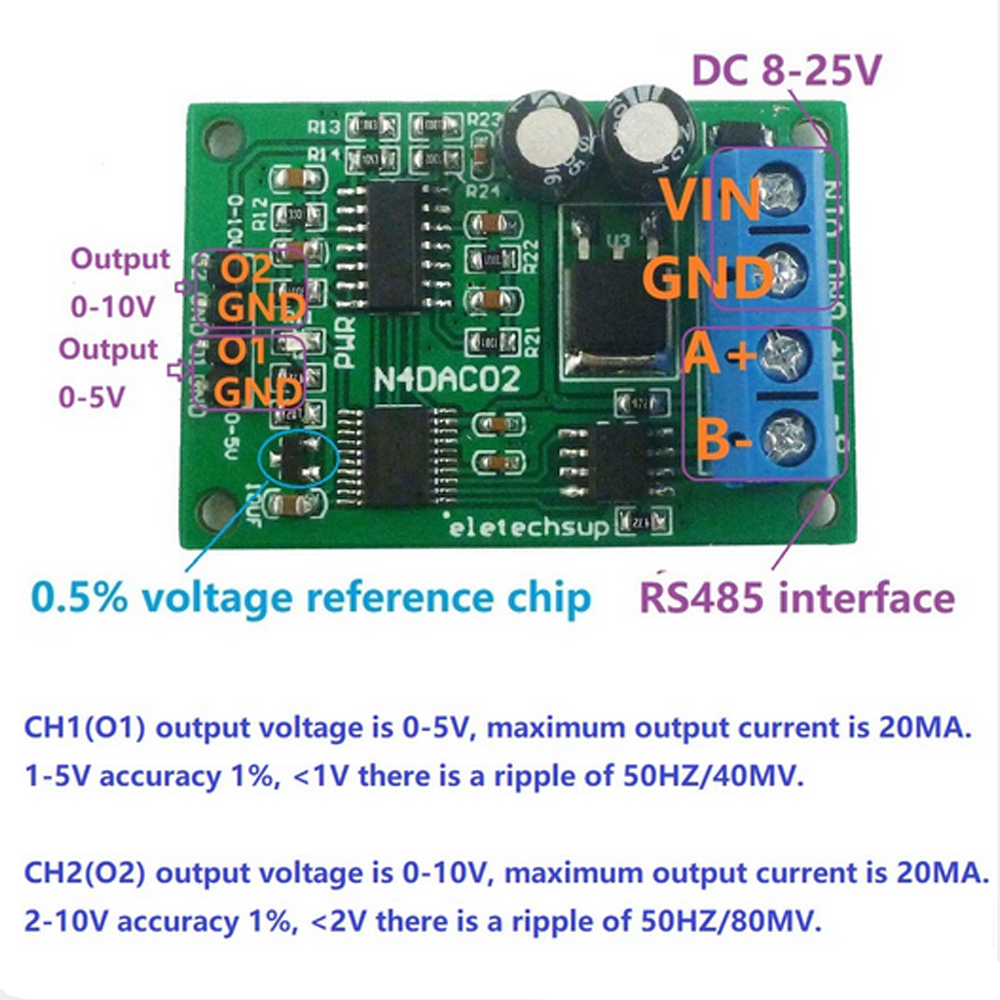

4: CH1 (O1) output voltage 0-5V, maximum output current 20MA. 1-5V accuracy is 1%, <1V has 50HZ/40MV ripple.
The output voltage of CH2 (O2) is 0-10V, and the maximum output current is 20mA. 2-10V accuracy is 1%, <2V has 50HZ/80MV ripple.
5: Voltage resolution 0.01V, output accuracy 1%; if the error is greater than 1%, you can calibrate

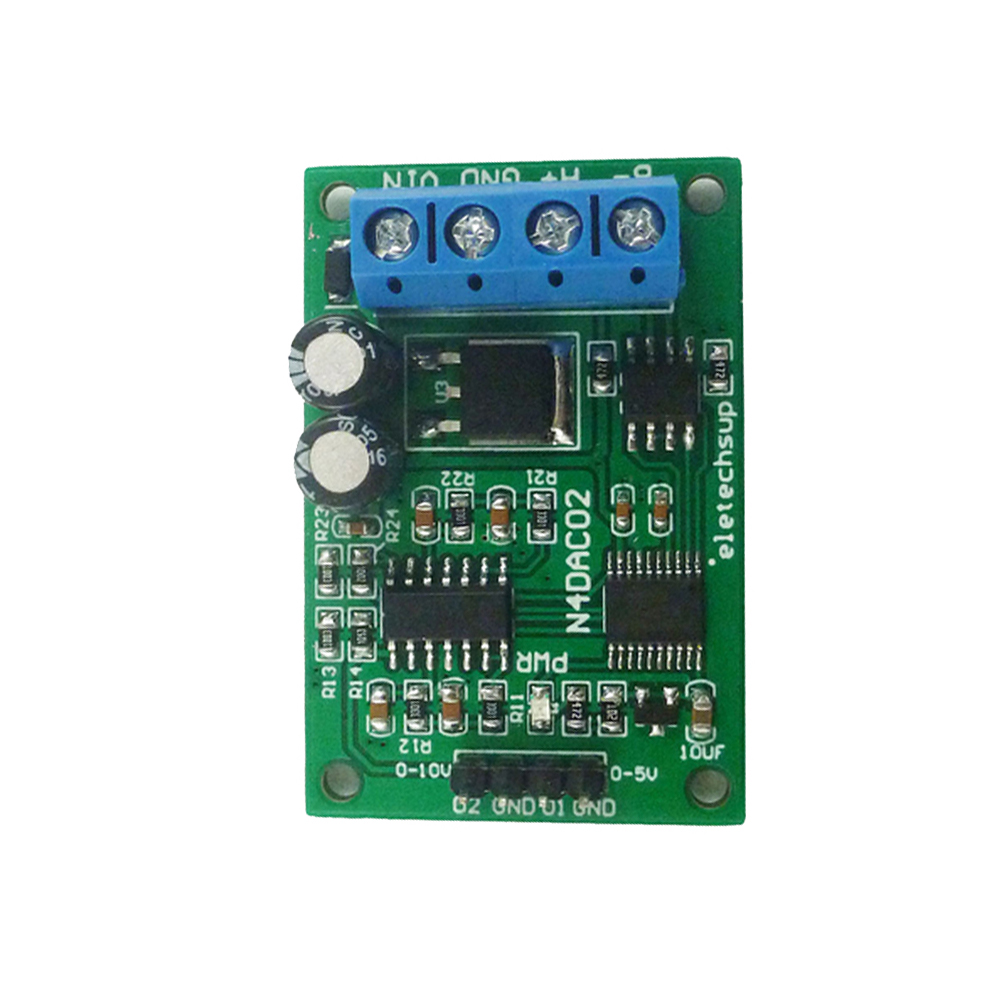

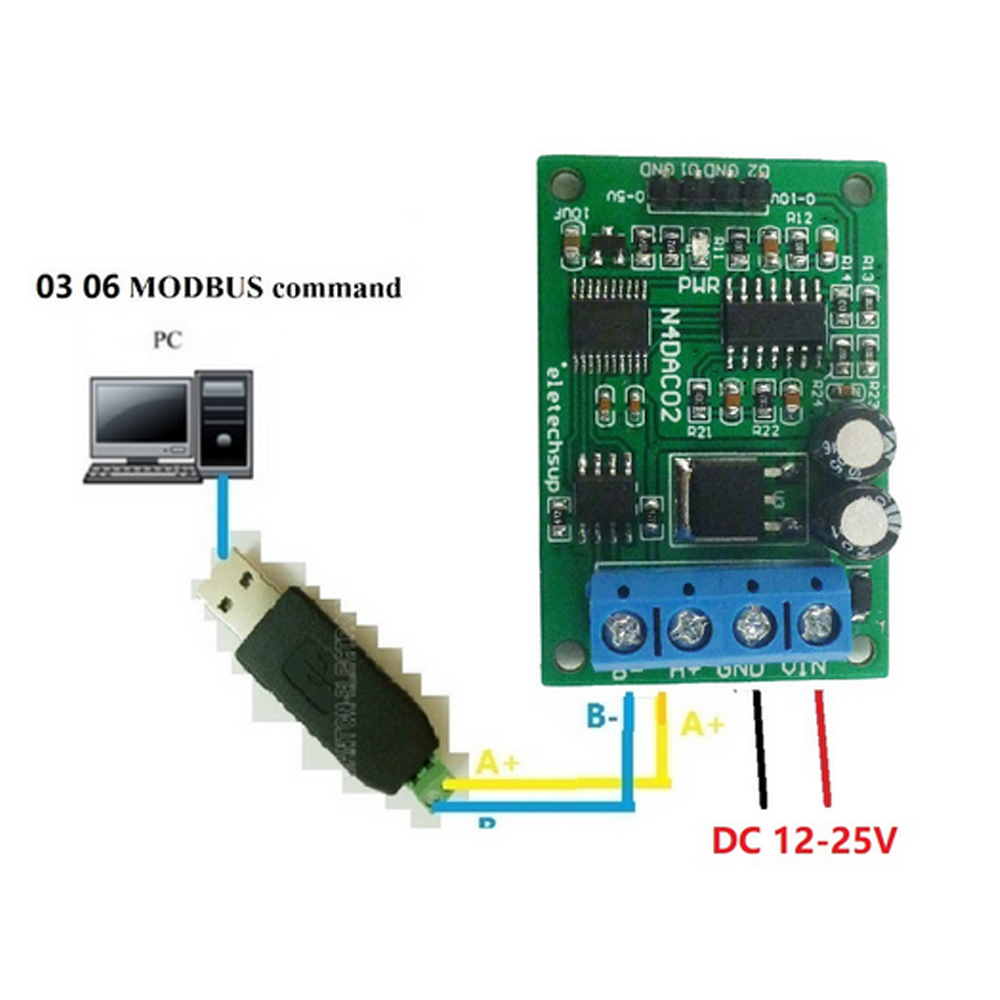

6: MODBUS commands can be made into serial port super terminal (serial port assistant) or PLC input;

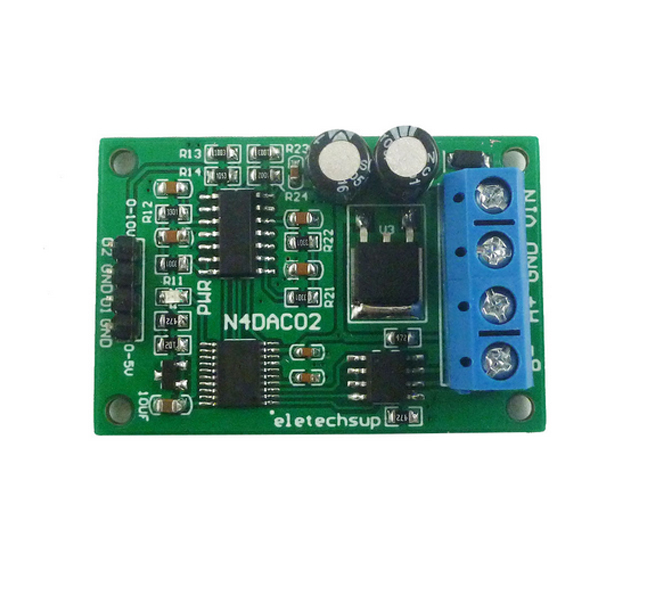

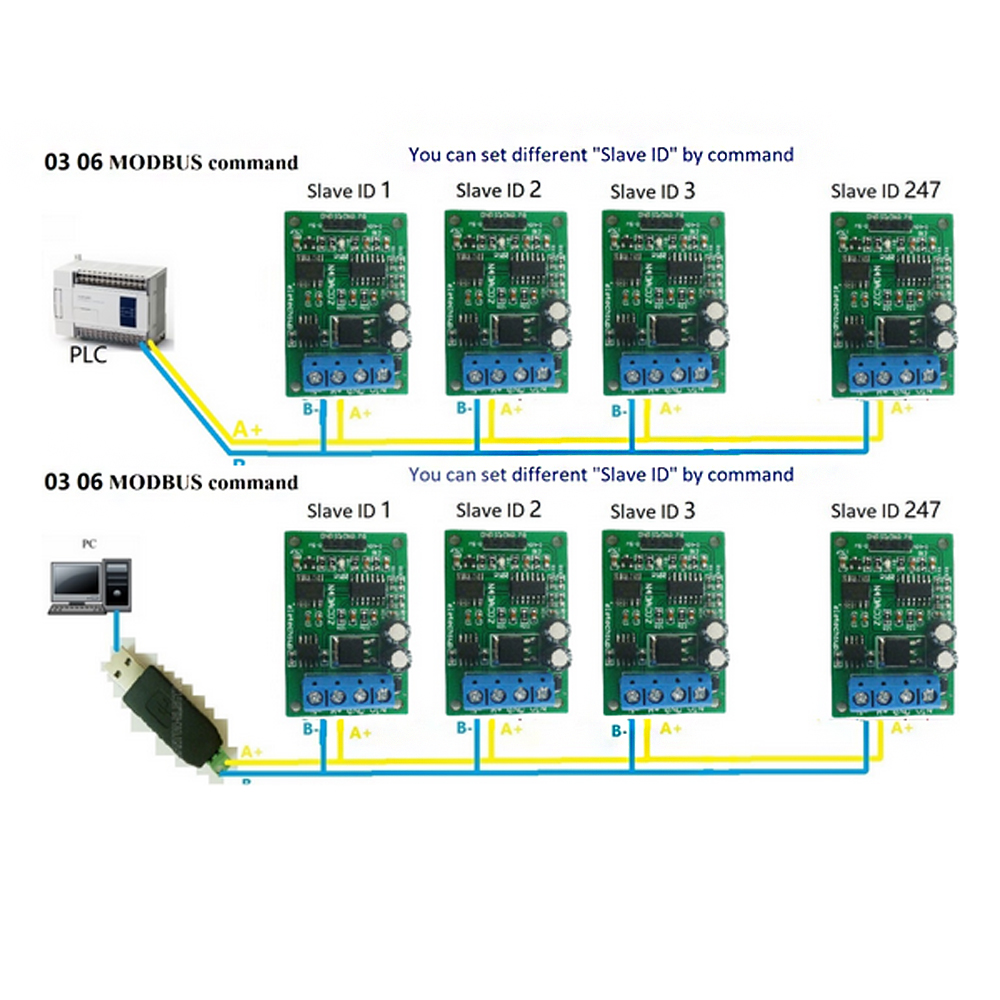

7: In MODBUS command mode, up to 247 devices can be connected in parallel

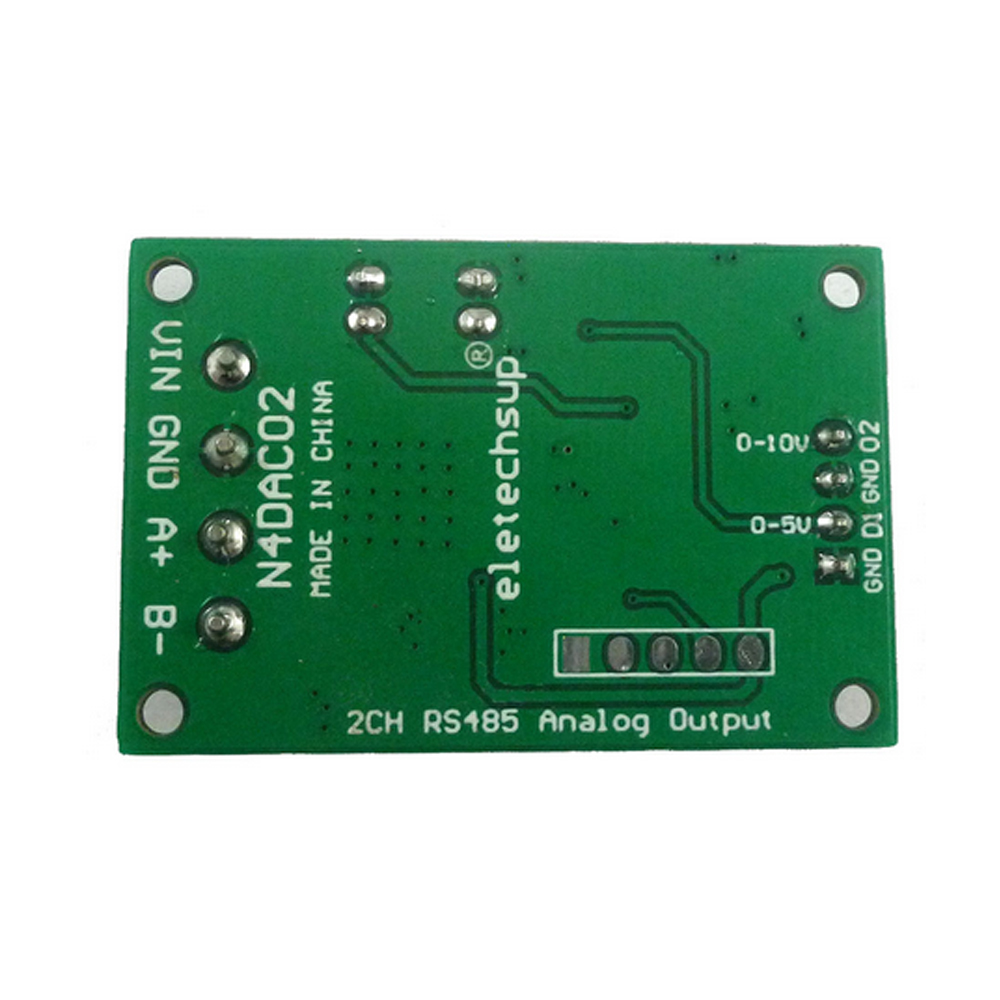

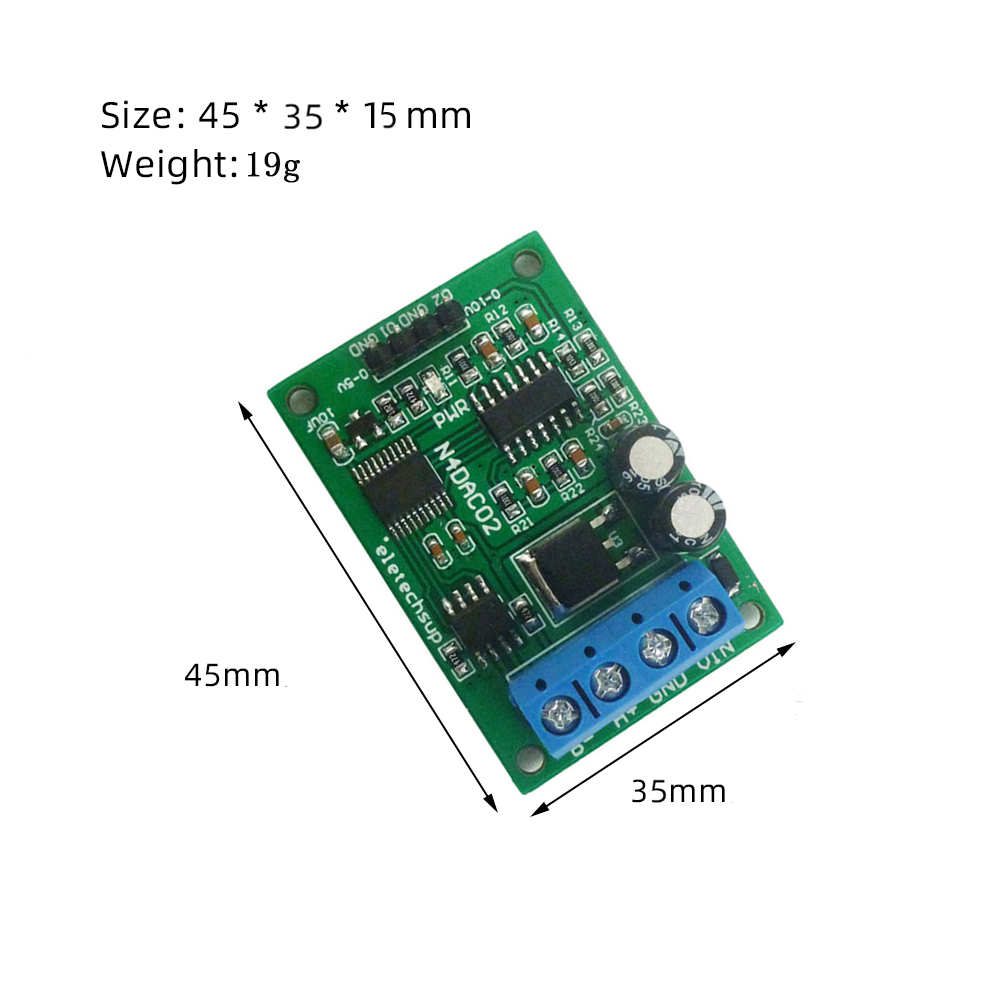

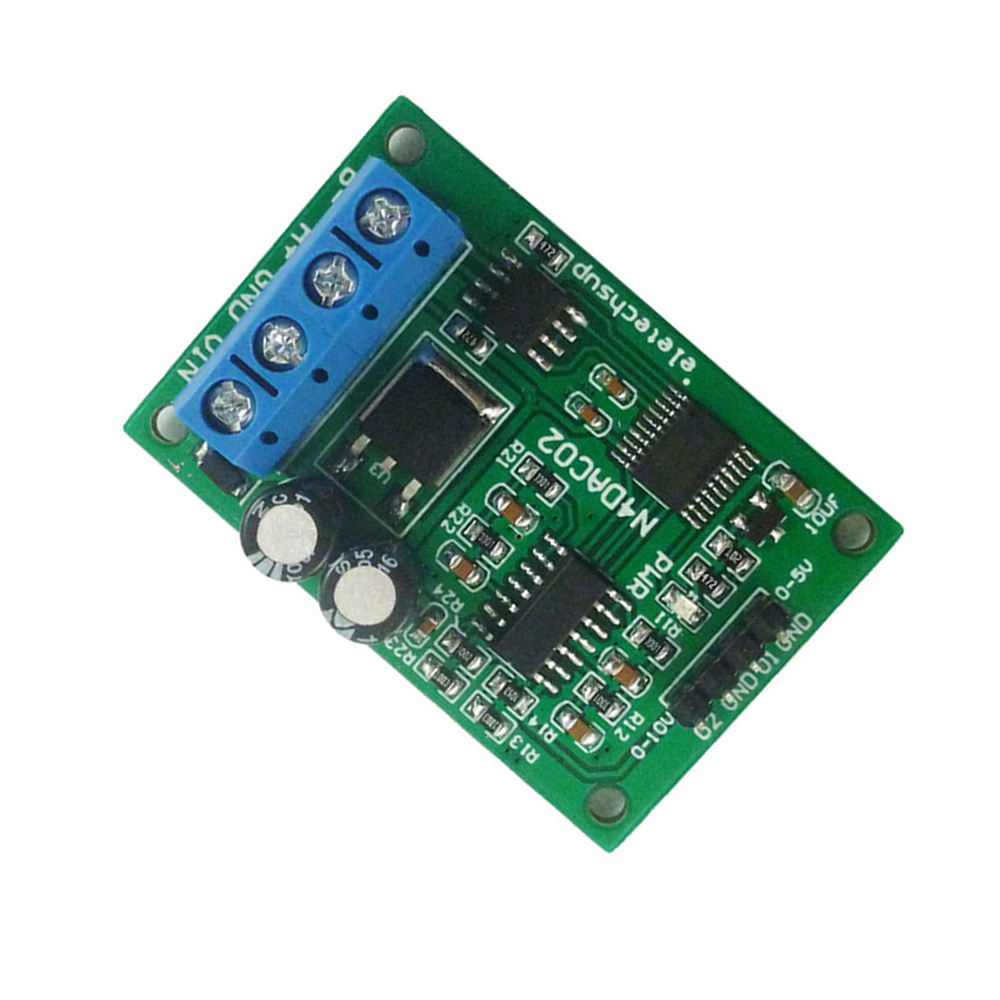

8: Size: 45*35*15mm
9: Weight: 19g
This is a low-cost digital-to-analog conversion module based on the PWM+ADC solution.
It has the following disadvantages:
Channel 1 (O1) has 1% accuracy at 1-5V, <1V has 50HZ/40MV ripple, Channel 2 (O2) has 1% accuracy at 2-10V, and <2V has 50HZ/80MV ripple.
The minimum output voltage of channel 1 (O1) is 0.05V, and the minimum output voltage of channel 2 (O2) is 0.1V
3 There is a 10-20MS high pulse at the moment of power-on
It has the following disadvantages:
Channel 1 (O1) has 1% accuracy at 1-5V, <1V has 50HZ/40MV ripple, Channel 2 (O2) has 1% accuracy at 2-10V, and <2V has 50HZ/80MV ripple.
The minimum output voltage of channel 1 (O1) is 0.05V, and the minimum output voltage of channel 2 (O2) is 0.1V
3 There is a 10-20MS high pulse at the moment of power-on
Application:
4-20mA/0-20mA sensor
Current and voltage signal transmission
Automation Industrial PLC
Smart home, home automation;
recognition system;
RS485 remote monitoring;
Multimeter voltmeter
Package Checklist:

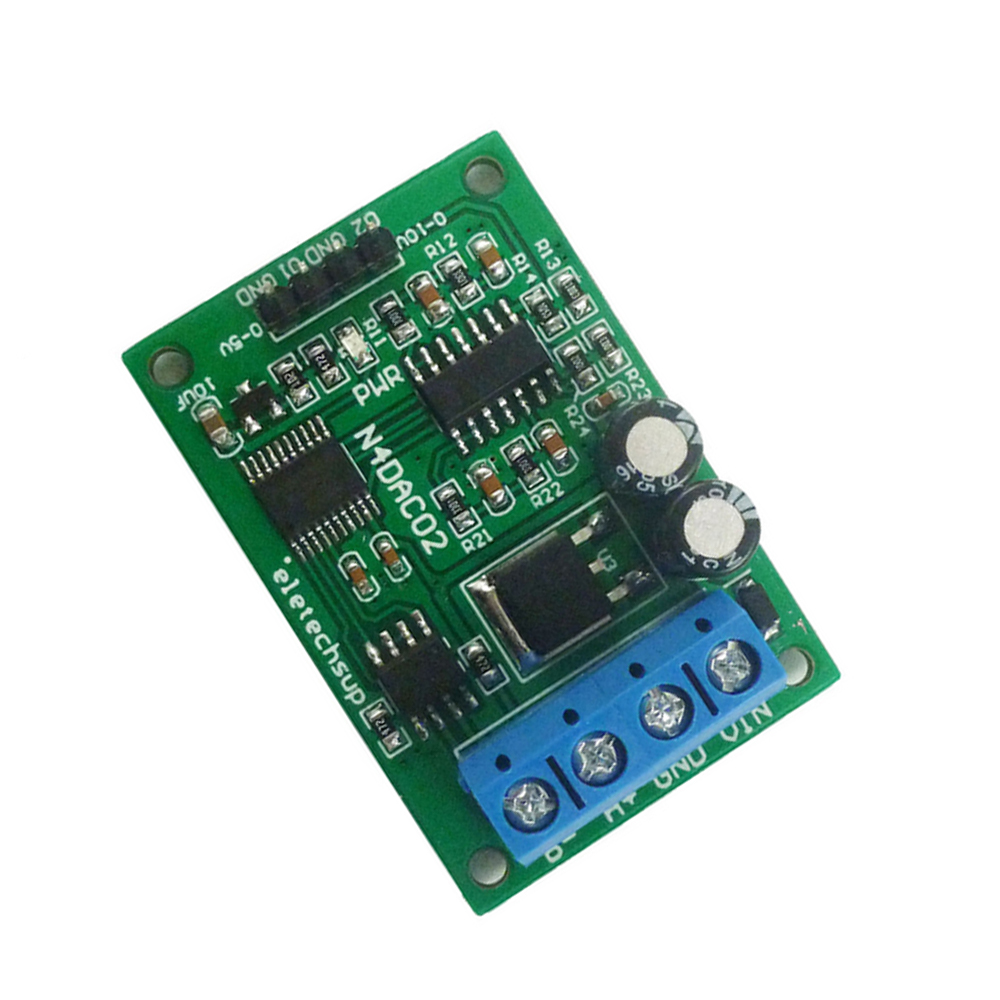

1* N4DAC02 12-25V 2 channel PWM DAC RS485 module
1* N4DAC02 12-25V 2 channel PWM DAC RS485 module
