5V/3V (for your choice)
Blue Yellow
Features:
1.Brand new and high quality.
2.LCD display module with blue blacklight.
3.Wide viewing angle and high contrast.
4.Built-in industry standard HD44780 equivalent LCD controller.
5.Commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.
6.LCM type: Characters
7.Can display 2-lines X 16-characters.
8.Operate with 5V/3.3V DC.
9.Module dimension: 80mm x 35mm x 11mm.
10.Viewing area size: 64.5mm x 16mm.
Package Included:
1 x LCD Display Module
1.Brand new and high quality.
2.LCD display module with blue blacklight.
3.Wide viewing angle and high contrast.
4.Built-in industry standard HD44780 equivalent LCD controller.
5.Commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.
6.LCM type: Characters
7.Can display 2-lines X 16-characters.
8.Operate with 5V/3.3V DC.
9.Module dimension: 80mm x 35mm x 11mm.
10.Viewing area size: 64.5mm x 16mm.
Package Included:
1 x LCD Display Module
5V with I2C Interface
Blue Yellow
Description:
It is another great BLUE backlight LCD display. As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface LCD module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
Backlight (White character on Blue background).
Supply voltage: 5V.
Size: 82x35x18 mm.
It is another great BLUE backlight LCD display. As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface LCD module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
Backlight (White character on Blue background).
Supply voltage: 5V.
Size: 82x35x18 mm.
Come with IIC interface, which can be connected by DuPont Line.
Package:

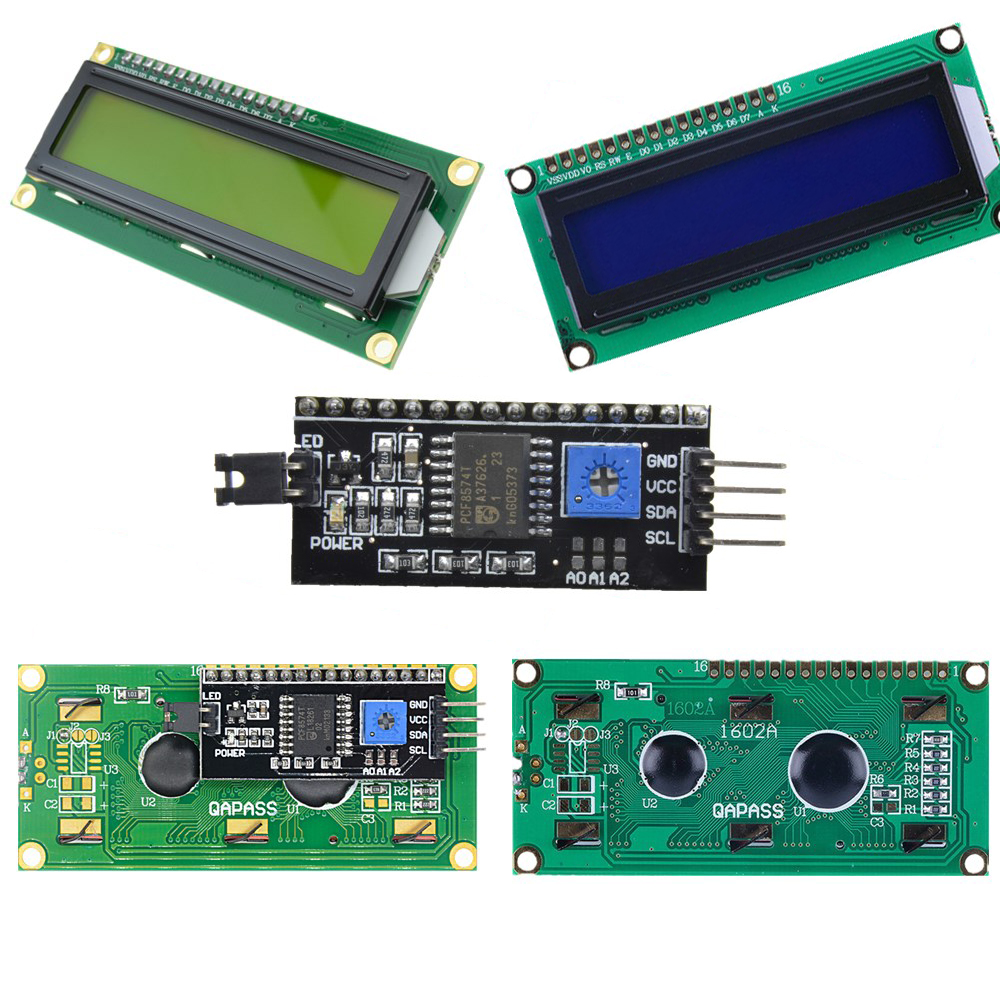

1 X Blue Display IIC/I2C Serial Interface 1602 16X2 Character LCD Module
Package:
1 X Blue Display IIC/I2C Serial Interface 1602 16X2 Character LCD Module

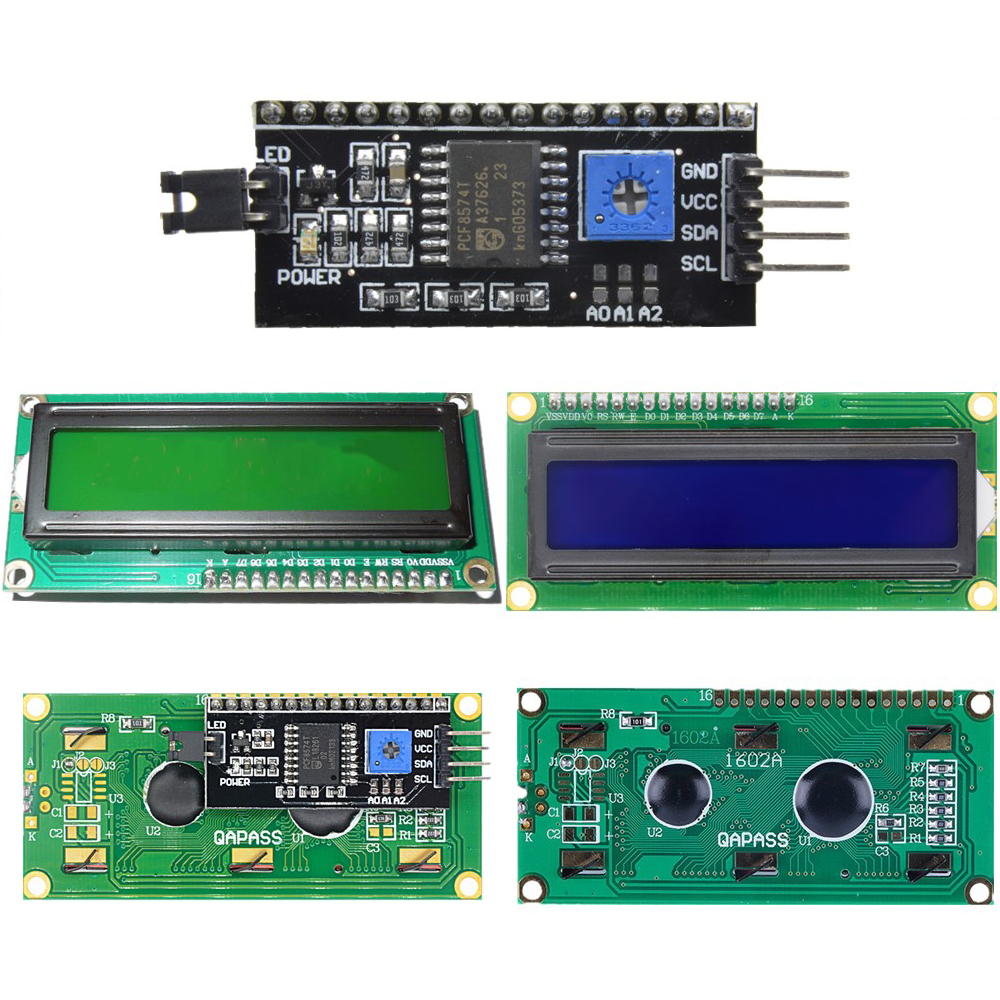

I2C Interface Board
Specification:
This is another great IIC/I2C Serial Interface. As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
-
I2C Address: 0X20~0X27 (the original address is 0X20,you can change it yourself)
-
Supply voltage: 5V
-
the backlight and contrast is adjusted by potentiometer
-
Come with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable
-
Compatible for 1602 LCD 2004 LCD
Shipping included:
1PCS*IIC/I2C Serial Interface Board Module Port Arduino 1602 2004LCD Display
