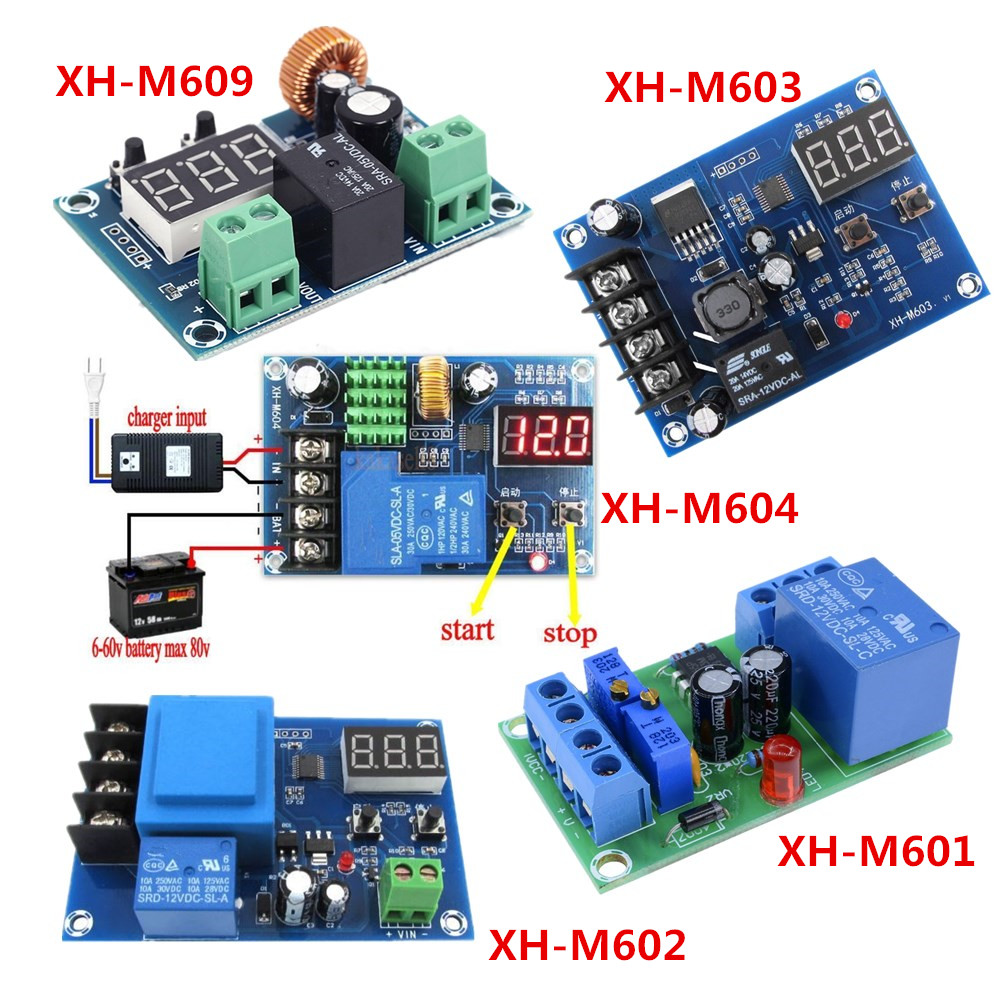

12V/24V/36V Battery Charging Control Board Charger Power Supply 6-60V Module

  • 1.XH-M603 Charging Control Module 12-24V

    Product Introduction:
    1.Model:XH-M603
    2.Input Voltage:DC 10-30V
    3.Display Precision:0.1V
    4.Control Precision:0.1V
    5.Output Type:direct output
    6.Voltage Tolerance:+/-0.1V
    7.Application Fields:12-24V storage battery
    8.Size;82*58*18mm
    2.XH-M604 Battery Charger Control Module DC 6-60V

    Product Introduction:

    1.Name:numerical control battery charging control module
    2.Model:XH-M604
    3.Input Voltage:DC 6-60V (max 80V)
    4.Display Precision:0.1V
    5.Control Precision:0.1V
    6.Output Type:direct output
    7.Voltage Tolerance:+/-0.1V
    8.Application Fields:6-60V storage battery
    9.Size:81*54*18mm

    Using Method:
    1.Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value
    2.Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value
    3.Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings

    3.XH-M602  Control Battery Charging Control Module AC 220V

    Product Introduction:
    1.Name:numerical control battery charging control module
    2.Model:XH-M602
    3.Input Voltage:AC 220V
    4.Display Precision:0.1V
    5.Control Precision:0.1V
    6.Output Type:output switch
    7.Voltage Tolerance:+/-0.1V
    8.Application Fields:for 3.7-120V lithium battery or storage battery
    9.Size:86*58*24mm

    4.XH-M601 Battery Charging Control Board 12V

    Product Introduction:
    1.Name:12V charger power control board
    2.Model:XH-M601
    3.Power Supply Voltage:13.8-14.8V
    4.Relay Operating Voltage:12.4V
    5.Relay Disconnect Voltage:14.8V
    6.Voltage Tolerance:+/-0.1V
    7.Voltage Detection Way:DC voltmeter
    8.Charging Type:12V storage battery
    9.Potentiometer Adjustment:RP1 RP2
    10.Size:50*32*18mm
    Potentiometer Adjustment:
    1.RP1:adjust storage battery start charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)
    2.RP2:adjust storage battery disconnect charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)

    Package Included:
    1PCS
    5. XH-M609 Overdischarge Battery Protection Module
    Parameters:
    No.   Parameter      Value
    1.Product name   overdischarge battery protection module
    2.  Model Number: XH-M609

    3. Power supply voltage:    12 V-36 V battery

    4. Output voltage :   equal to the supply voltage

    5. Control accuracy :  0.1 V

    6. Power consumption:    less than 1.5 W

    7. Scope of application: various accumulators, lithium batteries

    8. Net weight 28g

    9. Size 57 * 42 * 19 mm
    2. Features:

    1>. automatic shut off.

    2>. protection against discharges.

    3>. extend the life of your battery
  • Note:
  • Manual measuring, please allow 1-2cm error,thank you.
  • Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!!
    Package includes: 1 x Protection Module(No Retail Package)
