1. 100% brand new and high quality

2. Small size, light weight and waterproof

3. Applicable to all brands of cars

4. Delayed shutdown function

5. Constant light + dimming + delay + automatic switching

6. Simple installation, no need to replace any wires

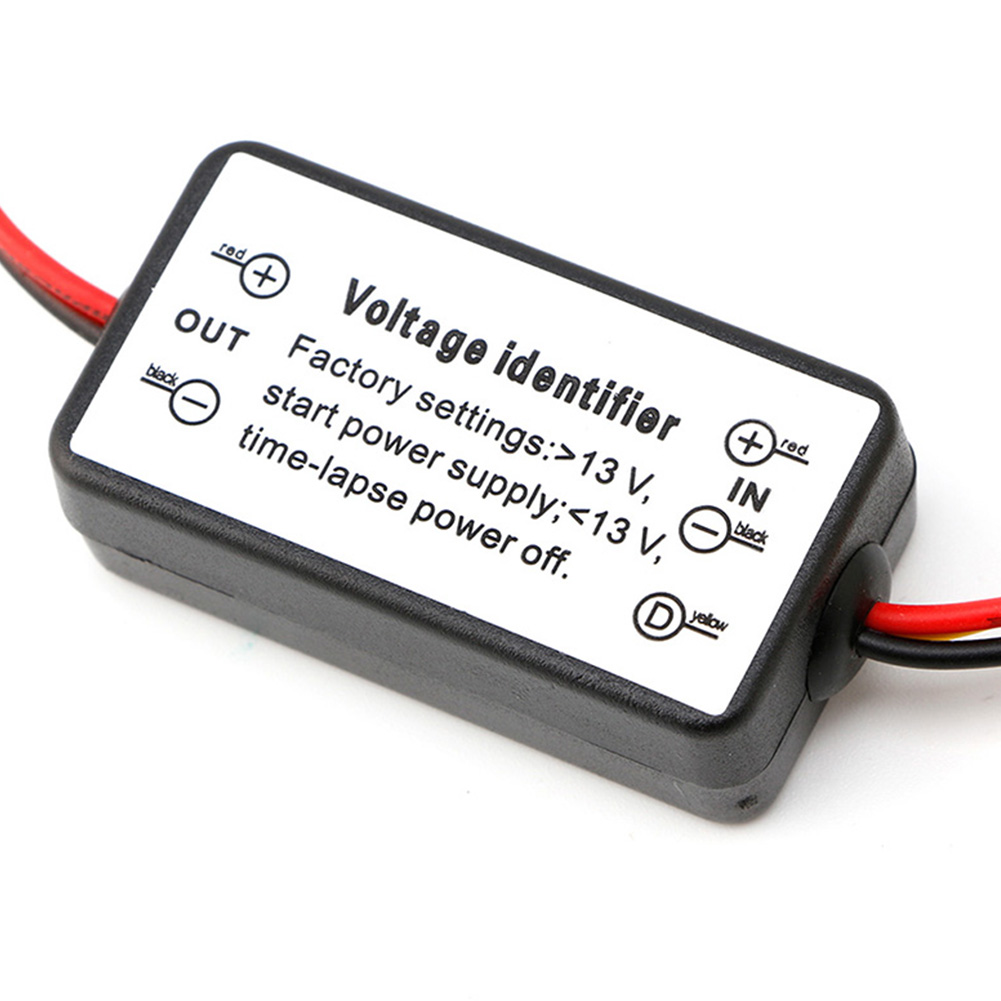

7. Smart start: When the car starts (the voltage must be higher than 13V+), the daytime running lights are automatically turned on. When the headlights (or reading lights) are turned on, the daytime running lights will dim (dim), and when the car is turned off (the voltage must be lower than 12.5V), the daytime running lights will go out after 15 seconds!

Specification:

Colour: Black

Material: ABS

Dimensions: 3.9 x 2.1 x 1.7cm (length x width x height)

Weight: 32g

Voltage: 12-18V

Working current: 3A

Delayed shutdown: 15s

packing list:

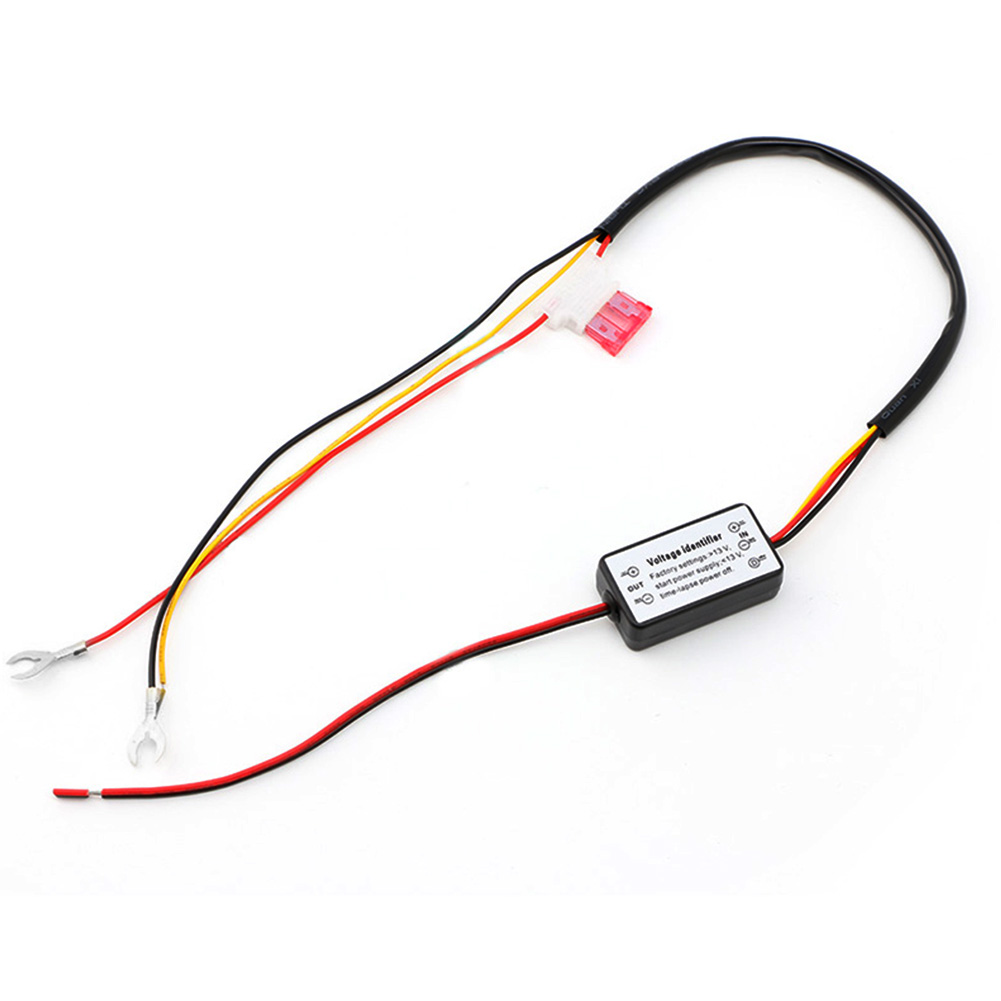

1 x Daytime running light controller

notes:

After the battery is connected, the daytime running lights will turn on for about 15 seconds, and then turn off the lights. This is normal (implement the delay function). After that, you need to start the car. When the voltage reaches 13V+, it will start working!

Product Range:

1. The starting voltage is 13V+, and the flameout voltage is lower than 12.5V (If it is higher than this value, it will be extended for a few minutes until the voltage drops.)

2. The total power of 1 pair of daytime running lights does not exceed 18W (most daytime running lights will not exceed the total power)

Wiring instructions:

1. Connect the positive and negative poles of the daytime running lights on the left and right sides first, and connect the negative pole first.

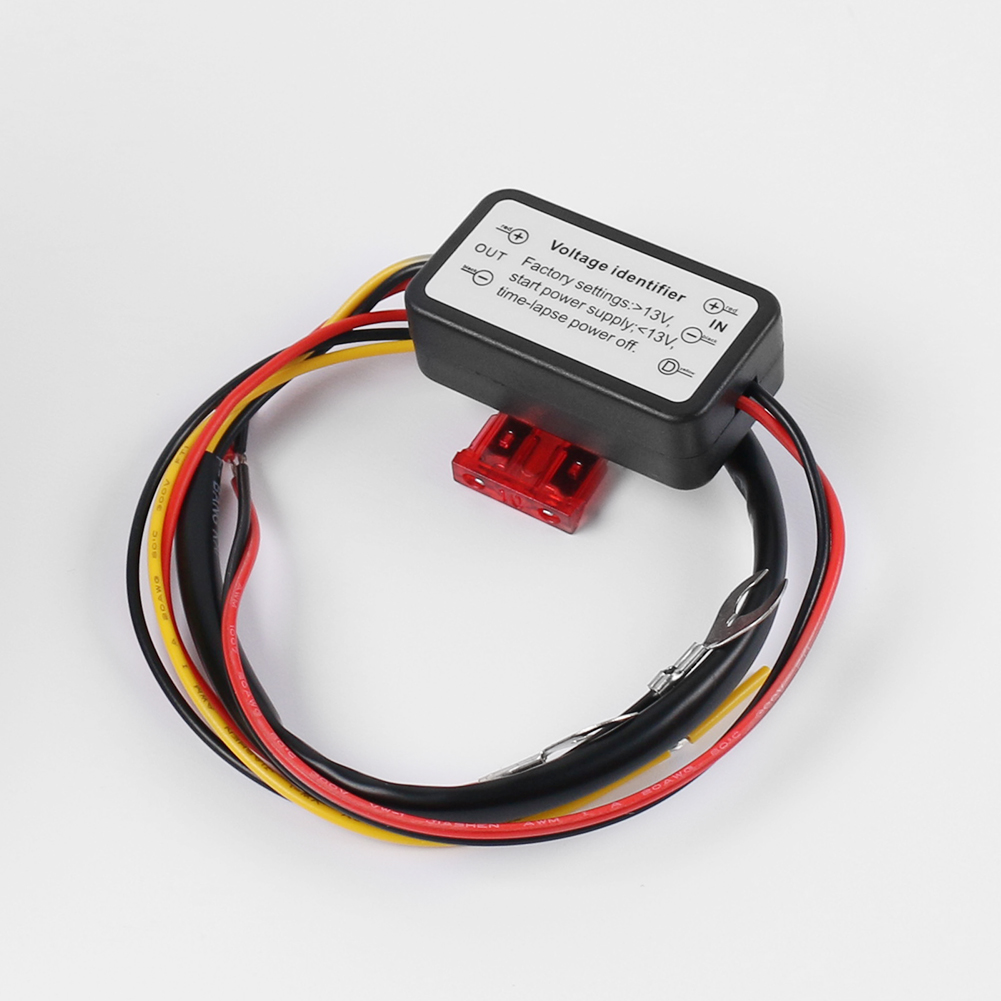

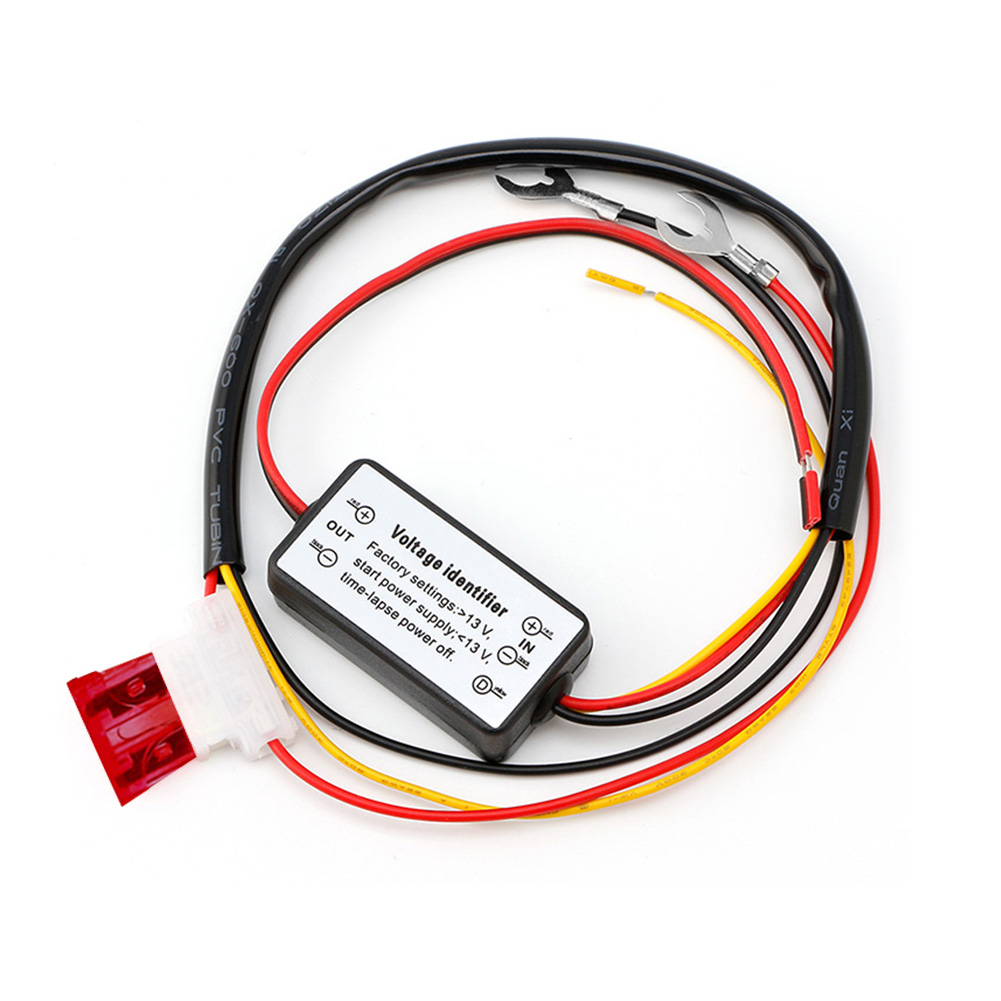

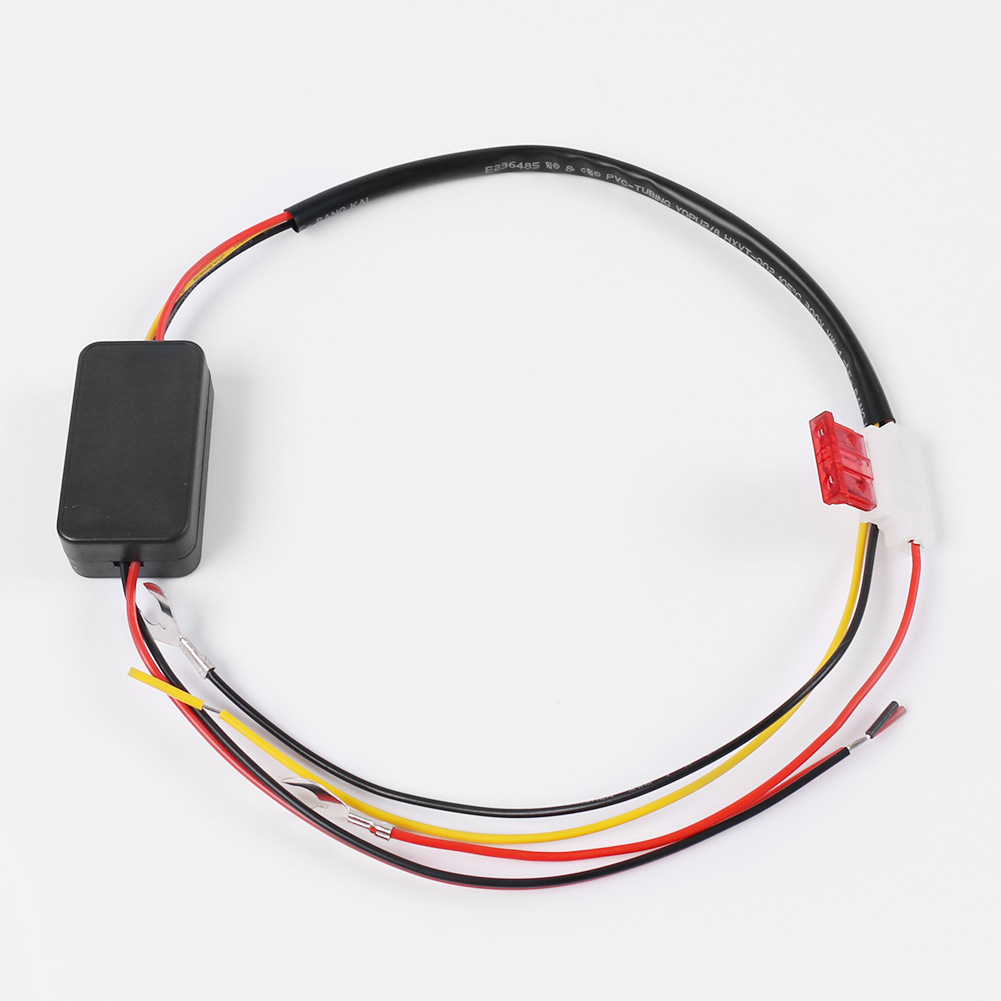

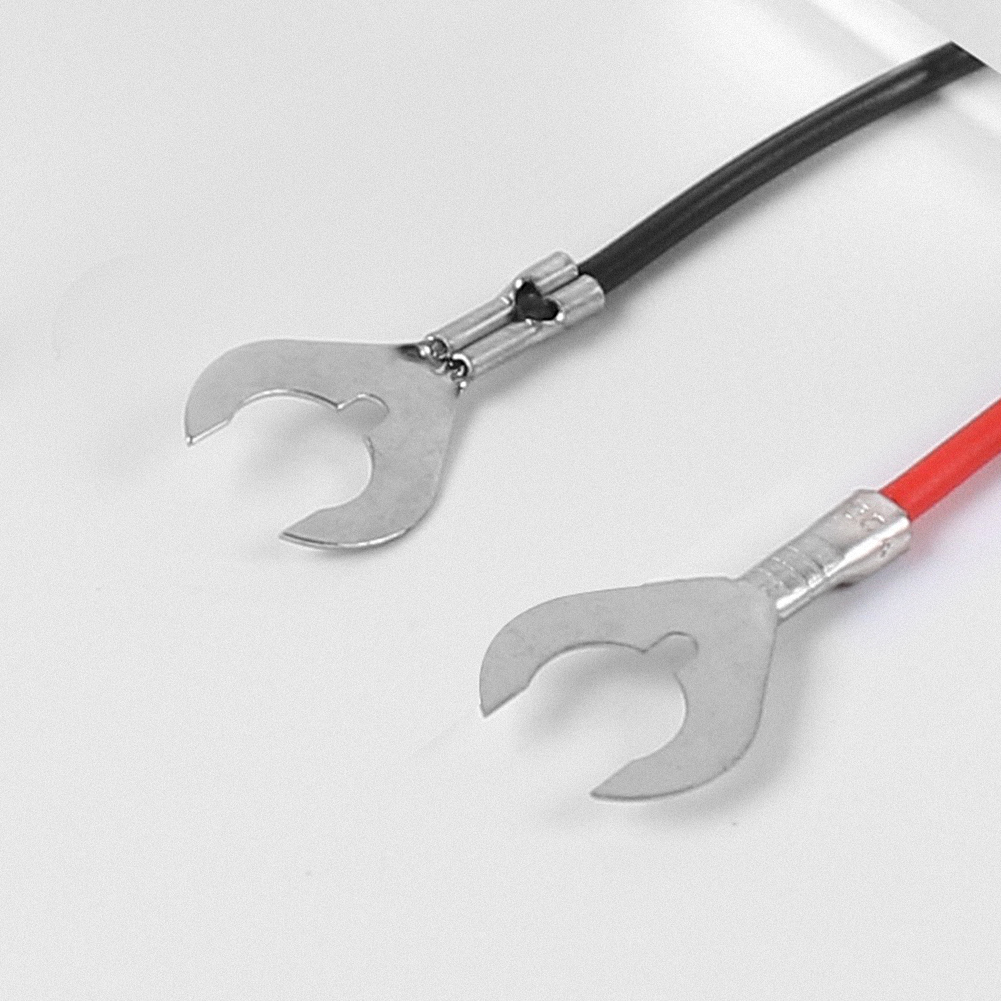

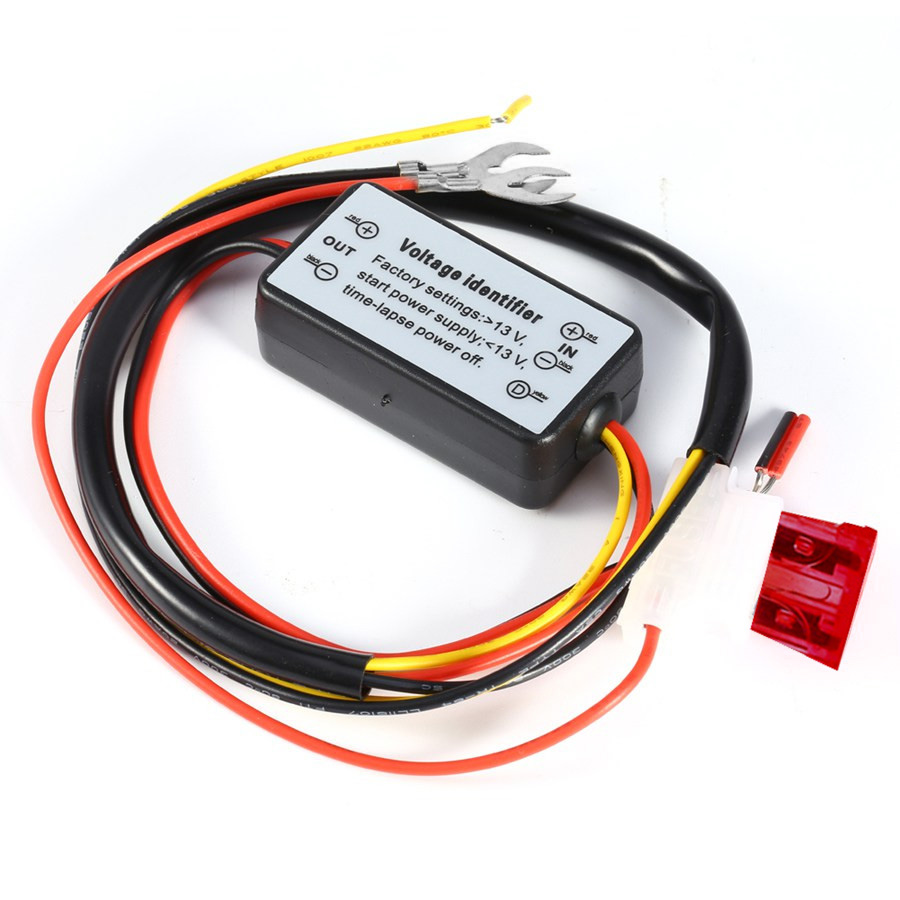

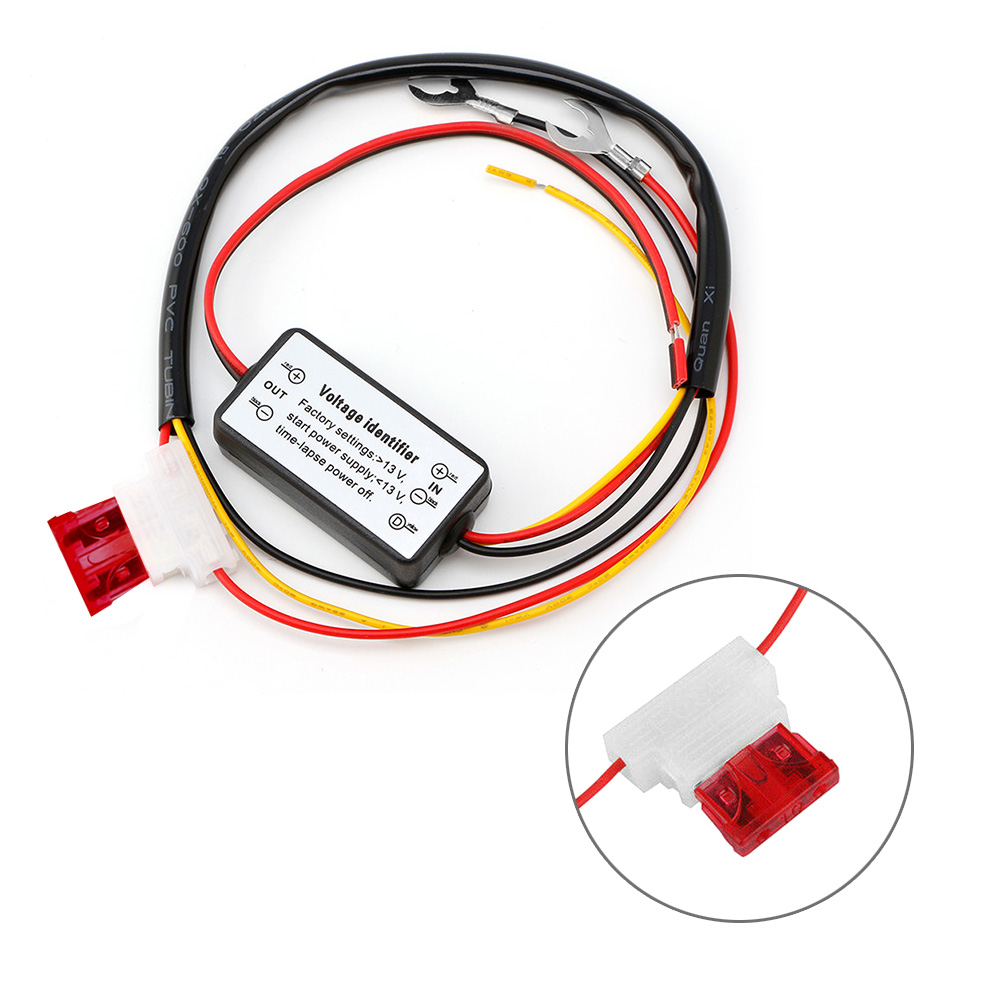

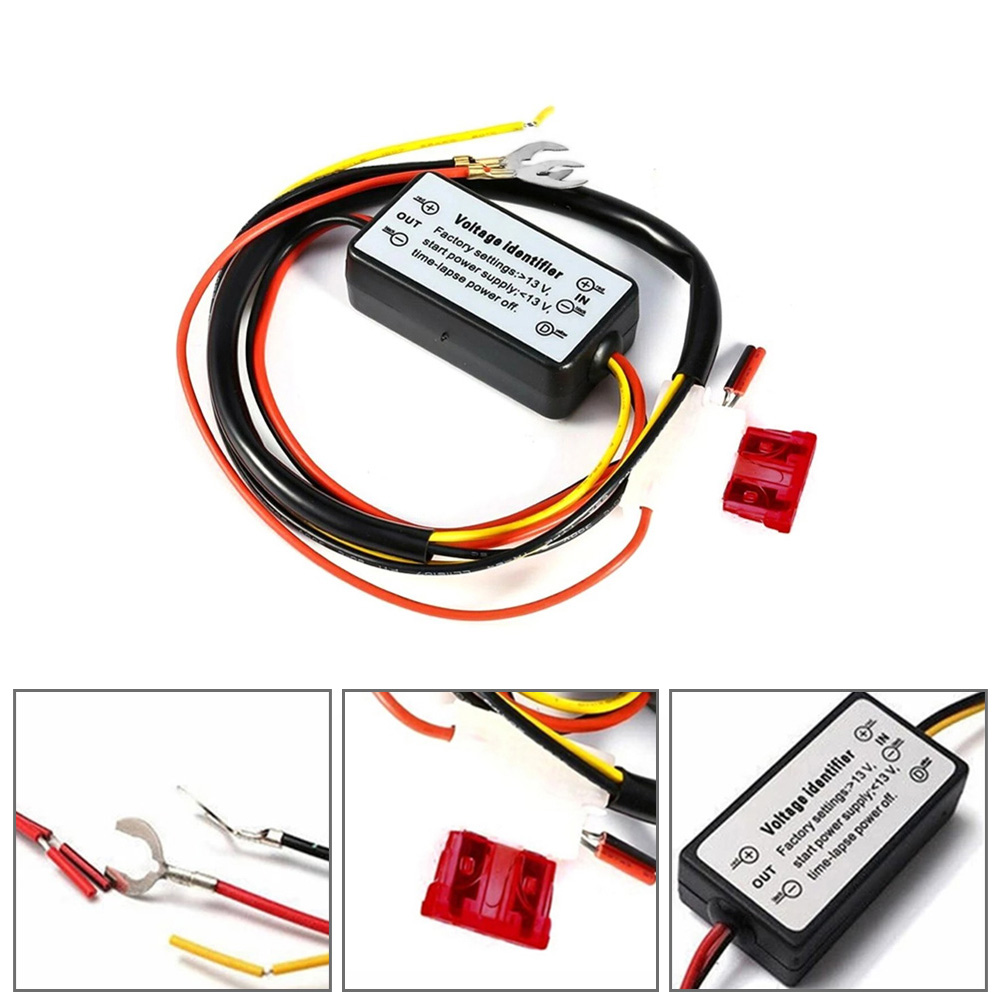

2. Connect the red and black wires of the fuse input end of the controller to the positive and negative poles of the battery, and connect the red and black wires of the output end to the positive and negative poles of the daytime running lights.

3. Connect the yellow wire on the controller to the positive pole of the headlight (or reading light). When the headlights (or reading lights) are turned on, the brightness of the daytime running lights will be halved (dimmed) to achieve the dimming function (yellow line). You can choose not to connect, that is, give up this function, without affecting other uses).

Package Contents:

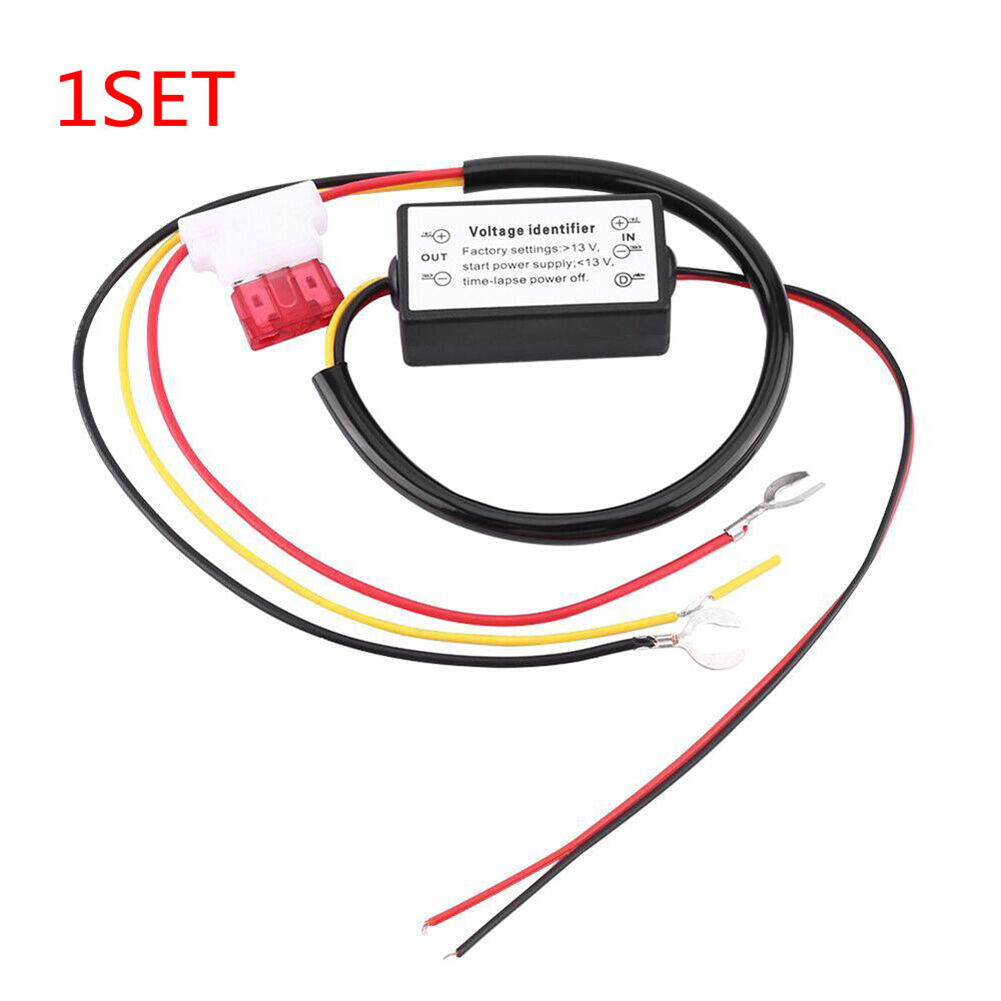

1PCS Daytime Running Light Controller
