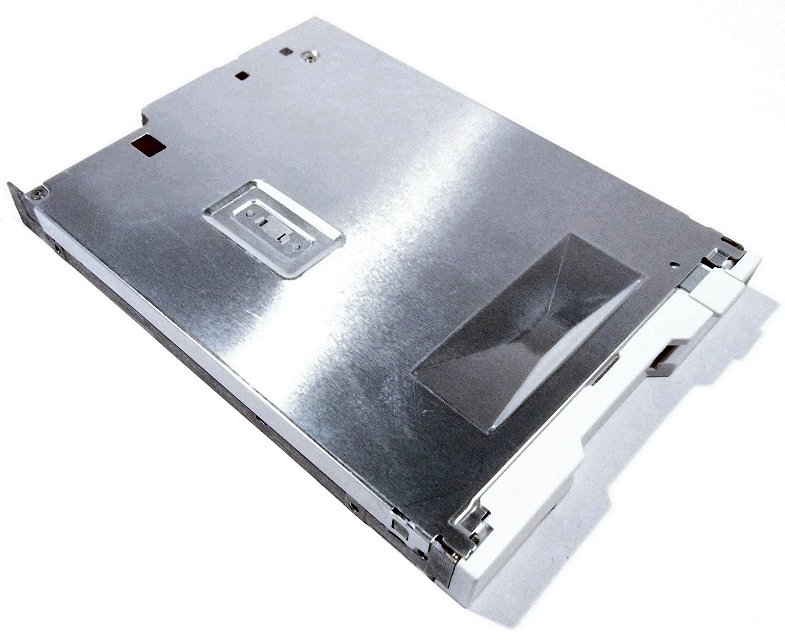

Y-E Data YD 702J-6037J Slim / Notebook Floppy Drive
12.5mm - White Front
|
| |
|
|
| |
|

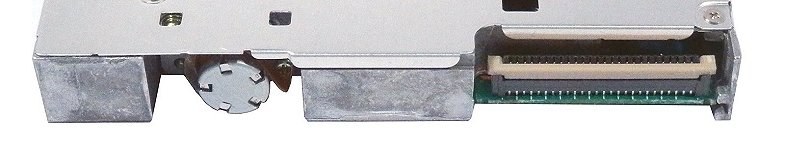

Connector Type - 26 Pin ZIF TYPE (SMK Model CFP5126-0501 or equivalent)
|
| General Parameters for the YD-702J Series |
| Item |
2.0MB Mode |
1.6MB Mode |
1.0MB Mode |
|
| Capacity |
| Unformatted z |
2.0Mbytes |
1.6Mbytes |
1.0Mbytes |
|
| Formatted z |
| 1) Sectors/Track |
26: 1025.0kBytes |
16: 655.4kBytes |
| 2) Sectors/Track |
18: 1474.6kBytes |
15: 1182.7kBytes |
9: 737.3kBytes |
|
| 3) Sectors/Track |
8: 1261.6kBytes |
5: 819.2kBytes |
| Recording Density |
| (bits/mm){BPI} |
686.4 {17434} |
558.4 {14184} |
343.2 {8717} |
|
| Track Density |
| (tracks/mm){TPI} |
5.315{135} |
5.315{135} |
5.315{135} |
For full operating parameters refer to the manual - |
| Cylinders |
80 Cylinders |
77 Cylinders |
80 Cylinders |
| Tracks |
160 Tracks |
154 Tracks |
160 Tracks |
| Encoding Method |
MFM |
MFM |
MFM |
| Rotational Speed |
300 |
360 |
300 |
| -1 ){RPM} (min |
500 kbits/s |
500 kbits/s |
250 kbits/s |
| Transfer Rate |
100 ms |
83 ms |
100 ms |
| Latency (Average) |
| Access Time |
94 ms |
91 ms |
94 ms |
 |
| Average z |
3 ms |
3 ms |
3 ms |
| Track to Track z |
15 ms |
15 ms |
15 ms |
| Settling Time z |
4 ms |
4 ms |
4 ms |
| Turn Around Time z |
0.5sec |
0.5 ms |
0.5sec |
|
| Mechanical Dimensions |
|
| 96.0mm Width |
|
| 12.7mm Height |
|
| 130mm Depth |
|
| 158g(TYP) Weight |
|
| UL, CSA, TÜV, CE Safety Approvals |
|
|
 |
|
|
|

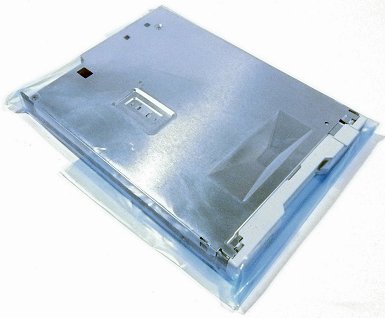

This stock is classified in ''Brand New but
old stock'', The external packaging may be tatty.
We offer a 90 Day RTB Warranty on this item.
|
| A Vat invoice will
be provided with Vat Shown separately. |
Ref : NooFlpoYD702J6037J |
