Full Motion Tilt Swivel TV Wall Mount for most 37 39 40 42 46 47 50 52 55 60 65 inch HD 4K up to some 70" LEDs (NOT ALL TV SIZE) with Mounting Holes Patterns 684x300/600x400/400x400/400x200mm

Loading Capacity up to 125 lbs; Tilt +5/-12 Degrees; Post-installation Level Adjustment

Package Packages:

• 1 x Articulating Wall Mount
• 1 x HDMI Cable
• Standard Mounting Hardware

• User Manual

Features and Benefits:

• Full motion dual link arm mount supports most mid size LCD LED Plasma TV
• Post-installation level adjustment allows the TV to perfectly level
• Easy tilt Adjustable 12 degree forward and 5 degrees backward for optimal viewing
• High grade heavy duty steel material with powder coat black finish
• Dual link arm wall mount makes 14" extension from the wall with maximum flexibility
• Nesting arm design allows TV to be folded parallel to wall to save space
• Tilt, swivel and rotate function provide smooth adjustment for all directions

Product Specifications:

• Fits TV Size: most 37" to 65" up to some LEDs 70" TV
• Loading Capacity: 125 lbs

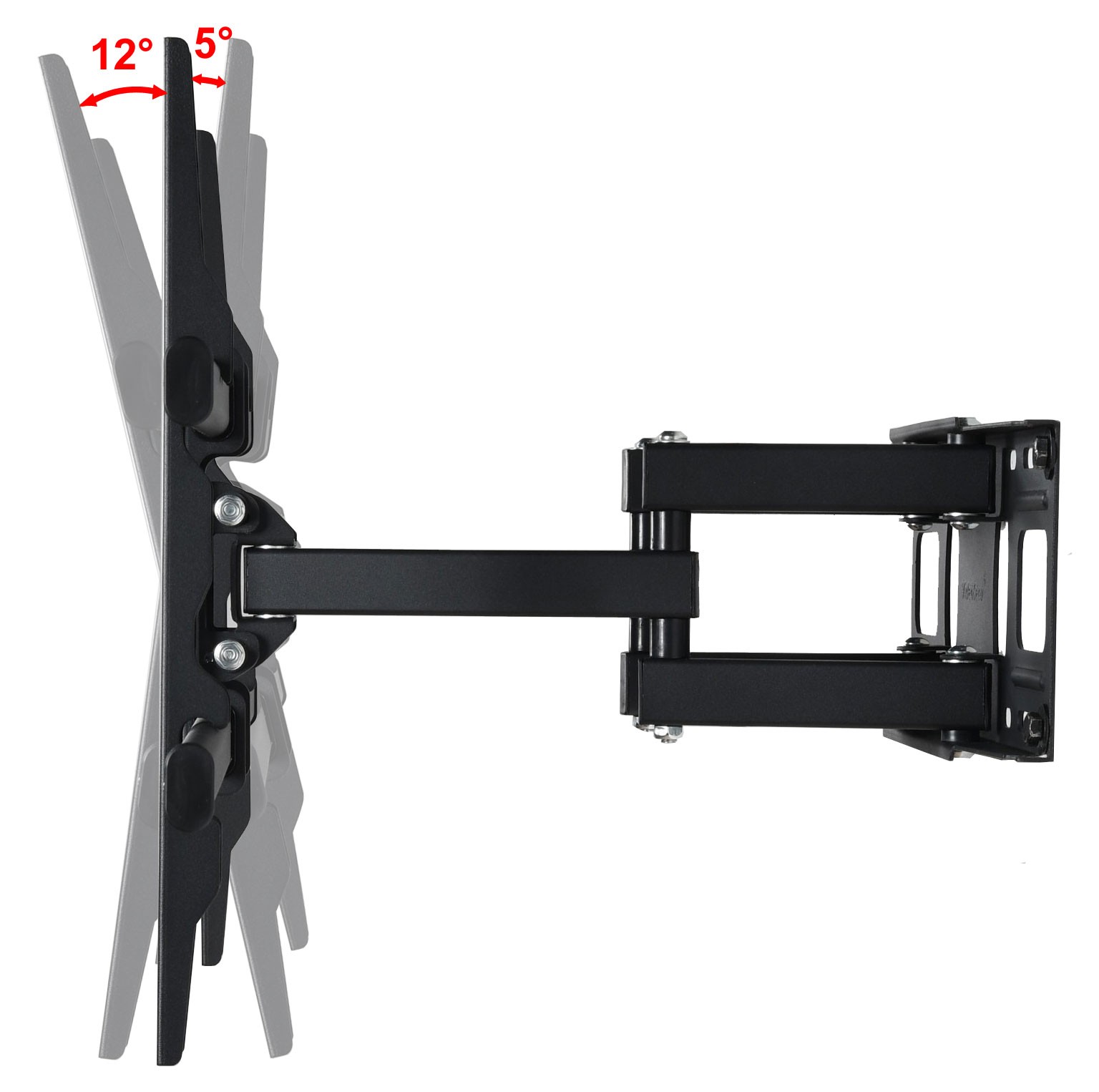

• Tilt: 12° forward and 5° backward
• Swivel: 160°

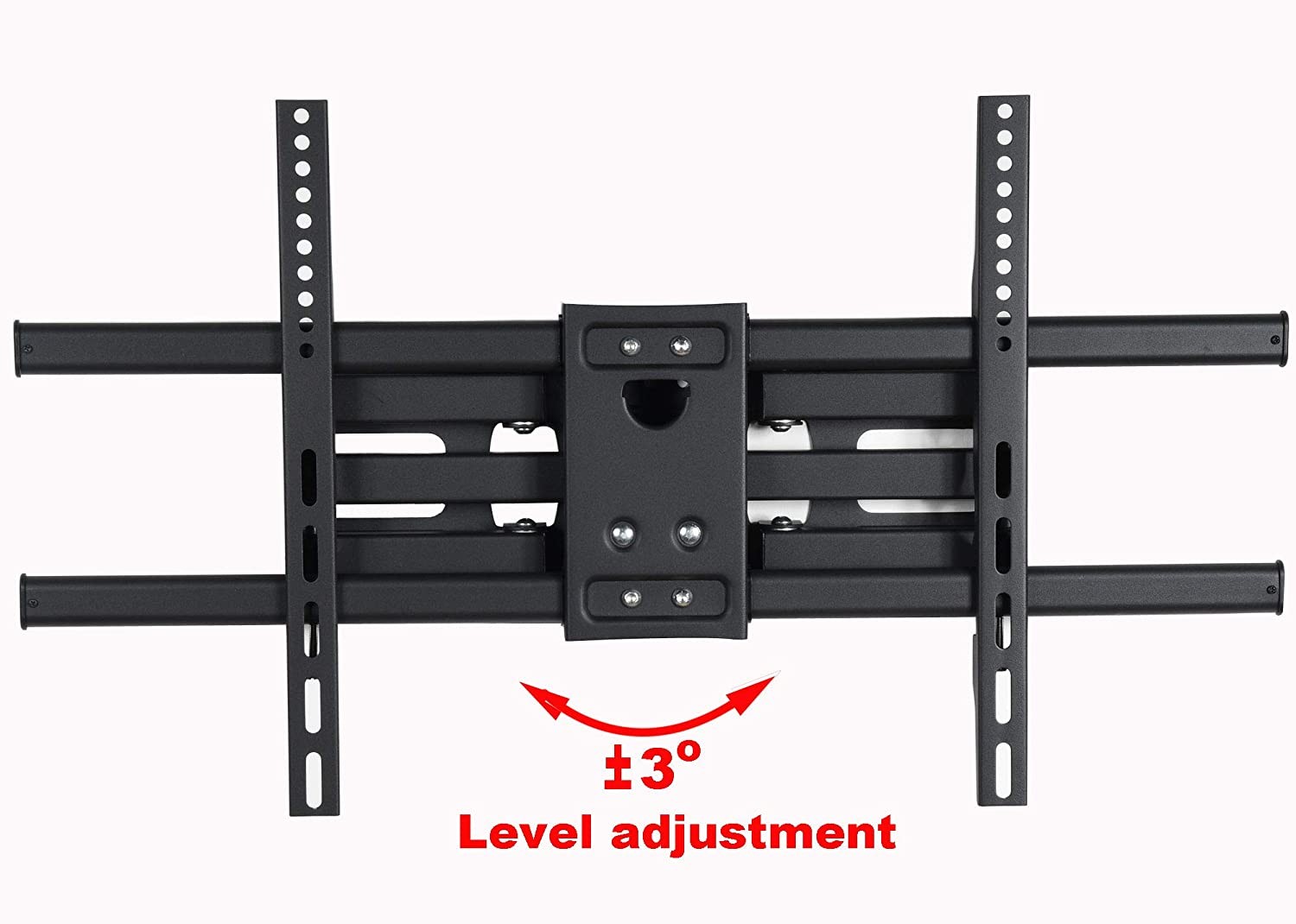

• Rotate: ±3°

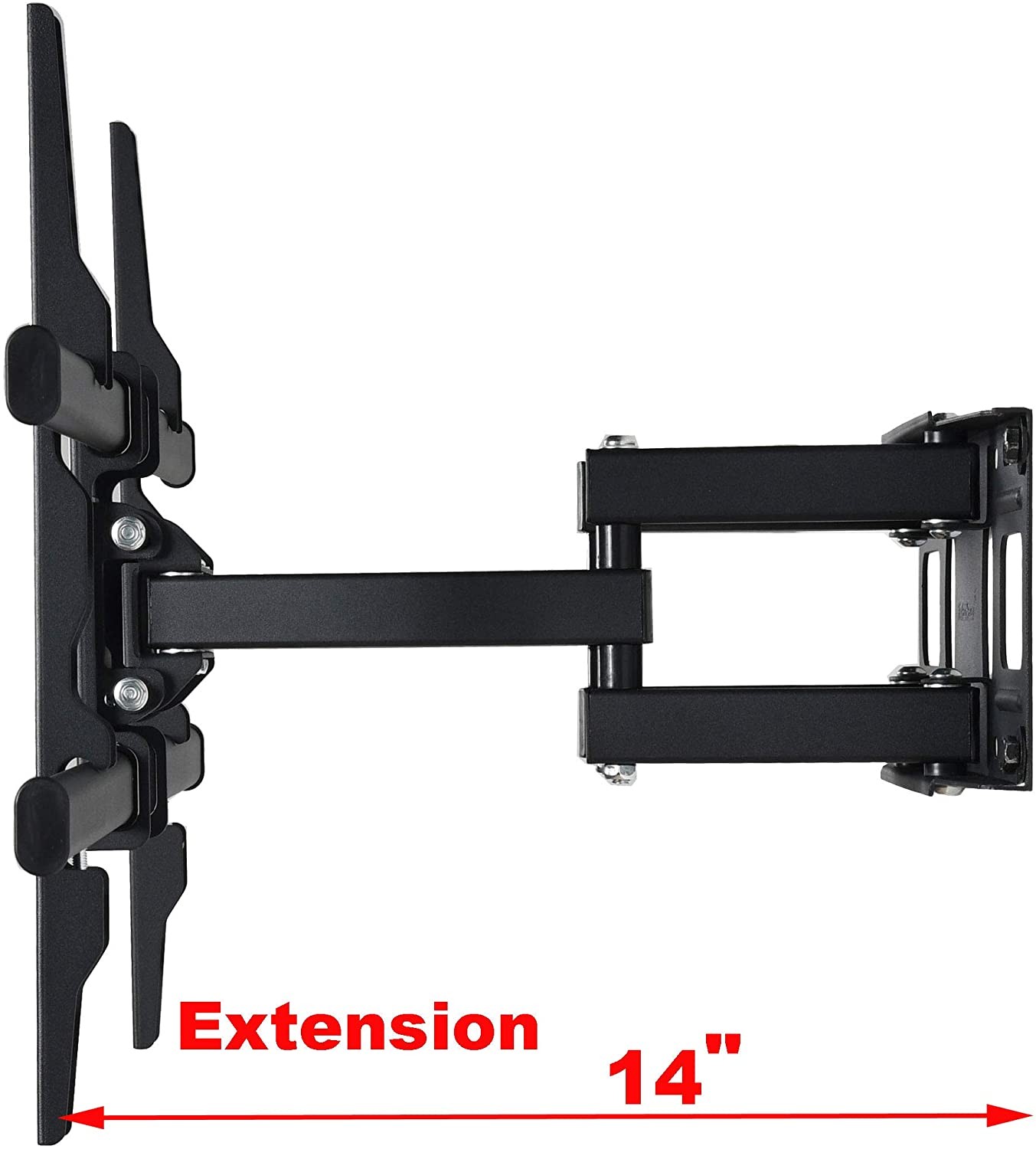

• Maximum Extension: 14"

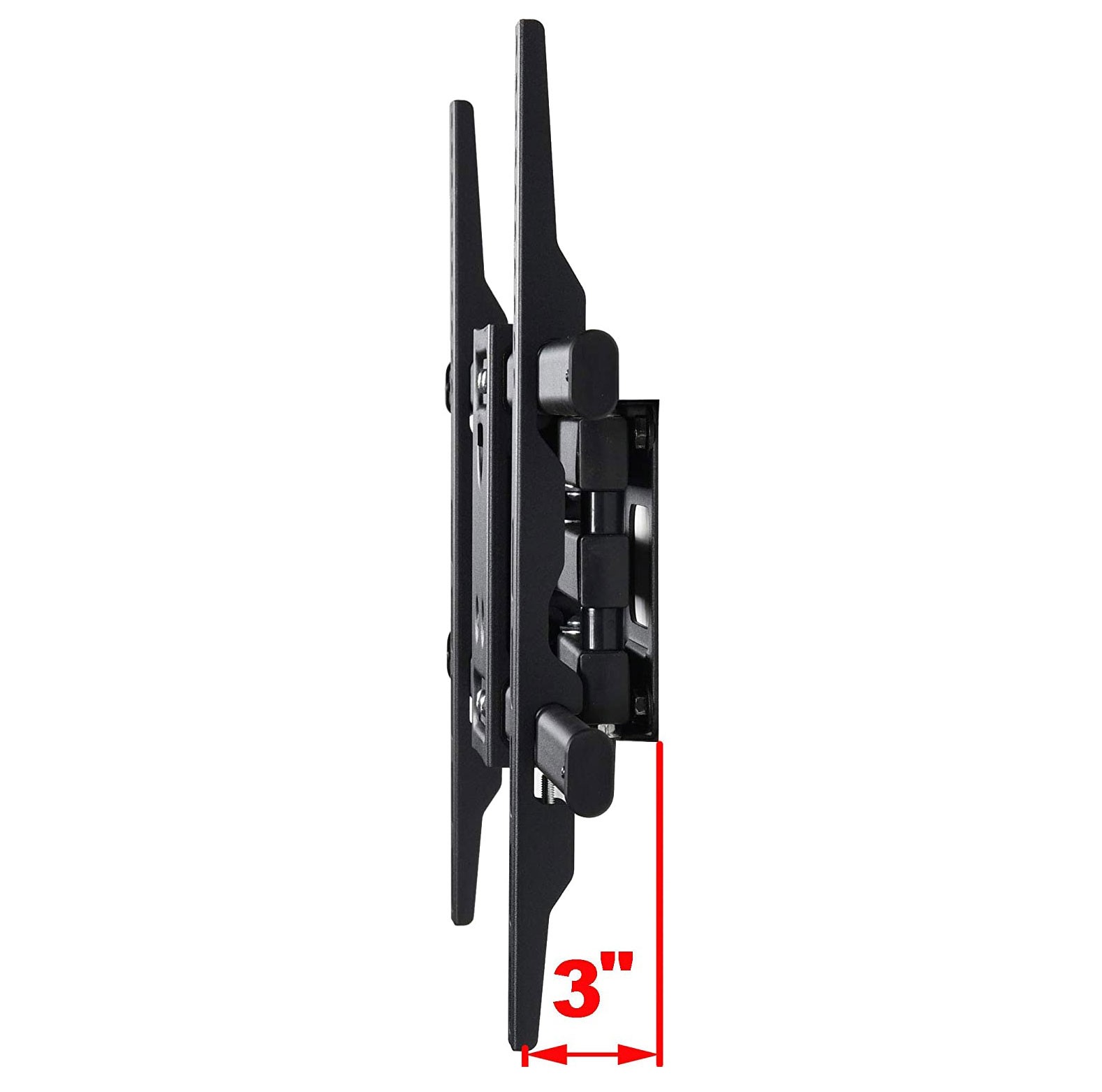

• Low Profile: 3"

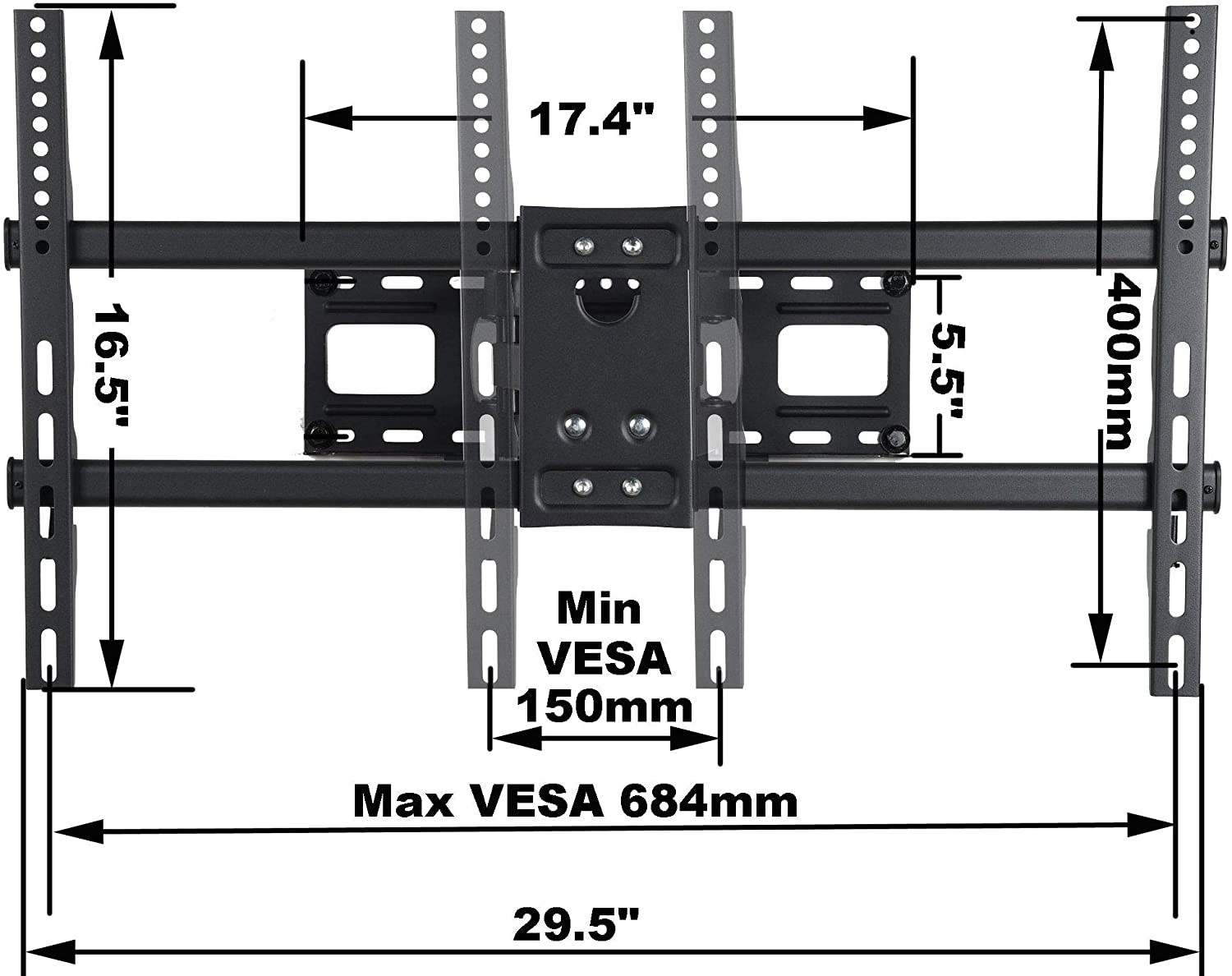

• Mounting Holes Patterns mounting holes pattern Compliant: 684x300mm(27"x12")/600x400mm(24"x16")/400x400mm(16"x16")
  / 400x200mm(16"x8")/200x200mm(8"x8")/500x300mm(20"x12")/400x300mm(16"x12")/300x300mm(12"x12")
  /300x200mm(12"x8")/200x100mm(8"x4")/150x100mm(6"x4")
• Mounting Studs: 16"

Compatibility:

The articulating wall mount is compatible with following brands as well as other brands may not be listed (please check Mounting Holes Patterns and Weight):

Vizio/Samsung/Sharp/LG/Sony/Panasonic/Toshiba/Philips/Emerson/Coby/JVC/AOC/Dynex/Emerson/Hitachi

/RCA/Sceptre/Seiki/Insignia/Viore/Magnavox/Hannspree/Sansui/Sanyo/TCL/Haier/Westinghouse and more

Will this mount work with your TV?

• First, the weight of your TV should be less than 125 lbs.
• Look at the back of your TV, find the mounting holes and measure width and height, if the width is within 27.4" (684mm) and the height is within 16" (400mm) is one of below, then the mount will work perfect for you.
  27.4"x16"/ (684mmx400mm)
  24"x16"/ (600mmx400mm)
  27.4"x12"/ (684mmx300mm)
  16"x16"/ (400mmx400mm)
  16"x8"/ (400mmx200mm)
  8"x8"/ (200mmx200mm)
  24"x12"/ (600mmx300mm)
  20"x12"/ (500mmx300mm)
  16"x12"/ (400mmx300mm)
  12"x12"/ (300mmx300mm)
  12"x8"/ (300mmx200mm)
  8"x8"/ (200mmx200mm)
  6"x4"/ (150mmx100mm)

• Last, the width of your TV should be at least 37 inch. Otherwise, you will see the bracket.
• Warning: This mount does not fit 60 inch or above TVs which were manufactured before 2018.

The mount will fit the following Sharp AQUOS Models along with many others that may not be listed:

LC-39LE440U	LC-40LE550U	LC-50LE442U	LC-50LE440U	LC-50LE650U
LC-60LE550U	LC-60LE650U	LC-60C6500U	LC-60C7500U	LC-60LE755U
LC-60LE757U	LC-60LE857U	LC-70LE550U	LC-70LE650U	LC70C6500U
LC-70C7500U	LC-70LE755U	LC-70LE757U	LC-70LE857U	LC-40LE653U
LC-43LE653U	LC-48LE653U	LC-55LE653U	LC-60C6600U	LC-60LE660U
LC-60EQ10U	LC-60SQ15U	LC-60TQ15U	LC-60UQ17U	LC-60UQ17U
LC-65LE654U	LC-65LE654U	LC-70SQ15U	LC-70LE660U	LC-70C6600U

The mount will fit the following Samsung Models along with many others that may not be listed:

UN75HU8500FXZA; UN65F9000AFXZA; UN75H7150AFXZA; UN75H6300AFXZA; PN64F5300AFXZA; PN64F5500AFXZA; PN64F8500AFXZA;

The mount will fit the following Vizio Models along with many others that may not be listed:

E70-C3; M70-C3; E65-C3; E65x-C2; M65-C1; E60-C3; M60-C3; E55-C1; M55-C2; M652i-B2; P652ui-B2; E650i-A2; M651d-A2R; M701d-A3R;

The mount will fit the following JVC Models along with many others that may not be listed:

LT-43EM75; LT-49EM75; JLC37BC3002; JLC37BC3000; JLE37BC3001; JLC42BC3002; JLC42BC3000; JLE42BC3500; JLE42BC3001;
