Features:
l Large LCD display for easy reading
l 4 wire testing, capable of testing extreme low resistance
l Accurate measurementof conductor, electric heating elements and solder point
l High measurement range of 0.01mΩ to 2kΩ at 6 ranges
l HOLD keyfor data hold
l Backlit LCDfor easy reading under dark light
l Connection for external power supply
l Strong anti-magnetic and anti-jamming functions
l Full function protection
|
Specifications
|
Range
|
Accuracy
|
Resolution
|
Measuring current
|
|
20 mΩ
|
±(0.5%rdg±3)
|
0.01 mΩ
|
Approx.100mA
|
|
200 mΩ
|
0.1 mΩ
|
Approx.50mA
|
|
2 Ω
|
1 mΩ
|
|
20Ω
|
1 0mΩ
|
|
200Ω
|
1 00mΩ
|
|
2kΩ
|
1Ω
|
|
Special function
|
VC480C+
|
|
Low battery indication
|
Less than approx.7.5V
|
|
Function protection
|
√
|
|
Sampling rate
|
3 times/sec.
|
|
Operation mode
|
Manual range
|
|
Max.display
|
1999
|
|
LCD size
|
75×52mm
|
|
Power source
|
1.5V AA battery x6pcs, or external DC 9V power source
|
|
Power consumption
|
Quiescent current approx.50mA
|
* Battery won't be included in shipping becased of new air post regulation.
General
|
Color
|
Dark gray-orange
|
|
Weight
|
around 800g
|
|
Meter size
|
176 (L) x116 (W) x62.5 (D) mm
|
|
Standard accessory
|

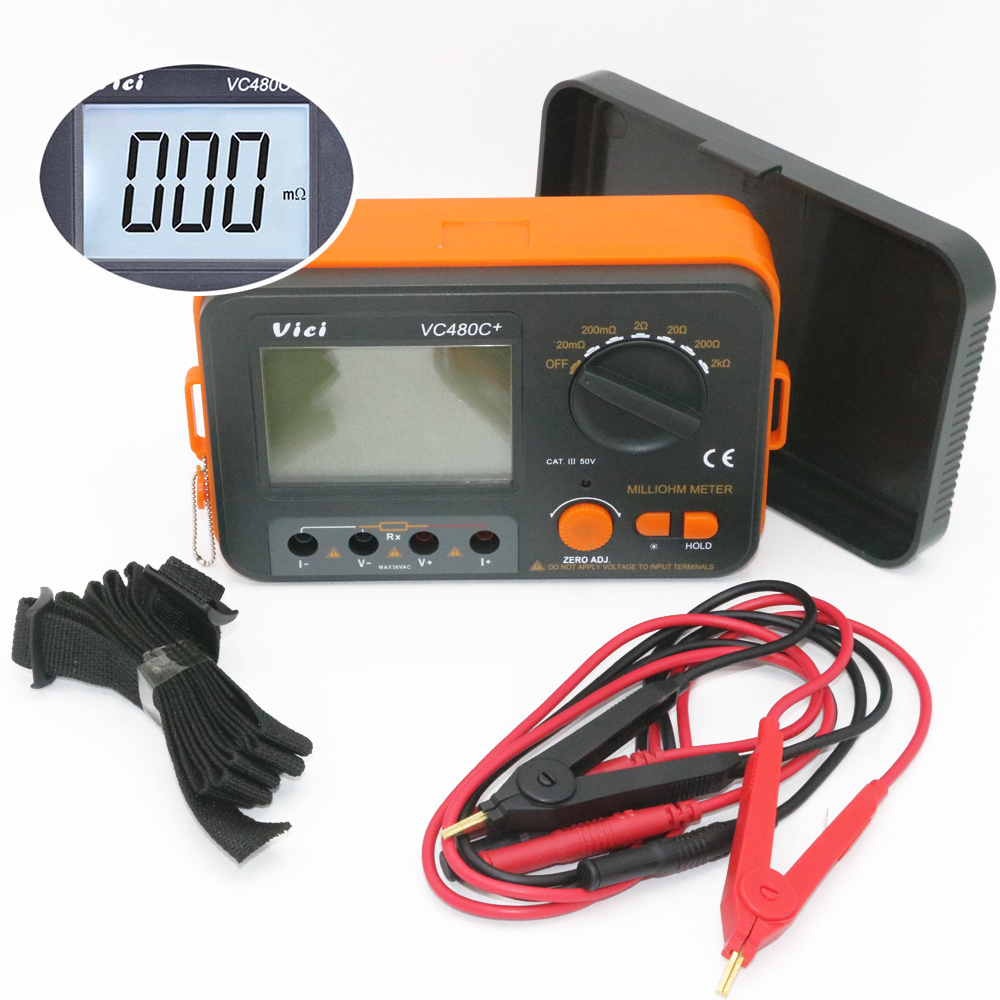

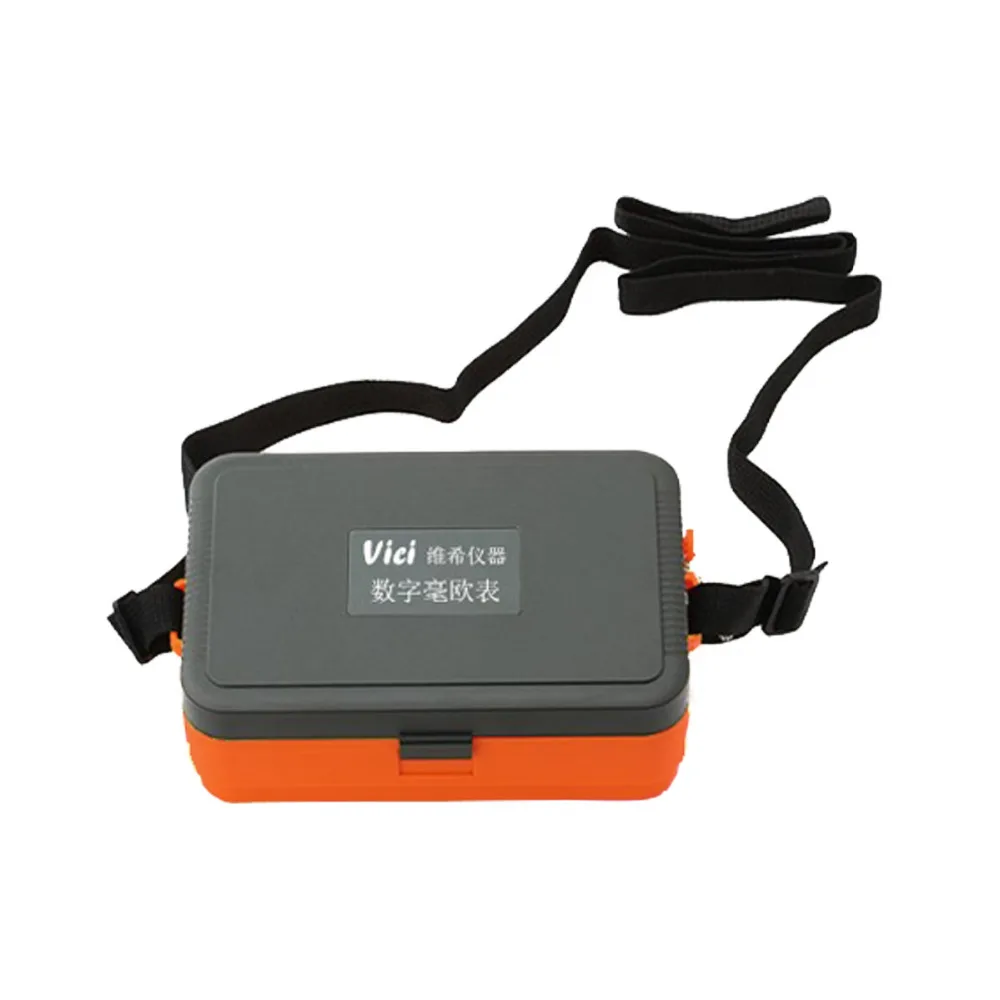

4-wire test lead, shoulder strap, operation manual
|
|
Packing
|
Gift box
|
|
|
|

|
