🔥 ZVS Induction Heating Power Supply Module (DC 5–12 V) — with Heating Coil

Compact ZVS (Zero-Voltage Switching) driver for induction heating and flyback/high-voltage experiments. Delivers up to ~120 W at 12 V (induction-heating use), with robust performance when wired and cooled correctly.

🔧 Key Features

• ⚡ Input Voltage: DC 5–12 V (operate only within this range)

• 🔥 Max Power (IH use): ~120 W @ 12 V (adequate PSU required)

• 🌀 ZVS topology for efficient, smooth oscillation

• 🧊 Thermal guidance for coil and components (see Safety)

• 🧩 Includes Heating Coil for immediate induction-heating setup

Not included: high-voltage transformer, cooling fan, water-cooling tubing, or enclosure.

📐 Specifications

• Module size: 55 × 40 × 20 mm

• Product weight: ~119 g

• Coil size: ~75 mm (L) × 28 mm (W)

• Recommended object size: diameter ≤ 20 mm; width ≈ 1/3–1/2 of the coil’s inner diameter (max ≤ 2/3)

🛠 Setup & Use

1. Wire load first (heating coil or HV primary) → then apply power. Never power the board with no load.

2. Observe polarity (DC input). Use thick, short leads from a stable supply (for 12 V/120 W, plan ≈ 10 A capability).

3. For induction heating, solder the coil directly to the PCB (avoid terminal melting).

4. For sustained runs, use water-cooled copper-tube coils or add forced-air cooling.

5. Match the heated object to the coil: keep the piece ≤ 20 mm Ø and within the width guidance above.

🧠 Important Safety Notes

• Voltage window matters: operate 5–12 V under load. Over-voltage or under-voltage can damage the board.

• Duty cycle: the coil and devices heat quickly—pause several minutes after a heating cycle to cool.

• Battery use: ensure working voltage stays ≥ 4.5 V under load; do not use dry cells.

• Troubleshooting LED:

  • Off → wiring/PSU issue or damaged board.

  • Dim → PSU cannot supply enough current; use a higher-power supply.

📦 Package Includes

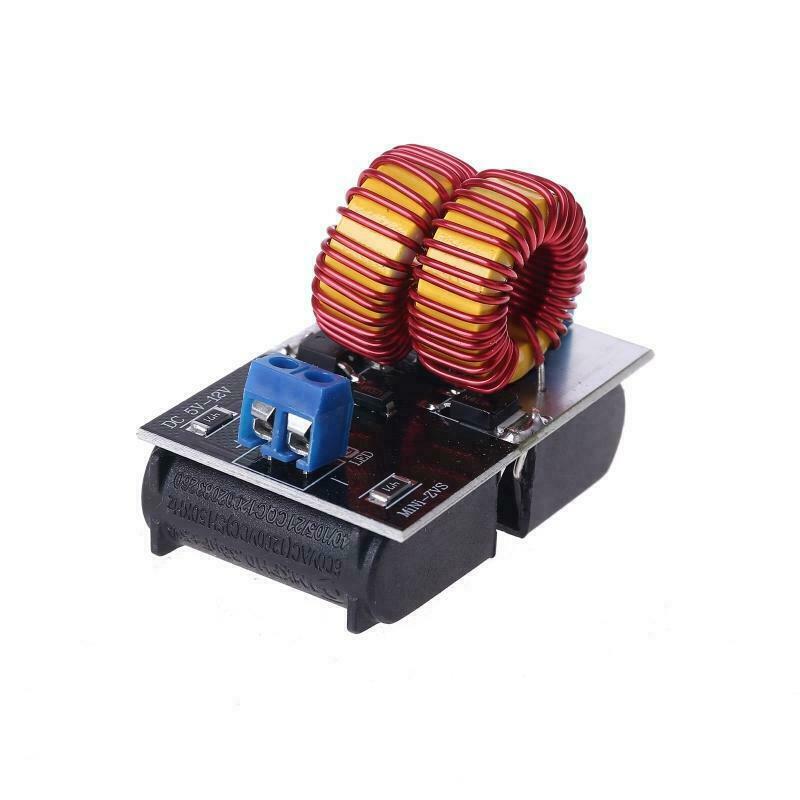

• 1 × ZVS Induction Heating Power Supply Module

• 1 × Heating Coil

💥 Volume Discount — Buy More & Save

• 10% OFF when you buy 2 units

• 15% OFF when you buy 3 units

• 20% OFF when you buy 4 or more units
  Discount auto-applied.
