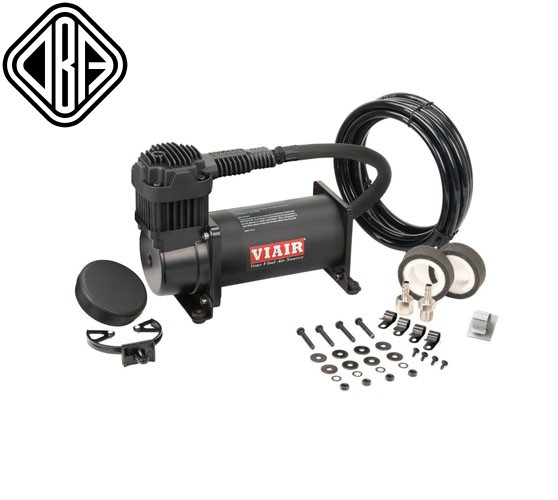

Viair 400C 150 PSI / 4.55 CFM - Stealth Black

Air and Pneumatic Delivery Systems 12V Compressors parts by OBA

400C is a 33% duty cycle compressor that works quickly and efficiently putting out 2.62 CFM flow at zero PSI head pressure. Features include a standard 1/4" NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.



FEATURES - Thermal Overload Protector - Check Valve - Vibration Isolators - Mounting Hardware - Stainless Steel Braided Leader Hose - Air Line for Remote Mount Air Filter - Remote Mount Air Filter Assembly - (2) Replacement Air Filter Elements - Installation Instructions SPECIFICATIONS - 12-Volt - Permanent Magnetic Motor - Duty Cycle: 33% @ 100 PSI - Max. Working Pressure: 150 PSI - Max. Air Tank Size: 5.0 Gallon - Max. 12V Amp Draw: 28 Amps - Ingress Protection Rating: IP67 - Dimensions: 9″L x 4″W x 6.75″H - Net Weight: 8.65 lbs. RECOMMENDED COMPONENTS - 0.5 Gallon Tank (P/N 91005) - 1.0 Gallon Tank (P/N 91010) - 2.0 Gallon Tank (P/N 91022) - 2.5 Gallon Tank (P/N 91025) - 5.0 Gallon Tank (P/N 91050) - 12V Relay (P/N 93940) - Pressure Switches (P/N 90100, 90101, 90102) - Pressure Switches with Relay (P/N 90110, 90111) - Sealed Pressure Switches (P/N 90217, 90223, 90227)



PERFORMANCE DATA

PSI CFM A BAR LPM A 0 2.62 16 0 74.0 16 10 2.39 18 1.0 65.0 20 20 2.21 20 2.0 60.0 23 30 2.11 22 3.0 56.0 25 40 2.01 24 4.0 53.0 27 50 1.93 25 5.0 49.0 28 60 1.84 26 6.0 46.0 28 70 1.73 27 7.0 42.0 28 80 1.65 27 8.0 38.0 28 90 1.52 27 9.0 35.0 27 100 1.45 27 10.0 31.0 27 110 1.35

OE Reference: 40048
SKU: 510010006
