High Quality PLC fiber optic Splitter, Competitve price,Fast and Free Shipping.
Don't settle for low cost ,Cheap, No quality item, choose optimal ,Choose us.
Remark:
1. 10pcs each lot for 1x2,1x4,1x8.
2. 5pcs each lot for 1x16,1x32.

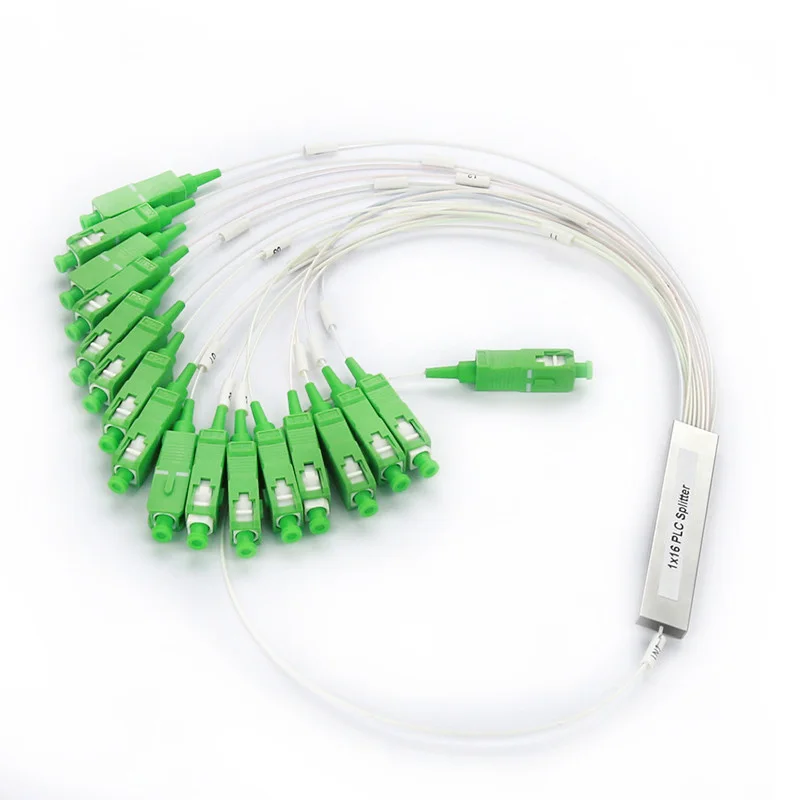

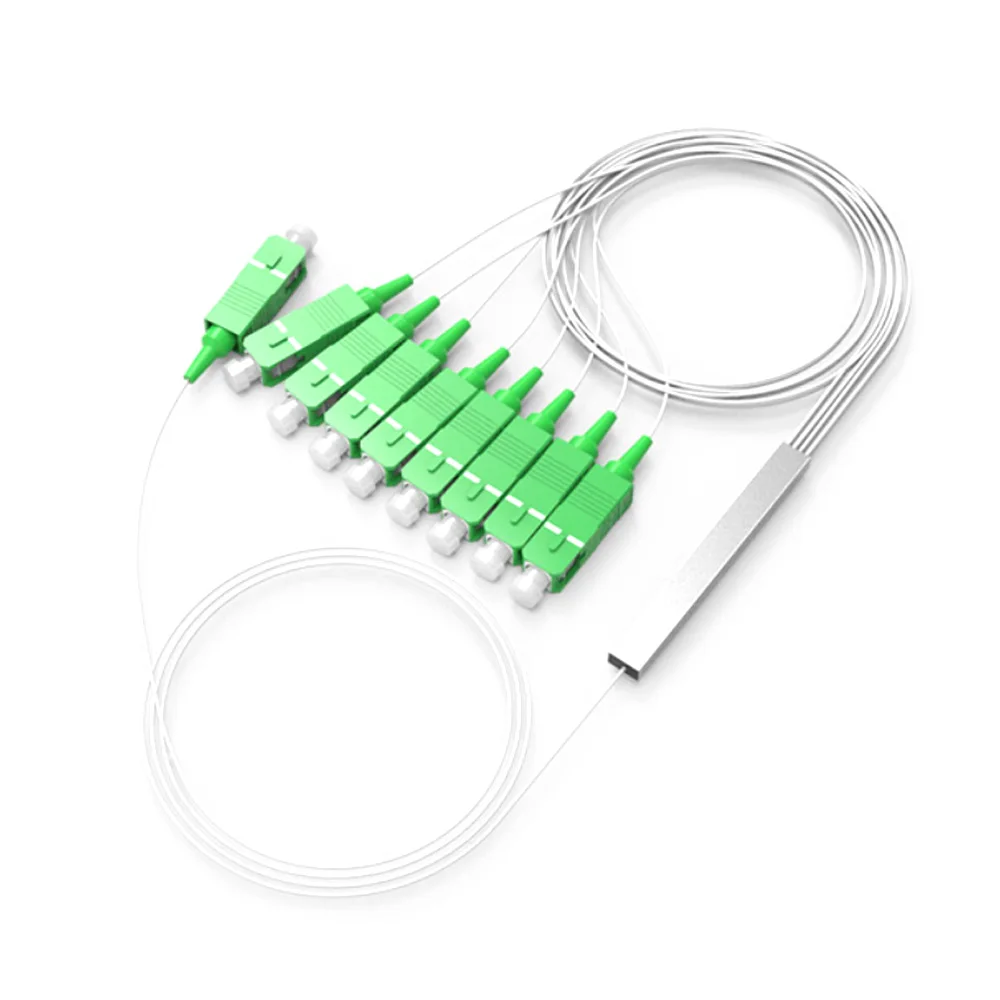

3. Optional size: 1x2 1x4 1x8 1X16 1x32.
4. Length: 1meter.
5. Other special spec is customable, Fast custom made 1~3 work days, MOQ1pcs is acceptable.
6. we can ship via expediated DHL, Normally delivery time of 2 work days, very fast. if need ,contact us before order.
Features
1.High Reliability, Excellent Mechanical, Small Size.
2.Low insertion Loss and low Polarization Dependent loss.
3.High channel counts.
4.Excellent Environmental Stability and Widely Used.
Applications
1. FTTx Deployments(GPON/BPON/EPON).
2. Cable television (CATV).
3. Local area networks (LAN).
4. Test equipment.
5. Passive optical networks(PON).
| |
| 1 1xN (with connector) |
| (Number of Channels) |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
| (Operating Wavelenth) |

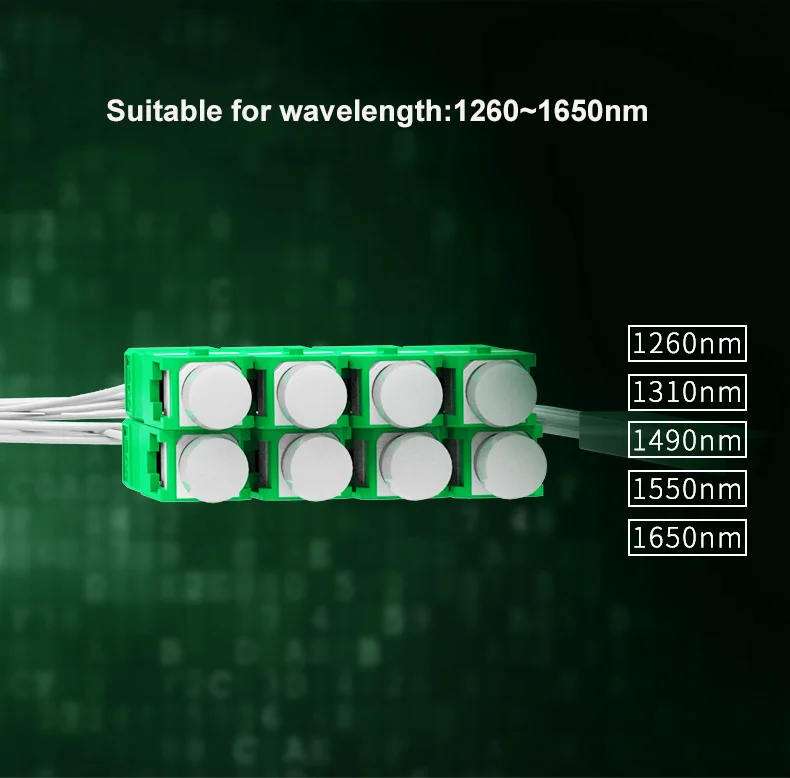

1260 to 1650 |
|
| P Level Insertion Loss |
3.8 |
7.1 |
10.5 |
13.5 |
16.5 |
20.5 |
4.4 |
7.6 |
10.8 |
14.1 |
17.4 |
20.7 |
| S Level Insertion Loss |
4.0 |
7.3 |
10.5 |
13.7 |
16.9 |
21 |
4.6 |
7.9 |
11.2 |
15 |
18.1 |
21.7 |
| (Uniformity) |
0.4 |
0.6 |
0.8 |
1 |
1.2 |
1.6 |
0.8 |
1 |
1.2 |
1.5 |
1.8 |
2 |
| (PDL) |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
| (Return Loss) |
more than 55 |
| (Directivity) |
more than 55 |
| (Type of fiber) |
ITU G657A |
| (Operating temperature) |
-40 to 85 |
| (Pigtail length) |
1m (1.5m optional or customized) |
Orderng Informatio
|
PLCS
|
Port Type
|
Cable Type |
Fiber Length |
Connector Type |
Package Style |
|
|
1*4
1*8
1*16
1*32
1*64
2*32
Others Specify
|
0.25mm Bare fiber
Ribbon Fiber
Fan-out with 0.9mm Loose Tube
2.0mm Cable
3.0mm Cable
|
1 meter
(other size custom made)
|
FC/APC
FC/PC
SC/APC
SC/PC
ST/UPC
LC/APC
Others Specify
|
Stainless steel sleeve
Plastic Module
19 1U Rack Mount
Others Specify
|
