Digital LCD Power Supply Tester Computer 20/24 Pin Check PC 4 PSU ATX

Item Description

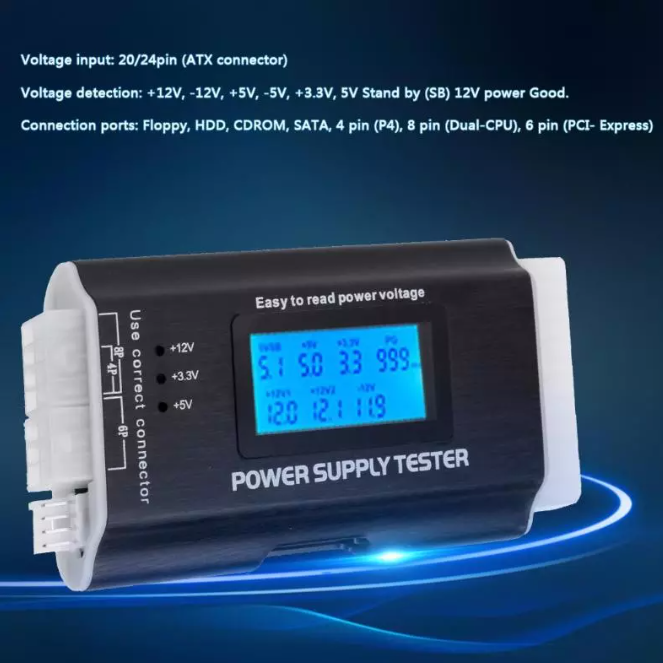

πŸ”Œ ATX/BTX/ITX LCD Power Supply Tester β€” 20/24-Pin with P4/P6/P8 & SATA

Fast, reliable PSU checks for PCs and workbenches. The backlit LCD shows each rail while the buzzer alerts you to faults.

🌟 Key Features

  • πŸ–₯️ LCD Readout β€” Live display for +12 V / βˆ’12 V / +5 V / βˆ’5 V / +3.3 V / +5 VSB and PG (Power-Good)

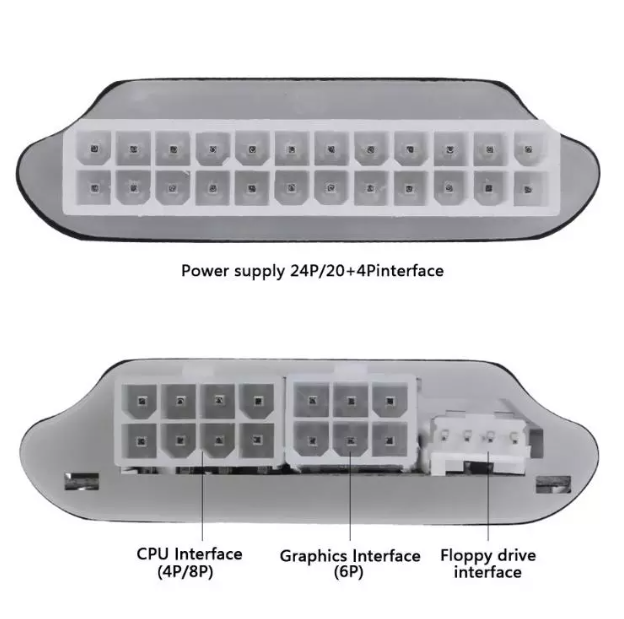

  • 🧩 Wide Connector Coverage β€” 20/24-pin ATX, CPU 4-pin (P4), 8-pin (EPS/Dual-CPU), PCI-E 6-pin, SATA, Molex (HDD), FDD

  • ⚑ Instant Go/No-Go β€” Visual + audible alerts to catch missing/abnormal rails quickly

  • 🧰 Bench-Friendly β€” Great for hobbyists, refurbishers, and repair shops; no PC required

  • πŸ›‘οΈ Protect Your Builds β€” Verify PSUs before connecting to motherboards and GPUs

πŸ“ Specifications

  • Product Type: PC 20/24-pin LCD PSU Tester (ATX/BTX/ITX compliant)

  • Tests: +12 V, βˆ’12 V, +5 V, βˆ’5 V, +3.3 V, +5 VSB, PG

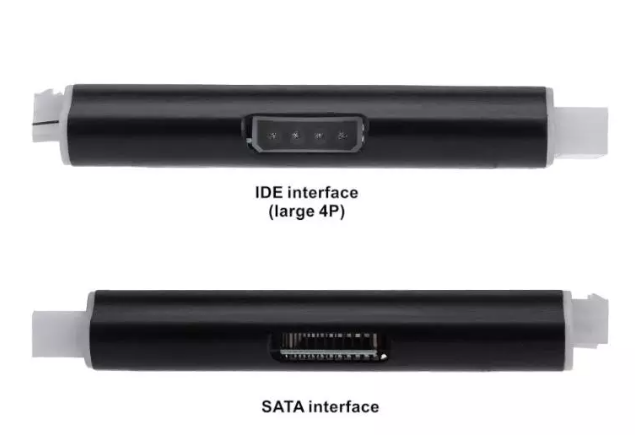

  • Connectors: 20/24-pin ATX, P4 (4-pin CPU), 8-pin EPS, 6-pin PCI-E, SATA, Molex/HDD, FDD

  • Material / Color: Plastic & electronics / Black

  • Dimensions / Weight: β‰ˆ 96 Γ— 62 Γ— 20 mm, β‰ˆ 63 g

πŸ“ Note: Many modern PSUs omit the βˆ’5 V rail by design; the tester may show it as missingβ€”this is normal for newer units.

🧭 Quick Start

  1. Power off the PSU and disconnect it from the PC.

  2. Plug the 20/24-pin ATX connector into the tester (and optionally CPU/GPU/SATA leads).

  3. Turn on the PSU.

  4. Listen & read:

    • Short β€œDu-Du” beep, no flashing β†’ rails are within range.

    • Continuous long beep or flashing value/PG β†’ missing or out-of-range rail; PSU likely faulty.

  5. Power off and unplug before changing connectors.

🧠 Tips for Accurate Results

  • Test one PSU at a time in a stable AC outlet.

  • If a rail is borderline, retest with fewer leads connected.

  • PG (Power-Good) should appear quickly (typ. 100–500 ms). Very slow/unstable PG can indicate PSU issues.

  • This tool checks voltage presence & PGβ€”it doesn’t load-test at full wattage.

πŸ“¦ Package Includes

  • 1 Γ— LCD Power Supply Tester (20/24-pin)
