Product Reference: DVR4C3
Please click here to see more DVR's and CCTV Cameras
Are you searching for a durable DVR to guarantee your personal and property safety?
If so, this 4-Channel Simple Type H.264 CCTV Hard Driver Digital Video Recorder DVR designed especially for monitoring will be strongly recommended to you.
Supporting adjustable video speed, various recoding modes and video search, our DVR can be used in many places such as banks, factories, warehouses and so on.
It can provide you with high resolution videos since it adopts the latest technology to guarantee its quality.
Network backup, USB backup, SATA DVD are all supported as well. A wise choice for anyone caring about the safety!
This is a must have item for your new office as well as your home security add-ons.
Specifications:
- H.264 main profile compression algorithm ideal for standalone DVR
- Light-weight and simple design, complete with a button-less fascia
- Support 2 x USB 2.0 port for mouse, backup, upgrade etc...
- USB record backup and network backup
- Support 1 piece of SATA HDD, up to 3TB storage
- 4 channels real time full D1 recording

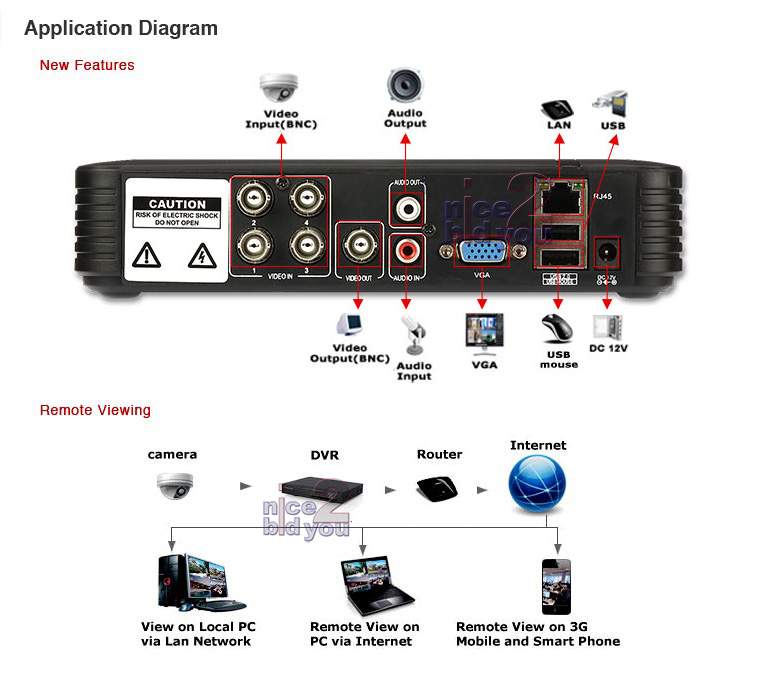

- Video BNC (4ch video input, 1ch video output), Audio RCA (1ch audio input, 1ch audio output)
- Support VGA output and BNC output at the same time
- Support Network and mobile remotely monitoring such as iPhone, Blackberry, Android, Symbian and Windows mobile
- Smart HDDs Management: non-working HDD hibernation, HDD faulty alarm, Raid function
- Support DHCP / PPPOE / FTP / DNS / DDNS / NTP, support WEB client, standalone client and SDK
- With the sound system for the protection circuit, unique triple watchdog function, the unit uses very low power consumption to ensure the equipment never be hang up
- Support 20 languages

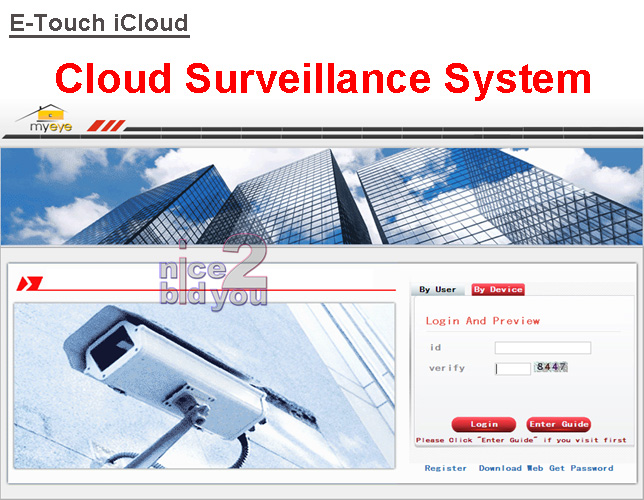

- Support Apple iPhone application "vMEyeCloud", you can this free app with your iPhone or Android Phone and access to view live and control live video streams from your cameras and DVRs
Capability Calculations:
The hard disk capacity
formula is:
Overall Capability (M) = Channel Number x Time (in hours) x Capability in an hour (M/hour)
The recording time formula is:
Recording Time (hour) = Overall Capability (M) / [ Capability in an hour (M/hour) x Channel Number ]
Example:
For one piece of 500GB HDD, real time CIF for recording, it will keep recording for about 26 days.
HDD spaces per channel is 200M/H, if 4 channels real time CIF at 24 hours recording uninterrupted, it can last
500G / (200M/H x 24 hoursx 4 channels) = approximately 26 days
Important Notice:
This item does NOT include a hard disk.
This is to ensure that we can offer a competitive price and save the shipping cost on the item itself, please get a HDD locally.
Technical Information:
| System |
Main Processor |
High performance embedded microprocessor HI3515A |
| Operation System |
Embedded Linux |
| System Resources |
Multiple channels real time recording, playback, network operation and USB backup |
| User Interface |

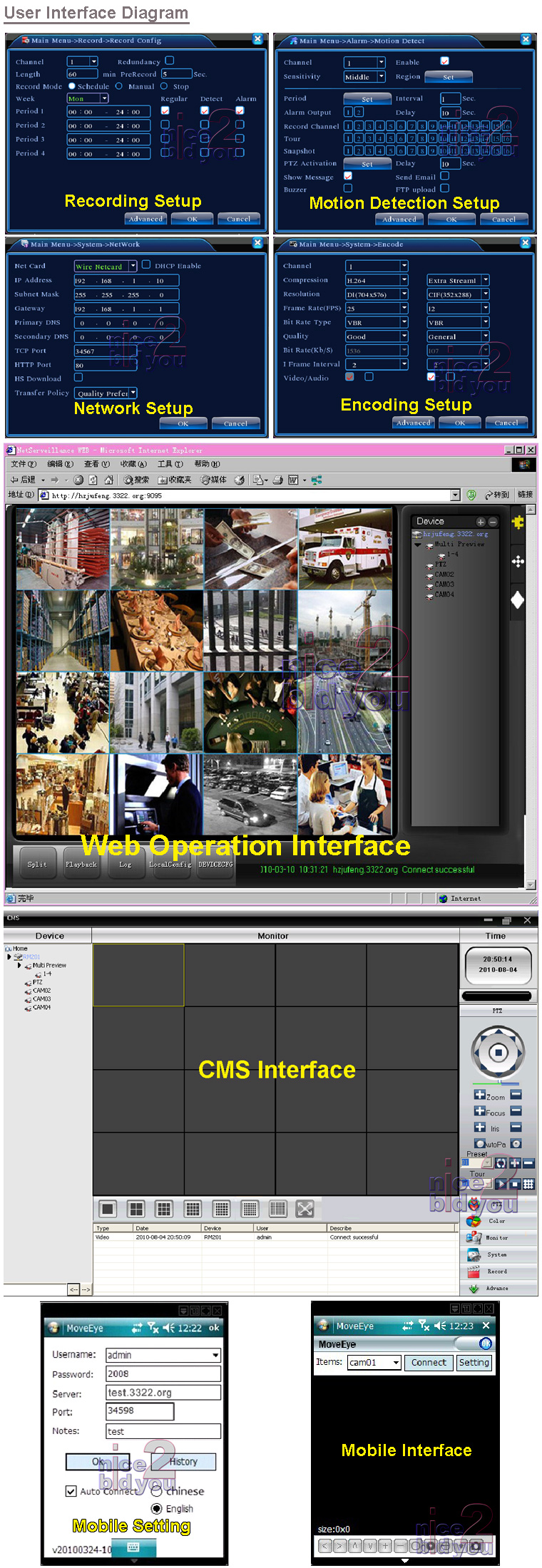

GUI, on-screen menu tips |
| Screen Display |
1 / 4 Screen |
| Menu Languages |
English, S-Chinese, T-Chinese, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish, Polish, Romanian, Hungarian, Finnish, Persian, Thai, Greek, Vietnamese, Ukrainian, Brazilian |
| Video |
Video Standards |
- PAL: 625 line, 50 fps
- NTSC: 525 line, 60 fps |
| Video Compression |
H.264 High profile |
| Display Quality |
- TV: D1
- VGA: High definition |
| Playback Quality |
D1 / Half-D1 / CIF / QCIF |
| Recording quality |
Best / Better / Good/ General / Worse / Worst |
| Encode capacity |
100 / 120 fps (D1) |
| Motion Detection |
- Zones: 192 (16 x 12) detection zones, Sensitivity: 1 - 6 (6 is highest) |
| Audio |
Audio Compression |
G711A |
| Bidrectional Talk |
Support |
| Record & Playback |
Recording Mode |
Manual > Alarm > Video Detection > Timing |
| Local Playback |
1 ~ 4 Channels |
| Search Mode |
Time / Date, Alarm, Motion Detection & exact search (accurate to second) |
| Storage & Backup
|
Space Occupation |
- Video: CIF, 4 ~ 5G / day / channel; D1, 8 ~ 10G / day / channel
- Audio: 691.2M / day / channel
|
| Record Storage |
Local hard disk and Network |
| Backup Mode |
Network / USB movable HDD |
| Interface |
Video Input |
4 channels |
| Video Output |
2 channels: 1 x TV output BNC, 1.0Vp-p, 75Ω, 1 x VGA output |
| Audio Input |
1 channel |
| Audio Output |
1 channel |
| Net Interface |
RJ-45 (10M/100M) |
| USB Interface |
2 x USB 2.0 ports |
| Hard Disk |
1 x SATA port, supported HDD with maximum capacity 3TB |
| Environmental |
Power Supply |
AC Adaptor:
- Input: 100V - 240V ~ 50/60Hz 1500mA
- Output: DC12V, 3000mA Max |
| Power Consumption |
< 5W (not include Hard disk) |
| Working Temperature |
0°C - 50°C |
| Working Humidity |
10% - 90% |
| Atmosphere Pressure |
86kpa - 106kpa |
| Dimensions |
210mm (W) x 213mm (H) x 45mm (D) |

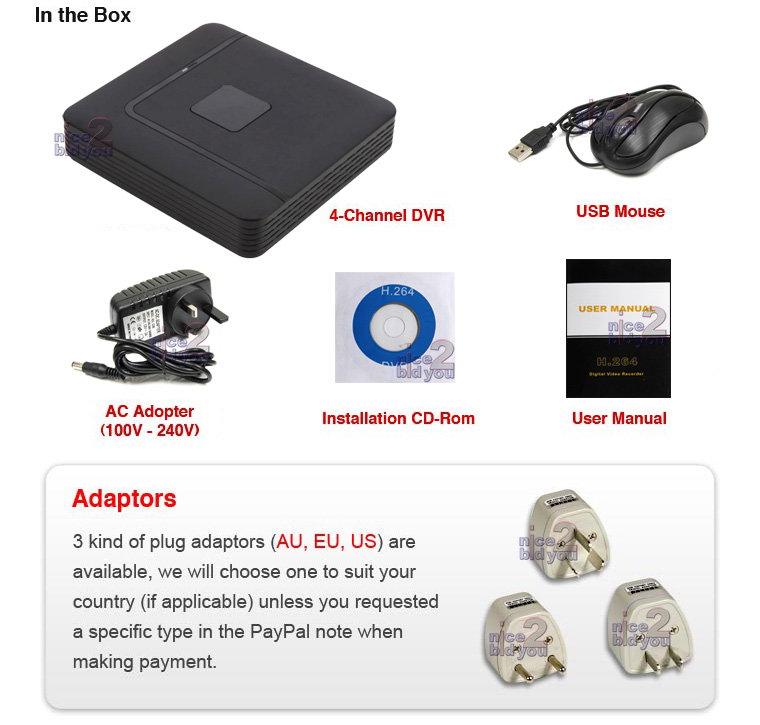

Package includes:
1 x 4-Channel DVR with One-Touch Online (P2P) function
1 x USB Mouse
1 x Installation CD Rom
1 x User Maunal
1 x DC12V AC Adaptor (100V - 240V input, worldwide voltage)
1 x Adaptor to suit your country (if applicable)
|
|
|
 |
 |
|
