High Quality XLR Balanced Audio over Fiber Extenders, S/M up to 20Km (12.4miles)
Super High Performance, Factory Price, Fast Shipping.
Features:
【Function】Send Balanced Audio of 16-bit digitally encoded broadcast quality Audio over
1 single-mode(SM) or multi-mode (MM) optical fiber cable. These unit is single

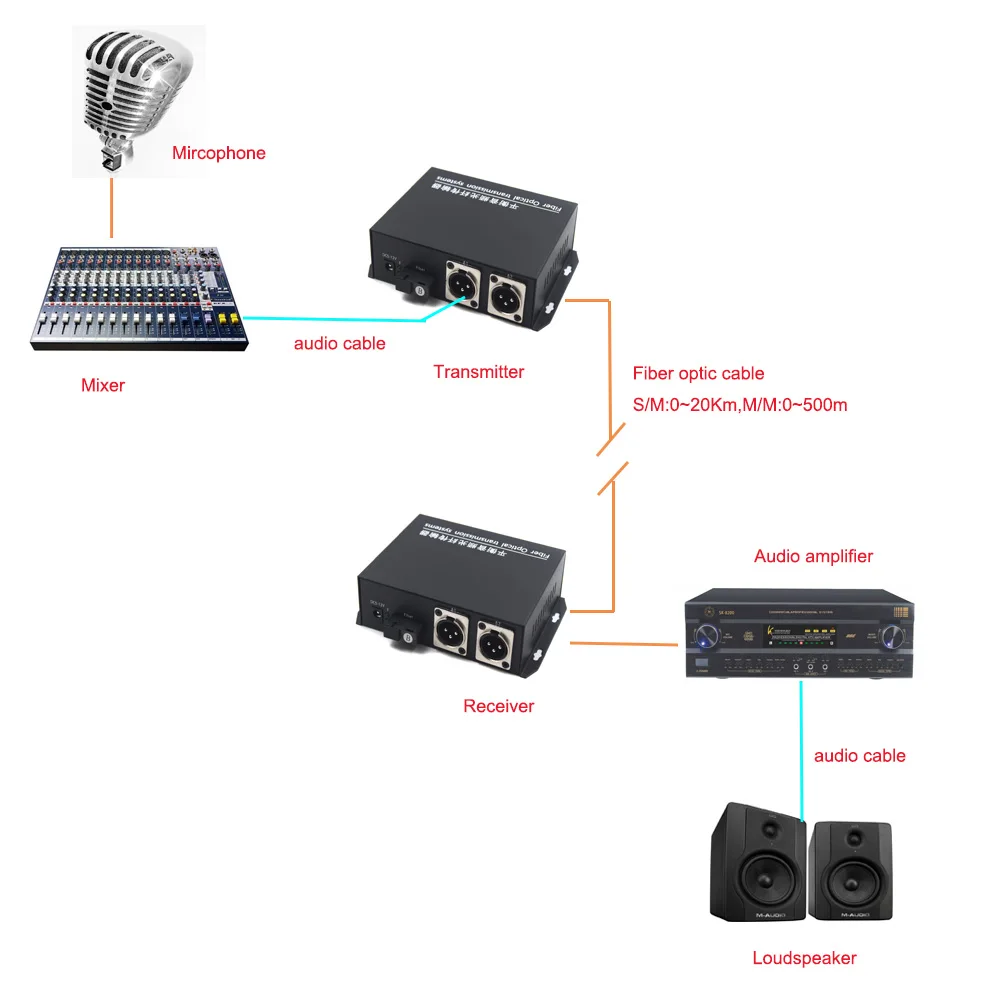

direction - Audio signal is transmitted from T (Transmitter) in the direction
of R (Receiver).
【Universal for Fiber Types】The extender can work on both singlemode and multimode. Long
transmission distance: SM up to 12.4 miles (20Km), MM 0.31 miles(500meters).
Use SC UPC / PC connectors with SM and MM fiber optic cables.
【Crystal clear sound, No Loss, No Delay】Pure & Clean fiber optic audio signal transmission, 16-bit

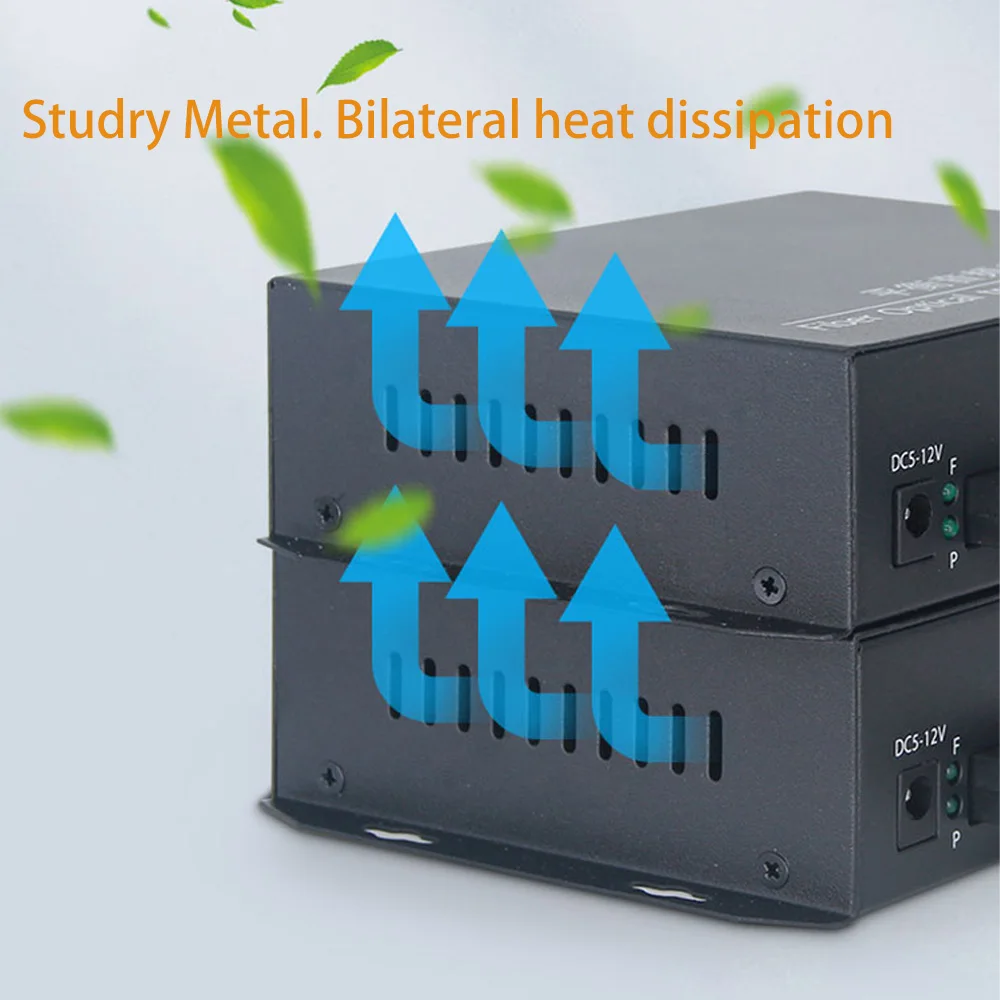

digitally encoded broadcast quality. Compact design, Sturdy Metal. Bilateral
heat dissipation. LEDs for power supply and optical fiber link status
indication can monitor the operating status of the system.
【Wide Applications】
Typically used in applications for Staging, Theaters, Stadiums, Parks,
Broadcast, studio audio and professional AV applications, etc., and are
available for stand-alone and desktop type, or wall mounted, installations.
【Plug and Play】No
configuration or driver installation are required, Easy to use.
Description:

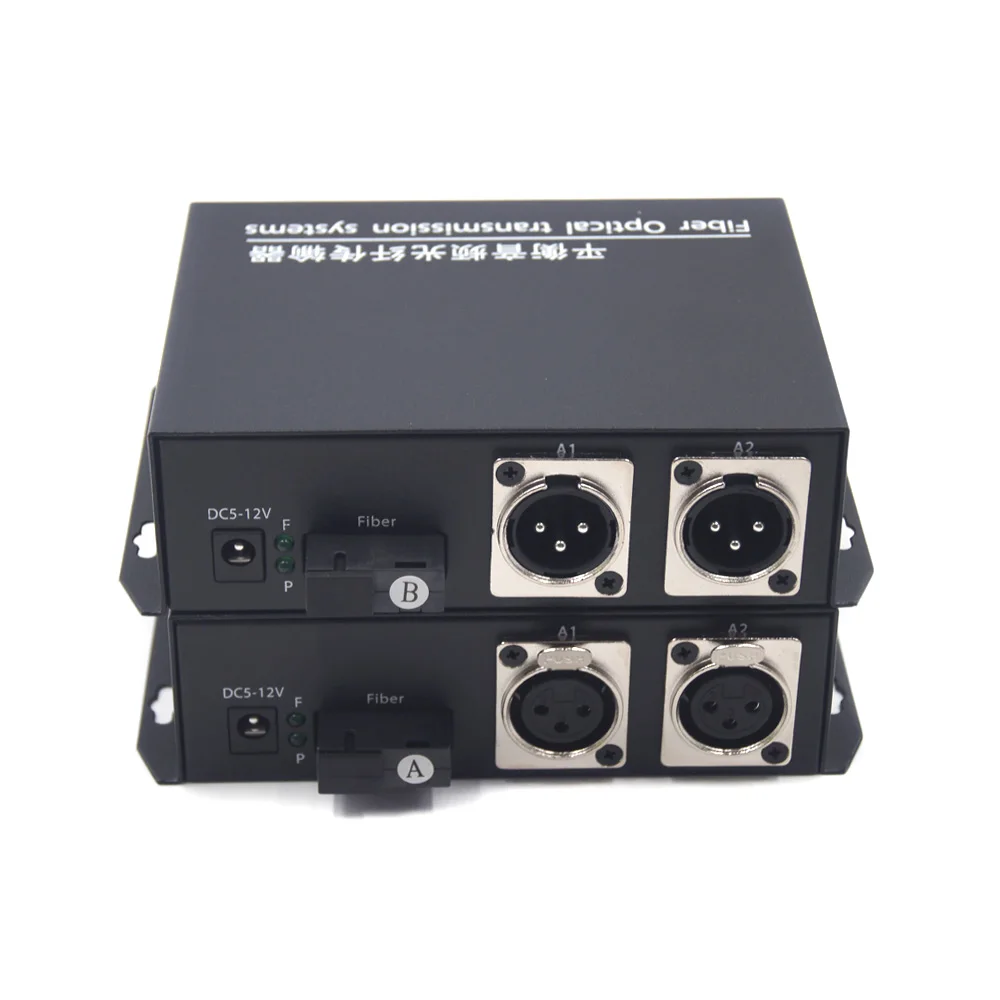

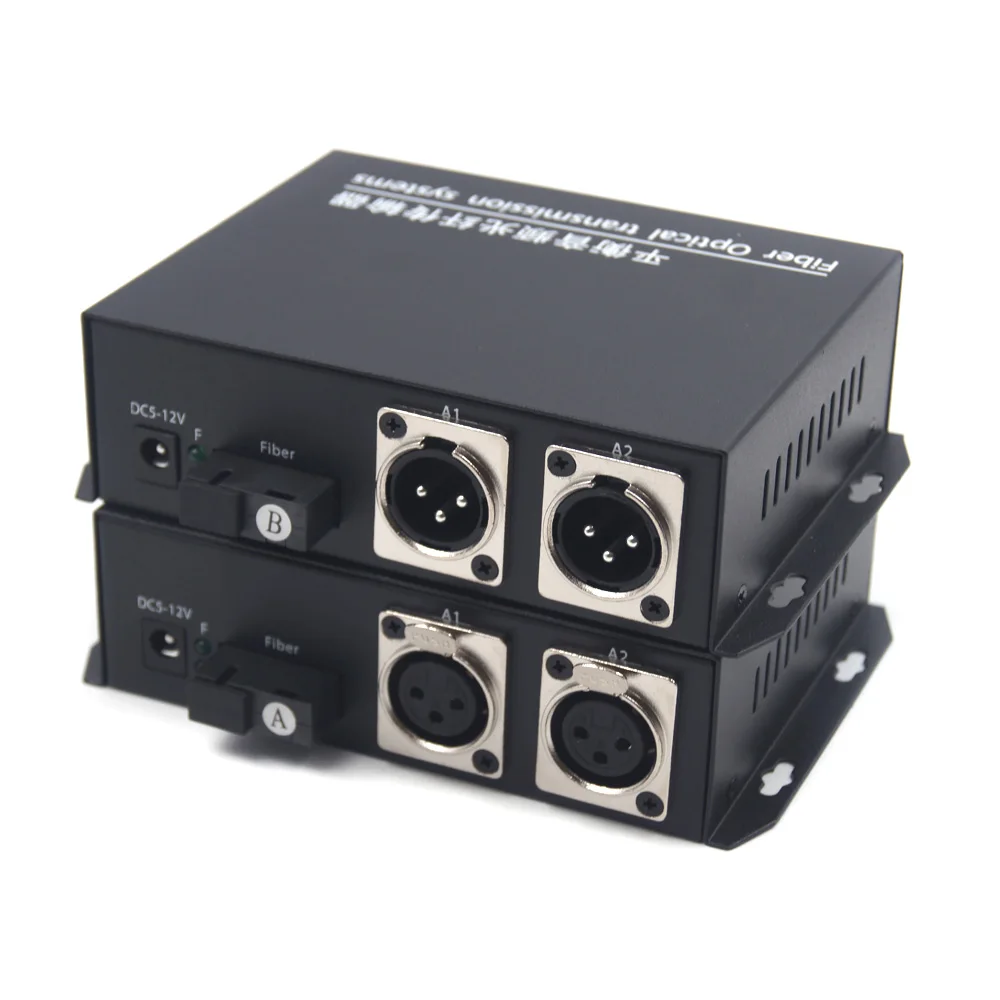

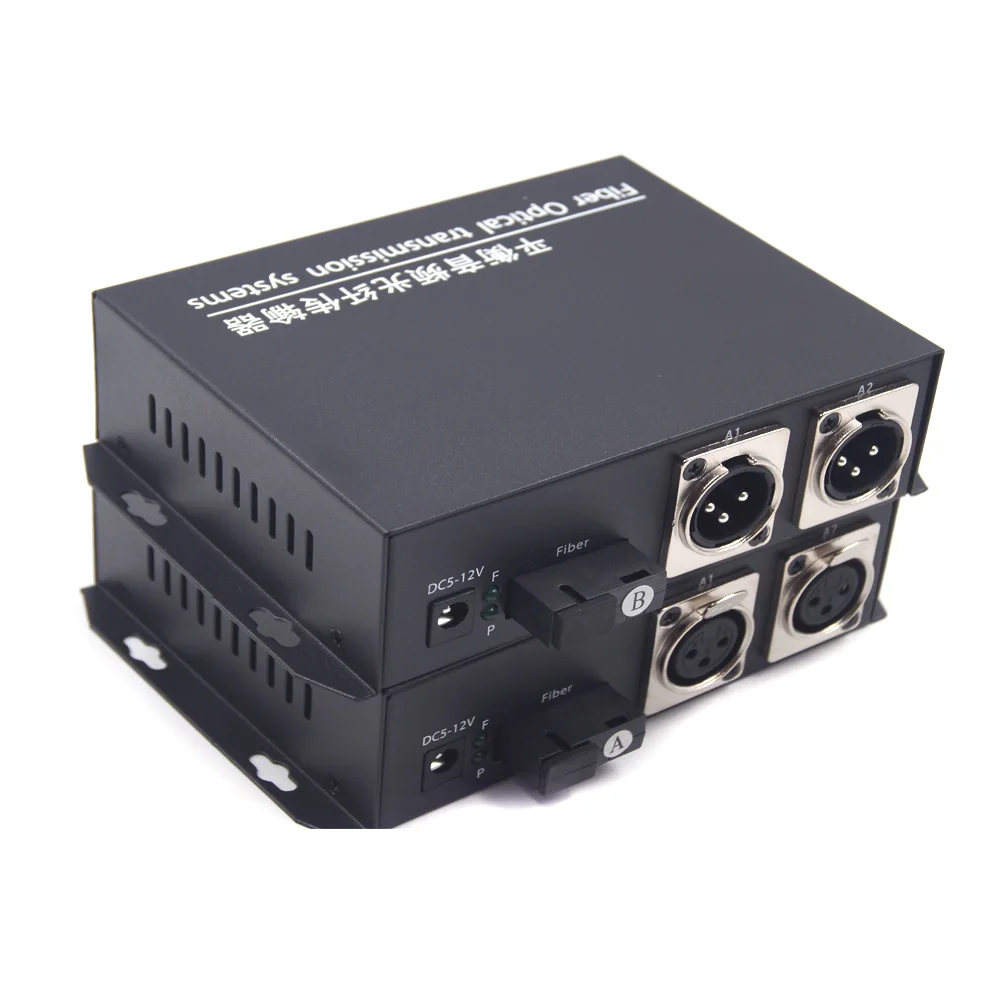

This is the HIFI professional Multichannel
audio over fiber optical transceiver with 3-PIN XLR interface, performs
high-quality 1~8 Channel HIFI audio transmission over an optical fiber cable.
Fiber Optic Transmitter High Quality audio signals are converted to digital
signals and then converted to optical signals for transmission. Fiber Optic
Receiver does the photoelectric conversion from modulated light signal to the
Analog XLR signal to transfer over fiber.
Our Balanced Audio to Fiber Optic
Converter/Extender is used for professional and extremely high-quality audio
transmission over the fiber with such a low signal to noice ratio that you'll
be blown away by the sound you get from analog sources.
The default transmission distance is 20km.
Please declare when ordering if longer distance is required for 40, 60, 80km.
Specifications:
Fiber Optic Port:
• Wavelength:
1310nm/1550nm
• Fiber:
single fiber multimode (MM) or single mode (SM)
• Transmission
range: 20km for SM, 500m for MM
• Optical
interface: SC simplex (only 1 fiber needed)
• Optical
fiber type: 9/125u single mode, 50/125u or 62.5/125u multimode
• Output
power: -14~ -8dBm
• Rx
sensitivity: -30dBm
XLR Audio Ports:
• Number
of Channels: 1/2/4/8/16
• Input
Connector: XLR (Female)
• Output
Connector: XLR (Male)
• Input
/ Output Impedance: 10K Ohm
• Max
input/output voltage: 3.0Vp-p
• Frequency
Response: 10Hz～44.1KHz @±3dB
• SNR:
> 70dB
General Spec:
• Support
Voltage: AC100-240V, DC5V2A, UK standard Power Plug (default ship UK standard, EU/US/AU
standard is optional)
• Power
Consumption: ≤8W
• Working
temperature: -20°C ~ +75°C
• Relative
Humidity: 0% ~ 95% (non-condensing)
• MTBF:
>100,000 hours
• Installation:
stand-alone
LED working indicator:
P: Power
ON: power on;
OFF: power off
F: Fiber optic
ON: Optical port works normally
OFF: Optical port works abnormally
Applications include:
• Concerts
• Churches,
• Sport
events
• links
from studio to the transmitter (STL)
• studio
to studio
• studio
to CATV head–end
• common
carrier,
• RBOC
Telco circuits,
• Distance
learning,
• Intelligent
Transportation Systems
• back–haul
feeds from special events, And More.
Package include:
1x Balanced Audio to Fiber Transmitter
1x Balanced Audio to Fiber Receiver
2x Power supply adapter
1x Free 3M SC-SC single-mode fiber patch
cord
1x Manual.
