Product specification

PART NO
535 0223 10
Manufacturer
INA
for manufacturer number
F-556615.01

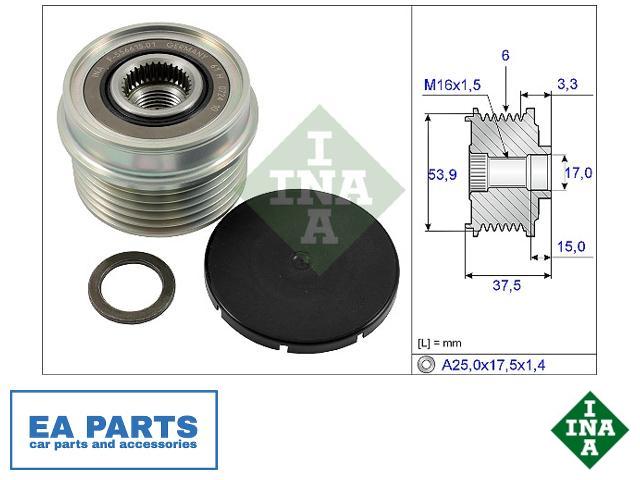

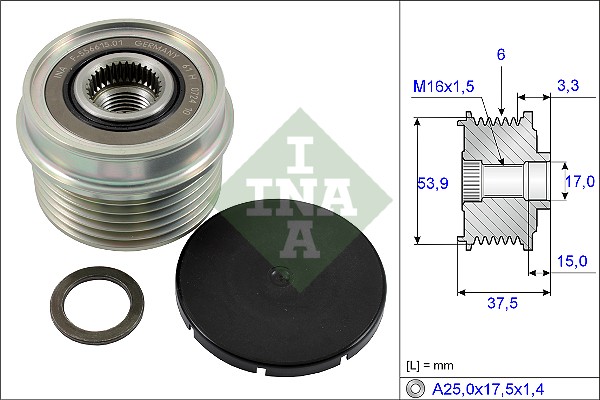

Number of grooves
6
Distance to first groove [mm]
3,3
Width [mm]
37,5
Diameter 1/ Diameter 2 [mm]
53,9/17,0
Supplementary Article/Info 2
Requires special tools for mounting
IMPORTANT!!!
Please make sure it is correct part for your vehicle before purchase. If you are not sure if this part will fit your vehicle please contact us with your vehicle identification number (VIN) and we will be more than happy to help you to verify fitment or suggest suitable item.

CROSS-REFERENCE NO:

ManufacturerCode
AUTEX654788
BOSCH0124415031
BOSCH0 124 415 031
BOSCH0124415032
BOSCH0 124 415 032
BREDA LORETTRLA4544
GATESOAP7232
GATES778910222
GATES7789-10222
INAF55661501
INAF-556615.01
IPD153783
IPD15-3783
OPTIMALF51206
OPTIMALF5-1206
RUVILLE59988
SCHAEFFLER GRUPPE535022310
SCHAEFFLER GRUPPE535 0223 10
TRIPLE FIVE333694
TRIPLE FIVE0381803
TRIPLE FIVE03.81803

REFERENCE NO OEM:

ManufacturerCode
FORD2C1T-10300-AA
FORD2C1T10300AF
FORD2C1T-10300-AF
FORD2C1T10300AB
FORD4407889
FORD2C1T-10300-AB
FORD4392207
FORD2C1T10300AA
FORD4371030

Applicable Vehicles

FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 DI (F_E_, F_F_, F_G_)
Year: 2000.08 - 2006.05
Engine: 1998ccm 63kW 86HP (Diesel)
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 DI (F_E_, F_F_, F_G_)
Year: 2000.08 - 2006.05
Engine: 1998ccm 74kW 100HP (Diesel)
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 DI (F_E_, F_F_, F_G_)
Year: 2000.08 - 2006.05
Engine: 1998ccm 55kW 75HP (Diesel)
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) 2.0 TDCi (F_F_, F_E_, F_G_)
Year: 2002.08 - 2006.05
Engine: 1998ccm 92kW 125HP (Diesel)
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 DI (F_E_, F_F_)
Year: 2000.08 - 2006.05
Engine: 1998ccm 74kW 100HP (Diesel)
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 DI (F_E_, F_F_)
Year: 2000.08 - 2006.05
Engine: 1998ccm 55kW 75HP (Diesel)
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 DI (F_E_, F_F_)
Year: 2000.08 - 2006.05
Engine: 1998ccm 63kW 86HP (Diesel)
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _) 2.0 TDCi (F_E_, F_F_)
Year: 2002.08 - 2006.05
Engine: 1998ccm 92kW 125HP (Diesel)
FORD TRANSIT TOURNEO Bus (FC_ _) 2.0
Year: 2002.03 - 2006.03
Engine: 1998ccm 92kW 125HP (Diesel)
FORD TRANSIT TOURNEO Bus (FC_ _) 2.0
Year: 2000.06 - 2005.03
Engine: 1998ccm 74kW 101HP (Diesel)
FORD TRANSIT TOURNEO Bus (FC_ _) 2.0
Year: 2000.06 - 2003.08
Engine: 1998ccm 55kW 75HP (Diesel)
FORD TRANSIT Van (FA_ _) 2.0 DI (FAE_, FAF_, FAG_)
Year: 2000.08 - 2006.05
Engine: 1998ccm 63kW 86HP (Diesel)
FORD TRANSIT Van (FA_ _) 2.0 DI (FAE_, FAF_, FAG_)
Year: 2000.08 - 2006.05
Engine: 1998ccm 55kW 75HP (Diesel)
FORD TRANSIT Van (FA_ _) 2.0 DI (FAE_, FAF_, FAG_)
Year: 2000.08 - 2006.05
Engine: 1998ccm 74kW 100HP (Diesel)
FORD TRANSIT Van (FA_ _) 2.0 TDCi
Year: 2002.08 - 2006.05
Engine: 1998ccm 92kW 125HP (Diesel)
MakeModelYearTypeBodyEngine
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)2000.08 - 2006.052.0 DI (F_E_, F_F_, F_G_)Bus1998ccm 63kW 86HP (Diesel)
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)2000.08 - 2006.052.0 DI (F_E_, F_F_, F_G_)Bus1998ccm 74kW 100HP (Diesel)
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)2000.08 - 2006.052.0 DI (F_E_, F_F_, F_G_)Bus1998ccm 55kW 75HP (Diesel)
FORD TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)2002.08 - 2006.052.0 TDCi (F_F_, F_E_, F_G_)Bus1998ccm 92kW 125HP (Diesel)
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)2000.08 - 2006.052.0 DI (F_E_, F_F_)Platform/Chassis1998ccm 74kW 100HP (Diesel)
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)2000.08 - 2006.052.0 DI (F_E_, F_F_)Platform/Chassis1998ccm 55kW 75HP (Diesel)
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)2000.08 - 2006.052.0 DI (F_E_, F_F_)Platform/Chassis1998ccm 63kW 86HP (Diesel)
FORD TRANSIT Platform/Chassis (FM_ _, FN_ _)2002.08 - 2006.052.0 TDCi (F_E_, F_F_)Platform/Chassis1998ccm 92kW 125HP (Diesel)
FORD TRANSIT TOURNEO Bus (FC_ _)2002.03 - 2006.032.0Bus1998ccm 92kW 125HP (Diesel)
FORD TRANSIT TOURNEO Bus (FC_ _)2000.06 - 2005.032.0Bus1998ccm 74kW 101HP (Diesel)
FORD TRANSIT TOURNEO Bus (FC_ _)2000.06 - 2003.082.0Bus1998ccm 55kW 75HP (Diesel)
FORD TRANSIT Van (FA_ _)2000.08 - 2006.052.0 DI (FAE_, FAF_, FAG_)Van1998ccm 63kW 86HP (Diesel)
FORD TRANSIT Van (FA_ _)2000.08 - 2006.052.0 DI (FAE_, FAF_, FAG_)Van1998ccm 55kW 75HP (Diesel)
FORD TRANSIT Van (FA_ _)2000.08 - 2006.052.0 DI (FAE_, FAF_, FAG_)Van1998ccm 74kW 100HP (Diesel)
FORD TRANSIT Van (FA_ _)2002.08 - 2006.052.0 TDCiVan1998ccm 92kW 125HP (Diesel)
