Description:
1. This product is an upgraded version of W3230 temperature control.2. Compared with the previous generation, the upgrade is as follows
1 degree Celsius (°C) and Fahrenheit (°F) can be measured and displayed (W3230 can only display measurement °C)
2 increase the buzzer (Buzzer), can send an audible buzzer alarm (W3230 no buzzer)

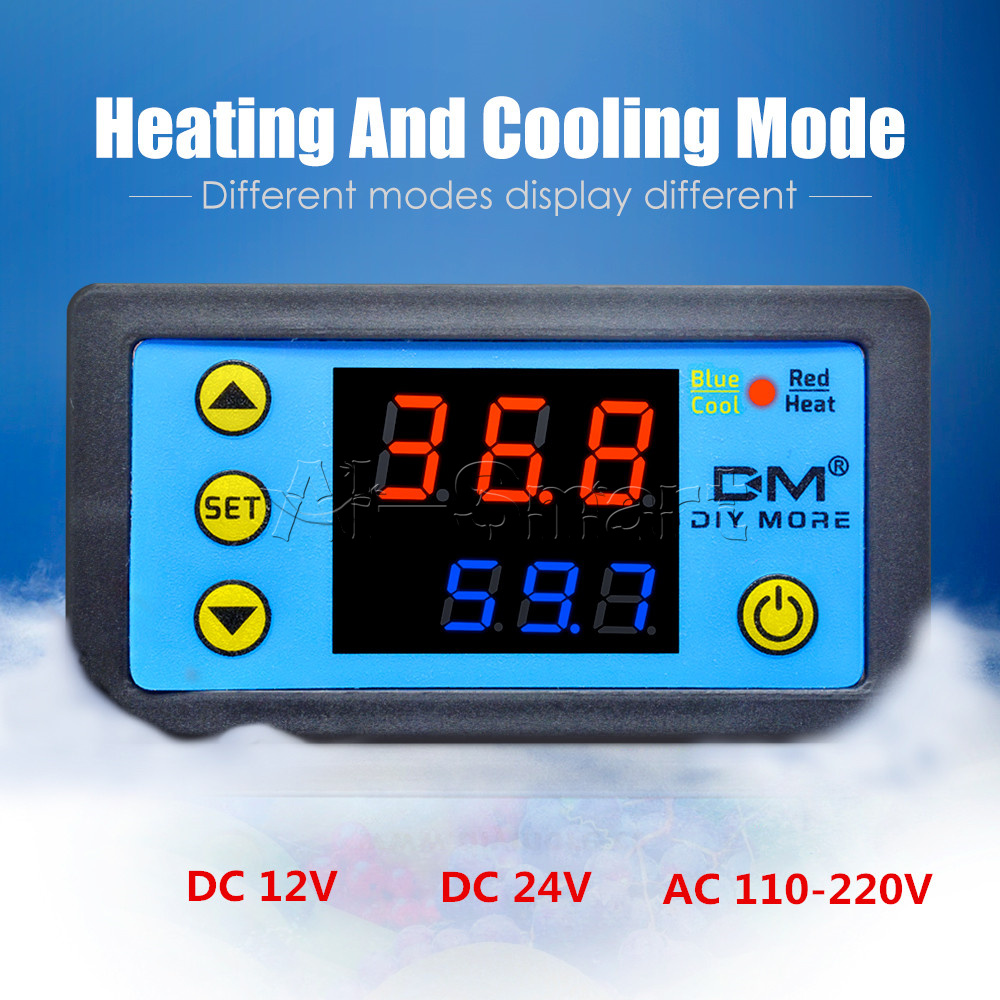

3 red and blue bi-color indicator light indicates the output mode at the same time, red is the heating mode (heat), blue is the cooling mode (Cool) (W3230 is a single red indicator, only the output can be indicated)
|
Iitem Difference contrast |
Dual digital tube temperature control |
W3230 |
|
Operating mode |
Heat/Cool |
|
|
Units of measurement |
℃/℉ |
℃ |
|
Backlash setting |
Yes |
|
|
Temperature correction |
Yes |
|
|
Delayed start |
Yes |
|
|
High temperature alarm |
Yes |
|
|
Data lock |
Yes |
|
|
Data saving |
Yes |
|
|
Alarm buzzer |
Yes |
None |
|
Working mode indication |
Yes |
None |

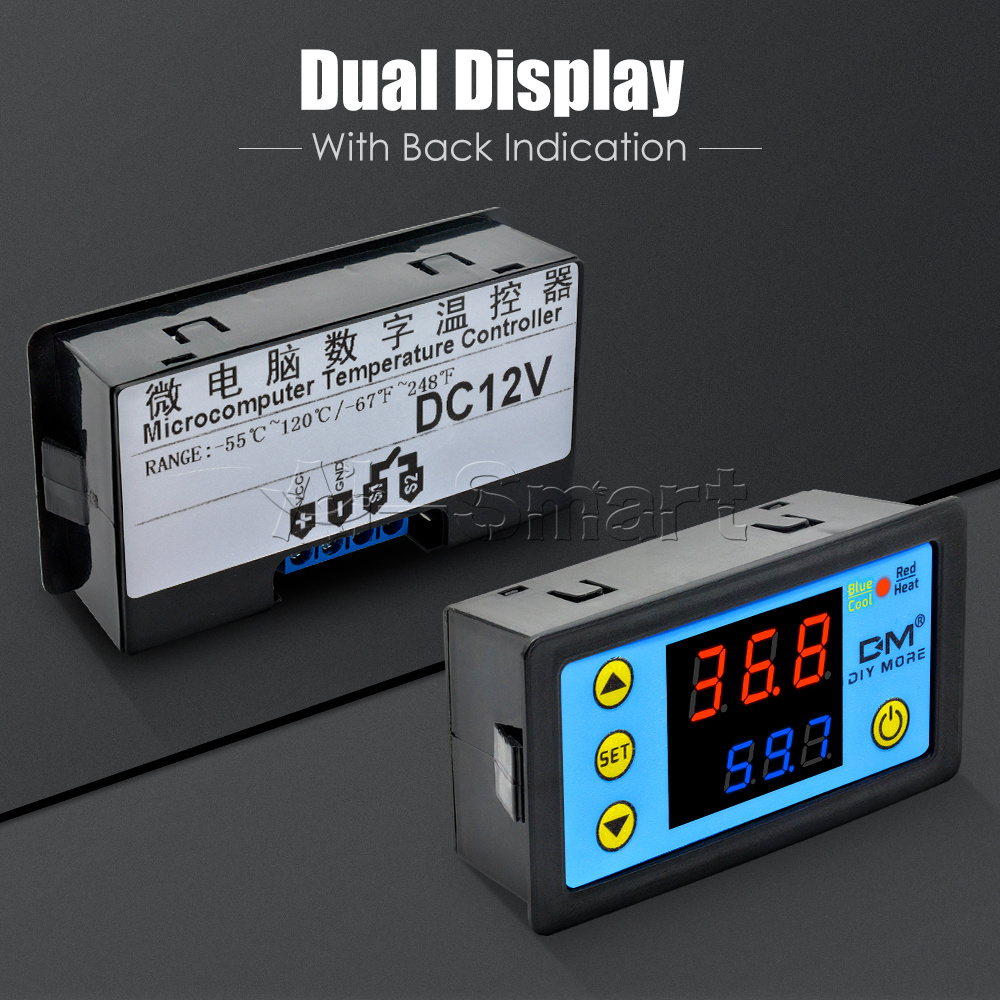

Features:

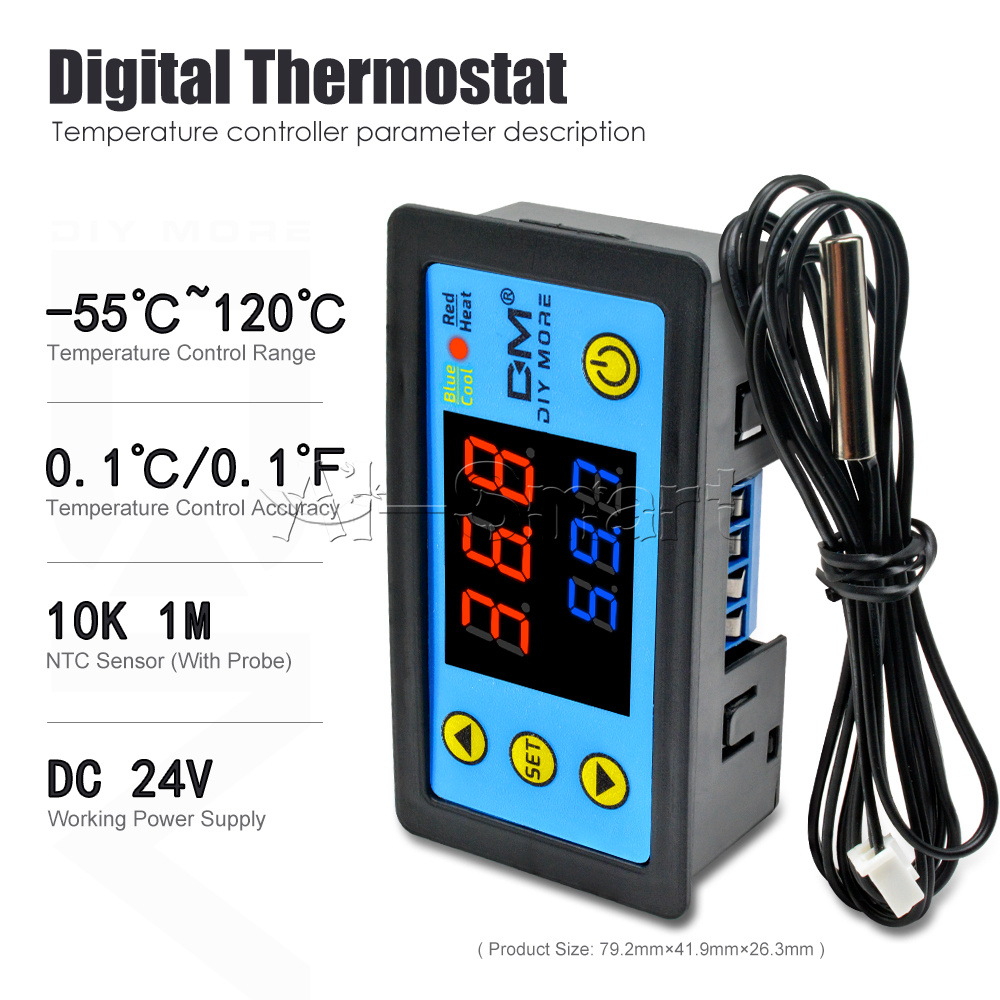

Temperature control range: -55℃~120℃/-67℉~ 248℉
Temperature control accuracy: 0.1 °C / 0.1 °F
Display color: red + blue

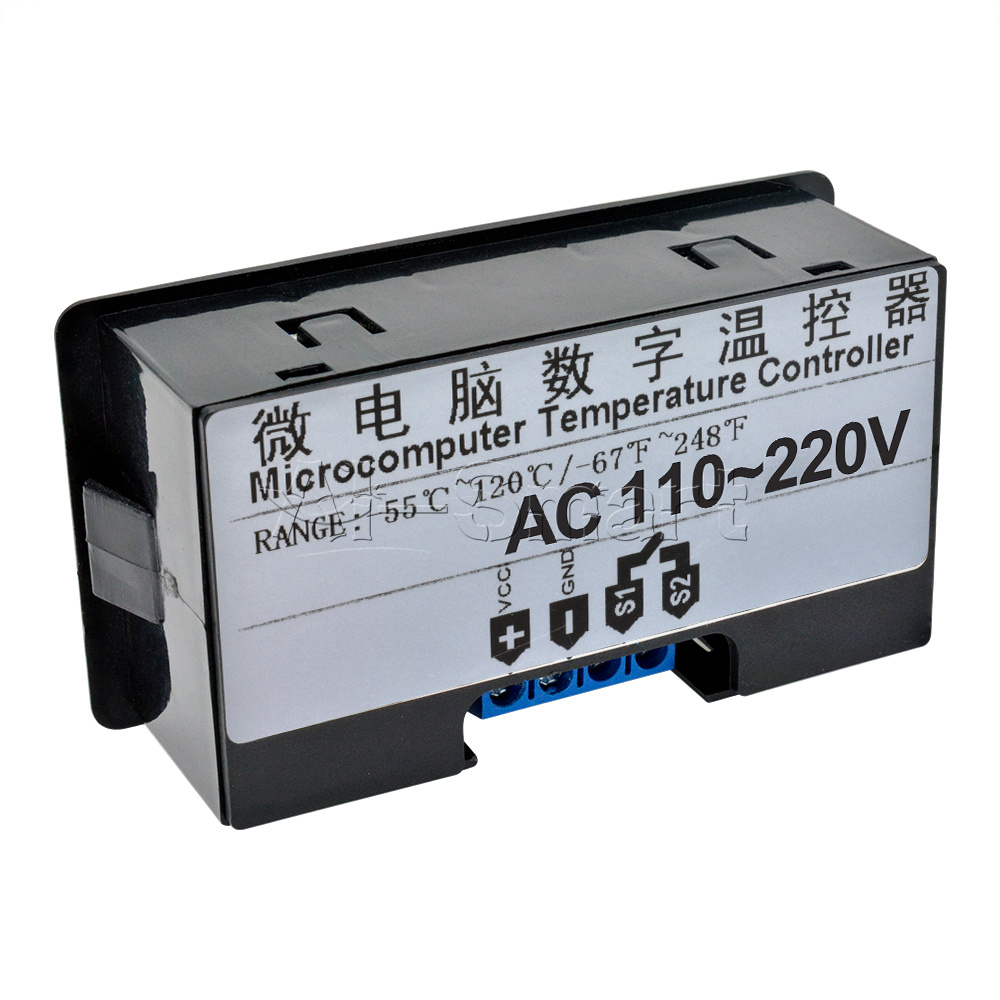

Working power supply: AC 110-220V
Sensor: NTC 10K 1 Meter (with probe)
Product Size: 79.2mm×41.9mm×26.3mm
Hole Size: 72.1mm×39.2mm
product weight: 52g

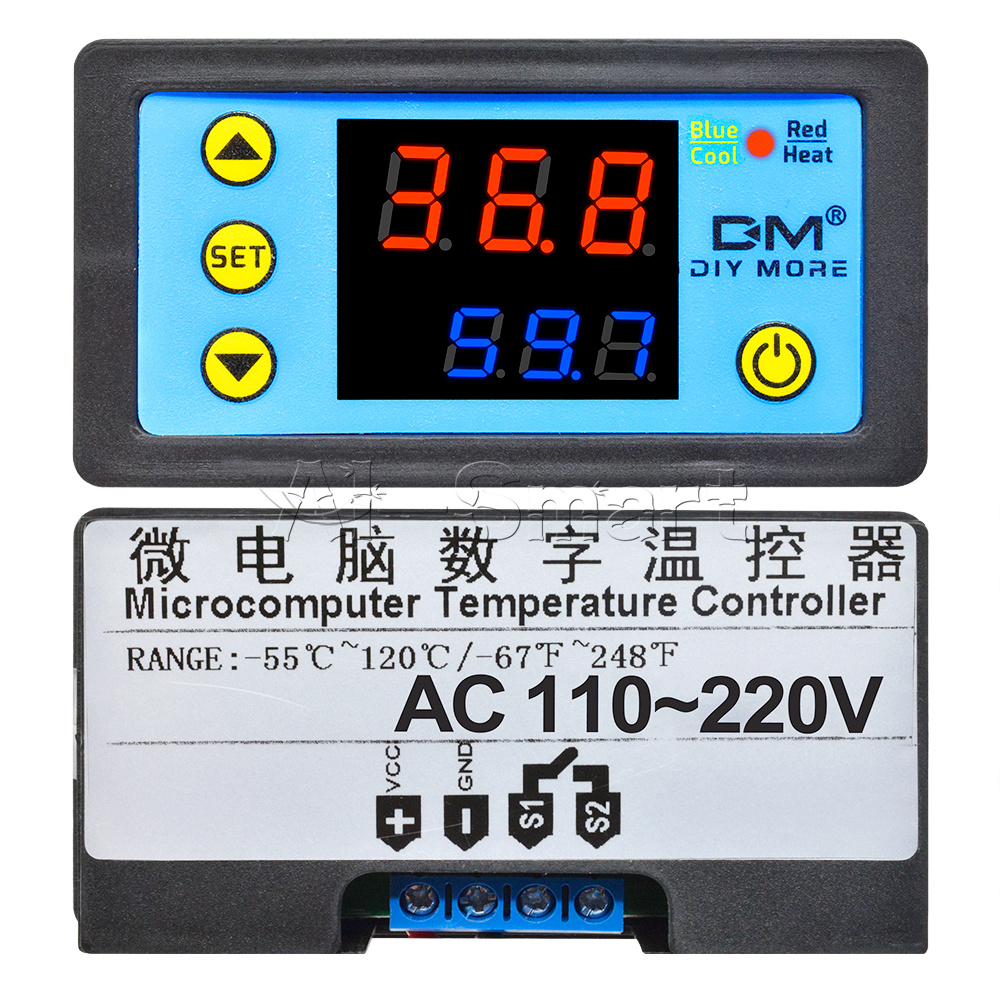

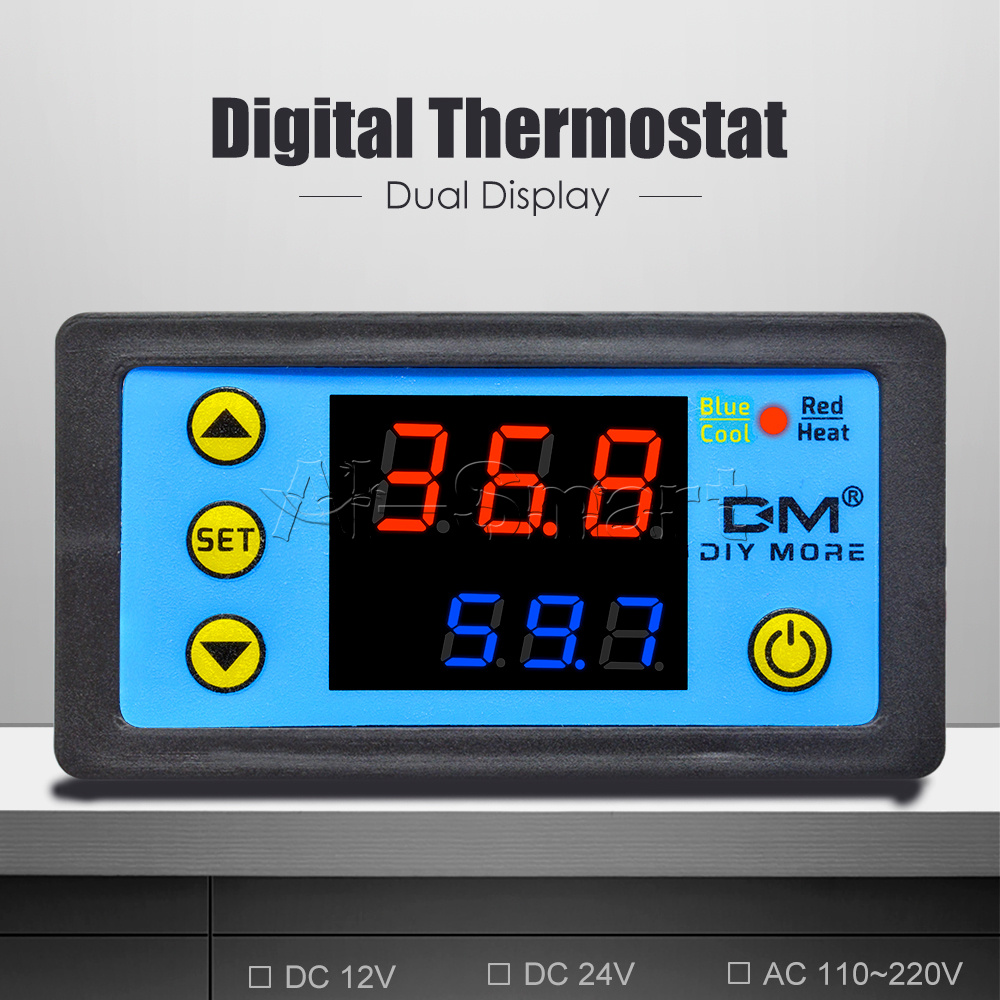

Operation and display panel:
Warning code
| code |
Reason for error |
Solution |
|
HHH |
Temperature exceeds alarm temperature |
The temperature drops below the alarm temperature and returns to normal. |
|
LLL |
No temperature sensor detected |
Replacement reconnect temperature sensor
|
|
Color |
Indicating situation |
|
Red |
The red light flashes and the heating mode is delayed.；The red light is always on, heating mode is running. |
|
Blue |
Blue light flashes, cooling mode delay starts； The blue light is always on ,cooling mode is running. |

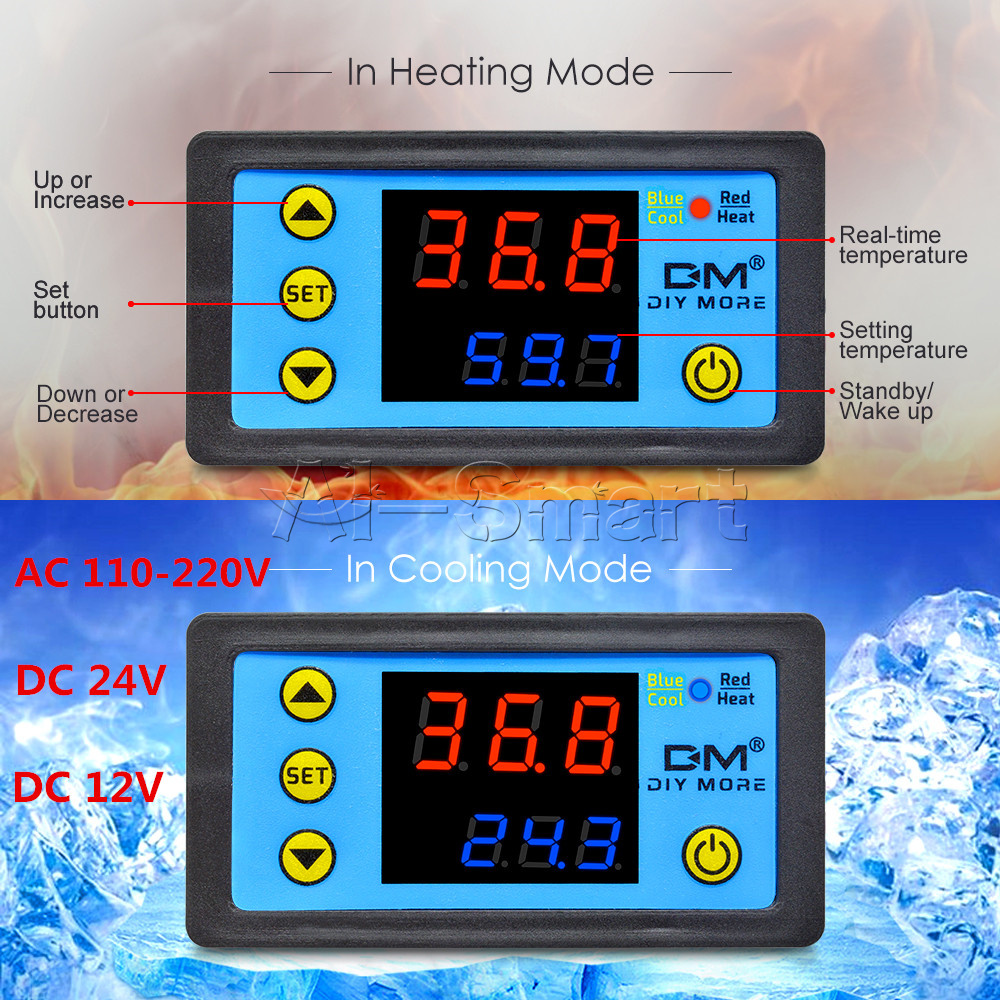

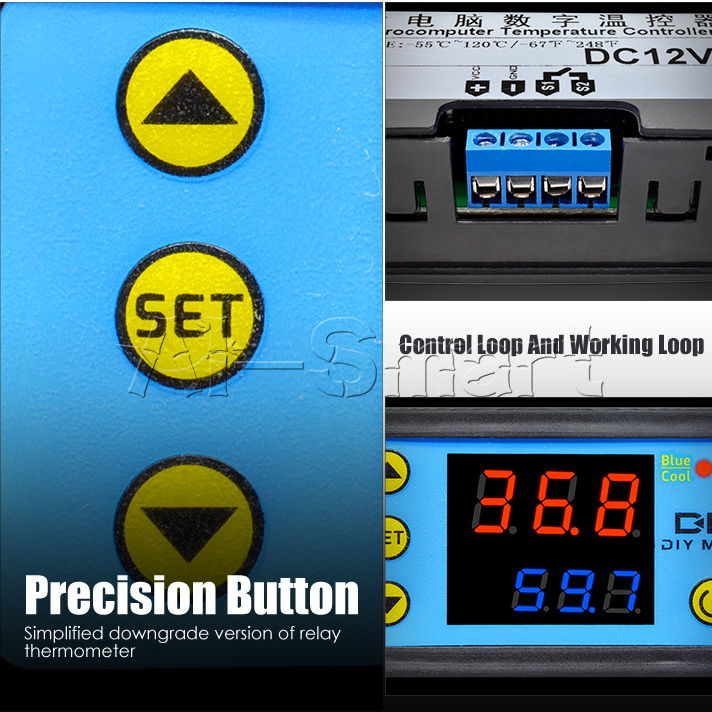

1. Short press “SET” small digital tube to flash, press “△” or “▽” to set the target temperature, press “Standby” button or no operation to save the setting within 3 seconds.
2. Press and hold “SET” to enter the code setting mode, press “△” or “▽” to switch the code. After selecting, press “SET” to enter the code setting. After setting, press “Standby” button or no operation to save the setting within 3 seconds. .
3. The last parameter setting is saved by default after shutdown.
4, restore the factory settings: press and hold "SET" to power on.
5. When the module is powered on, it will start directly. After power-on, press and hold the “standby” button, the module will enter “sleep” or “wake up”; in case of power failure, the module will run automatically after power recovery, no need to start manually.
**The working power supply voltage must be connected according to the standard voltage of the label, otherwise the module will be damaged easily.

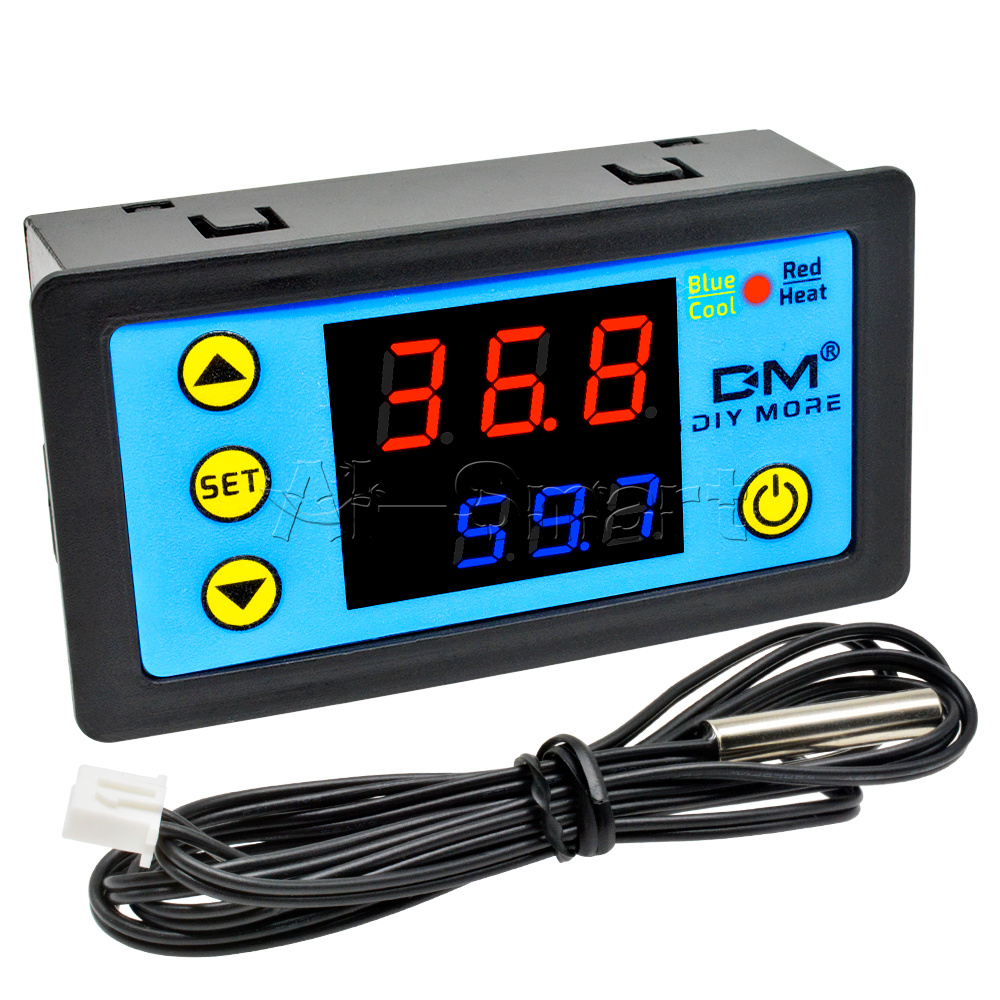

Package Included:1*DC 12V LCD Thermostat

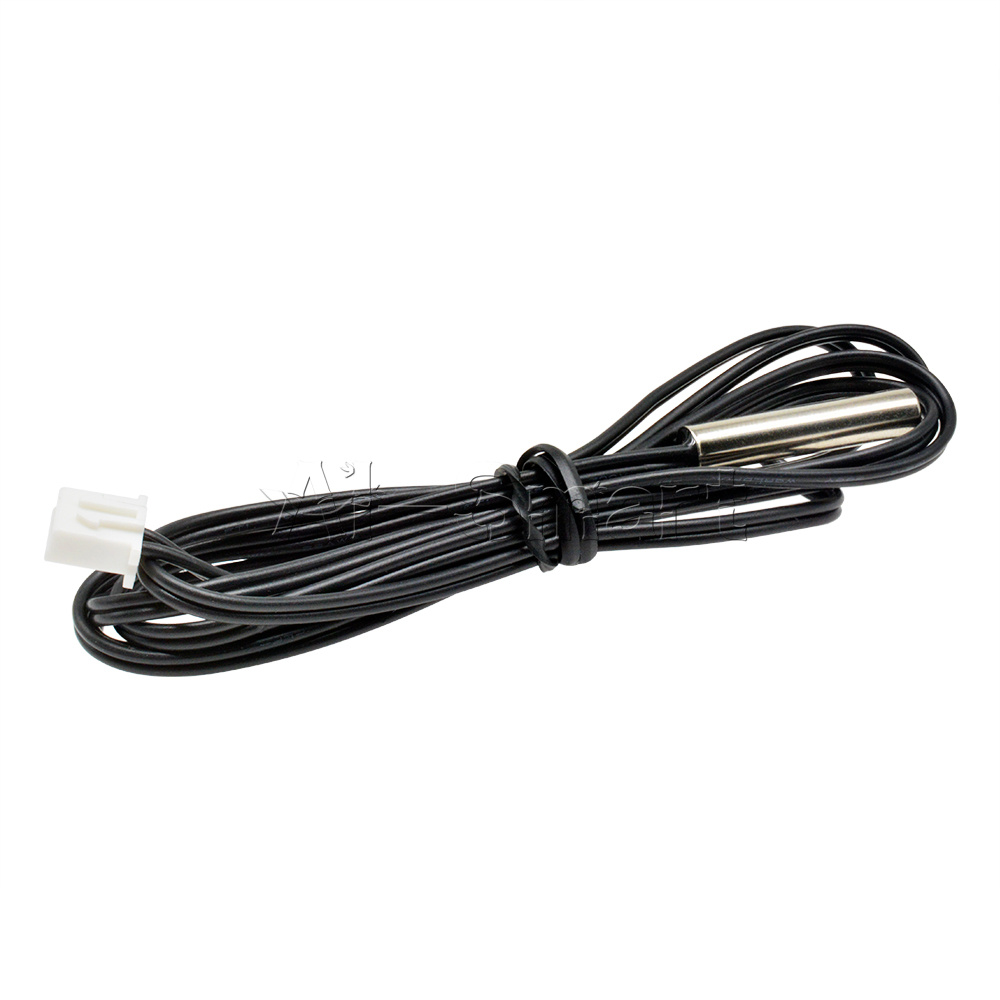

Stainless steel sheath and waterproof
Measurement range: -20 to 105 °C
Length of wire: 1 meter
Size of probe: 5 x 25 mm
Output： 2 wires
Type: NTC 10k±1% 3950
measure environmental temperatures using arduino ADC and this 10k NTC LINK
Resistance to temperature conversion table LINK
B-constant : 3380K -/+ 1%
Typical Dissipation Constant 5mW/ °C
Probe insulation: >100MOhm
Peak Voltage sustain time: 2 seconds, AC1800V 1mA 2 seconds
Stress sustain: 9.8N (1kgF) for 1 minute no deformation
Package Included:
1PC*1M NTC Thermistor Temperature Sensor Waterproof Probe Cable 10K 1% 3950
