Description
ERM1602DNS-5-4832 is 16 characters wide,2 rows character lcd module,ST7070 controller (Industry-standard HD44780 compatible controller),I2C Serial interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,fstn-lcd positive,white text on the black color,high contrast,wide operating temperature range,wide view angle,rohs compliant,built in character set supports English/Japanese text, see the ST7070 datasheet for the full character set.It's 5V power supply with I2C adapter board for arduino Board.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Of course, we wouldn't just leave you with a datasheet and a "good luck!". We prepared libraries and examples for arduino user.
*The product image has been photoshopped,the black color of actural product is not as black as image shows.Please refer to the below product video for more detail.

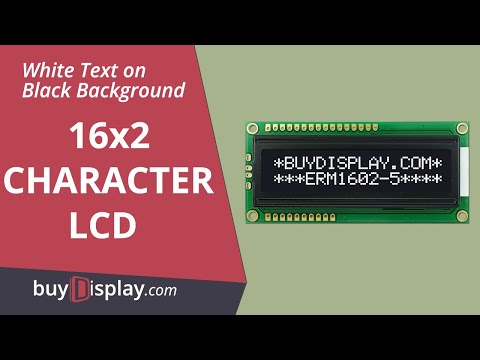

High Contrast Serial 16x2 Character LCD Module 3.3V/5V Power White Text on Black
Video will open in a new window
Using the eBay App? Paste link into a browser window:
ERM1602-5(5V) Series Display List ↓
Display Part Number | Description |
16x2 Character LCD Display Dark Blue on Yellow Green with I2C Adaptor Board | |
16x2 Character LCD Display White on Blue with I2C Adaptor Board | |
16x2 Character LCD Display Black on White with I2C Adaptor Board | |
16x2 Character LCD Display White on Black with I2C Adaptor Board |
Package Content ↓
Num | Accessory Name | Qty |
1 | 16x2 Character LCD Module | 1 |
2 | I2C Adapter Board | 1 |
3 | Dupont Wire | 1 |
Ebay doesn't allow listings to contain external links,so the documents link may be invalid. Please copy the below entire link to your browser for checking our documents(at the bottom of the page) or for bulk order.
https://www.buydisplay.com/default/serial-16x2-character-lcd-module-3-3v-5v-power-white-text-on-black
Datasheet - Character LCD Module,Controller IC ↓
Format | Documents Name (Downloadable) | Version | Language | Update Date | Size |
 | 1.1 | English | Mar-14-2015 | 398K | |
| 1.0 | English | Mar-10-2003 | 342K | |
| 1.0 | English | Jul-17-2019 | 203K |
Tutorial - Arduino ↓
Format | Documents Name (Downloadable) | Version | Language | Update Date | Size |
 | 1.0 | English | Jul-23-2019 | 45K | |
| 1.0 | English | Aug-12-2019 | 97K |
| Gross Weight (kg) | 0.0500 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2019. |
| Part Number | ERM1602DNS-5-4832 |
| Display Format | 16x2 Character |
| Interface | I2C Serial |
| IC or Equivalent | ST7070 |
| Appearance | White on Black |
| Diagonal Size | No |
| Connection | Pin Header |
| Outline Dimension | 80.0(W)x36.0(H)x11.0(T)mm |
| Visual Area | 64.50x14.50mm |
| Active Area | 55.70x11.00mm |
| Character Size | 2.90x5.15mm |
| Dot (Pixel) Size | 0.54x0.60mm |
| Dot (Pixel) Pitch | 0.59x0.65mm |
| IC Package | COB |
| Display Type | FFSTN-LCD Black |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Response Time(Typ) | No |
| Contrast Ratio(Typ) | No |
| Colors | No |
| Viewing Direction | 6:00 |
| Viewing Angle Range | No |
| Brightness(Typ) | No |
| Backlight Color | White Color |
| Backlight Current (Typ) | 15mA |
| Power Supply(Typ) | 5V |
| Supply Current for LCM(Max) | 500uA |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Series Number | ERM1602-5 |
