Product Information

King (MB5233AM +010) Main Bearings suits Nissan Z22 720 Cabstar

Item Specifics
SKU: MB5233AM
Returns: 30 Days
Ships From: Melbourne

Description

King (MB5233AM +010) Main Bearings suits Nissan Petrol Z22 see list below for supported models and engines

STD 010 020 030 Shaft 59.942/54.955mm 2.3599/2.3604¨ Tunnel 63.645/63.658mm 2.5057/2.5062¨

Specifications

Position 3 1,5 2,4
Pairs & PN
AM AM
F5233 F5233
AM AM
M 587/1U M 587/1L
AM AM
M 587/2 M 587/2
Quantity 1 2 2
Crankshaft 59.944 / 59.959 59.944 / 59.959 59.944 / 59.959
Housing 63.650 / 63.668 63.650 / 63.668 63.650 / 63.668
Max Wall 1.831 1.831 1.831
Max Length 32.078 26.101 24.100
FL O/S
31.98/31.93 STD
32.00/31.95 0.25
32.00/31.95 0.5
32.00/31.95 0.75
32.00/31.95 1.0
32.00/31.95 1.25
32.23/32.18 1.5

Cross Reference

Make Reference This list is for reference purpose only.Product design, compatible engines, or any other characteristics might be different from reference Part No.
ACL 5M1176-STD
CLEVITE MS-2042P
FMOGUL 7139M
GLYCO H1151/5 STD

Variations for this Engine

These are the different Variations for the Nissan Z22 4 Cylinder Petrol Engine. Please check carefully you have selected the right part for your vehicle.

King Engine Bearings (MB5233AM +010) Main Bearings STD 010 020 030
Shaft 59.942/54.955mm 2.3599/2.3604¨
Tunnel 63.645/63.658mm 2.5057/2.5062¨
King Engine Bearings (MB5233AM +020) Main Bearings STD 010 020 030
Shaft 59.942/54.955mm 2.3599/2.3604¨
Tunnel 63.645/63.658mm 2.5057/2.5062¨
King Engine Bearings (MB5233AM +030) Main Bearings STD 010 020 030
Shaft 59.942/54.955mm 2.3599/2.3604¨
Tunnel 63.645/63.658mm 2.5057/2.5062¨
King Engine Bearings (MB5233AM STD) Main Bearings STD 010 020 030
Shaft 59.942/54.955mm 2.3599/2.3604¨
Tunnel 63.645/63.658mm 2.5057/2.5062¨

Suitable For

Nissan
200B 810 L20B
720 Ute Z22
Bluebird 910 L20B
Cabstar F22 Z20
Cabstar H40 Z22
Navara D21 Z20
Navara D21 Z24
Nomad C22 Z24
Pathfinder D21 Z24
Urvan E23 Z20
Urvan E24 Z24
Vanette C22 Z20
Vanette C22 LD20

Overview

King Engine Bearings was founded in 1960 with one simple objective: to supply the highest quality bearings available in the marketplace. By specializing in engine bearings, King has built an extensive product offering that includes a wide range of engine bearings for automobiles, light duty and heavy duty trucks, marine, aviation, standby power and many other types of internal combustion engines. Every King bearing utilizes the highest quality materials and the most advanced designs to ensure complete customer satisfaction.

Other Parts for this Engine

These are the different parts available for the Nissan Z22 4 Cylinder Petrol Engine

Camshaft Bearings
Camshaft Gears
Nason NTG7 Camshaft gear Suits Double Row Timing Chain
Chassis and Driveline
Mackay A5059 Engine Mount Bush Engine mount rear of engine
Suits 720 Ute models
Conrod Bearings
King Engine Bearings (CR4431AM +010) Conrod Bearings STD 010 020 030 040
Shaft 49.960/49.970mm 1.9669/1.9673¨
Tunnel 53.005/53.013mm 2.0868/2.0871¨
King Engine Bearings (CR4431AM +020) Conrod Bearings STD 010 020 030 040
Shaft 49.960/49.970mm 1.9669/1.9673¨
Tunnel 53.005/53.013mm 2.0868/2.0871¨
King Engine Bearings (CR4431AM +030) Conrod Bearings STD 010 020 030 040
Shaft 49.960/49.970mm 1.9669/1.9673¨
Tunnel 53.005/53.013mm 2.0868/2.0871¨
King Engine Bearings (CR4431AM STD) Conrod Bearings STD 010 020 030 040
Shaft 49.960/49.970mm 1.9669/1.9673¨
Tunnel 53.005/53.013mm 2.0868/2.0871¨
Conversion Gasket Sets
Cooling
Tridon Thermostat Opening Temp: 82°C Flange Dia: 54mm - TT2041-180 Thermostat (Hi Flow)
Suits 720 Ute 1/1980-12/85
Cabstar H41 5/1982-12/87
Crankshaft Gears
Exhaust Gaskets
Filters
K&N HP-2008 Oil Filter Performance oil filter
Suits Cabstar models
K&N PS-2008 Oil Filter Oil filter
Suits Cabstar models
Full Gasket Sets
Durapro (GSGJ350D) Full Gasket Set Suits carburettor engine only
Head Gaskets
Hose and Fittings
Mackay CH1600 Radiator Hose (Bottom) Bottom hose
Suits 720 models
Mackay CH2825 Radiator Hose (Top) Top hose
Suits Cabstar models
Inlet Manifold Gasket
Main Bearings
King Engine Bearings (MB5233AM +010) Main Bearings STD 010 020 030
Shaft 59.942/54.955mm 2.3599/2.3604¨
Tunnel 63.645/63.658mm 2.5057/2.5062¨
King Engine Bearings (MB5233AM +020) Main Bearings STD 010 020 030
Shaft 59.942/54.955mm 2.3599/2.3604¨
Tunnel 63.645/63.658mm 2.5057/2.5062¨
King Engine Bearings (MB5233AM +030) Main Bearings STD 010 020 030
Shaft 59.942/54.955mm 2.3599/2.3604¨
Tunnel 63.645/63.658mm 2.5057/2.5062¨
King Engine Bearings (MB5233AM STD) Main Bearings STD 010 020 030
Shaft 59.942/54.955mm 2.3599/2.3604¨
Tunnel 63.645/63.658mm 2.5057/2.5062¨
Manifold Gaskets
Misc Gaskets
Miscellaneous
Nason VK1013 Valve collet Suits 8mm Stem, 1 Square Bead
Oil Pumps
Piston and Rings
Piston Cylinder Sleeves
4 x Nason N3431B X 8.5 Sleeve Semi Finished: ID 3.401" x OD 3.617" x Length 8.500"
Nason N3431B X 8.5 Sleeve Semi Finished: ID 3.401" x OD 3.617" x Length 8.500"
Piston Rings Cast
Hastings (6149) STD Piston Rings Cast STD 020 040 060
1.5mm/1.5mm/4mm
Hastings (6149020) +020 Piston Rings Cast STD 020 040 060
1.5mm/1.5mm/4mm
Hastings (6149040) +040 Piston Rings Cast STD 020 040 060
1.5mm/1.5mm/4mm
TP (35943 1.00) +040 Piston Rings Cast STD 020 040 060
1.5mm/1.5mm/4mm
Piston Rings Chrome
Hastings (2C6149) STD Piston Rings Chrome STD 020 040 060
1.5mm/1.5mm/4mm
Hastings (2C6149040) +040 Piston Rings Chrome STD 020 040 060
1.5mm/1.5mm/4mm

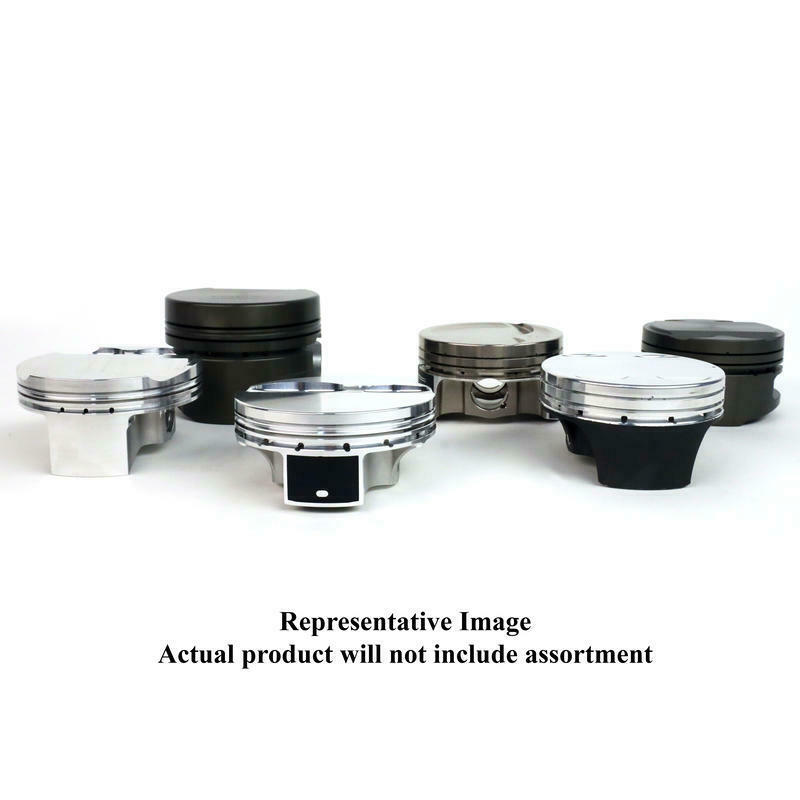

Pistons
Endurotec (PNIZ2240002E) STD Pistons Set Of 4 STD 020 040 (set of 4) Rings not included
Use RS1502 piston rings
Compression height 32mm -2.1mm
Endurotec (PNIZ2240401E) +040 Pistons Set Of 4 STD 020 040 (set of 4) Rings not included
Use RS1502 piston rings
Compression height 32mm -2.1mm
Endurotec (PNIZ2240402E) +040 Pistons Set Of 4 STD 020 040 (set of 4) Rings not included
Use RS1502 piston rings
Compression height 32mm -2.1mm
Hypatec (PNIZ2240209H) +020 Pistons Set Of 4 STD 020 040 (set of 4) Rings not included
Use RS1502 piston rings
Compression height 32mm -2.1mm
Rear Main Seals
Sump Gasket Sets
Timing Chains
Timing Cover Seals
Durapro (GSNJ045D) Crankshaft Seal Front ID 48mm x OD 70mm x depth 9mm
Timing Gasket Sets
Timing Kits
Endurotec (ETK-NIZ20-1) Timing Belt Kit Up to 1987 (double row) without gears
Endurotec (ETK-NIZ20G-1) Timing Belt Kit Up to 1987 (double row) with gears
Valve Cover Gaskets
Valve Guides
4 x Nason PVG2050 Valve guide OD 0.4735" x ID 0.3149" x Length 2.625"
Nason PVG2050 Valve guide OD 0.4735" x ID 0.3149" x Length 2.625"
Valve Regrind Gasket Set (VRS)
Durapro (GSDJ350D) VRS Gasket Set Suits carburettor engine only
Durapro (GSDJ350HSD) Head Gasket Set Head set (no valve stem seals)
Endurotec (GSDJ350E) VRS Gasket Set Suits carburettor engine only
Endurotec (GSDJ350HSE) VRS Gasket Set Head set (no valve stem seals)
Valve Spring Retainers
Valve Springs
Valve Stem Seals
Valves-Exhaust
EVL (TF 38925 SS WT) Exhaust Valve Stellite faced (suits fuel injected engines only)
Head 38mm x length 125.4mm x stem 8mm
EVL (TF 39005 SS WT) Exhaust Valve Stellite faced (suits carb engines only)
Head 38mm x length 127.5mm x stem 8mm
JCMC (EVNI-39-E) Exhaust Valve Suits fuel injected engines only
Head 38mm x length 125.4mm x stem 8mm
Valves-Inlet
JCMC (EVNI-39-I) Inlet/Intake Valve Suits fuel injected engines only
Head 42mm x length 124.4mm x stem 8mm
JCMC (EVNI-39-I) Inlet/Intake Valve Suits fuel injected engines only
Head 42mm x length 124.4mm x stem 8mm
