Product Information

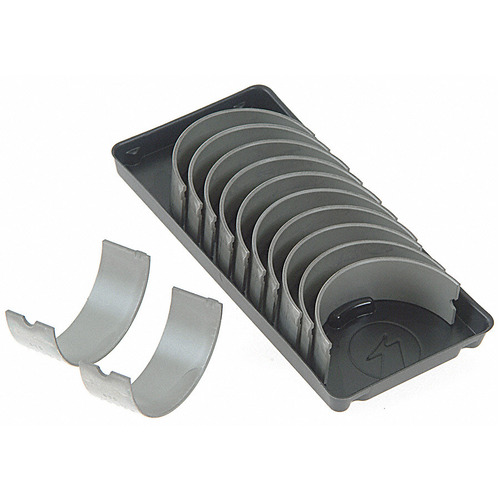

Sealed Power (6-3310CPA) Connecting Rod Bearing Set suits Jeep Cherokee XJ ERH 242 MX (4.0 Litre) (years: 1/94-8/01)

Item Specifics
SKU: 6-3310CPA
Returns: 30 Days
Ships From: Melbourne

Description

Sealed Power suits Jeep Cherokee XJ (years: 1/94-8/01) Petrol ERH 242 MX (4.0 Litre) see list below for supported models and engines

STD 010 020 Shaft 53.208/53.226mm 2.0948/2.0955¨ Tunnel 56.083/56.096mm 2.2080/2.2085¨

Sealed Power® parts provide innovative designs, use leading edge materials and utilize ISO & QS certified manufacturing in order to deliver top quality products that meet the rigorous demands of today's modern engines.


Steel-backed bronze alloy lining with overplate

Popular for fatigue resistance & strength

Provides conformability required for older apps

Our standard material is comparable to competitors performance bearing

Note - This material offers less resistance to wear & corrosion than other materials.

Utilizes ISO & QS certified manufacturing

Specifications

ENGINE BEARING
Housing Bore Max (Inch)
2.2085
Housing Bore Min (Inch)
2.2080
Oil Clearance Max (Inch)
0.0027
Oil Clearance Min (Inch)
0.0005
Overall Length Max (Inch)
0.8370
Standard Shaft Max (Inch)
2.0955
Standard Shaft Min (Inch)
2.0948
Wall Thickness Max (Inch)
0.0560
Housing Bore Max (MM)
56.0960
Housing Bore Min (MM)
56.0830
Oil Clearance Max (MM)
0.0690
Oil Clearance Min (MM)
0.0130
Overall Length Max (MM)
21.2600
Standard Shaft Max (MM)
53.2260
Standard Shaft Min (MM)
53.2080
Wall thickness Max (MM)
1.4220
Design Feature 1
Standard Size
Design Feature 2
Full set

Variations for this Engine

These are the different Variations for the Jeep ERH 242 MX (4.0 Litre) 6 Cylinder Petrol Engine. Please check carefully you have selected the right part for your vehicle.

Sealed Power (6-3310CPA 10) Connecting Rod Bearing Set STD 010 020
Shaft 53.208/53.226mm 2.0948/2.0955¨
Tunnel 56.083/56.096mm 2.2080/2.2085¨
Sealed Power (6-3310CPA 20) Connecting Rod Bearing Set STD 010 020
Shaft 53.208/53.226mm 2.0948/2.0955¨
Tunnel 56.083/56.096mm 2.2080/2.2085¨
Sealed Power (6-3310CPA) Connecting Rod Bearing Set STD 010 020
Shaft 53.208/53.226mm 2.0948/2.0955¨
Tunnel 56.083/56.096mm 2.2080/2.2085¨

Suitable For

AMC
Jeep CJ7/8 J10/J20 258
Jeep Renegade 258
Rambler American 232
Rambler Hornet 258
Various 232
Various 258
Jeep
Cherokee XJ ERH 242 MX (4.0 Litre)
Grand Cherokee WG ERH 242 MX (4.0 Litre)
Grand Cherokee WJ ERH 242 MX (4.0 Litre)
Grand Cherokee ZG ERH 242 MX (4.0 Litre)
Renegade CJ5-CJ6-CJ7 232
Renegade CJ5-CJ6-CJ7 258
Wrangler TJ ERH 242 MX (4.0 Litre)
Mazda
Various 199

Overview

Sealed Power® engine products are a complete system of application-engineered replacement components, including pistons, piston rings, engine bearings, camshafts, oil pumps, timing components and valvetrain products. These proven replacement parts are the result of nonstop product development efforts, dedicated to putting only the absolute best on the street.

Federal-Mogul engineers design and validate all components to accommodate repowering engines due to wear. By leveraging this expertise, Sealed Power components ensure unmatched performance and reliability.

Professionals trust Sealed Power components for premium passenger car and light truck rebuilds. They meet or exceed industry standards. Rely on Sealed Power products for your next engine rebuild or repair.
