2 Channels Video Optical Media Converters, FC port, Single mode 0~20Km.




High Quality / High Performance / 3 Years Warranty.



MTBF (Mean Time Between Failure) Over 100,000 hours, Buy With Confidence!

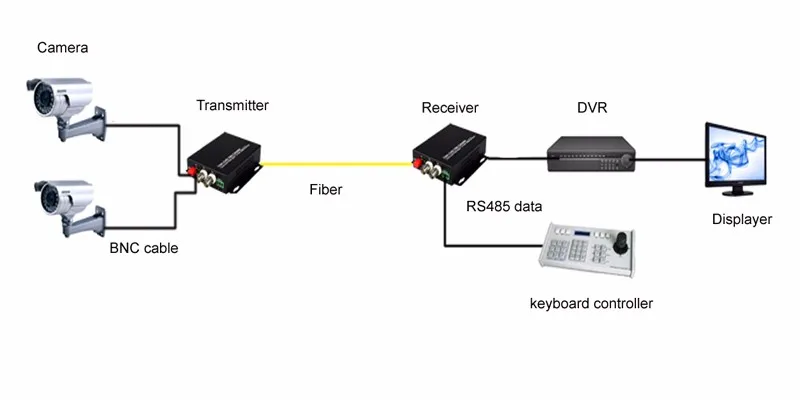

With RS485 data : PTZ cameras controllable.


Without RS485 data, don't support PTZ cameras




Don't settle for low cost,generic,poor quality/Not quality item which will stop working within 1~12 months, choose optimal,choose us!





Multimode 0~2Km available, contact us if need.

  11

For the environment:


1.      Security Systems

2.      Radio and television transmission

3.      Video monitoring

4.      Building control systems

5.      Train/High speed road monitoring

6.      Intelligent Traffic Monitoring System (ITS)

7.      Remote multimedia teaching / campus monitoring

8.      Long-distance radio and television transmission system





Video Index:


1.      Video : 2 channels.

2.      Video Interface: BNC.

3.      Video Input / Output Impedance : 75ohm ( unbalanced ) .

4.      Video Bandwidth 8MHz.

5.      Video format compatible PAL, NTSC, SECAM.

6.      Video voltage 1VP-P.

7.      Video SNR ≥ 70dB.

8.      Differential gain ≤ 0.7%.

9.      Differential phase ≤ 0.7 °.

10.   8- bit linear PCM coding.

11.   15MHZ high-speed sampling .




Optical index:


1.      Optical interface : FC

2.      Transmission distance : single-mode fiber 0-20KM

3.      Wavelength : Single-mode 1310/1550μm (9/125μm)






General Index:


1.      The usual time between failures (MTBF) greater than 100,000 hours

2.      Operating temperature : -40  +70 degree

3.      Operating humidity :0 -95 % non-condensing


Package:


1.      1x 2CH video data transmitter

2.      1x 2CH video data receiver

3.      2x Power adapter ( AC 100-240 V universal, DC 12 V output,UK type, US/EU/AU Available)

4.      User manual







Warranty and Guarantee:

1.Three years Warranty, Buy with confidence!

2.If you find any defect for item in 3 months, we will send you a replacement without additional cost, or make refund after we receive the defective item.

3. If item is defective after 3 months, we can still accept that you send it back to us. A new one will be sent to you after we received the defective item, but you have to pay the extra shipping fee.
