Technical Specification

Product	Socket Screw
Head Type	Socket Cap
Screw Size	2-56
Thread Pitch (TPI)	UNC - 56
Thread Type	Imperial UNC Coarse
Thread Length - APPROX	Refer to the dropdown above
Length - from under the head	Choose from the dropdown above
Head Diameter	0.134" ~ 0.140"
Head Height	0.082" ~ 0.086"
Wrench Key Size	5/64"
Material	Alloy Steel
Grade	12.9
Finish	Plain - Not Coated
Brand - Our Discretion	Brighton Best / Hobson
Quantity	Choose from the dropdown above

Product Information

This is a MULTI-VARIATION listing, pick your configuration and pack size from the dropdowns above BUY IT NOW on a mobile phone or desktop
Please be aware there are inconsistencies with thread lengths on ALL socket product, specifications for this listing have been taken from ANSI B18.3 and as such we recommend they should be used as a guide only, we have found variations exist at the point when the thread length on the product is suppose to change from being fully threaded to part thread, part shank. The lengths affected are generally the lengths within the 25 - 50mm long range

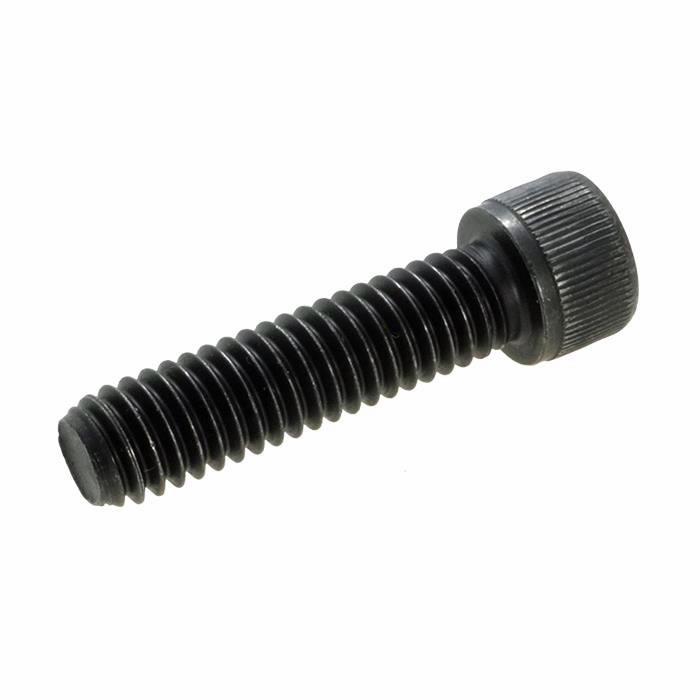

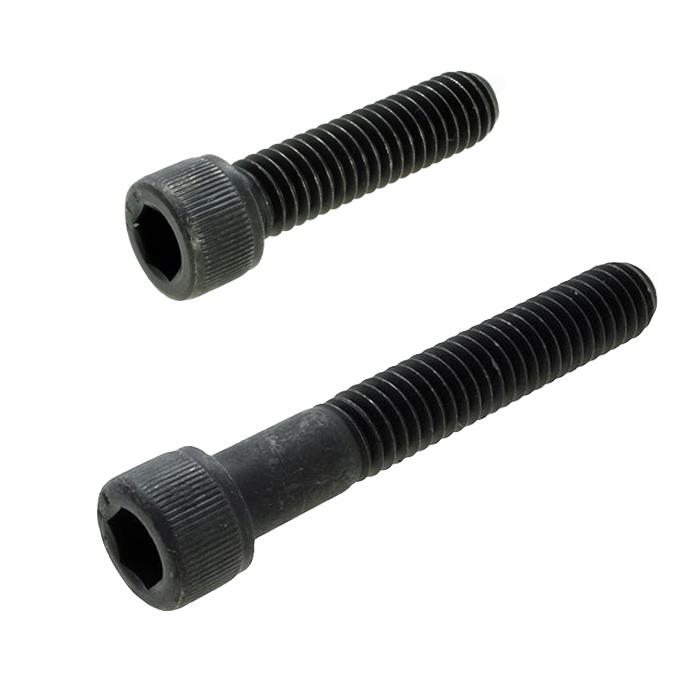

The image(s) are not to scale and may not be the diameter or length for this listing, they are for illustrative purposes only
The product conforms to ANSI B18.3
Due to stock availability we reserve the right at times to ship multiple brands to fulfil your order
At times differences may exist between same brand batches such as markings or the actual “finish”
Plain = Uncoated carbon steel finish and is not recommended for external applications
Thread lengths can vary depending on the brand
A Tax Invoice will be included with every order
Need help? message us thru eBay
If you are looking for another type, diameter, length, width, material or pack size use the store search box on our store page
