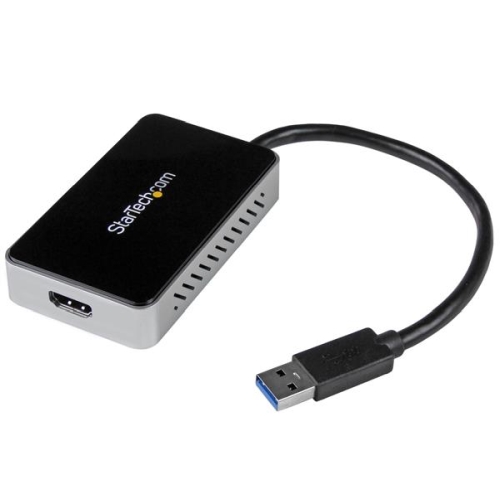

StarTech USB32HDEH USB 3.0 to HDMI External Video Card Multi Monitor Adapter

USB 3.0 to HDMI External Video Card Multi Monitor Adapter with 1-Port USB Hub – 1920x1200 / 1080p

The USB32HDEH USB 3.0 to HDMI Adapter turns a USB 3.0 port into an HDMI output port with 1920x1200/1080p video support. The adapter features built-in USB 3.0 pass-through, which offers a connection port in place of the USB port used for connecting the HDMI adapter – an ideal workaround for Ultrabook™ or laptop users, where only a limited number of USB ports are available.

Functioning as an external graphics card, this USB to HDMI adapter provides a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).

Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your HDMI display / projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity. The included HDMI to DVI adapter also allows you to use this device with a DVI display.

Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher

The StarTech.com Advantage
  • Keep a USB 3.0 port available on your Ultrabook or slim laptop, using the built-in USB 3.0 hub
  • Enjoy smooth, high-definition video content, using a high bandwidth USB 3.0 connection
Features
  • High-Definition resolution support (up to 1920x1200/1080p)
  • Built in 1-Port USB 3.0 Hub
  • SuperSpeed USB 3.0 (5 Gbps) Interface, backward compatible with USB 2.0
  • Quick, easy installation
  • USB-powered - No external power adapter required
  • Choose between Mirrored, Extended or Primary display configurations
  • Driver software supports display rotation
  • Supports the use of multiple USB32HDEH adapters on a single system (up to 5)
Specifications
TechnologyAccessories
TypeVideo Converter
Warranty1 Year
Warranty Information
Warranty 2 Years
Hardware
Audio Yes
Chipset ID MCT - T6-688SL
Industry Standards SuperSpeed USB 3.0, USB 2.0
Memory 16MB DDR II
Output Signal HDMI
USB Pass-Through Yes
Performance
Audio Specifications 2-Channel Stereo (48Khz)
General Specifications This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset.
Maximum Digital Resolutions 1920x1200
Supported Resolutions Widescreen(16/32 bit):
1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720

Standard(16/32 bit):
1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600
Wide Screen Supported Yes
Connector(s)
Connector A 1 - USB Type-A (9 pin) USB 3.0 Male
Connector B 1 - HDMI (19 pin) Female
  1 - USB Type-A (9 pin) USB 3.0 Female
Software
Microsoft WHQL Certified Yes
OS Compatibility Windows 10 (32/64)
Windows 8 / 8.1 (32/64)
Windows 7(32/64)
Windows Vista (32/64)
Windows XP (32/64)
Special Notes / Requirements
Note Connect a maximum of five USB32HDEH adapters on a single PC - See manual for system requirements
System and Cable Requirements CPU: i3 Dual core 2.8GHz
RAM: 2GB or higher

Full HD Video:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
Power
Power Source USB-Powered
Environmental
Humidity < 85% non-condensing
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 75°C (14°F to 167°F)
Physical Characteristics
Cable Length 6.3 in [160 mm]
Color Black
Enclosure Type Plastic
Product Height 0.7 in [17 mm]
Product Length 3.3 in [85 mm]
Product Weight 2.6 oz [75 g]
Product Width 1.9 in [49 mm]
Packaging Information
Shipping (Package) Weight 0.5 lb [0.2 kg]

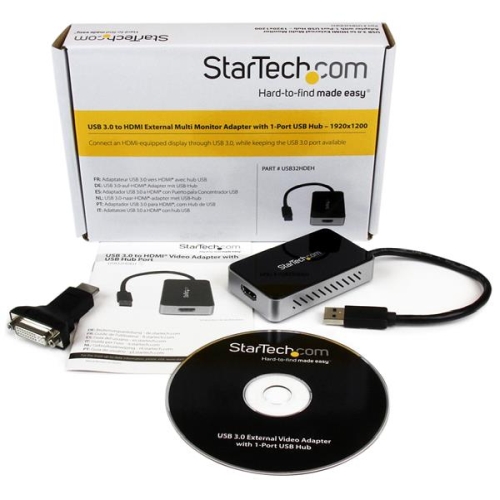

What's in the Box
Included in Package 1 - USB 3.0 to HDMI Adapter
  1 - HDMI to DVI adapter
  1 - Software CD
  1 - Manual
