Grippex Bar Puller. Choice of 2 ranges 2 - 60mm and 3 - 80mm Capacity.
Choice of 3 plain shanks: 25mm, 32mm & 40mm diameter.
The Bar Puller that makes your CNC-Lathe more effective, right away!
The Bar Puller that makes your CNC-Lathe more effective, right away!
For various reasons, such as high costs or limited floor space in work shops, only a small percentage of the CNC-Lathes are equipped with some kind of magazine-type barfeeder.
In small batch production, however, the machine spindle itself, in addition with its inserted guiding tube and Grippex, provides you with a simple and highly efficient Bar-Feeder.
Grippex Advantages
Instant setup – gripping is secured without any adjustment within the whole gripping range.
Compact & light – adjacent turret tool positions need not be vacated
Powerful – stands high pressure (no need for a pressure reduction valve)
Grippex doesn’t need high pressure – it works from 0.5 bar upwards
Can work with coolant or air pressure.
Clamps very close to the chuck, allowing for short overhang of the bar.
Clamps hexagon bars without need for spindle orientation.
Can also be used as a Pick-up unit with ‘robot’ jaws.
Here's how it works!
Programming method
Calling the turret tool post holding the Grippex Bar Puller.
Positioning of Grippex in X- and Z-axes.
In small batch production, however, the machine spindle itself, in addition with its inserted guiding tube and Grippex, provides you with a simple and highly efficient Bar-Feeder.
Grippex Advantages
Instant setup – gripping is secured without any adjustment within the whole gripping range.
Compact & light – adjacent turret tool positions need not be vacated
Powerful – stands high pressure (no need for a pressure reduction valve)
Grippex doesn’t need high pressure – it works from 0.5 bar upwards
Can work with coolant or air pressure.
Clamps very close to the chuck, allowing for short overhang of the bar.
Clamps hexagon bars without need for spindle orientation.
Can also be used as a Pick-up unit with ‘robot’ jaws.
Here's how it works!
Programming method
Calling the turret tool post holding the Grippex Bar Puller.
Positioning of Grippex in X- and Z-axes.
Coolant ON for Grippex clamp
Chuck unclamp.
Pulling-out the bar and exact positioning in Z-axis according to the programme.
Chuck clamp.
Return to zero and calling first tool.

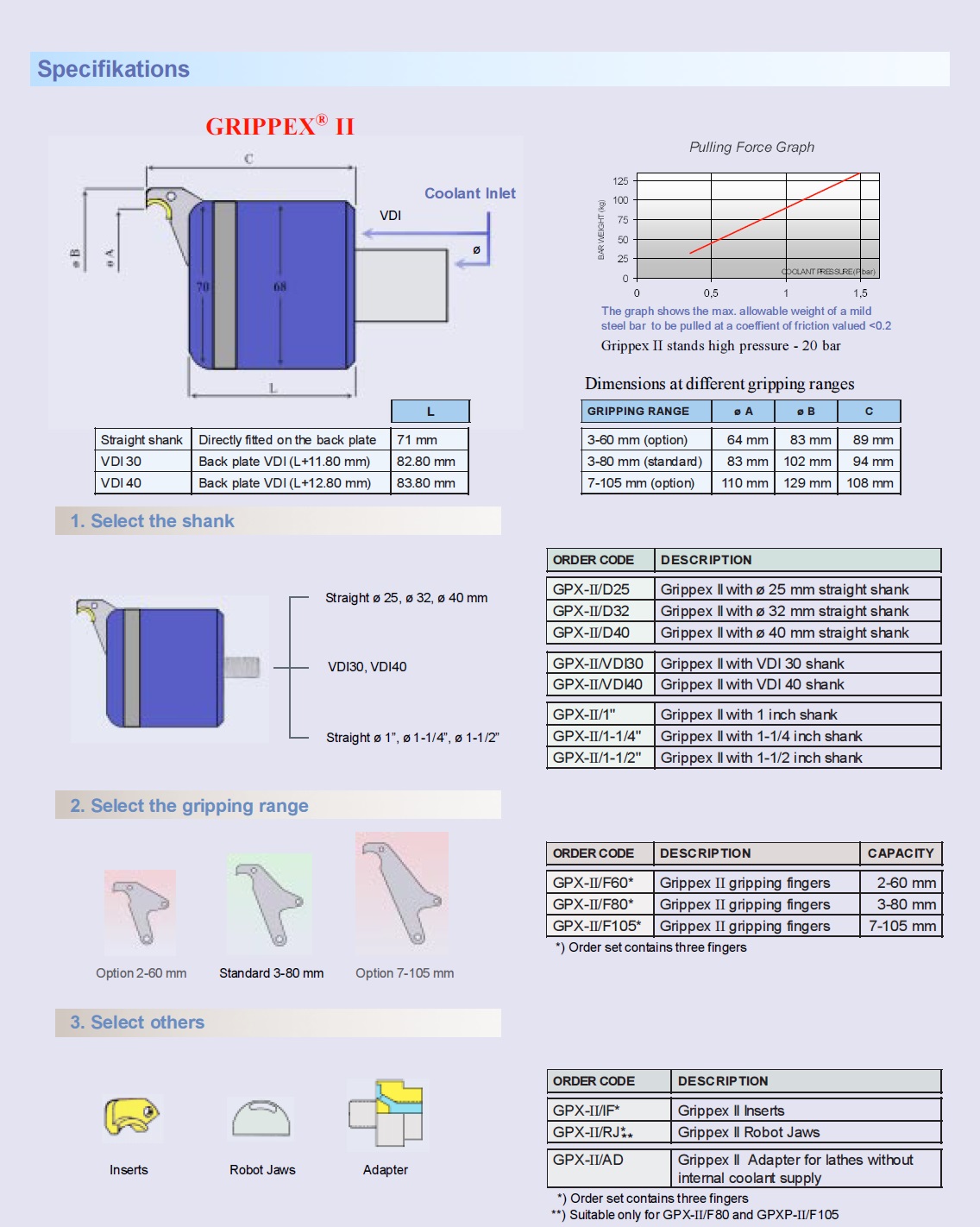

Specifications
Capacity: 2 - 60mm or 3 - 80mm
Shank: 25, 32 or 40mm Diameter.
Also available with VDI shanks.
Spare finger sets & grippers available.
As we have these for sale elsewhere it is advisable to contact us before purchasing to confirm availability.
