1.Characteristic
Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.
USB2.0 interface, no external power source required, easy to use.
Be suitable for notebook computer, product line maintenance,be used easily on business.
Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
High performance, 250MS/s real-time sampling, 80MHz Bandwidth,
Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA.
23 measurement functions, PASS/FAIL Check, be suitable for technical application.

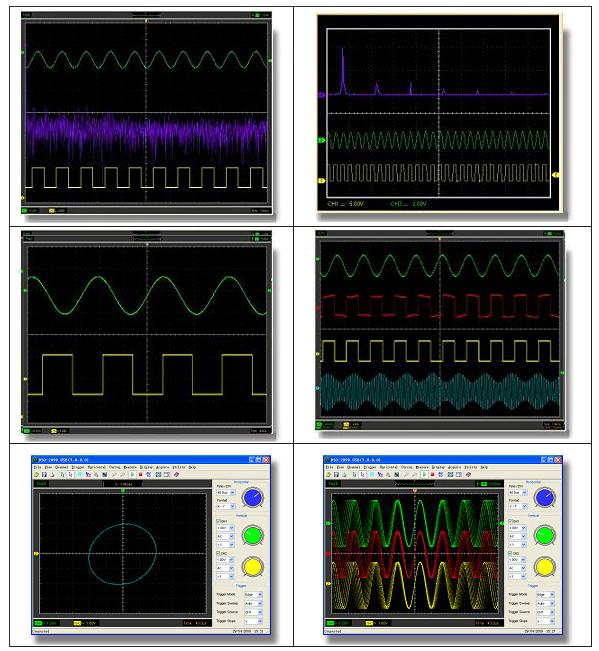

Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot.
Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
FFT
One computer can connect many DSO, extend channel easily.
Labview\VB\VC\Delphi\C++Builder Second Design instance.
2.Software
Operating system: Windows 7,8, Windows NT, Windows 2000,Windows XP, VISTA
3.Second Design
Supply DEMO code(VC,CVI,VB,LABVIEW) and technical support.
4.Specification:
| Channel | 2 Channels |
| Bandwidth | 80MHz |
| Input Impedance | 1MΩ 25pF |
| Max. Sample rate | 250MS/s |
| Coupling | AC/DC/GND |
| Vertical resolution | 8Bit |
| Gain range | 10mV-5V, 9Steps |
| DC accuracy | ±3% |
| Timebase range | 4ns-1h, 38 Steps |
| Vertical adjustable | Yes |
| Input protection | Diode clamping |
| X-Y | Yes |
| Autoset | Yes (30Hz to 80MHz) |
| EXT. input | Yes |
| Trigger Mode | Auto, Normal and Single |
| Trigger Slope | +/- |
| Trigger level adjustable | Yes |
| Trigger Type | Rising edge, falling edge |
| Trigger Source | CH1, CH2, EXT |
| Pre/Post trigger | 0-100% |
| Buffer size | 10K-64KB/Channel |
| Sampling selection | Yes |
| Waveform Display | port/line, waveform average, persistence, intensity |
| Network | Open/Close |
| Vertical mode | CH1, CH2, Dual, ADD |
| Cursor measurement | Yes |
| Math | FFT, addition, subtraction, multiplication, division. |
| Cursor | Frequency, Voltage |
| Data Samples | 10K-64K/Channel |
| Accessories | S/W CD, probes, manual, USB cord |
Package (airbubble envelop)
-
1 x 6082BE oscilloscope
-
2 x oscilloscope probe
-
1 x USB cable
-
1 x CD (manual etc.)
