CUSTOM 35 HOUR DGB DMD REPLACEMENT PROJECTOR LAMP PLUG-IN MODULE 30V 80W

CUSTOM MADE
35 HOUR

PROJECTOR LAMP MODULE

Patent Pending

For "Cramped Quarters" GAF, Argus, and Montgomery Ward Projectors

80 watts ~ 30 volts

30V/80W/G17Q/GY5.3/MR16D ANSI

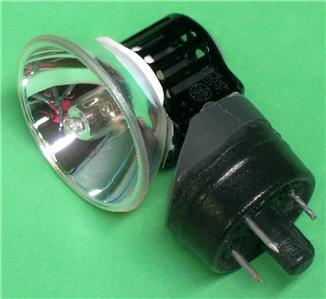

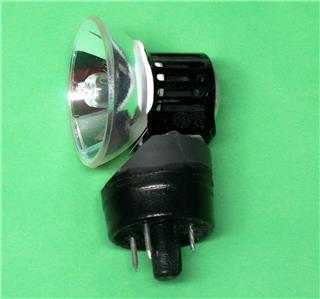

The internal reflector lamp is one of the most widely used lamps found in vintage movie film projectors. Some of the best quality 8mm and Super8 projectors ever made, especially those by Bell & Howell used internal reflector lamps. The last few years the DGB-DMD lamp has become increasingly hard to get, and the prices have skyrocketed. We have come up with a much more reliable,  over-all lower cost solution. The Custom Plug In Module. Patent Pending.

Just Plug It In!!!!!!!!!!!!

Replace that burnt out 15 Hour rated DGB-DMD with our 35 Hour rated Plug-In Replacement Module!!!

Works like a champ!!!

No tools or modifications required!!!

These custom plug-in modules are individually made by hand using the highest quality materials and components. We use a "special bulb" to get the 35 hour rating from this lamp. Built to last, they are tested multiple times before passing inspection. If this module fails for any reason within 60 days from purchase we will replace it for free. If lamp fails after 60 day warrantee you can replace the lamp for only 15 dollars!

This module will fit on all models applications listed below. But if you're not sure just email us. Compare with DGB-DMD lamp prices and you can see the savings are significant! This way too, you can keep using the old family projector!

This lamp is the same wattage(80) and voltage(30) as the DGB-DMD so it is fully compatible. The MR16 type lamp is less expensive to produce than the decades older designed DGB-DMD with its internal reflector. It last longer too, because it cools better, and has better shock resistance, making it more reliable. In fact, the MR16 halogen lamps are widely used in todays latest video projector models.


************CONSUMER PRODUCT LIABILITY DISCLAMER*************

I (THE CUSTOMER) , UNDERSTAND THAT THE PURCHASE AND USE OF THIS PRODUCT CAN RESULT IN LOSS, INJURY, OR DEATH. I ACKNOWELEDGE THAT BY PURCHASING AND USING THIS PRODUCT I ACCEPT SOLE RESPONSIBILITY FOR ANY LOSS, INJURY, OR DEATH(s) THAT MAY RESULT FROM THE PURCHASE AND USE OF THIS PRODUCT. FURTHER, BY PURCHASING AND USING THIS PRODUCT I (THE CUSTOMER) RELEASE THE PRODUCT MANUFACTURERS, ASSEMBLERS, MAKERS, AND SELLER(s) FROM ANY AND ALL LIABILITY RESULTING FROM THE USE, MIS-USE, OR MALFUNCTION OF THIS PRODUCT. ANY LIABILITY WILL WILL BE LIMITED TO THE COST OF THE PRODUCT.


DGB-DMD PROJECTOR LIST

AR Bernard
813 VICEROY 8mm Projector Movie

Argus Incorporated
844-P ARGUS 8mm Projector Movie
844-P 8mm Projector Movie
844P ARGUS 8mm Projector Movie
844P 8mm Projector Movie
844 ARGUS 8mm Projector Movie
877-ZR ARGUS 8mm Projector Movie
877-ZR 8mm Projector Movie
877ZR ARGUS 8mm Projector Movie
877ZR 8mm Projector Movie
877 ARGUS 8mm Projector Movie

Emdeko
9000 8mm Projector Movie

GAF Corporation
11 MEMORY-MASTER 8mm Projector Movie
1333 GAF 8mm Projector Movie December 1972
1388-Z GAF 8mm Projector Movie August 1973
1388Z GAF 8mm Projector Movie August 1973
1388 GAF 8mm Projector Movie August 1973
1488 GAF 8mm Projector Movie
1555-DZ GAF 8mm Projector Movie
1555DZ GAF 8mm Projector Movie
1564-Z GAF 8mm Projector Movie
1564Z GAF 8mm Projector Movie
1588-Z GAF 8mm Projector Movie
1588Z GAF 8mm Projector Movie
1688-Z GAF 8mm Projector Movie newer
1688-Z GAF 8mm Projector Movie
16888-Z GAF 8mm Projector Movie
16888Z GAF 8mm Projector Movie
1688Z GAF 8mm Projector Movie newer
1688Z GAF 8mm Projector Movie
2388-Z GAF 8mm Projector Movie
2388Z GAF 8mm Projector Movie
2388 GAF 8mm Projector Movie
2488-Z GAF 8mm Projector Movie
2488Z GAF 8mm Projector Movie
2488 GAF 8mm Projector Movie
2588-Z GAF 8mm Projector Movie
2588Z GAF 8mm Projector Movie
2 MEMORY-MASTER 8mm Projector Movie
II MEMORY-MASTER 8mm Projector Movie

McClure Projectors Incorporated
4-520-A INSTANT-VIEW Projector Slide / Filmstrip
4-520A INSTANT-VIEW Projector Slide / Filmstrip
IV-520-A INSTANT-VIEW Projector Slide / Filmstrip
IV-520A INSTANT-VIEW Projector Slide / Filmstrip
IV520-A INSTANT-VIEW Projector Slide / Filmstrip
IV520A INSTANT-VIEW Projector Slide / Filmstrip

Montgomery Ward Company
804 8mm Projector Movie
805 8mm Projector Movie
806 8mm Projector Movie
807 8mm Projector Movie
808 8mm Projector Movie
809 8mm Projector Movie
810 8mm Projector Movie

Sears, Roebuck and Company
9232 SEARS 8mm Projector Movie

Technicolor Incorporated
520 8mm Projector Movie​
